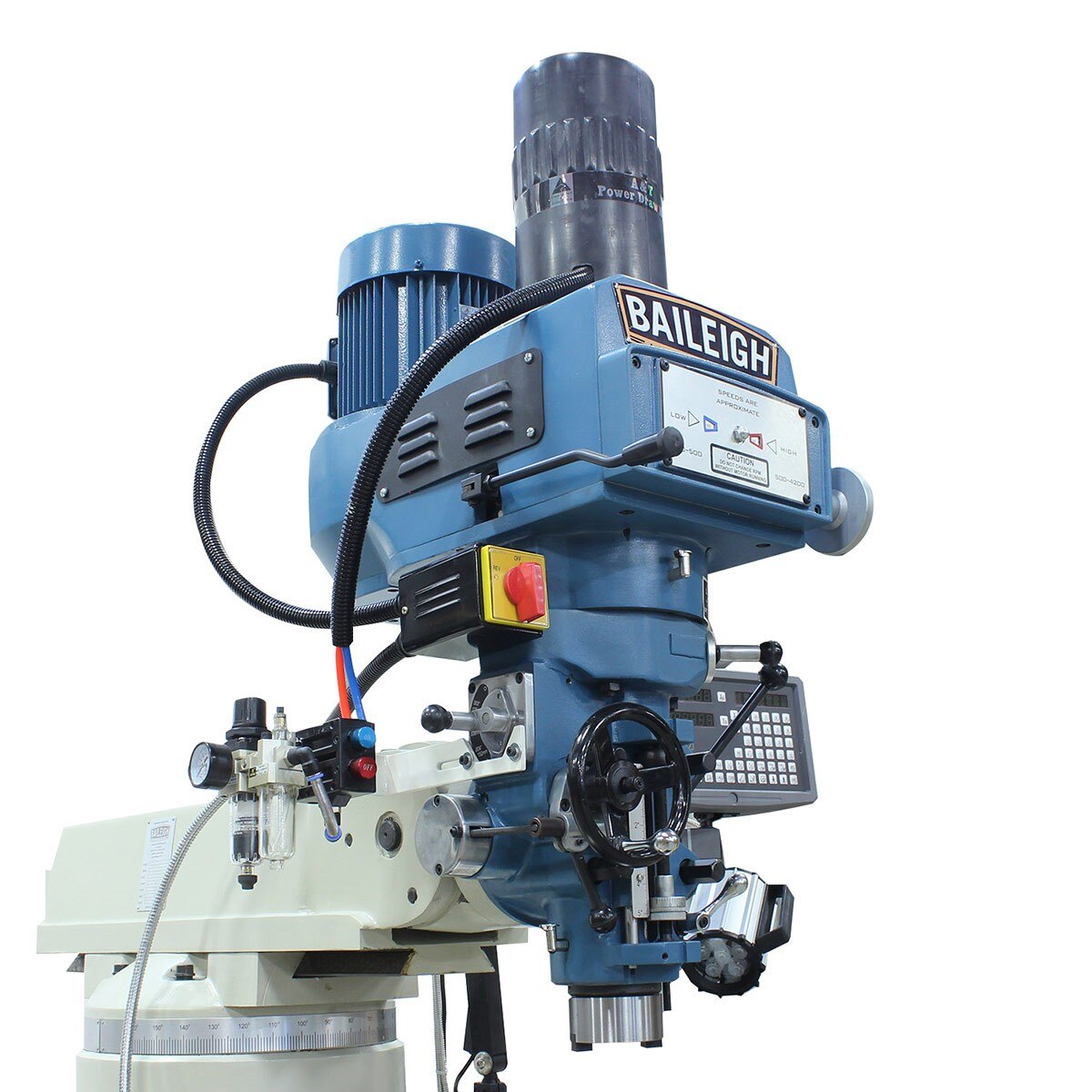

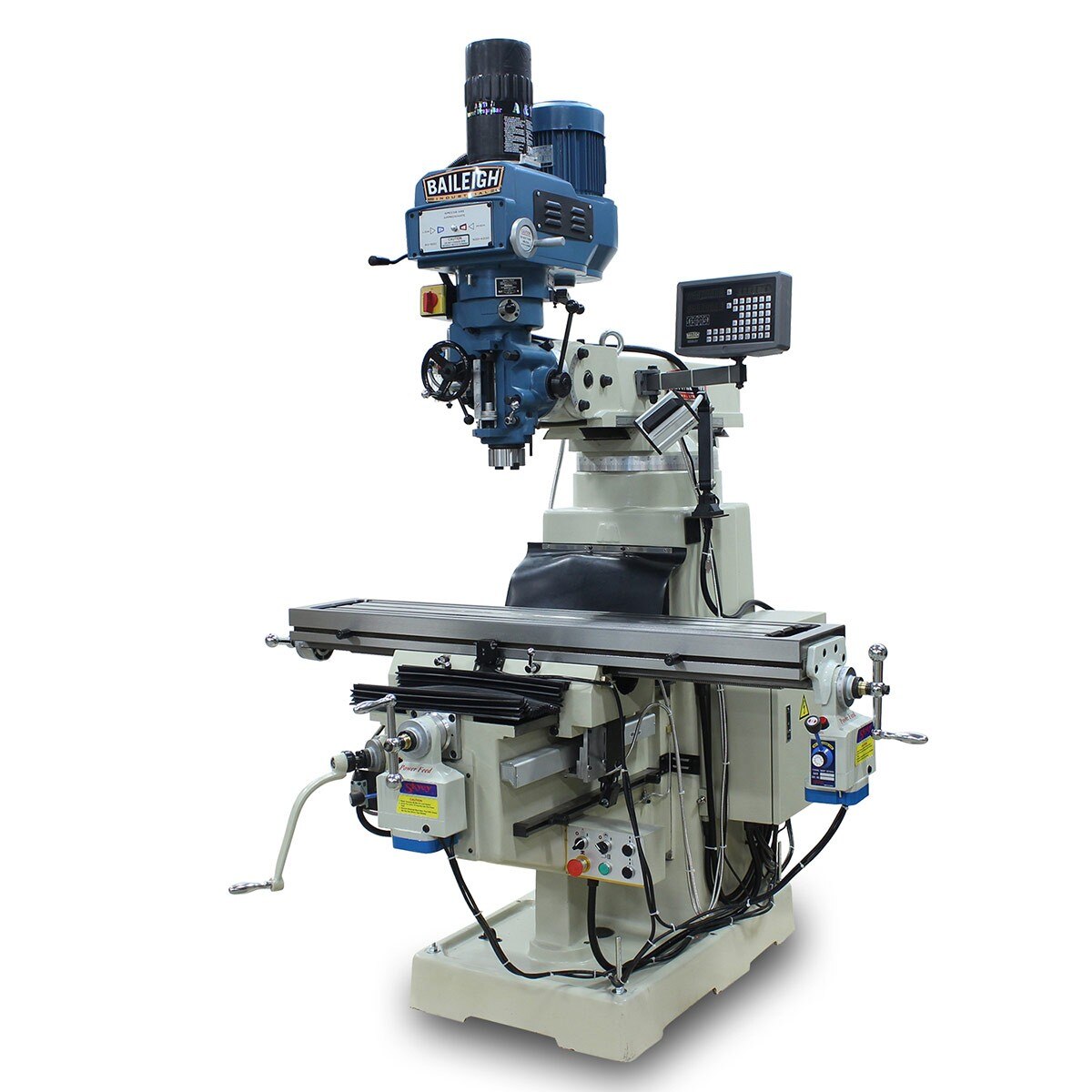

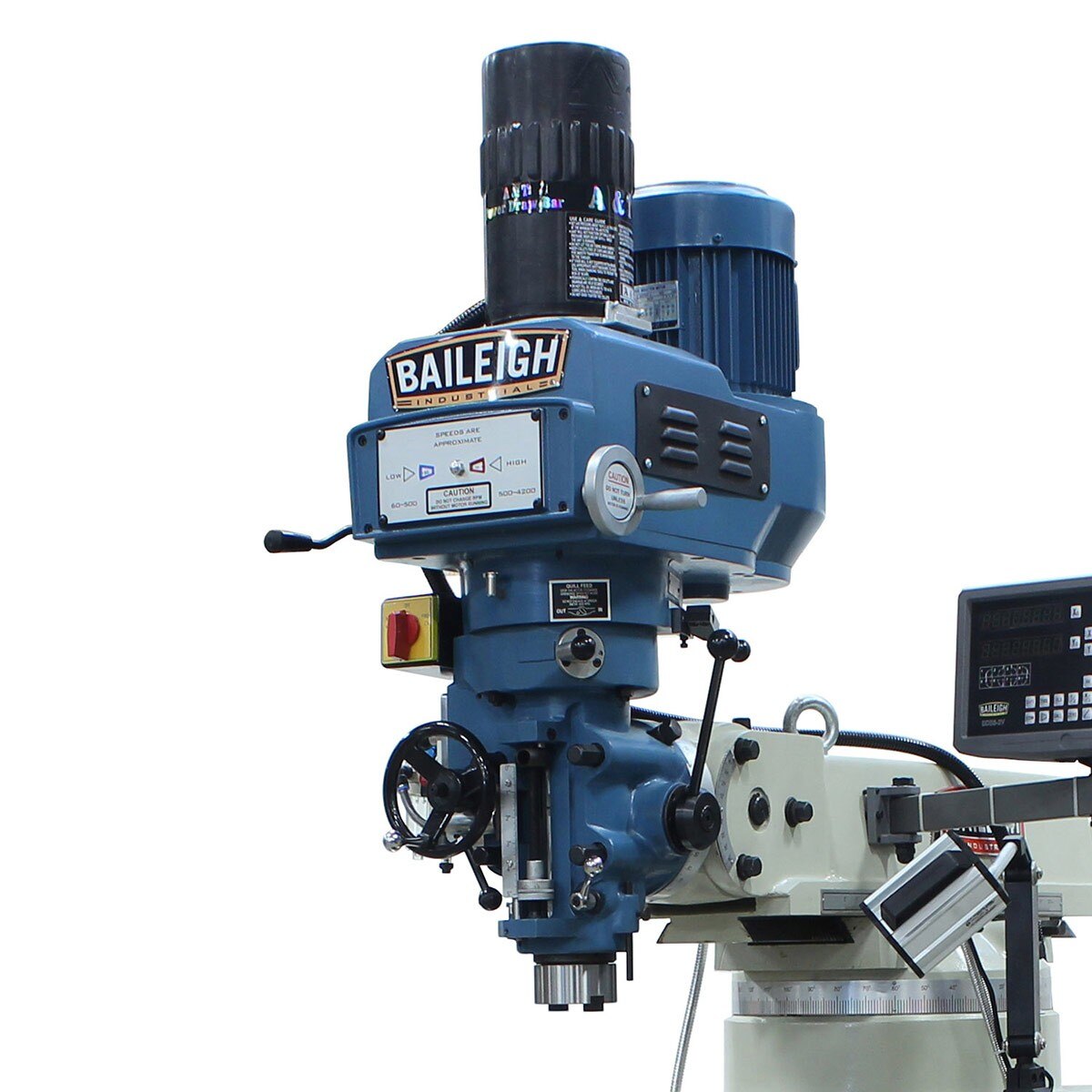

Baileigh Industrial BA9-1020696 Variable Speed Vertical Mill VM-1054E-VS
Free Shipping
$17,989.00
$21,252.86
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1020696 Description

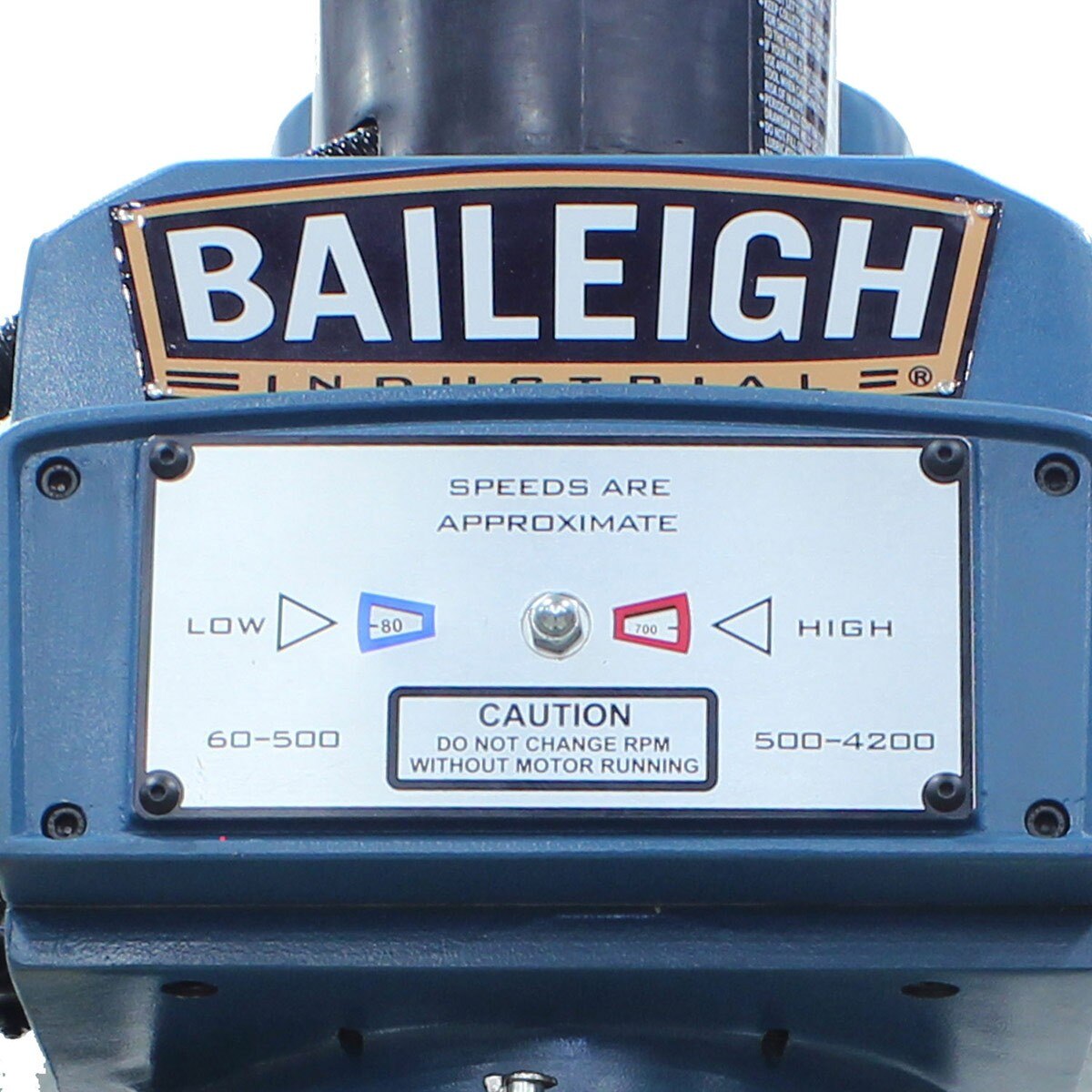

The VM-1054E-VS is a variable speed milling machine that runs from 60 to 4,200 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.
Baileigh Industrial 1020696 Includes
- (1) Vertical Milling Machine
Baileigh Industrial 1020696 Features
- Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time.
- Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is
- Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.

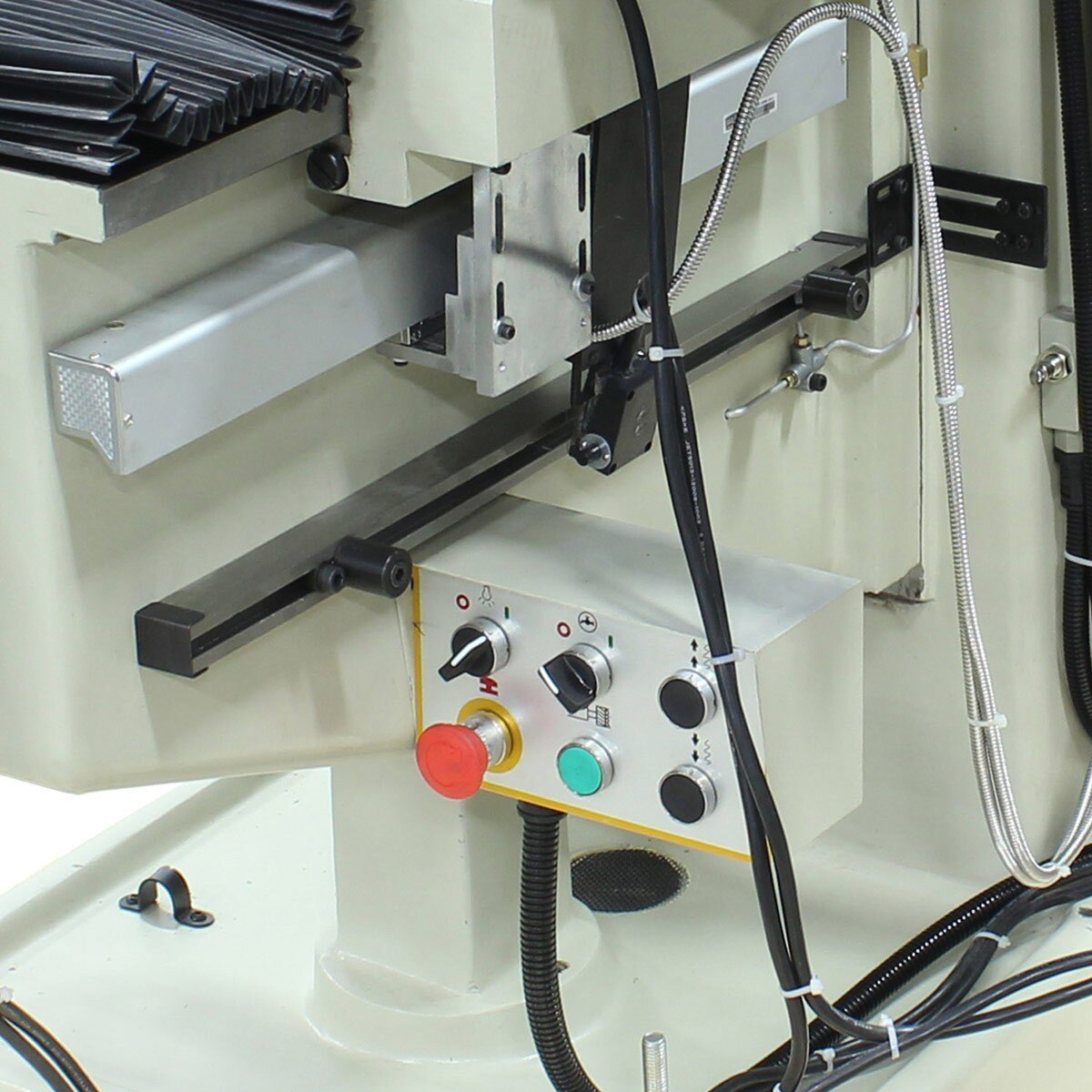

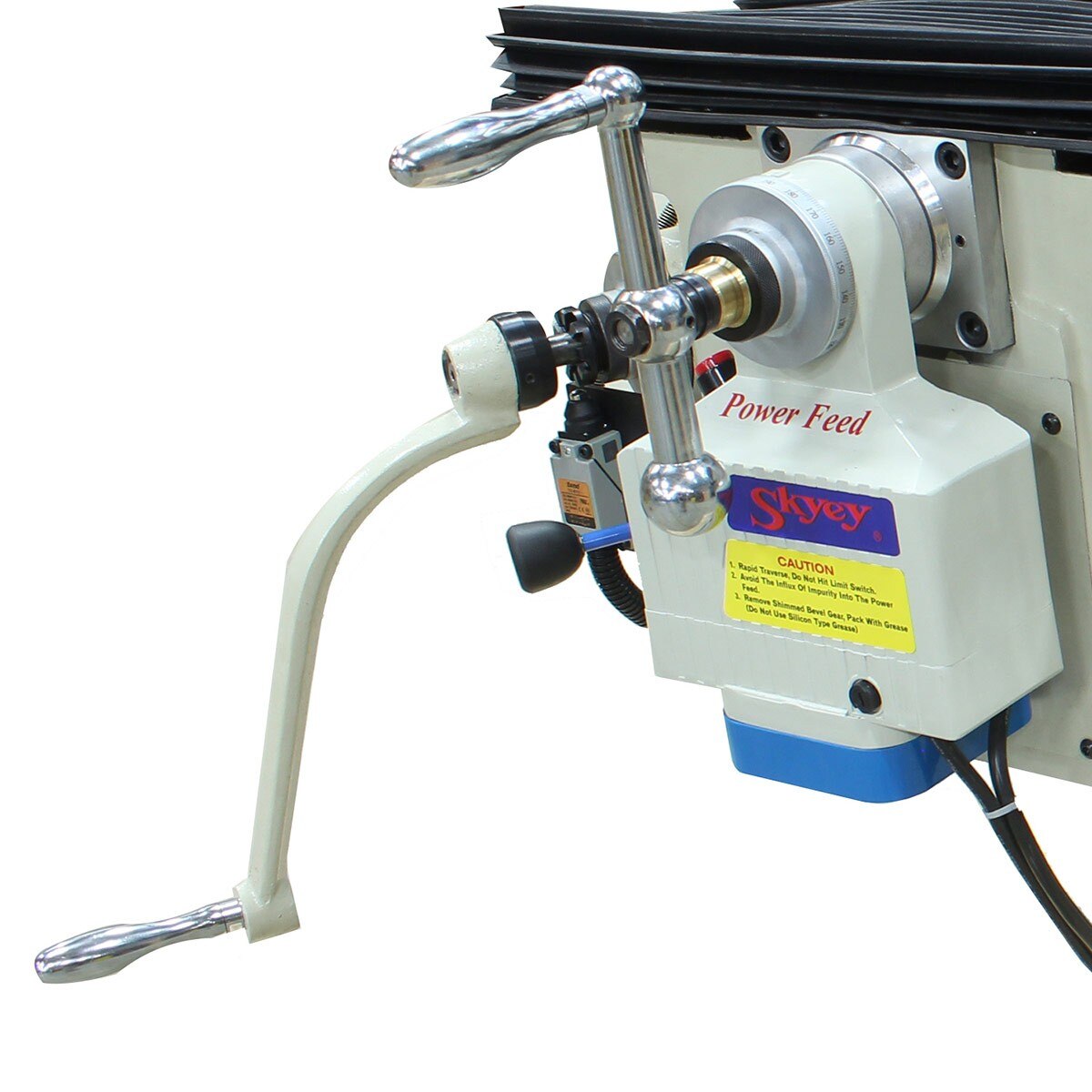

- All three axis are powered on the VM-1054E-VS making it easy on the operator.

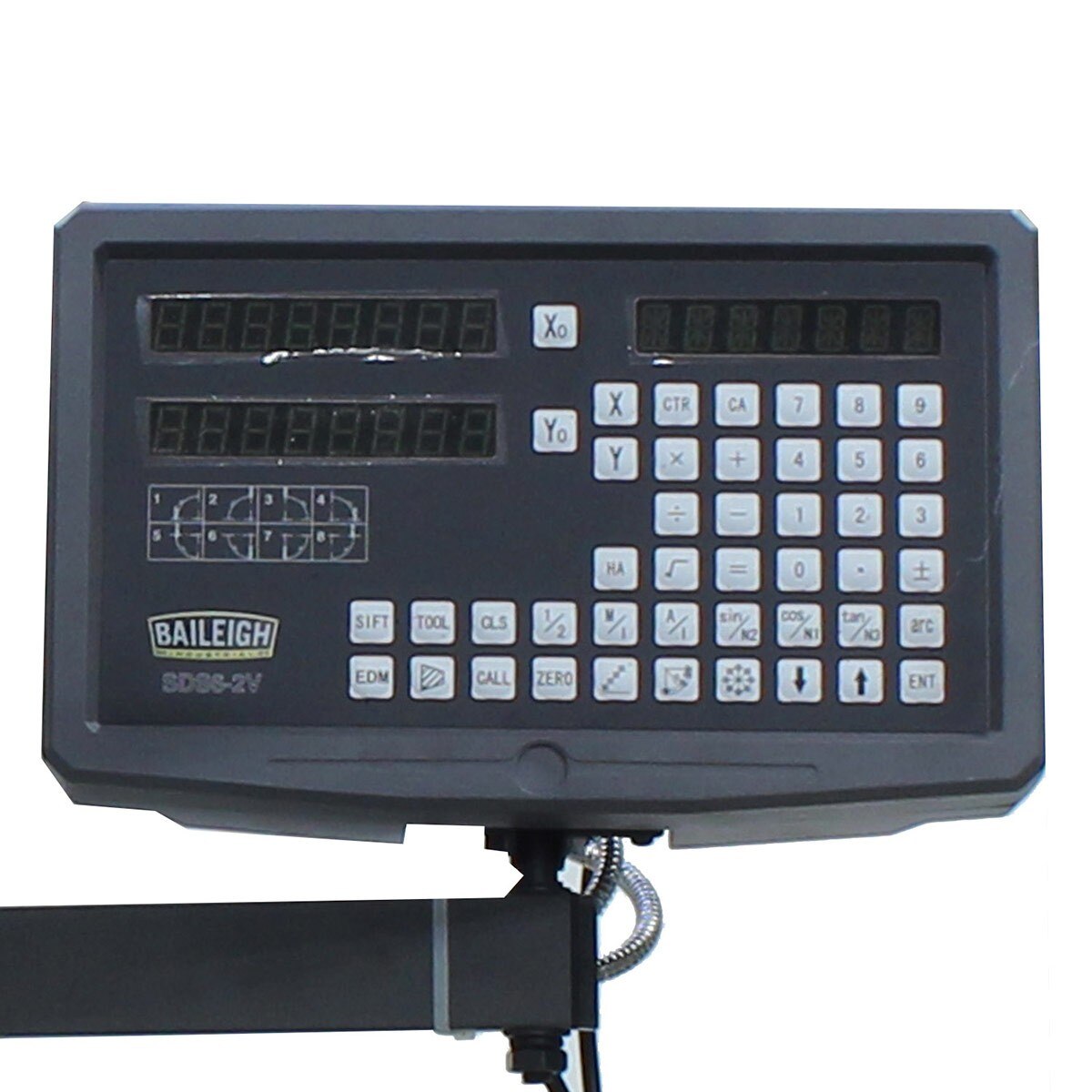

- Another nice feature is the two axis digital readout that comes standard.
- This digital readout is accurate to 1/10 of 1 thousandth of an inch.

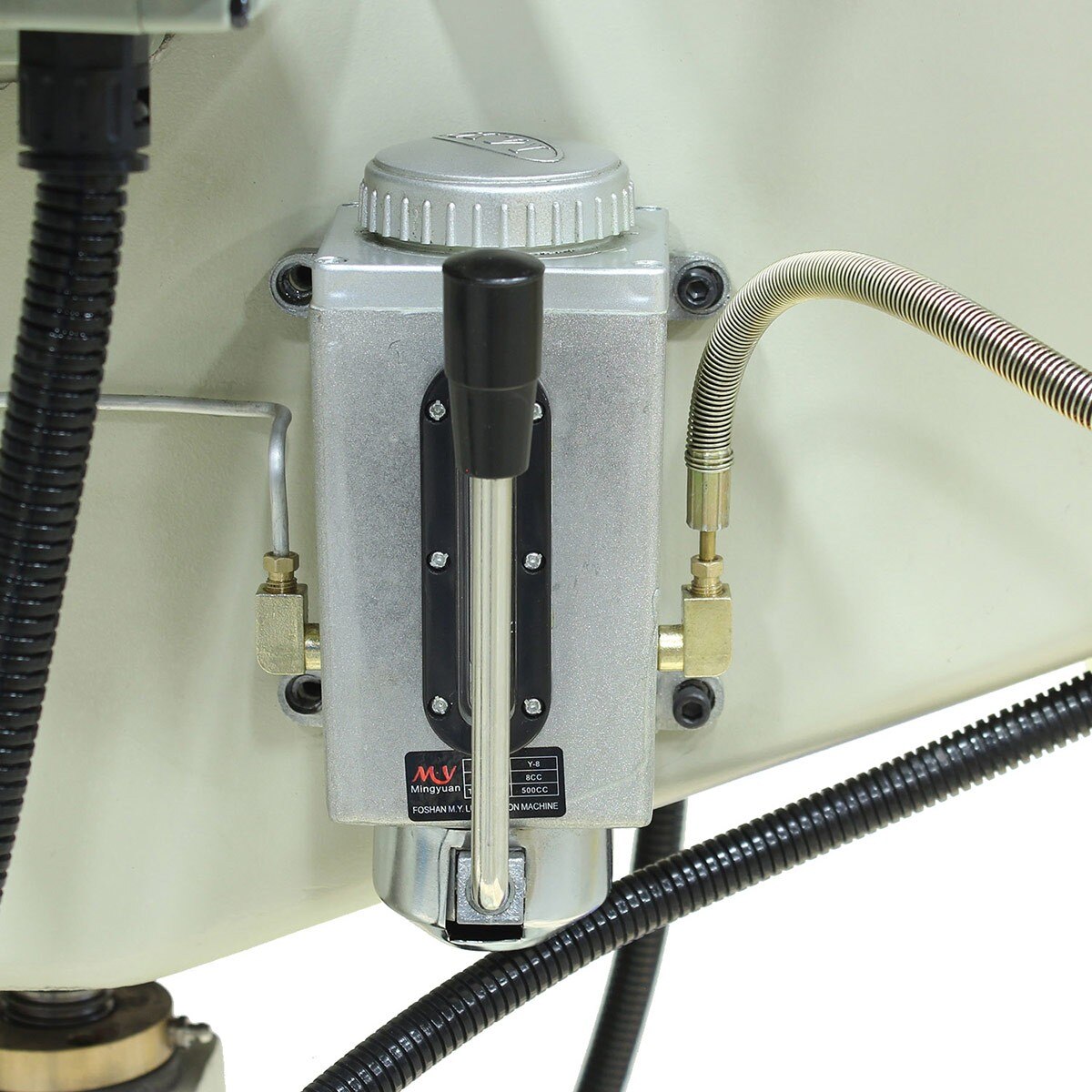

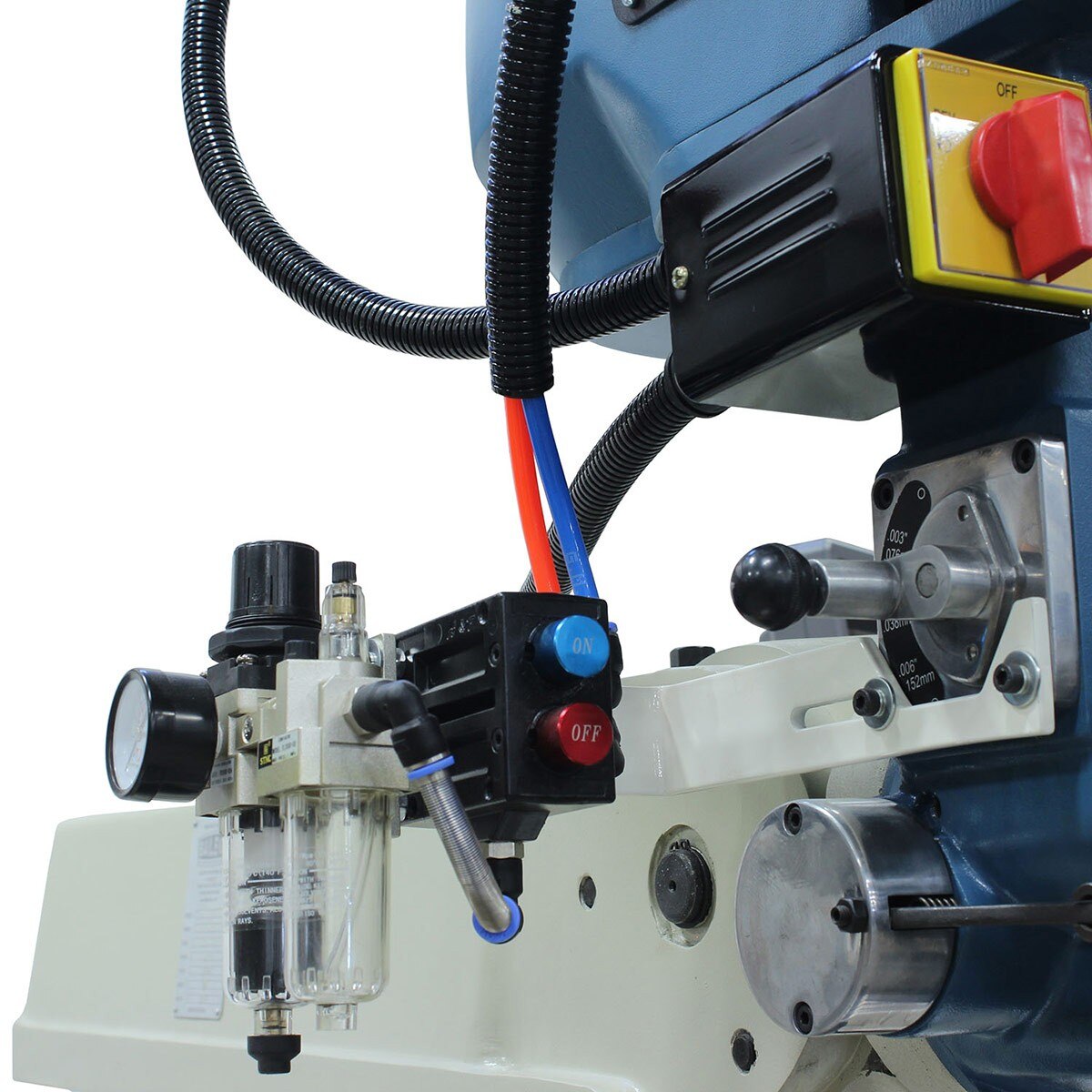

- A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS.
Baileigh Industrial 1020696 Specifications
| Table Size | 54" x 10" |
| Spindle Center To Column Min Max | 7.87" – 26.77" |
| Spindle Diameter | 3.93" |
| Spindle Feed Per Rev | .0015"/.003"/.006" |

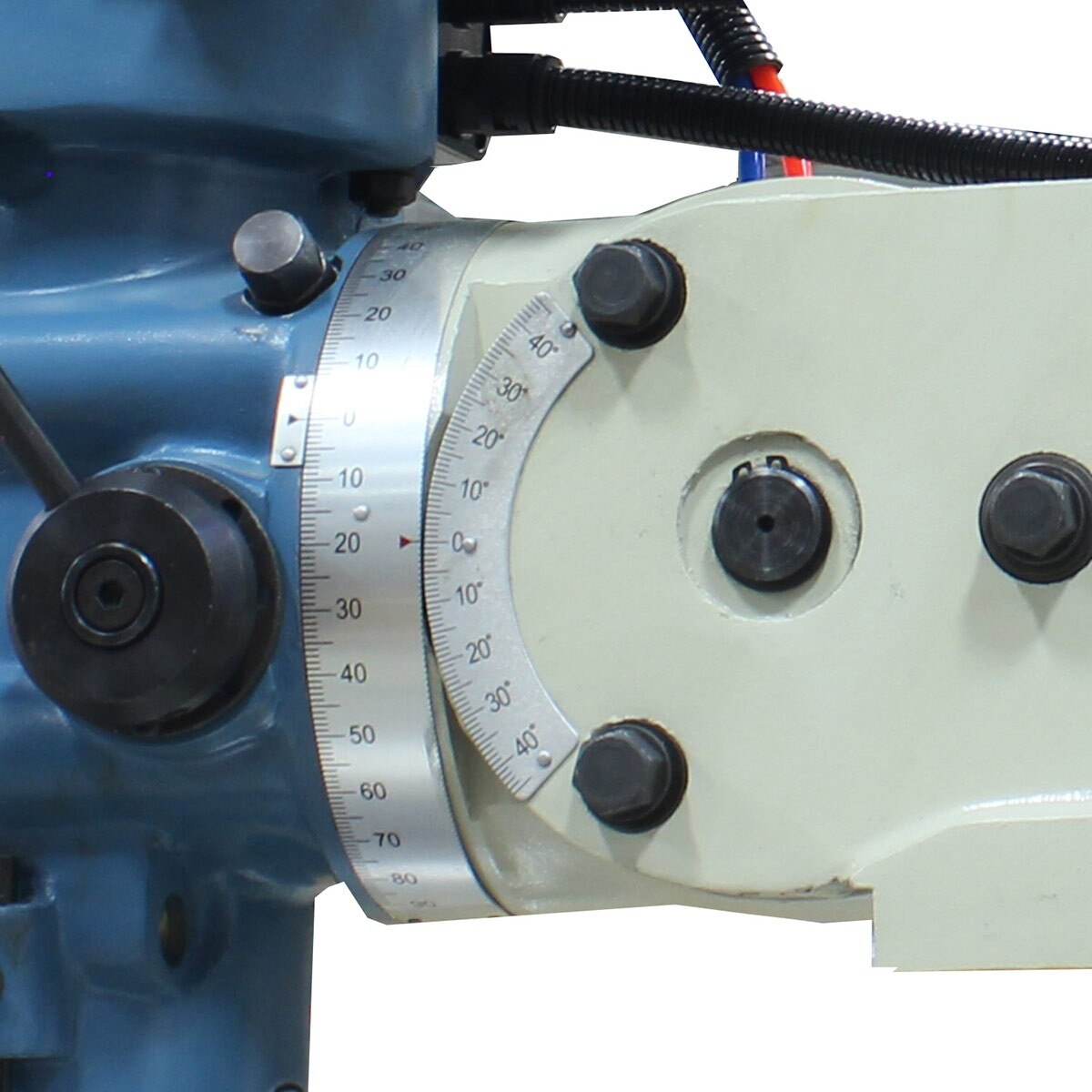

| Spindle Head Swivel | 45° (F&R) 90° (R&L) |
| Motor Spindle | 3 HP |
| Travel Auto X Axis | 32" |
| Travel Auto Y Axis | 13.75" |
| Travel Auto Z Axis | 13" |
| Spindle Nose To Table Min Max | 4" – 17" |
