Baileigh Industrial BA9-1021967 200A Stick (SMAW) Welder BW-200S
Free Shipping
$689.00
$836.64
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1021967 Description

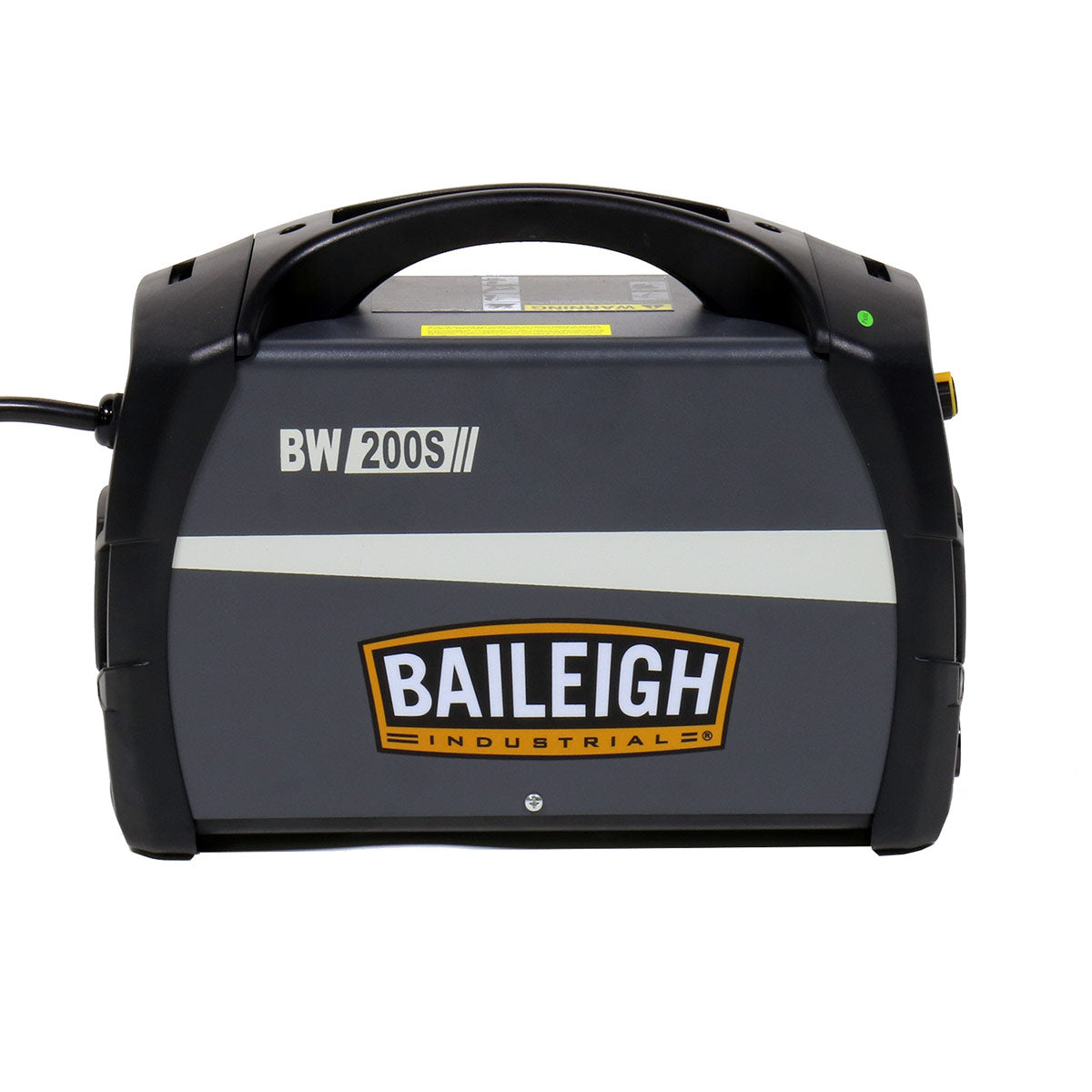

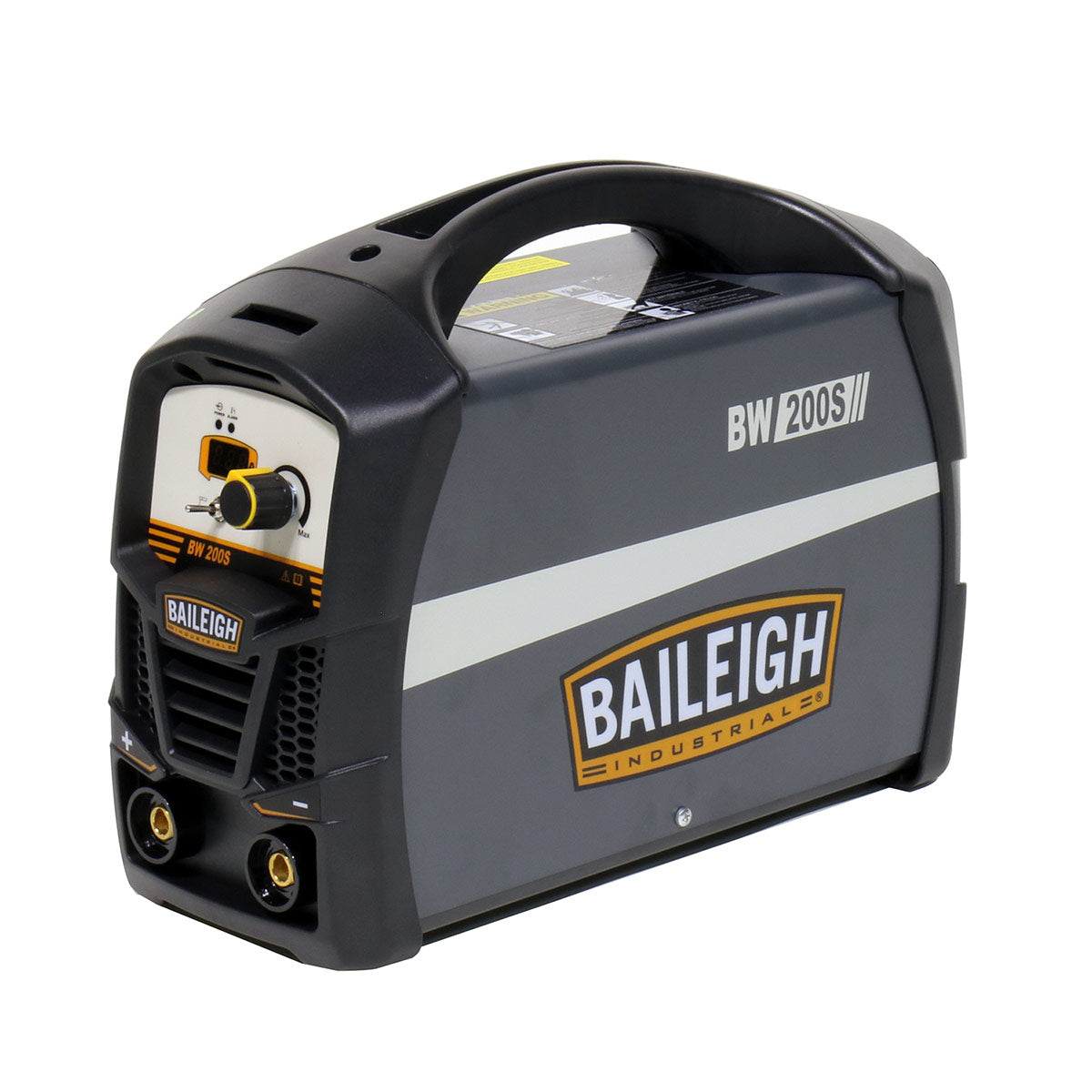

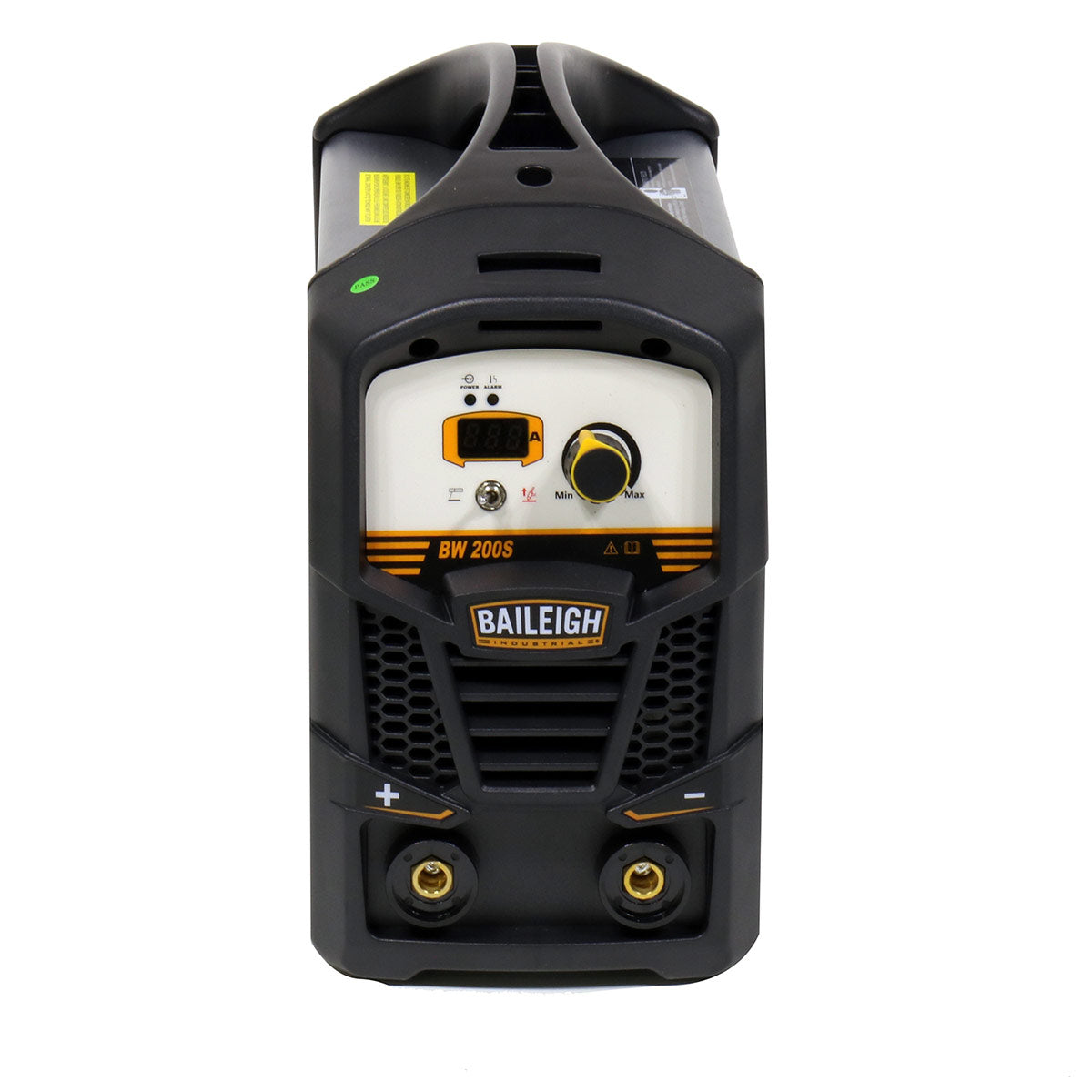

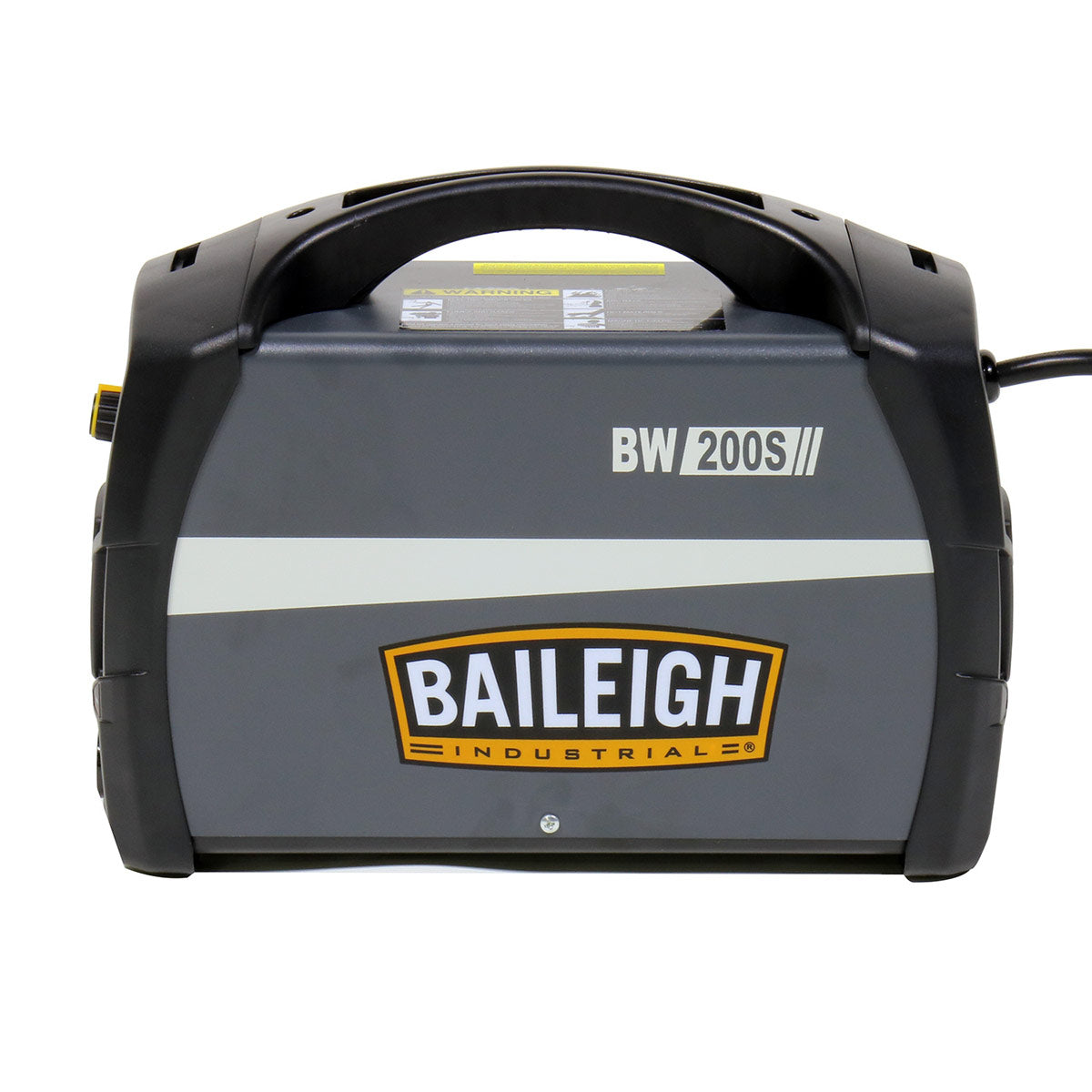

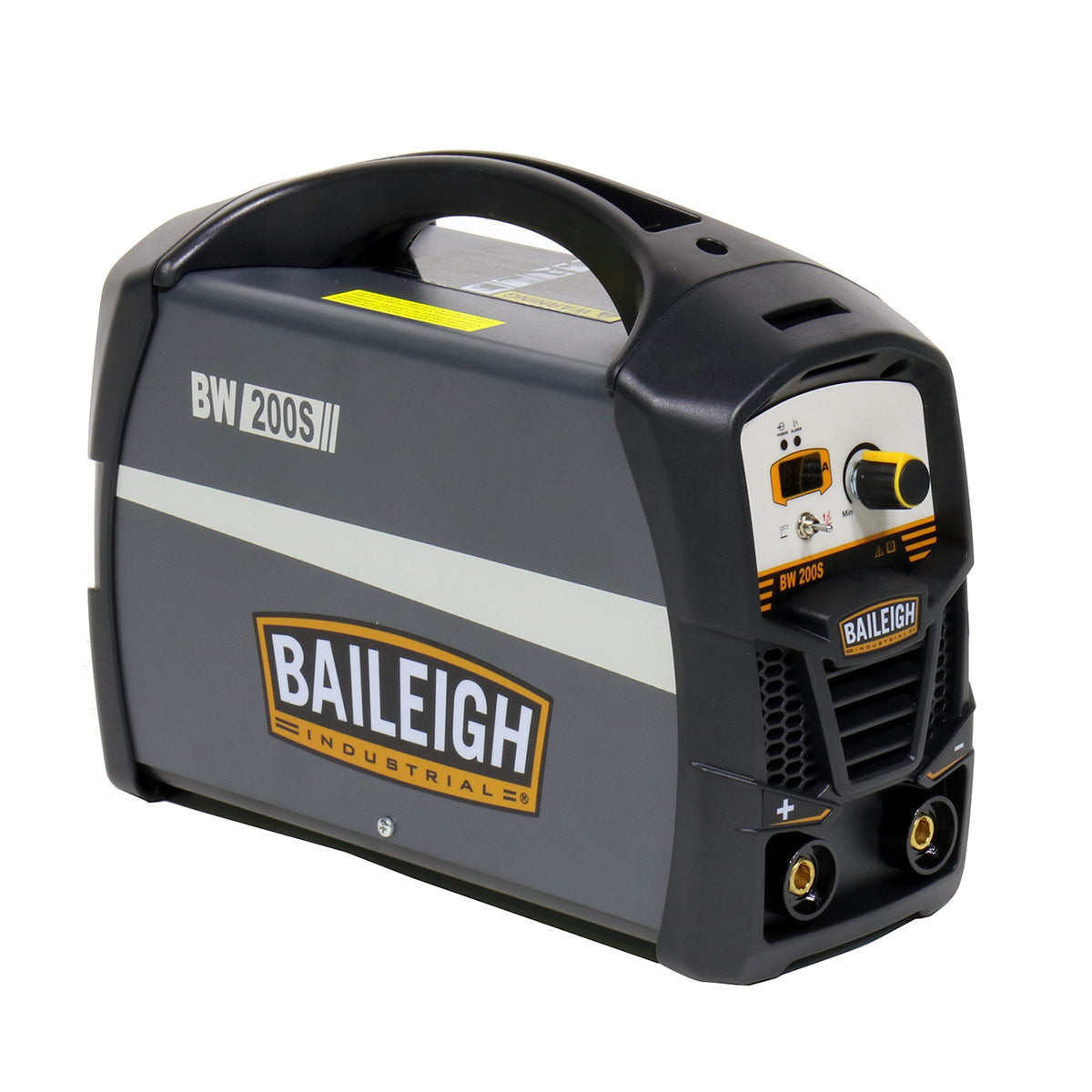

The BW-200S from Baileigh Industrial is an industrial level 200 Amp Arc welder. It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions.

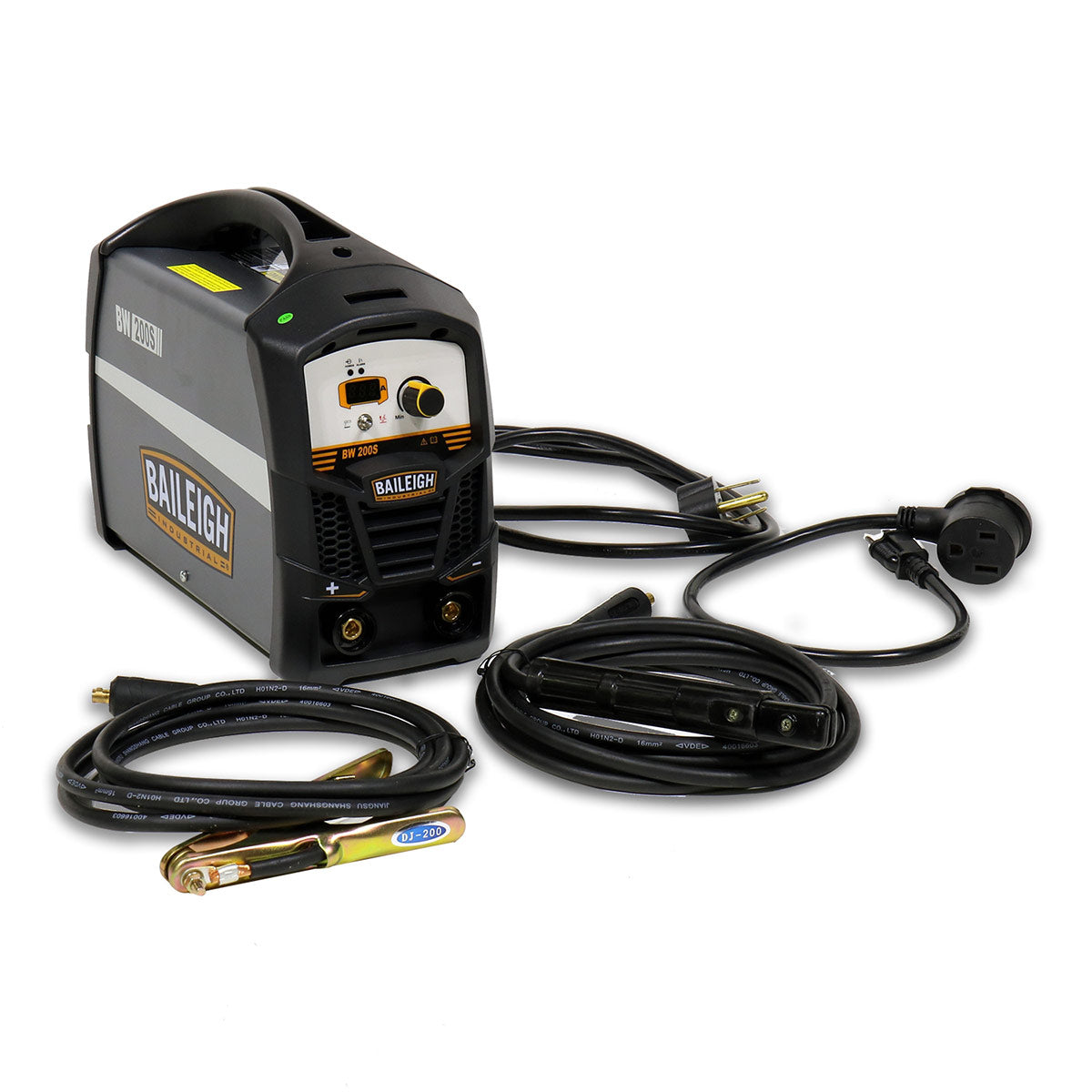

Baileigh Industrial 1021967 Includes
- (1) Welder

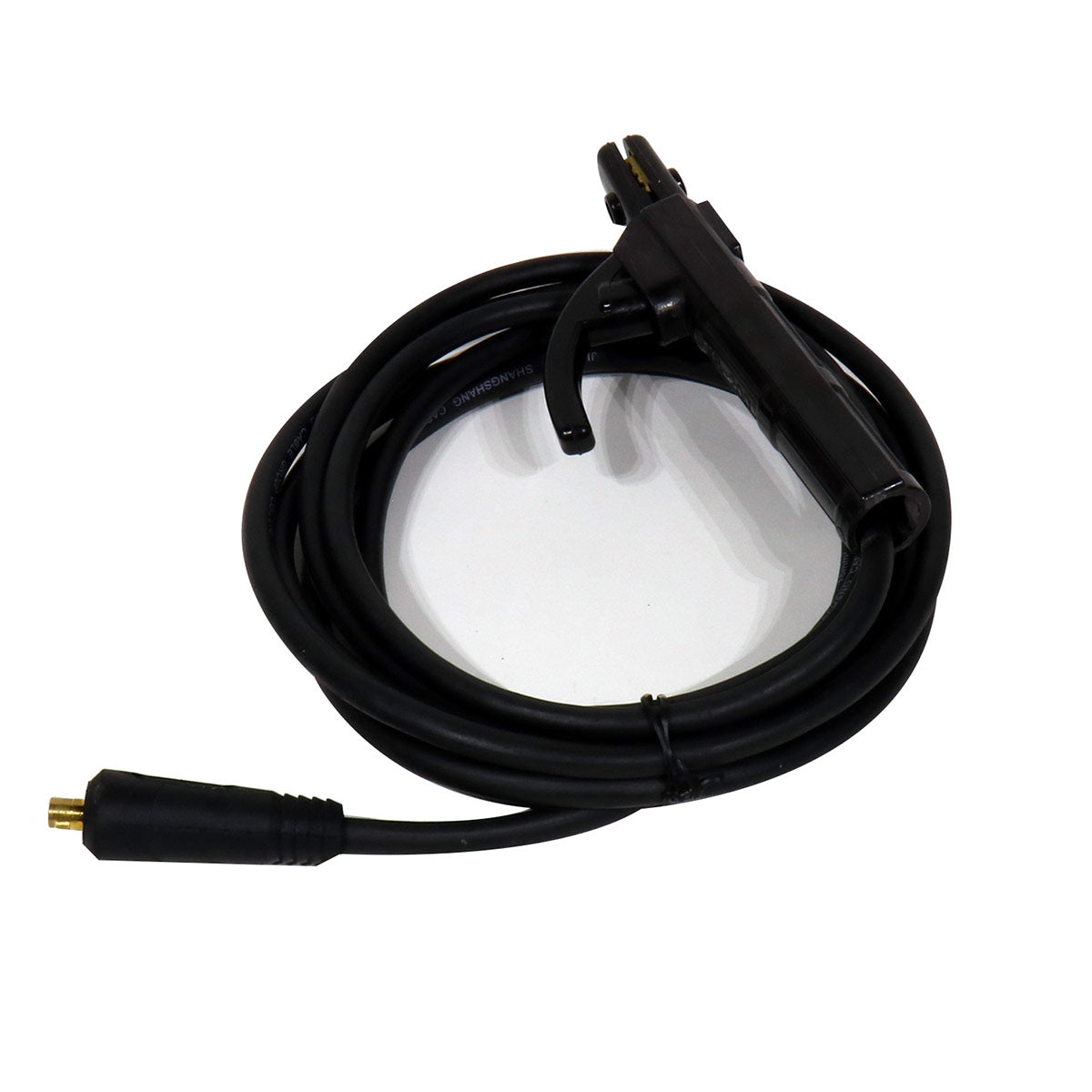

- (1) Electrode Holder

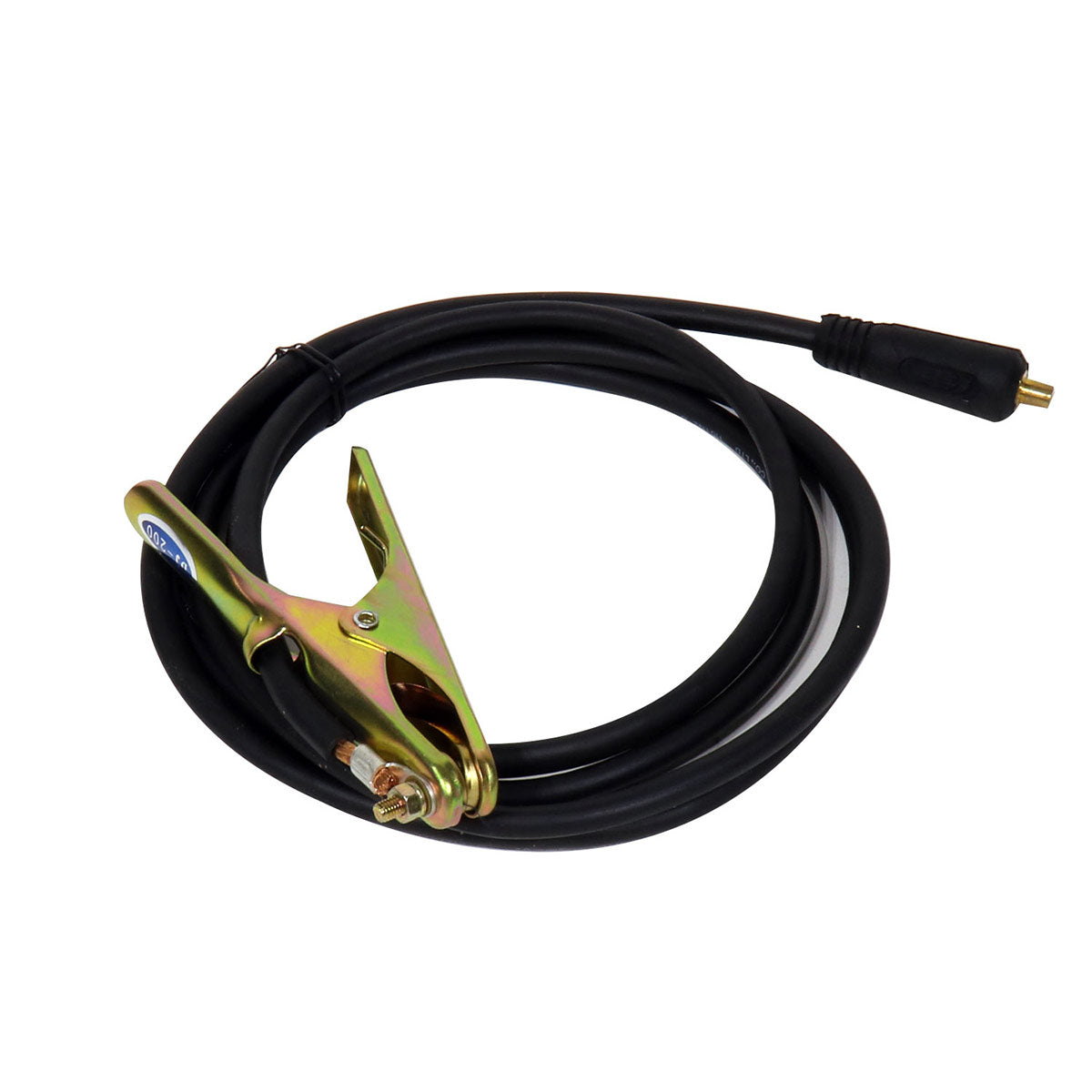

- (1) Ground Clamp
- (1) 6-50P 250V Plug

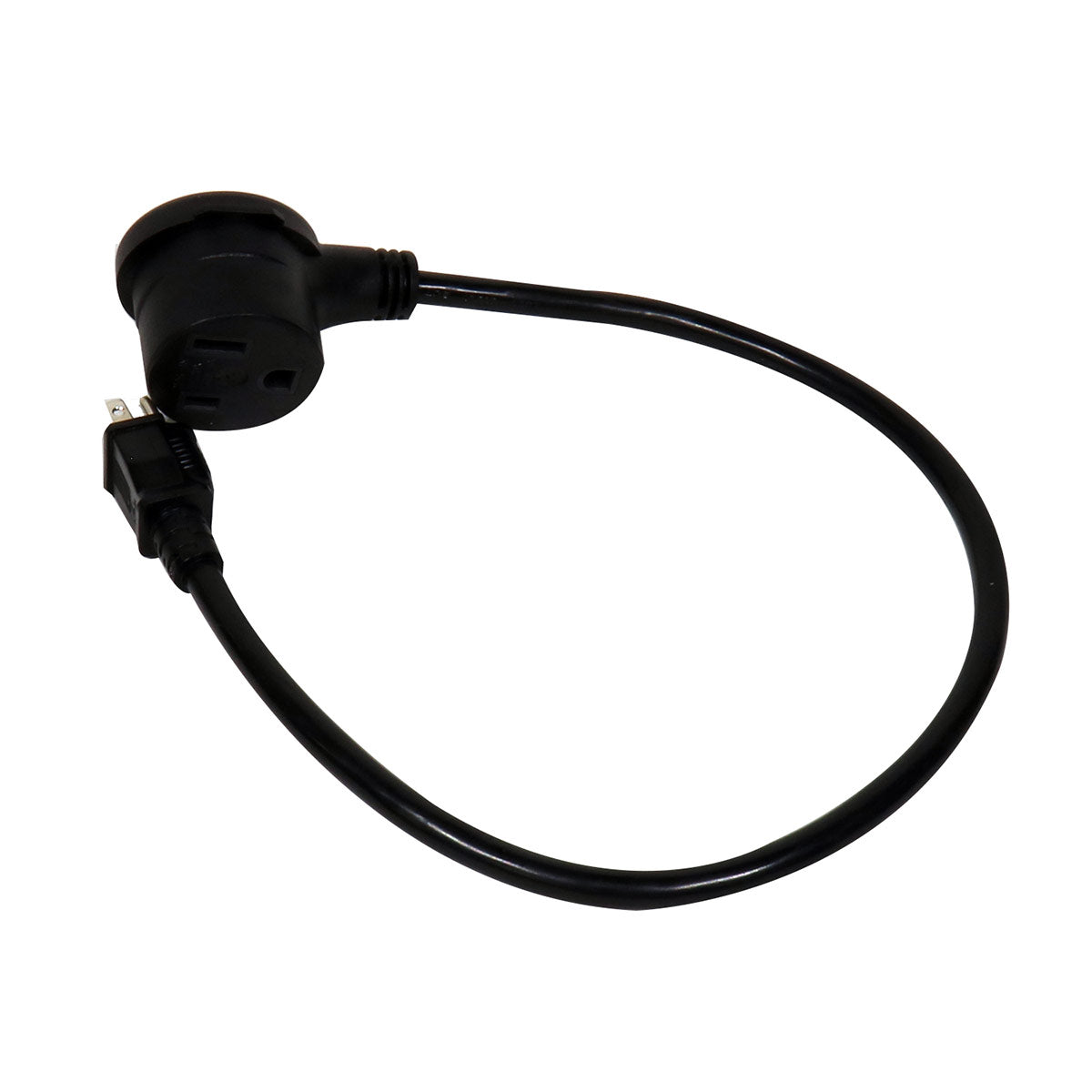

- (1) Adaptor to 120V Plug
Baileigh Industrial 1021967 Features
- Portable IGBT Inverter stick welder
- Dual voltage can run on 120 volt or 230 volt single-phase power
- Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder

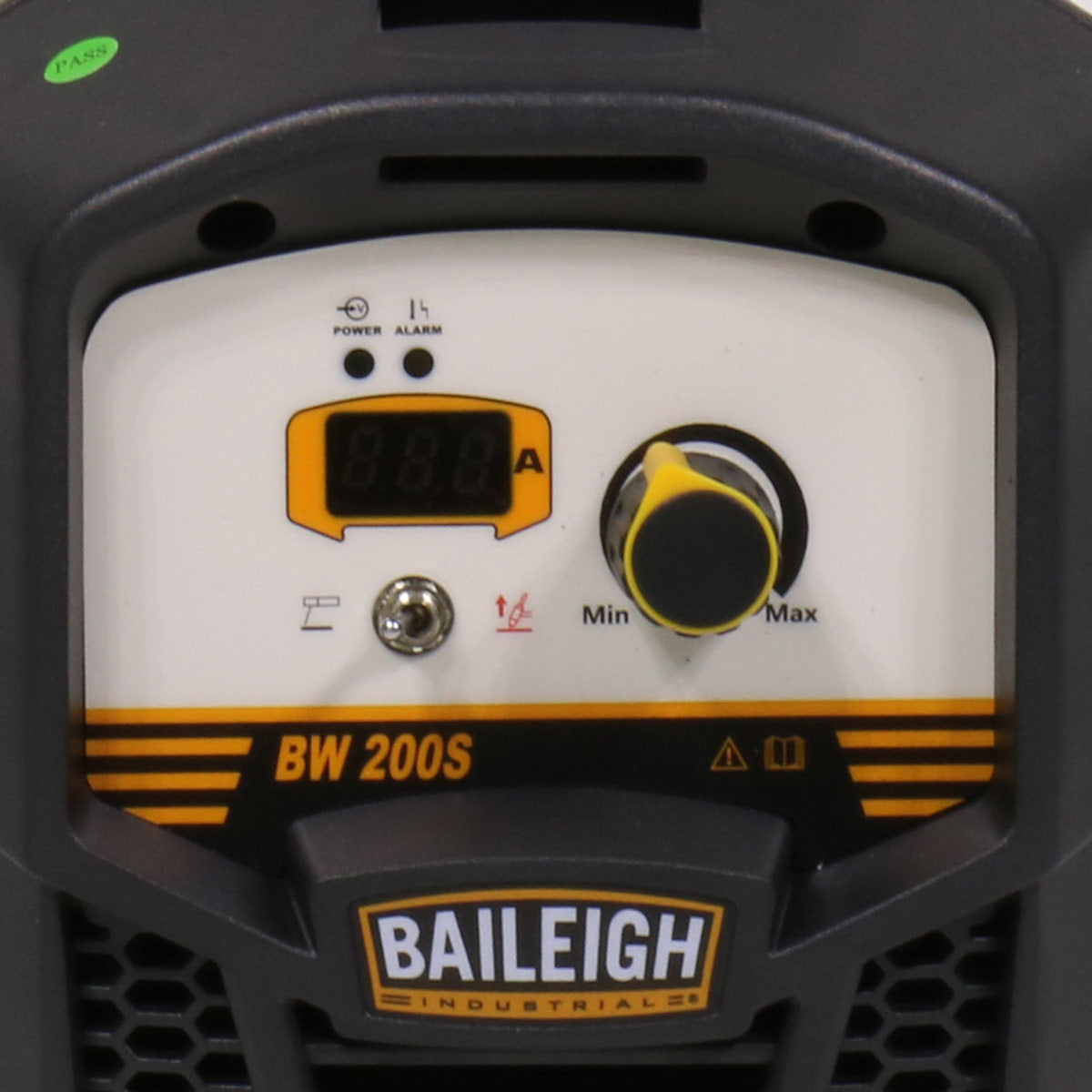

- Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options
- Thermal Overload Protected, will shut down welding if its temperature is too high
- Fan Cooled
- Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode
- Arc Force, keeps arc more stable, with less sticking, when the electrode is close
- Lift ARC TIG capable – Torch not included
- High Open Circuit Voltage
- Generator safe and will tolerate large voltage variations
- Easily sourced consumables
- Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
Baileigh Industrial 1021967 Specifications
| Maximum Current | 200 Amps |
| Cooling System | Fan Cooled |
| Power | Dual Voltage - 120V/230V Single Phase |
| Rated Input Current | 20A (120V) / 40A (230V) |
| Rated Input Capacitance | 4.4KVA (120V) / 9.2KVA (230V) |
| No-Load Voltage | 78V (120V) / 78V (230V) |
| Rated Working Voltage | 23V (120V) / 28V (230V) |
| Welding Current | 15~75A (120V) / 12~200A (230V) |
| Rated Duty Cycle | 100% (120V) / 15% (230V) |
| 100% Rated Duty Cycle | 77A (120V) / 77A (230V) |
