Baileigh Industrial | SKU:
BA9-1021971

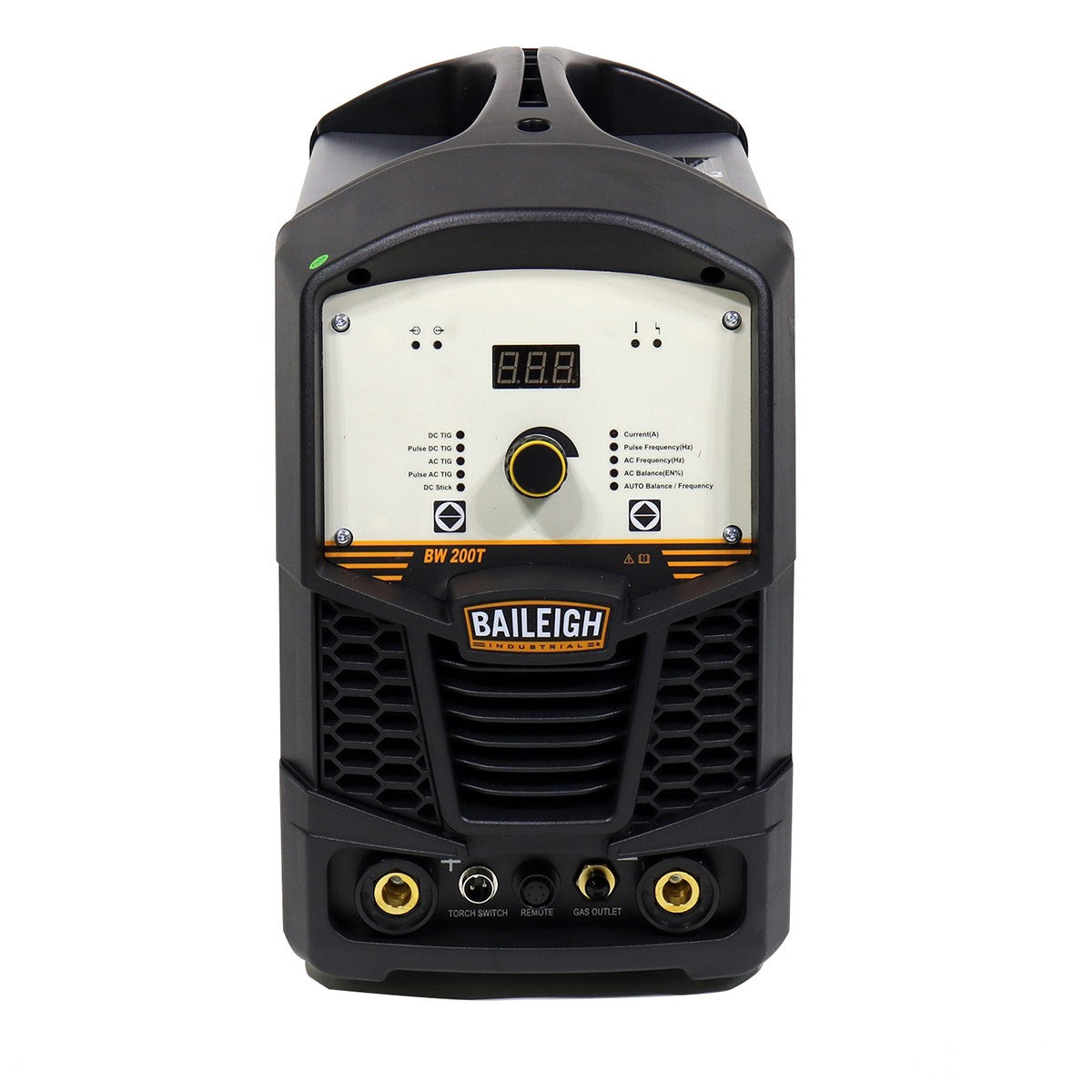

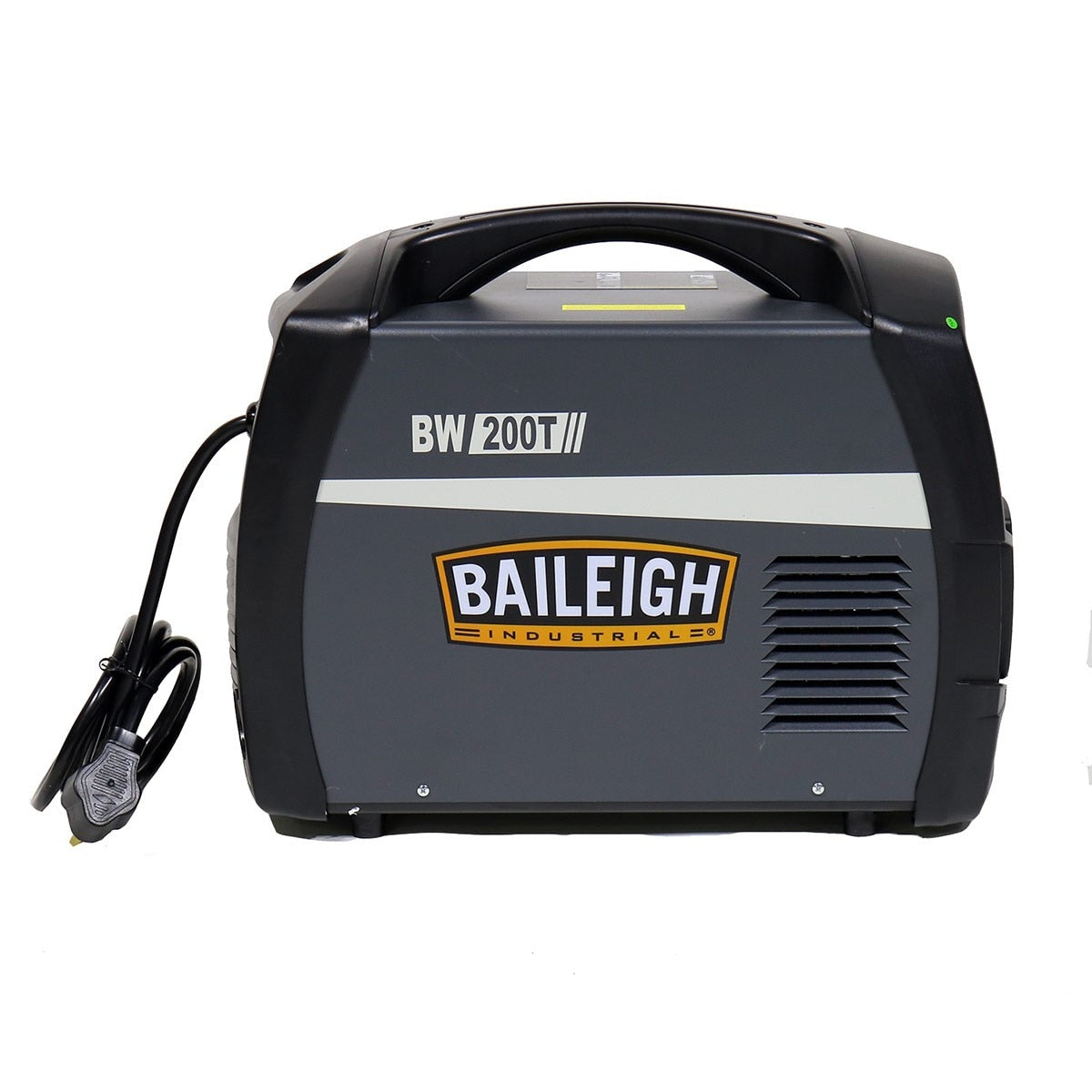

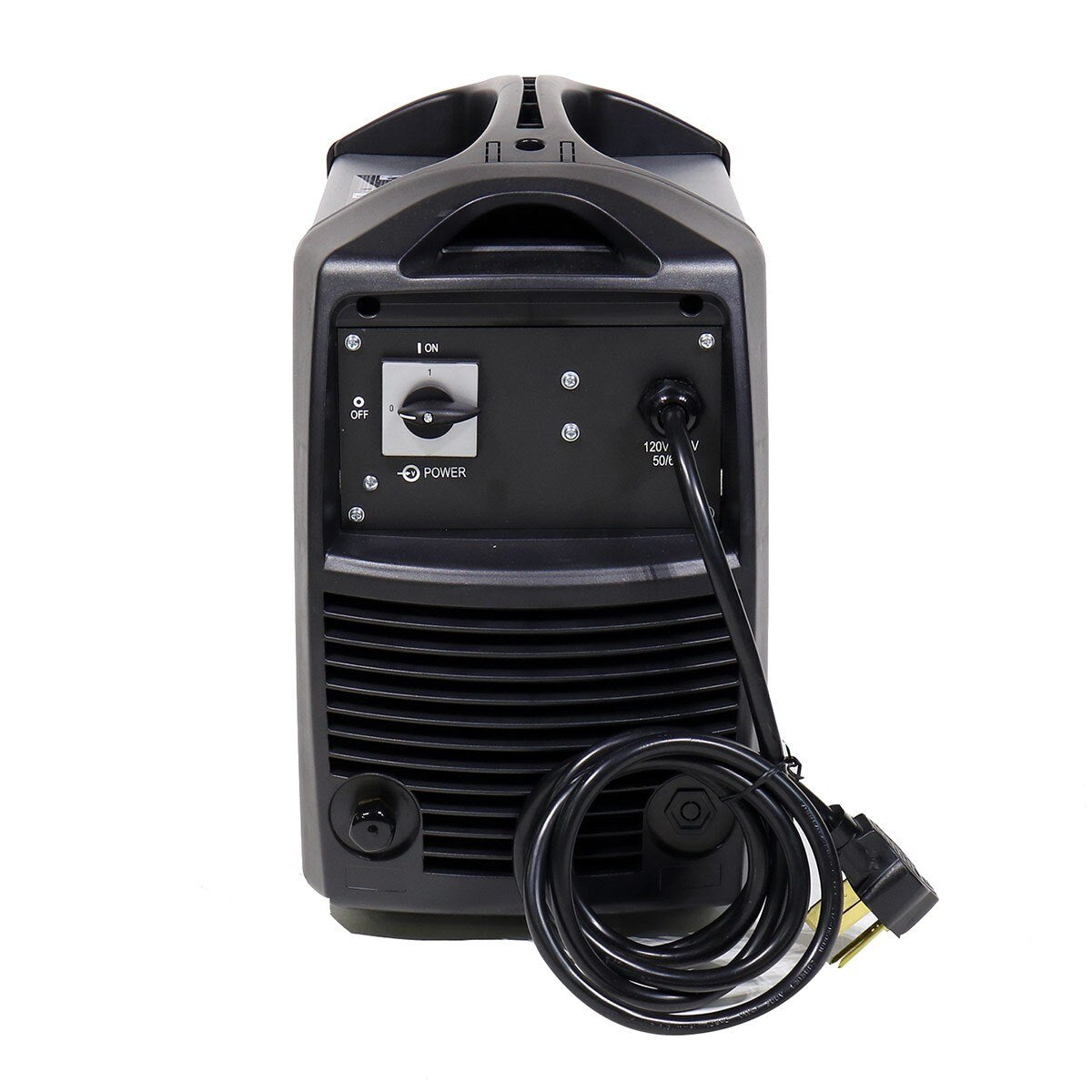

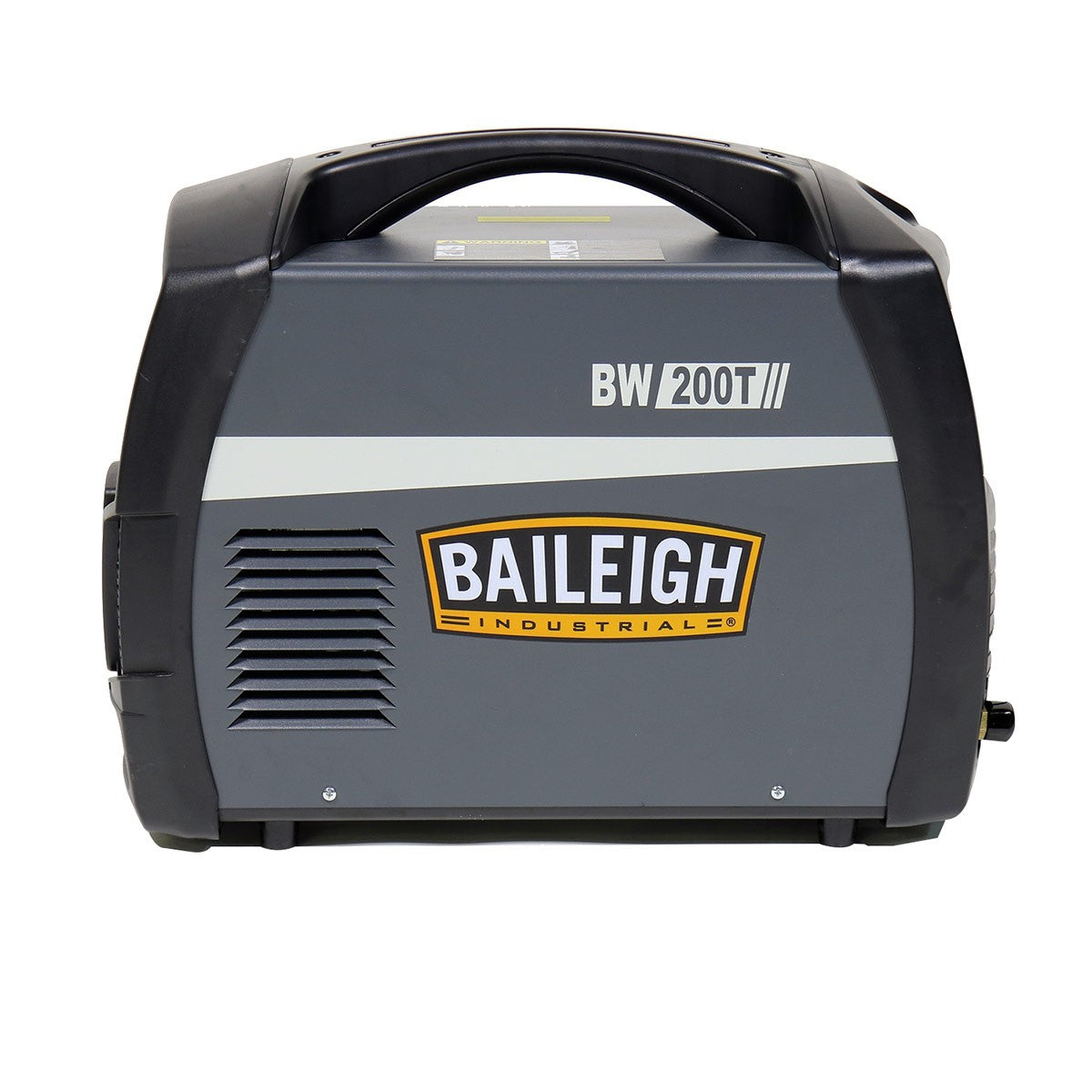

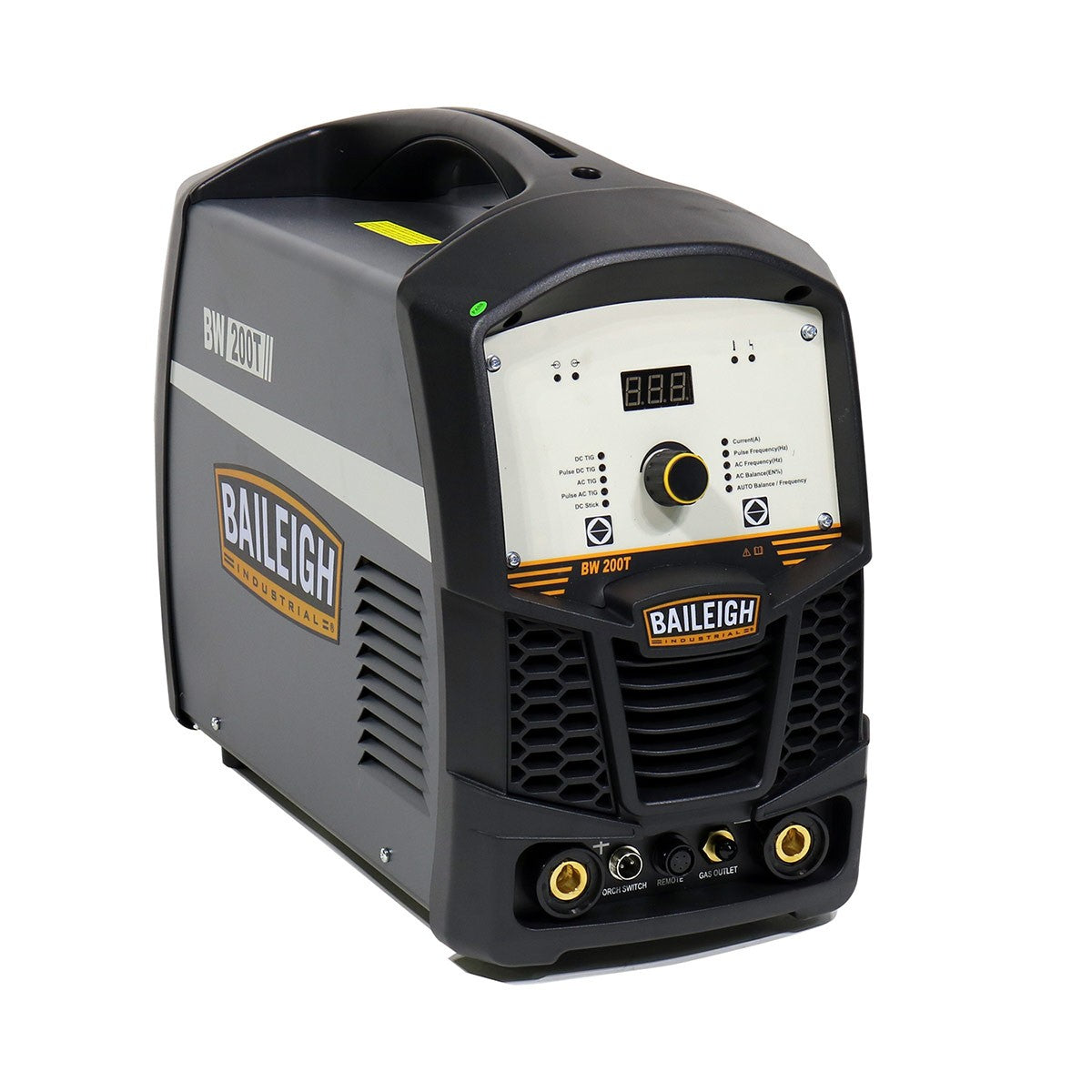

Baileigh Industrial BA9-1021971 200A AC/DC Pulse Tig Welder BW-200T
Free Shipping
$2,389.00
$2,852.36
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1021971 Description
The BW-200T is the ultimate 200amp AC/DC Welding Machine. With variable AC frequency and pulse welding it caters for the more technical aluminum jobs. It features a complete set of control functions to cater for the more demanding jobs and includes a stick function to add to its versatility. The BW-200T is the ideal AC/DC welder for the aluminum welding fanatic.

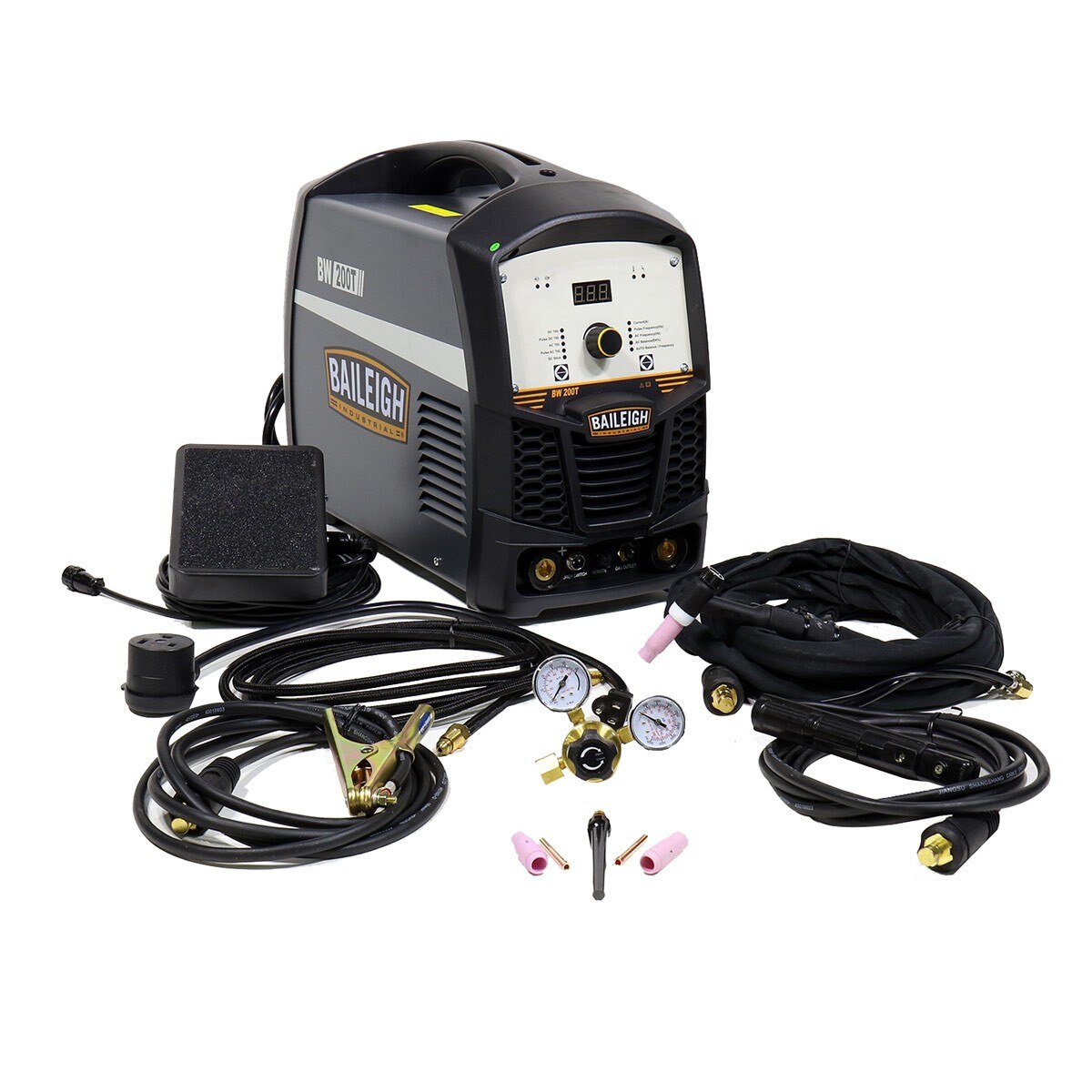

Baileigh Industrial 1021971 Includes
- (1) Welder

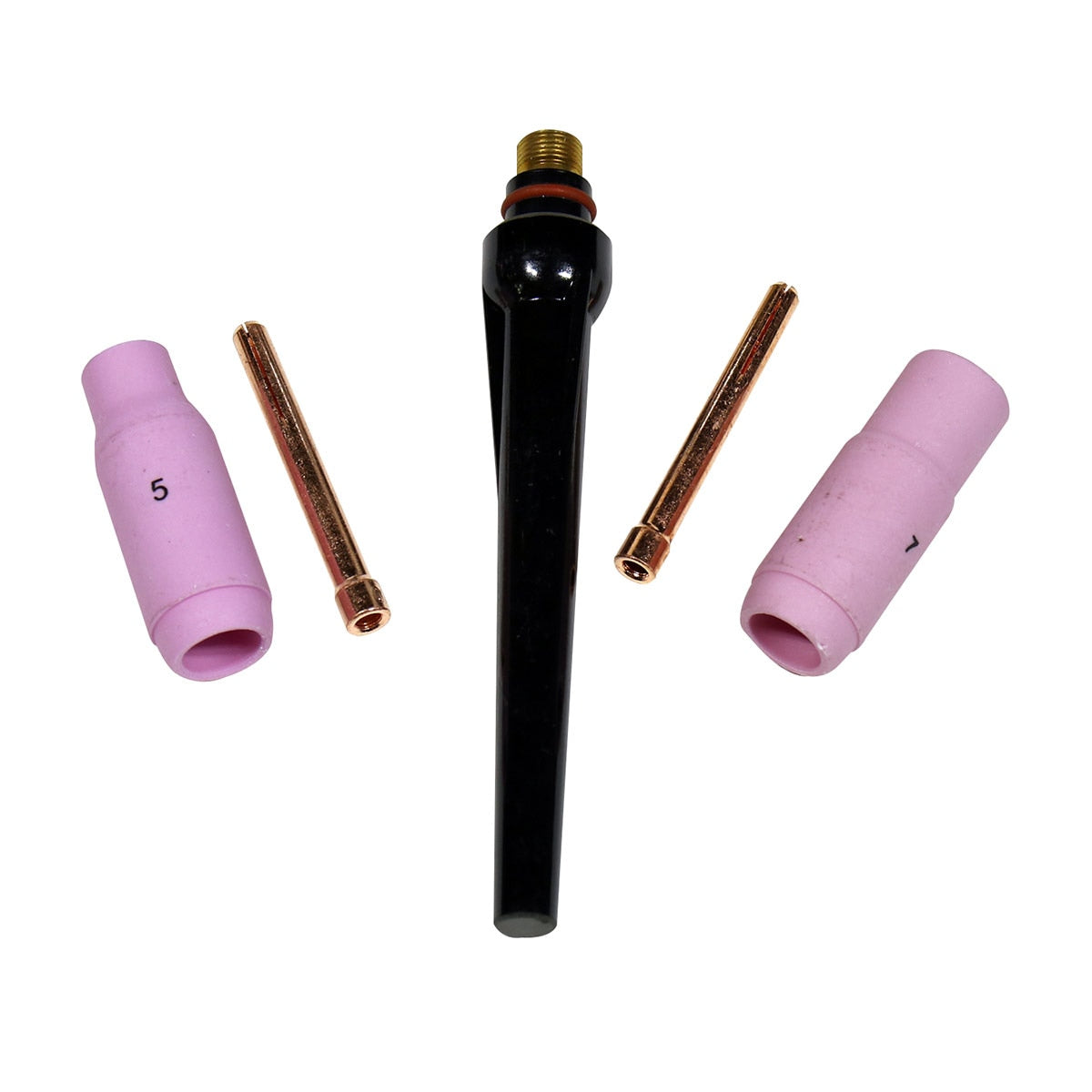

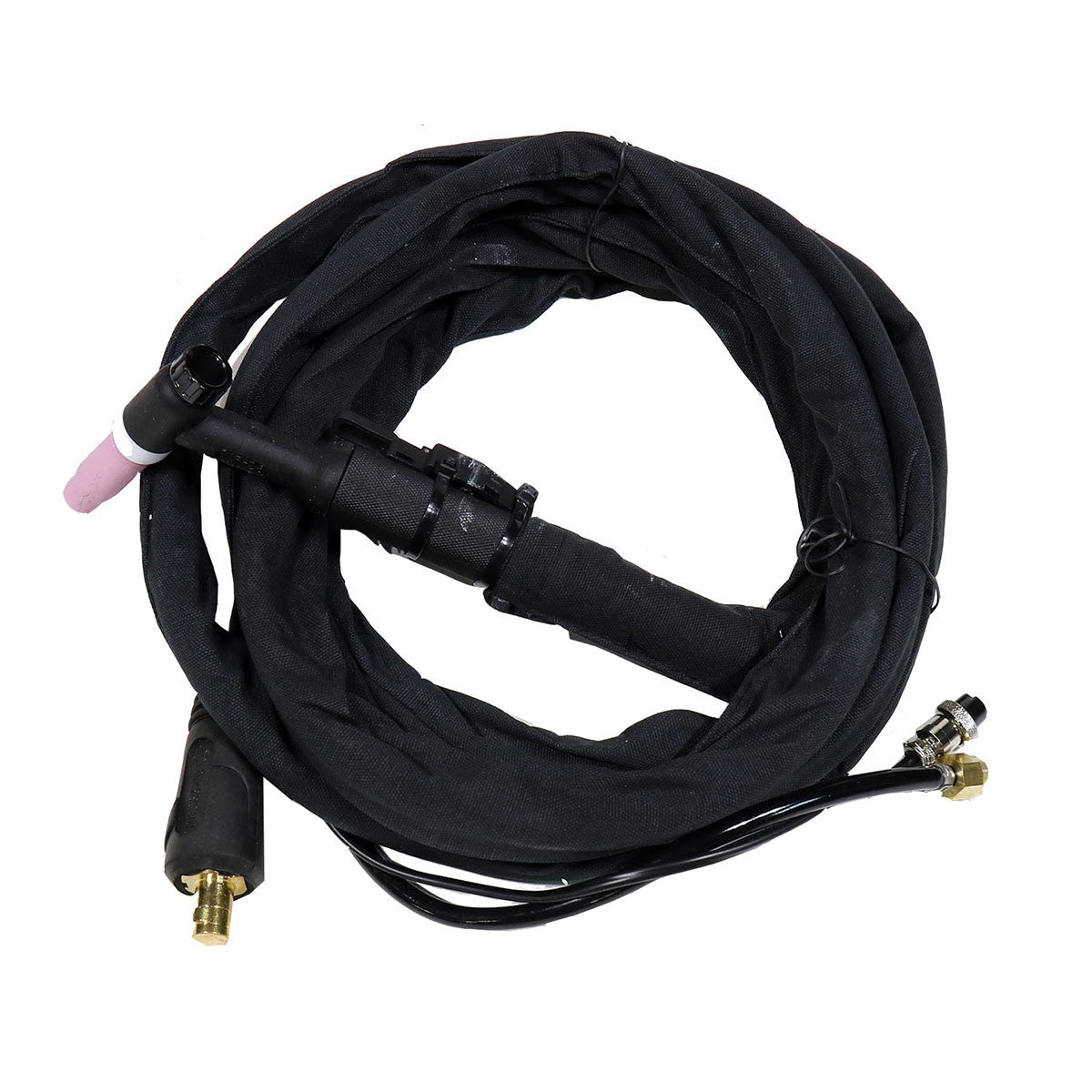

- (1) TIG Torch

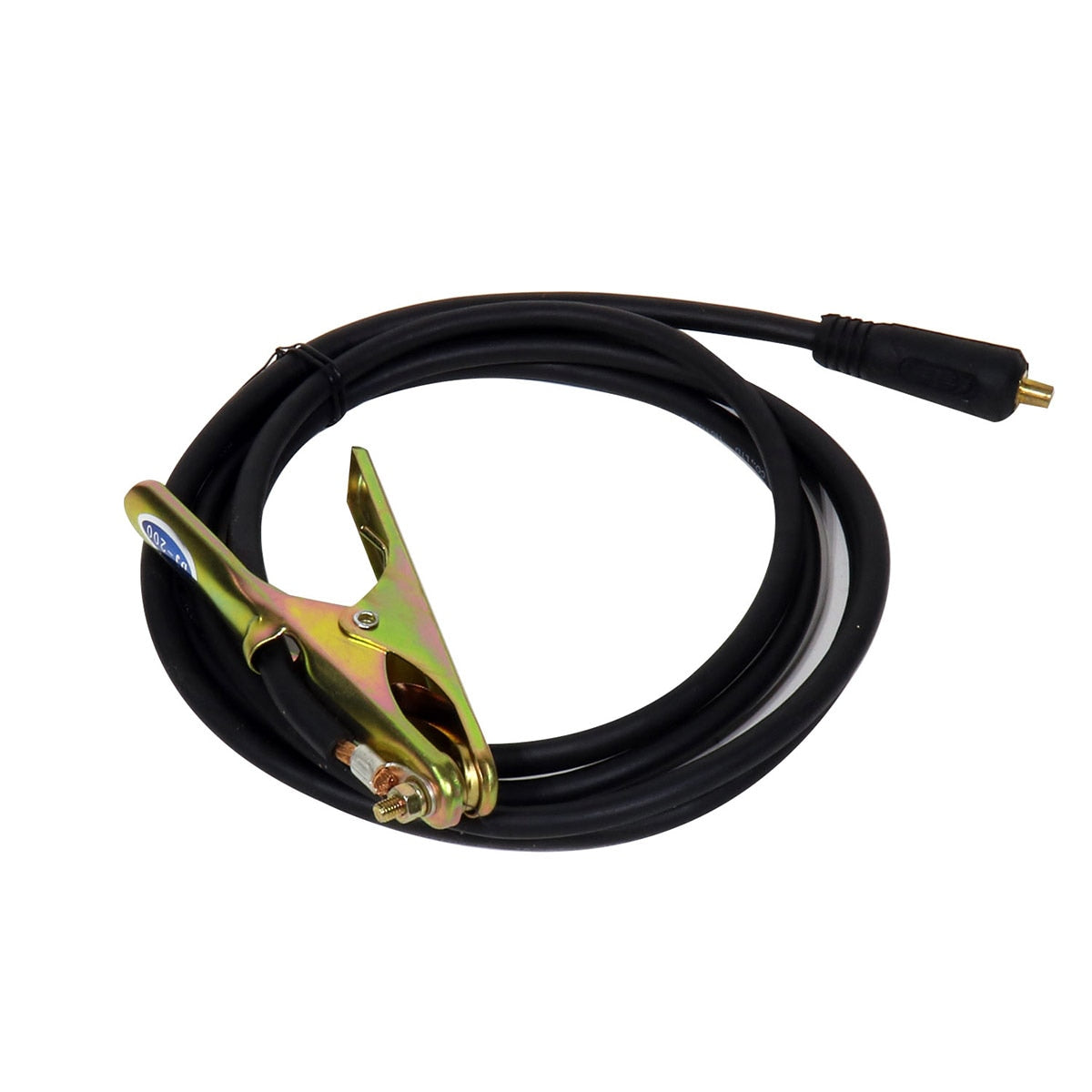

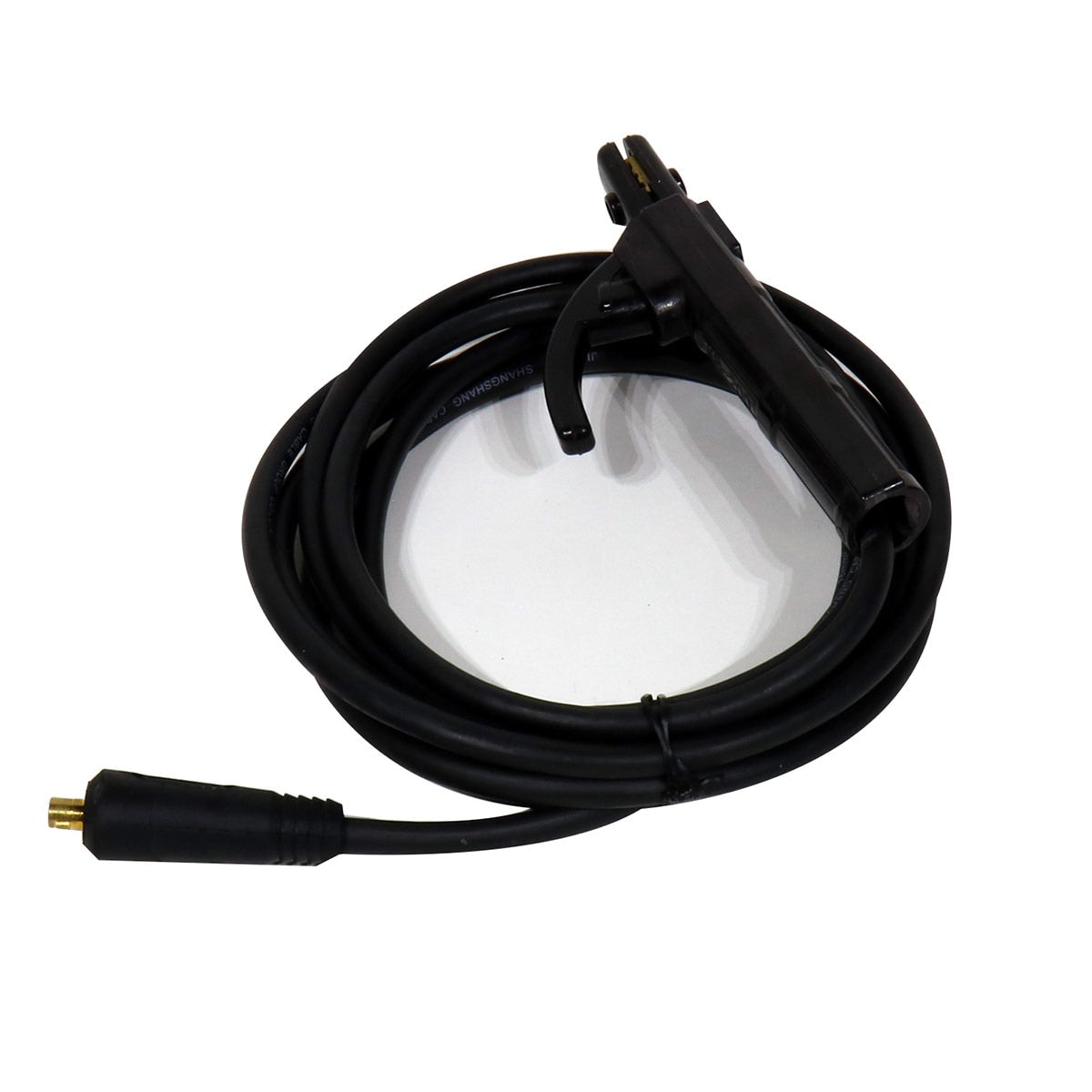

- (1) Ground Clamp
- (1) 6-50P 250V Plug

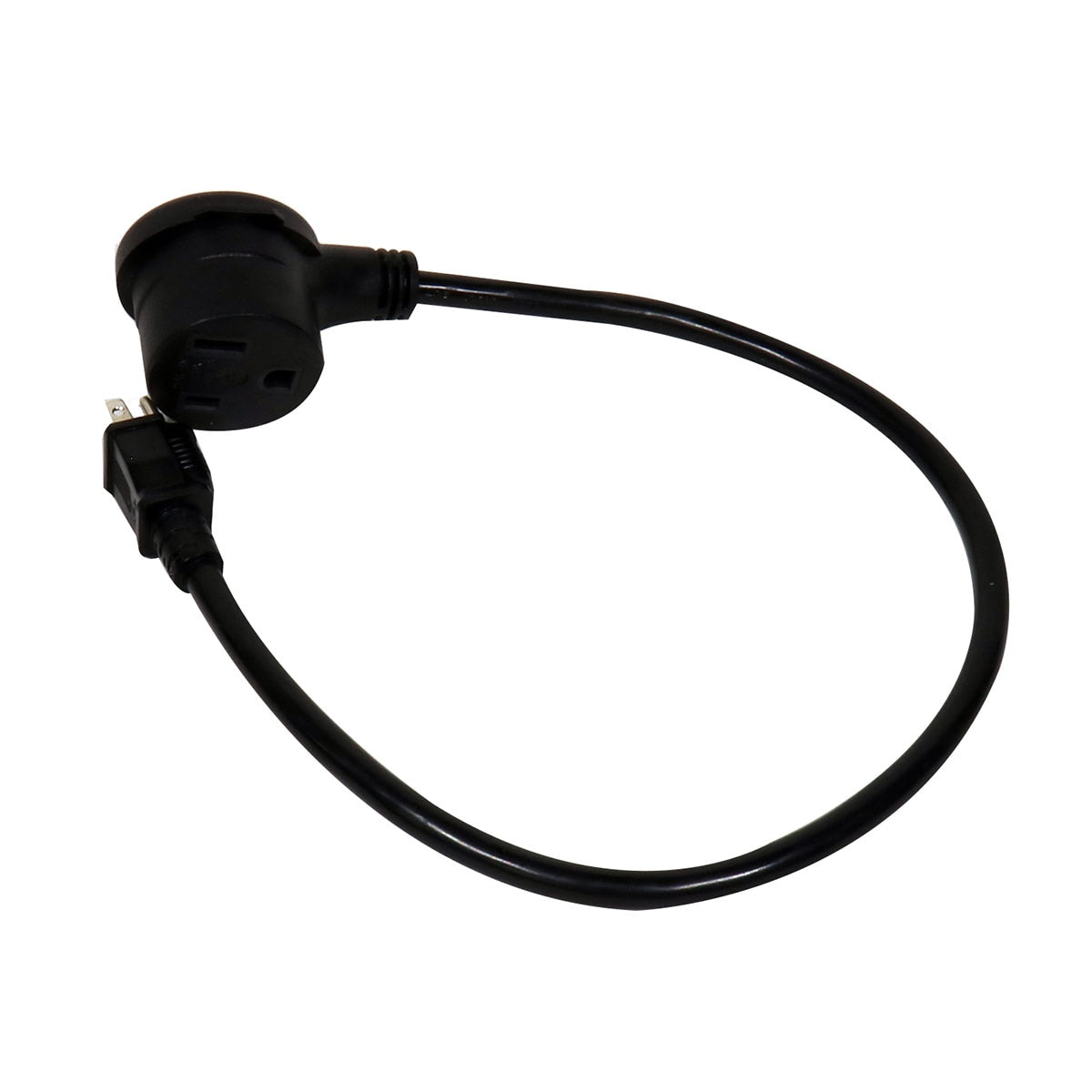

- (1) Adaptor to 120V Plug

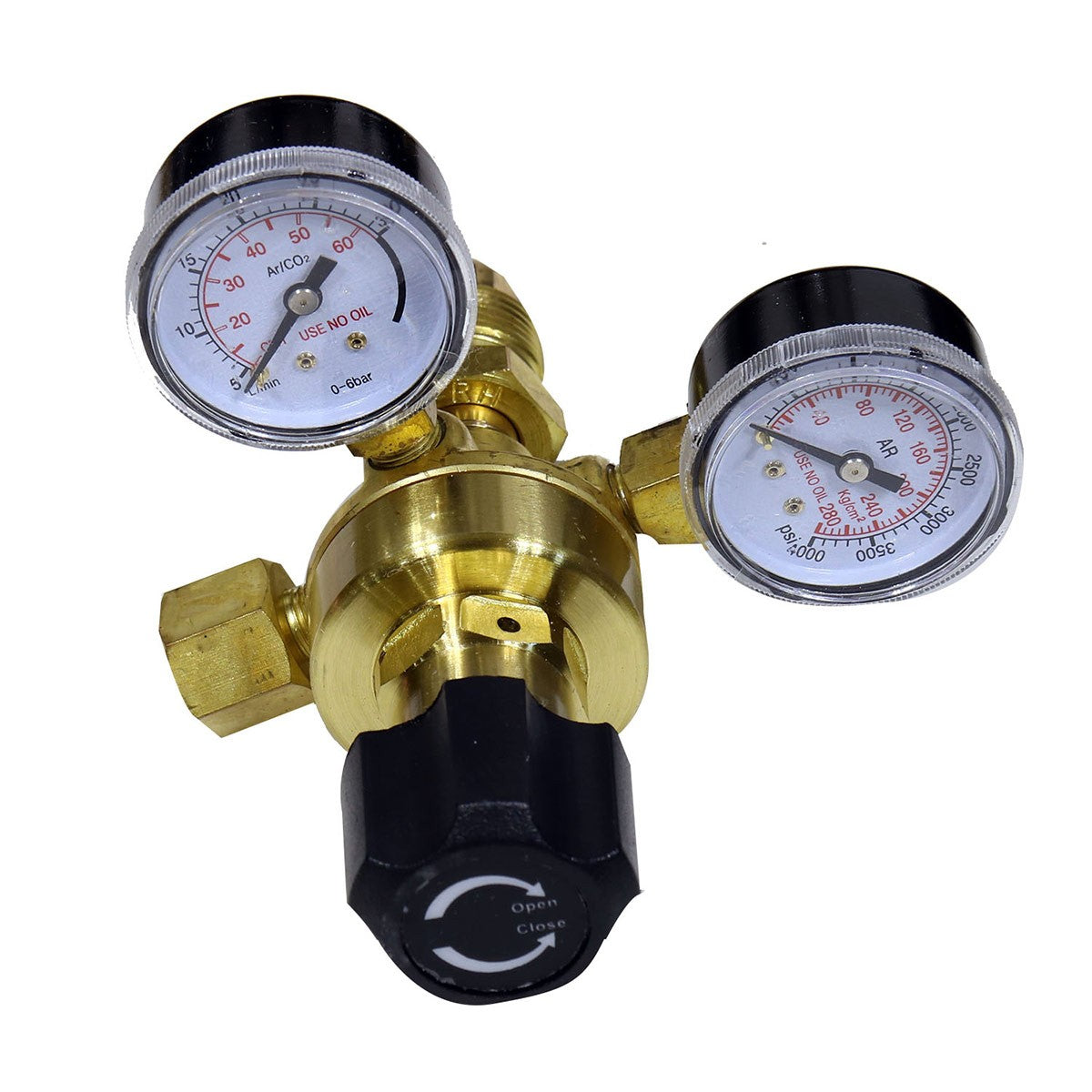

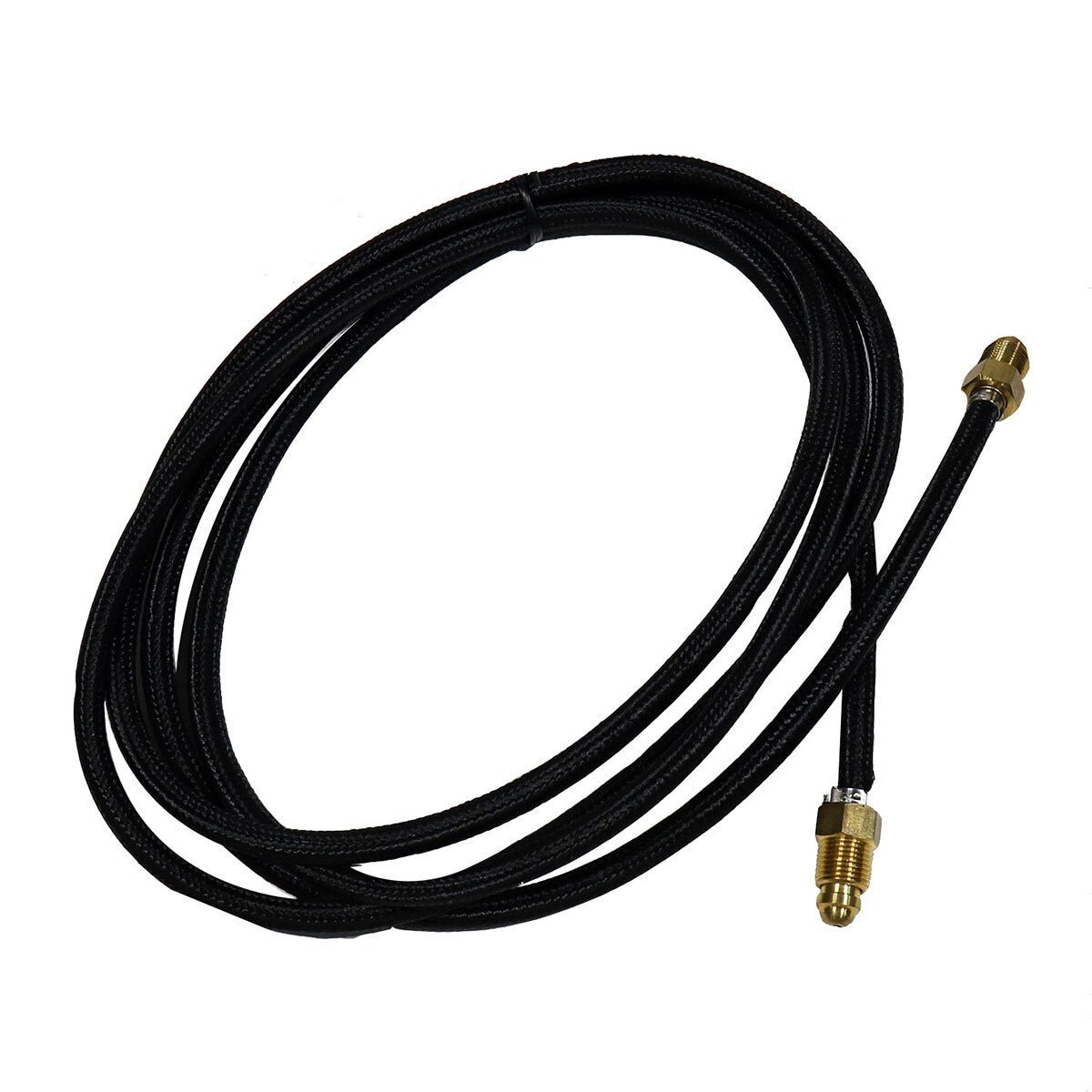

- (1) Gas Hose with Regulator

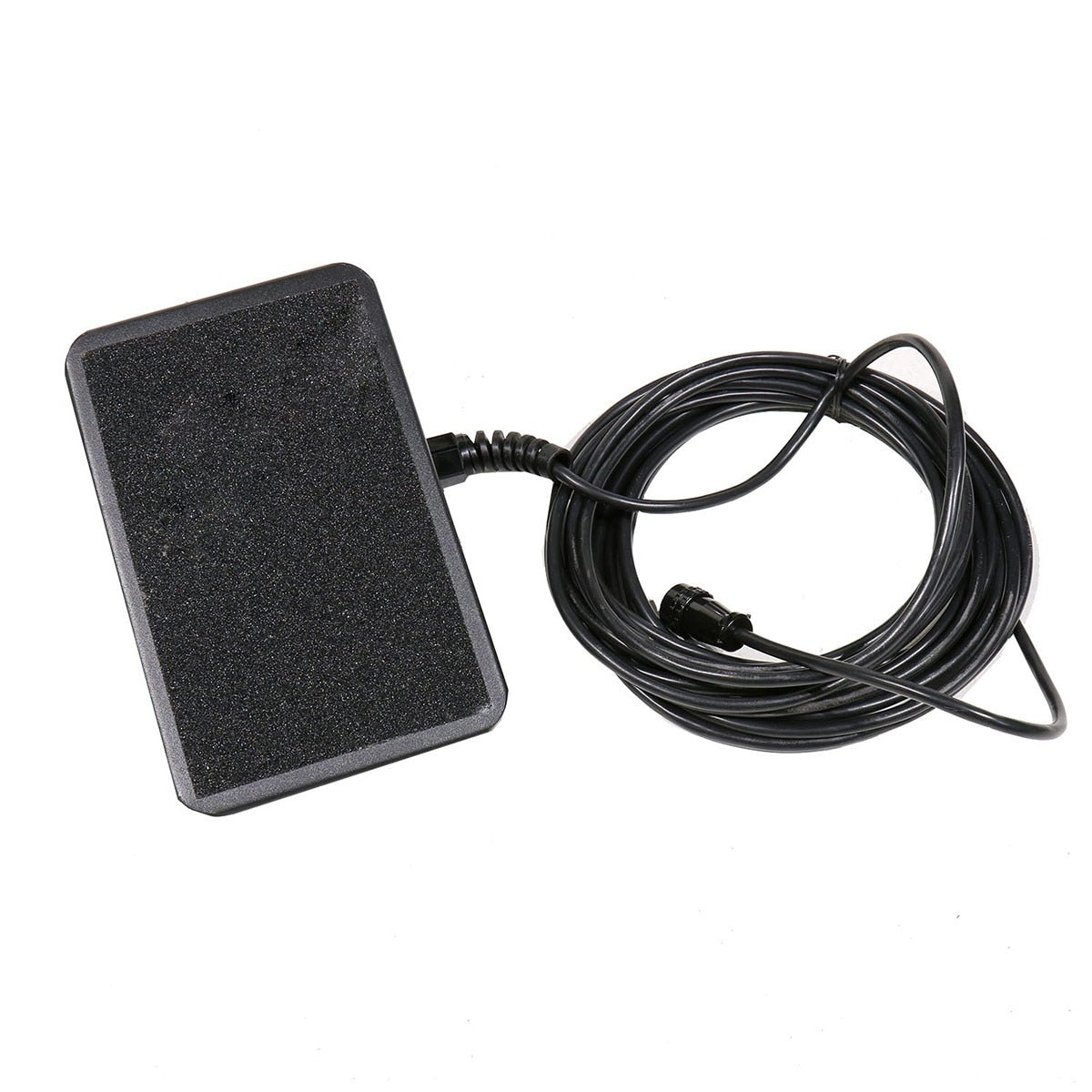

- (1) Foot Pedal

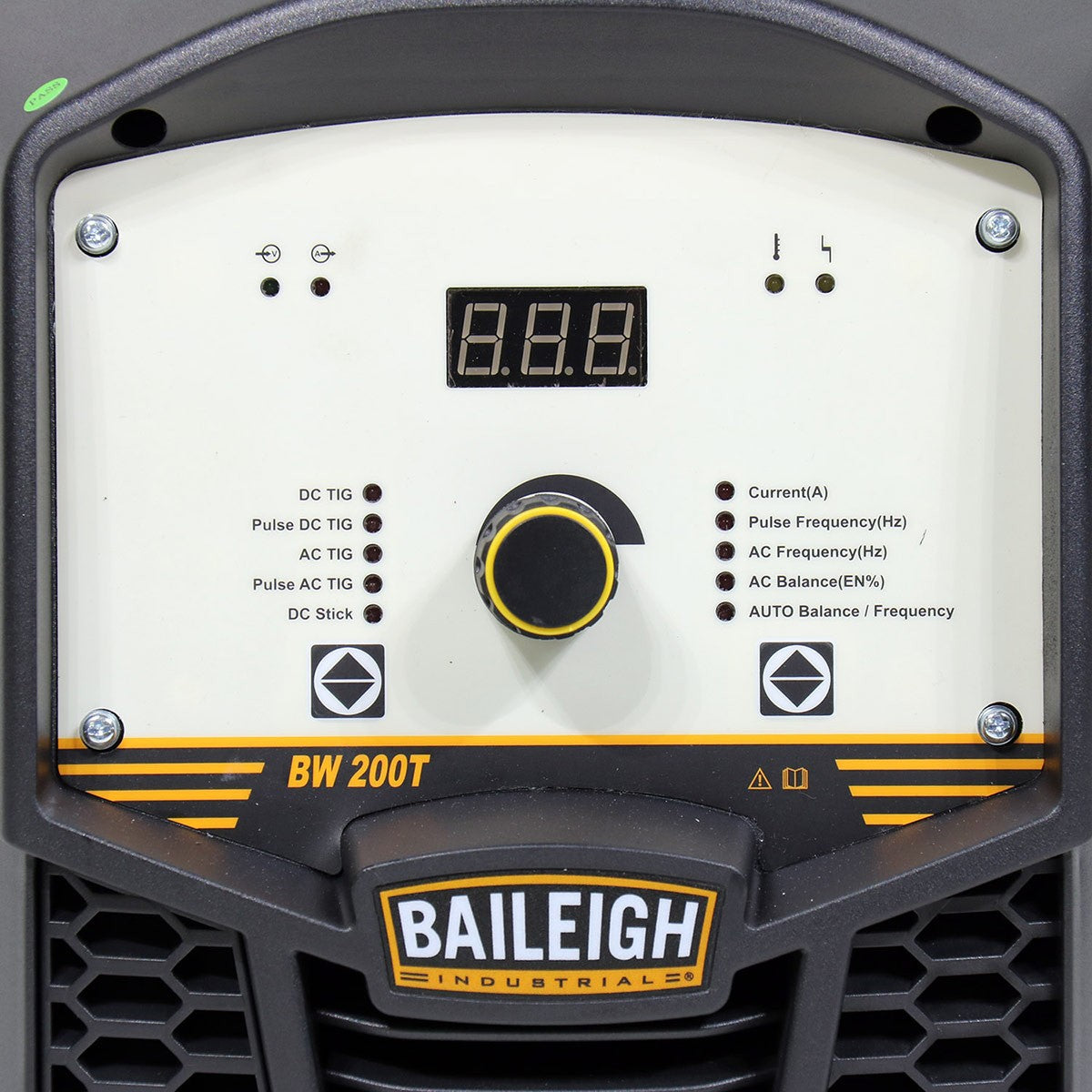

Baileigh Industrial 1021971 Features
- IGBT inverter
- Dual voltage can run on 120 volt or 230 volt single-phase power
- AC/DC
- Remote adjustment
- Pulse ratio and frequency
- Peak / base current
- Variable AC frequency / balance
- Thermal overload protected
- Fan cooled (on demand)
- Tig / Stick / Lift Arc
- 2 /4 step
- Pre / Post gas flow
- Up / Down Slope
- Variable arc force
- Generator safe
- Easily sourced consumables
- Includes TIG Torch, ground clamp, 6-50P 250V plug, adaptor to 120V plug, gas hose with regulator, and foot pedal
Baileigh Industrial 1021971 Specifications
| Maximum Current | 200 Amps |
| Cooling System | Fan Cooled |
| Power | Dual Voltage - 120V/230V Single Phase |
| Rated Input Current | 20A (120V) / 31A (230V) |
| Rated Input Capacitance | 2.4KVA (120V) / 7.1KVA (230V) |
| No-Load Voltage | 65V (120V) / 65V (230V) |
| Rated Working Voltage | 22.6 (120V) / 26.4 (230V) |
| Efficiency | 80% |
| Power Factor | .8 |
| Insulation Class | F |
