Baileigh Industrial | SKU:
BA9-1022128
Baileigh Industrial BA9-1022128 DP-1000E Belt Driven Drill Press
Free Shipping
$1,899.00
$2,197.71
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1022128 Description

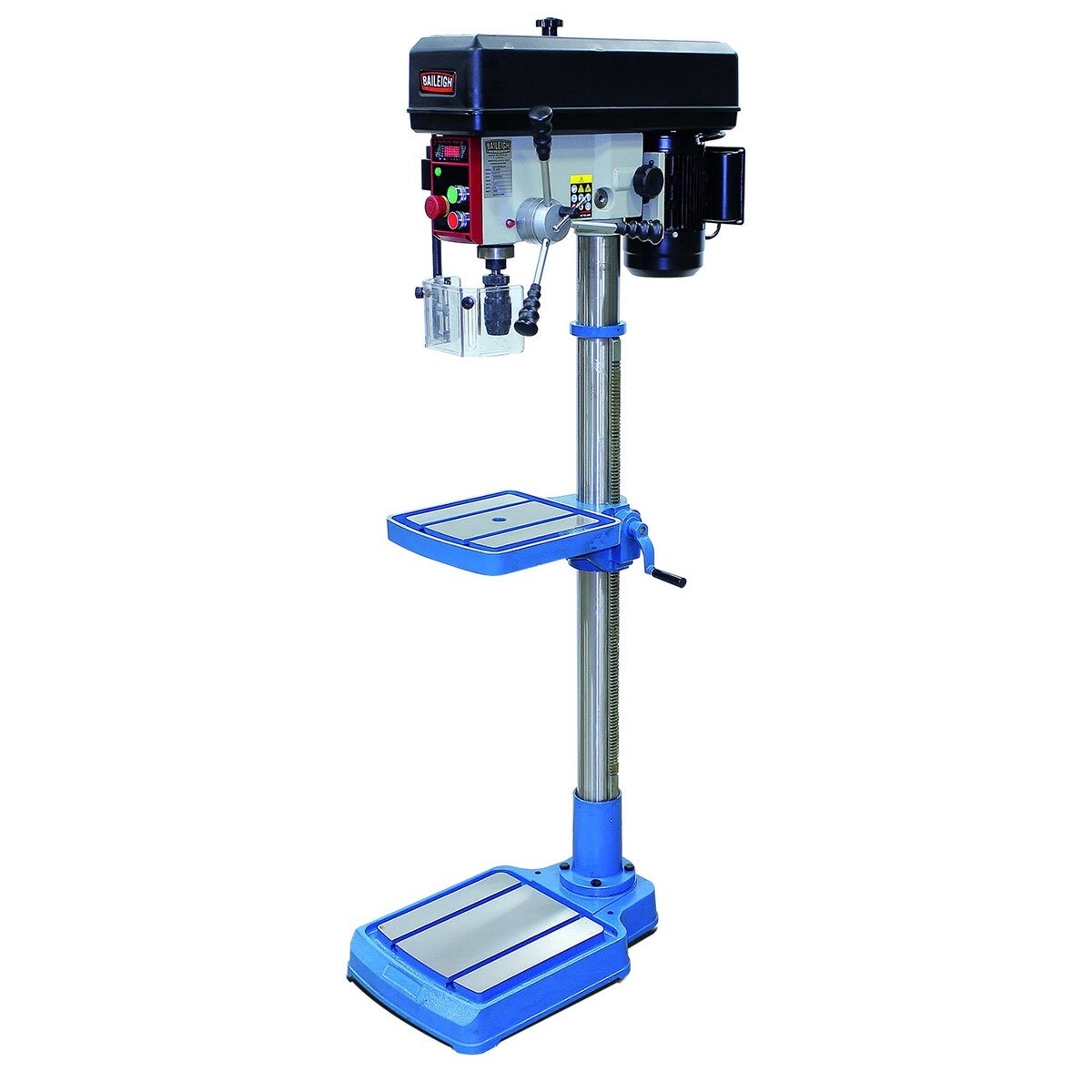

This economical belt driven drill press runs smoothly even at full capacity - the DP-1000E is a 15-1/2" drill press with an MT2 Taper that lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.
Baileigh Industrial 1022128 Includes
- (1) Drill Press

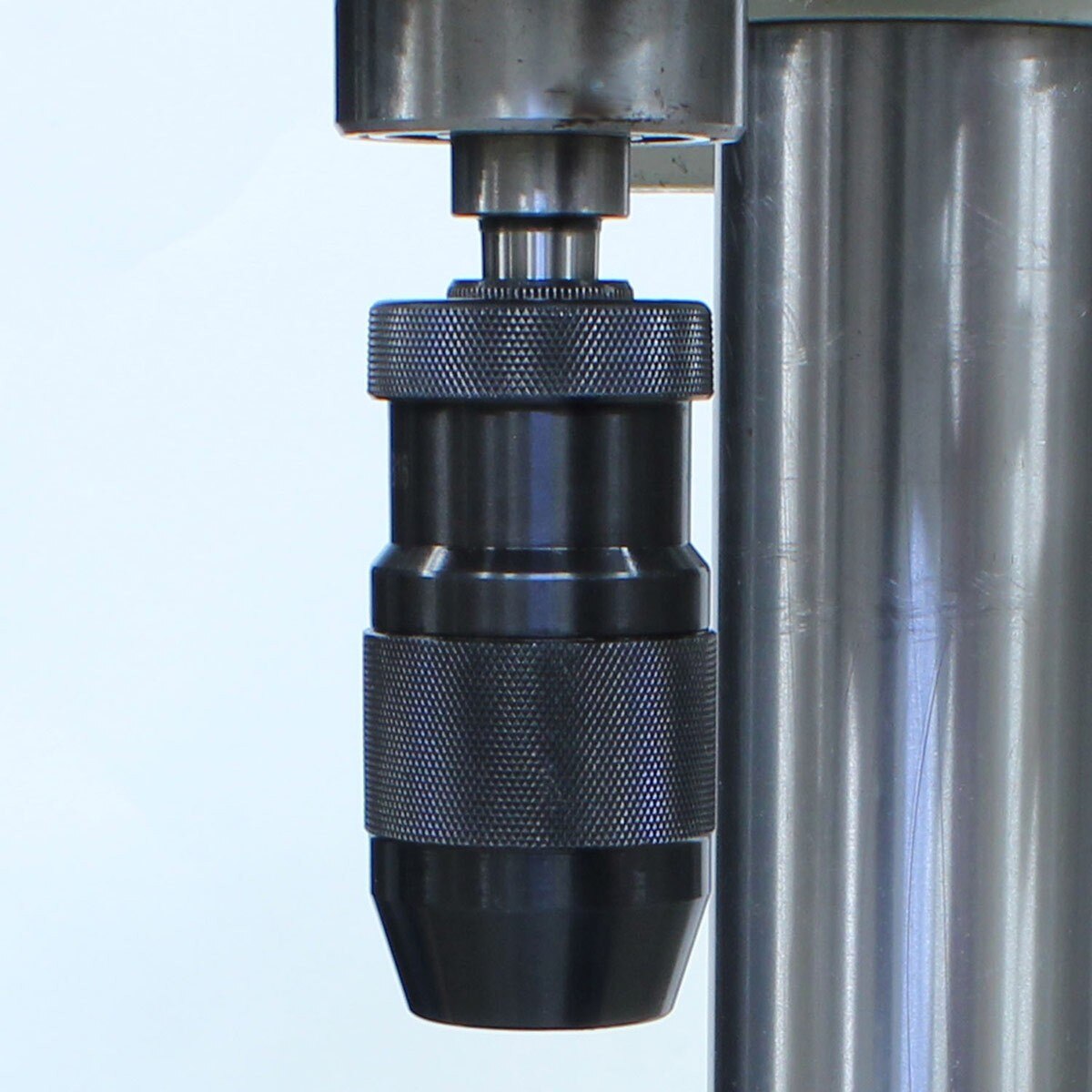

- (1) B-16 1-16mm Keyless Chuck
- (1) MT2 to B16 Arbor
- (1) Drift Key
Baileigh Industrial 1022128 Features
- .5 hp motor requires 110 volt power and will work at any shop or site.
- Belt driven head drills a maximum capacity of 1” steel.
- 5 speeds in the range from 250 to 2900 rpm to suit your application.
- 3-1/8" steel column eliminates flexing even when drilling at full capacity.

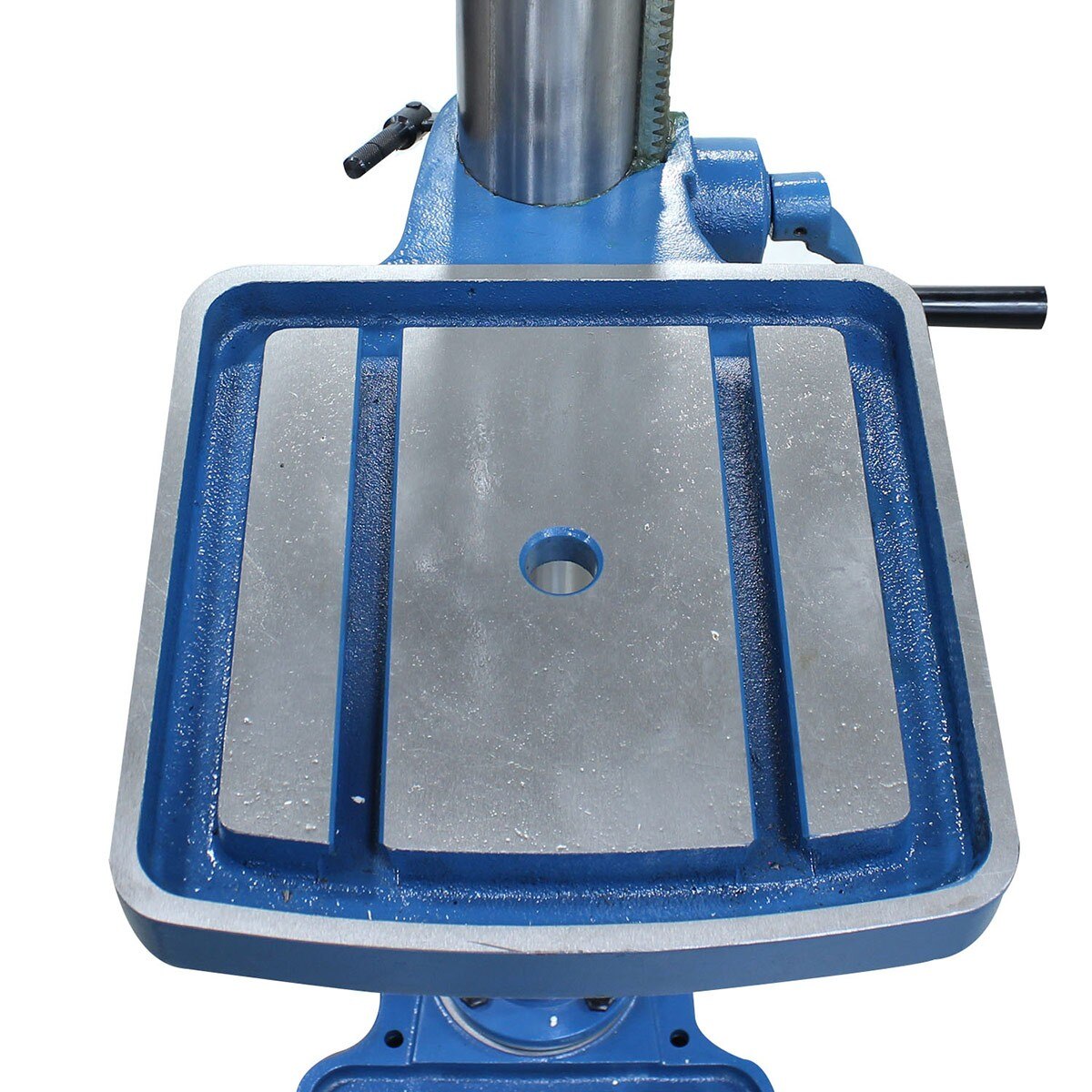

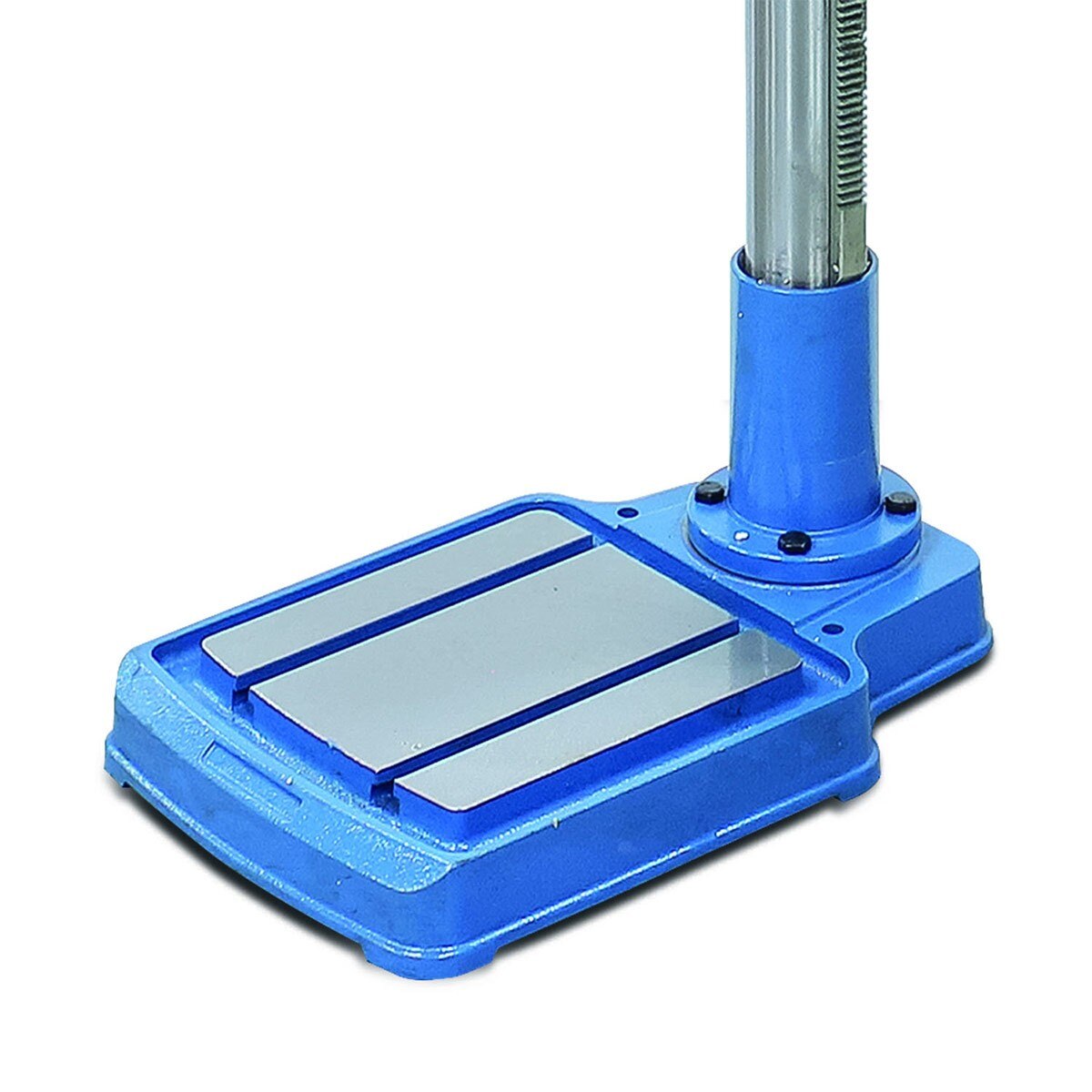

- Rigid cast iron base and table add strength to the drill’s structure.
- Includes a safety shield around the drill head to protect you.
- Baileigh backs this drill press machine with a 1-year parts warranty.
Baileigh Industrial 1022128 Specifications
| Swing | 15-1/2" |
| Diameter of Column | 3-1/8" |
| Spindle Travel | 3" |
| Base Size | 23" x 16" |
| T-Slot Width | 1/2" |
| Table Size | 12-1/2" x 12-1/2" |
| Speeds | 5 |
| Quill Diameter | 2" |
| Spindle Nose to Table | 5-1/2" Min. To 35-1/2" Max. |
| Spindle Nose to Base | 47-1/2" |
