Baileigh Industrial | SKU:
BA9-1226007

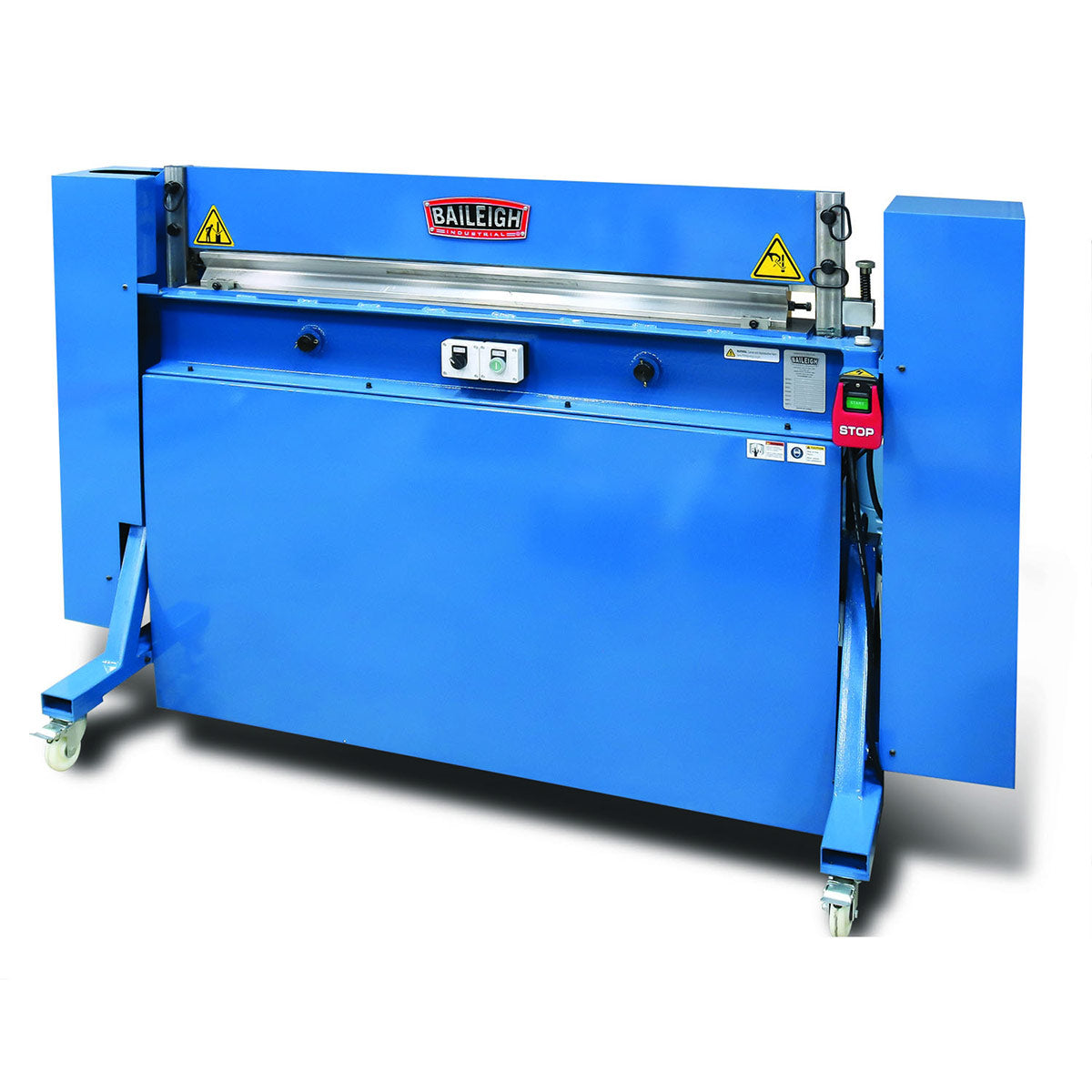

Baileigh Industrial BA9-1226007 BP-4830 Tilting Bea, Hydraulic Press Brake
Free Shipping
$10,529.00
$12,785.21
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1226007 Description
The BP-4830 is just another of the innovative products that Baileigh Industrial offers. This tilting beam press brake is perfect for those fabrication shops that have to do unique shapes, that can't be done on a standard brake. Recommended for: Hot rod shops and other fabricators that work with smaller parts, but need a fast, professional-quality machine.
Baileigh Industrial 1226007 Includes
- (1) Hydraulic Press Brake
Baileigh Industrial 1226007 Features
- Economical single speed hydraulic press brake.
- Full bending width is 48”.
- Open top beam design allows for making full boxed ducts with one piece of material.
- Bends a maximum capacity of 8ga mild steel.

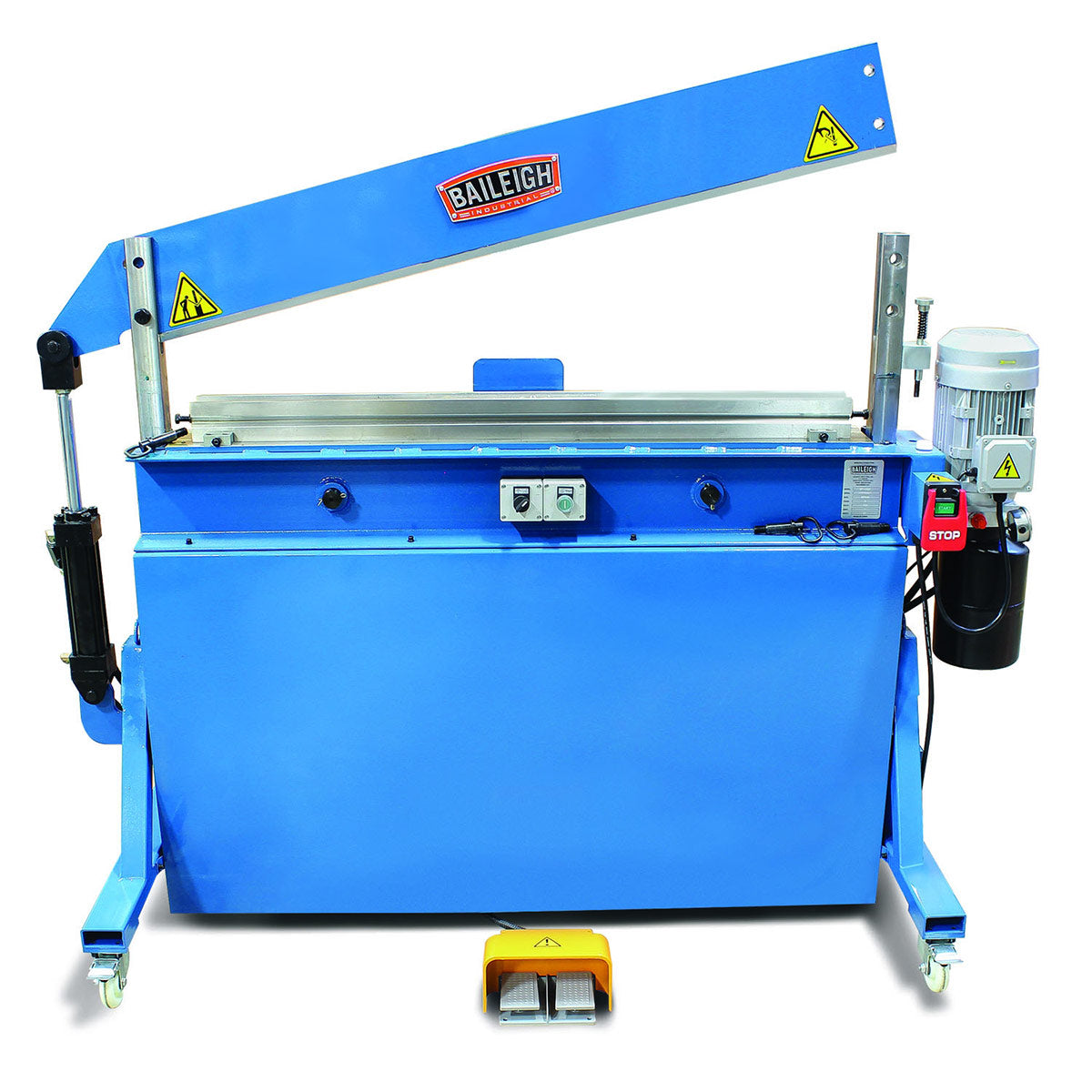

- Top beam design tilts up for easy material removal.

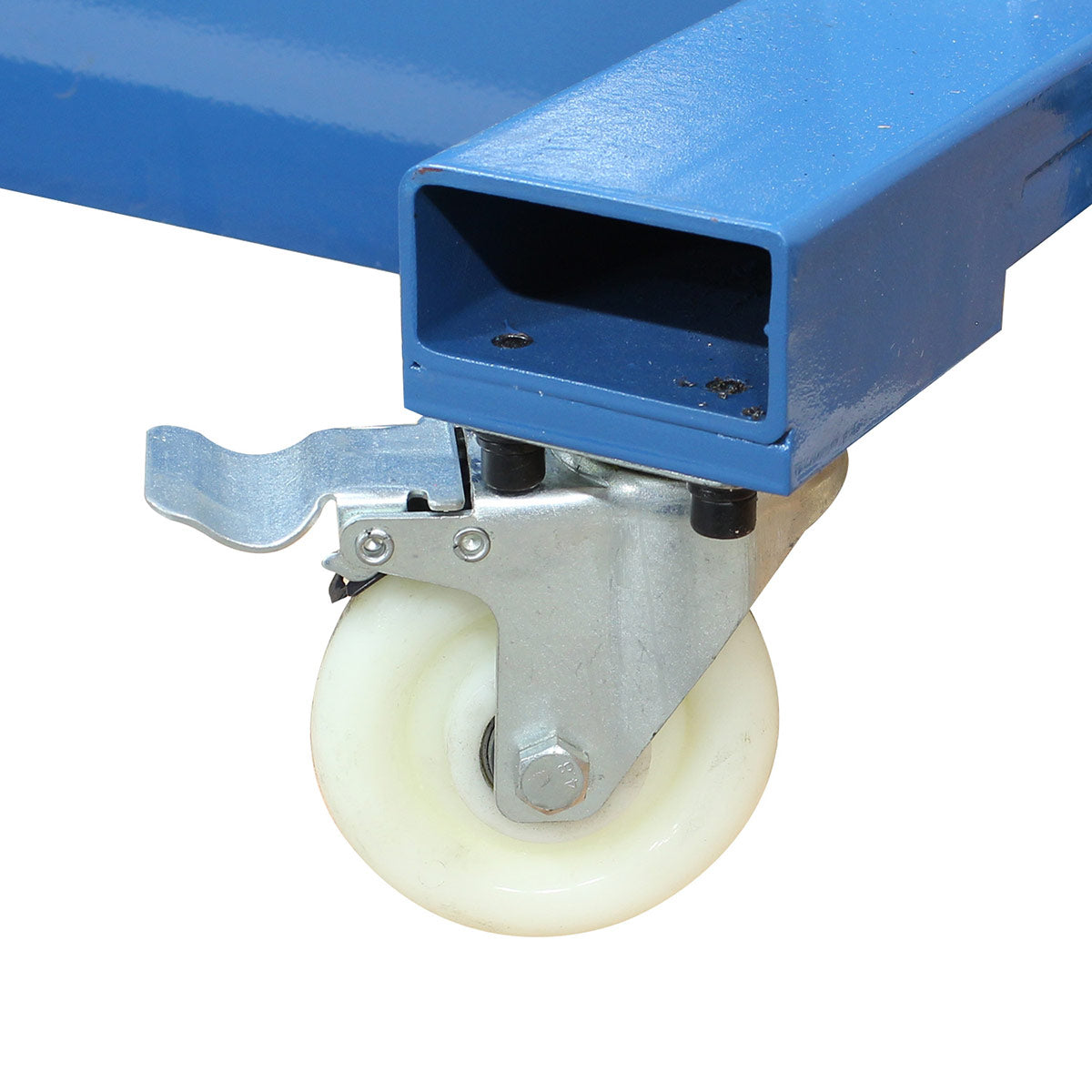

- Includes casters for portability.
- 4 hp motor produces 30 tons of pressure.
- Runs on 220-volt three phase power.

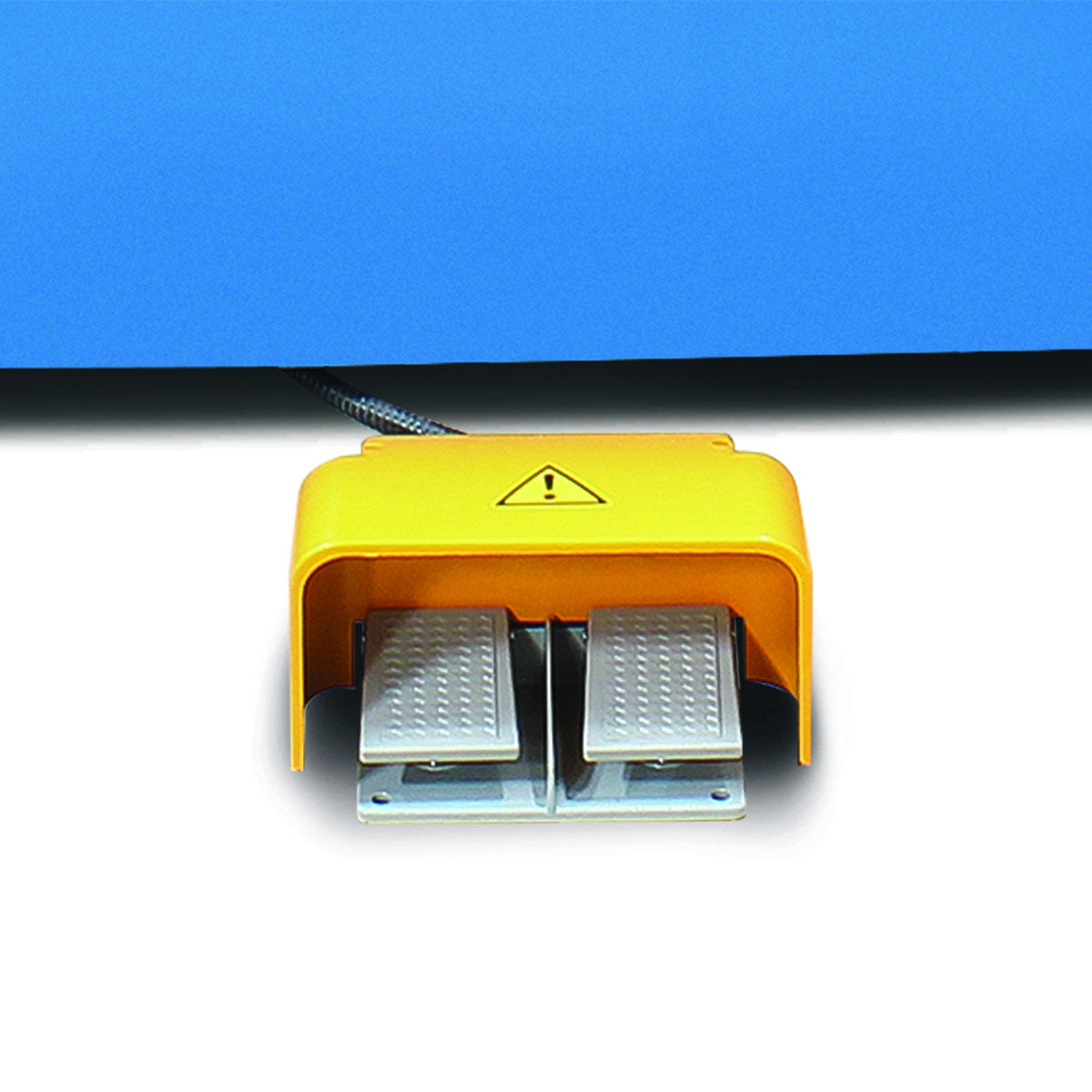

- Foot pedal controls hydraulic system, leaving your hands free to guide the material.
- Easy to use. You can train someone to handle this press brake in 5 minutes.

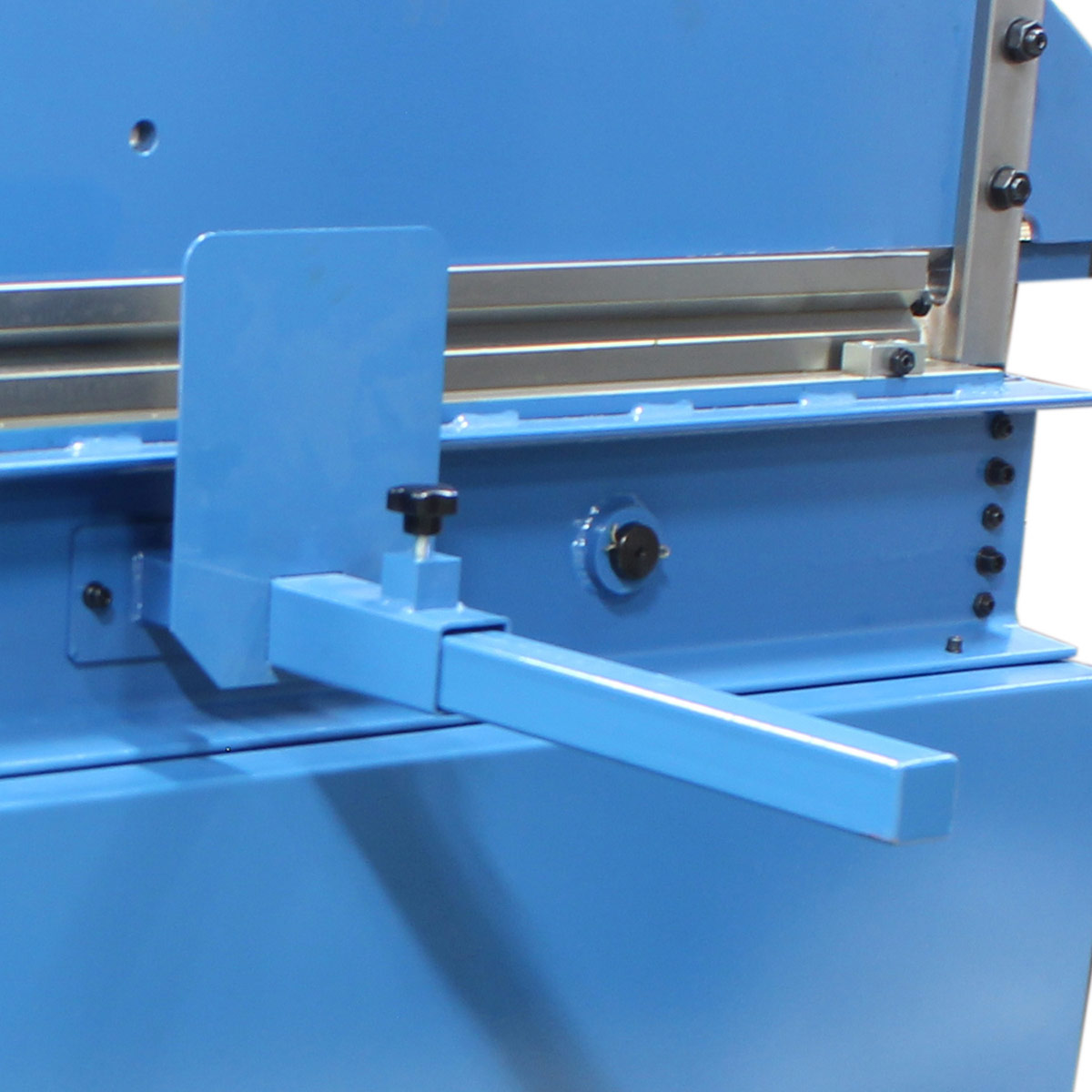

- Sturdy 26.5" manual back gauge makes it simple to create repeat parts.

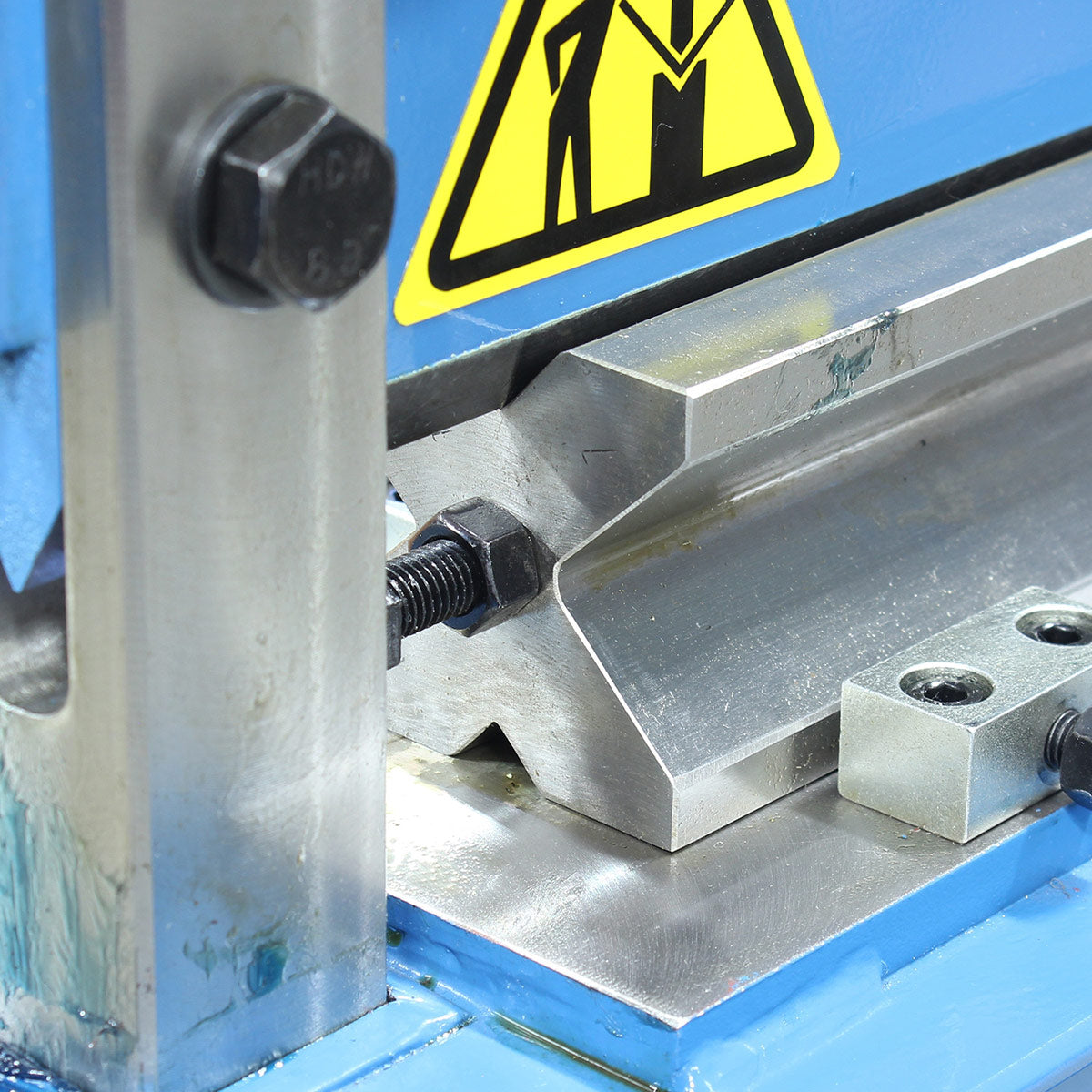

- Includes a hardened multi-Vee bottom die, with 3/4", 1", 1-1/2" and 2" openings .
- Universal tooling holder on the bottom die gives you a wide variety of options to fit your applications.
- Requires little maintenance. Hydraulics are located in the upper back of the machine for convenient fluid changes every 6 to 8 months.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1226007 Specifications
| Machine Dimensions (L x W x H) | 78.3" x 31.5" x 49.2" |
| Motor | 4 HP |
| Production Pressure | 30 tons |
| Table Length | 48" |
| Back Gauge Length | 21.6" |
| Included Tooling | Multi-Vee Bottom Die with .75", 1", 1.5" and 2" Openings |
| Stroke Distance | 5.9" |
| Capacity (Mild Steel) | 8 ga. |
| Capacity (SS) | 10 ga. |
| Distance Between Housings | 51.9" |
