Baileigh Industrial BA9-BR36 Bead Roller BR-16E-36
Description
Description
Baileigh Industrial 1000862 Description

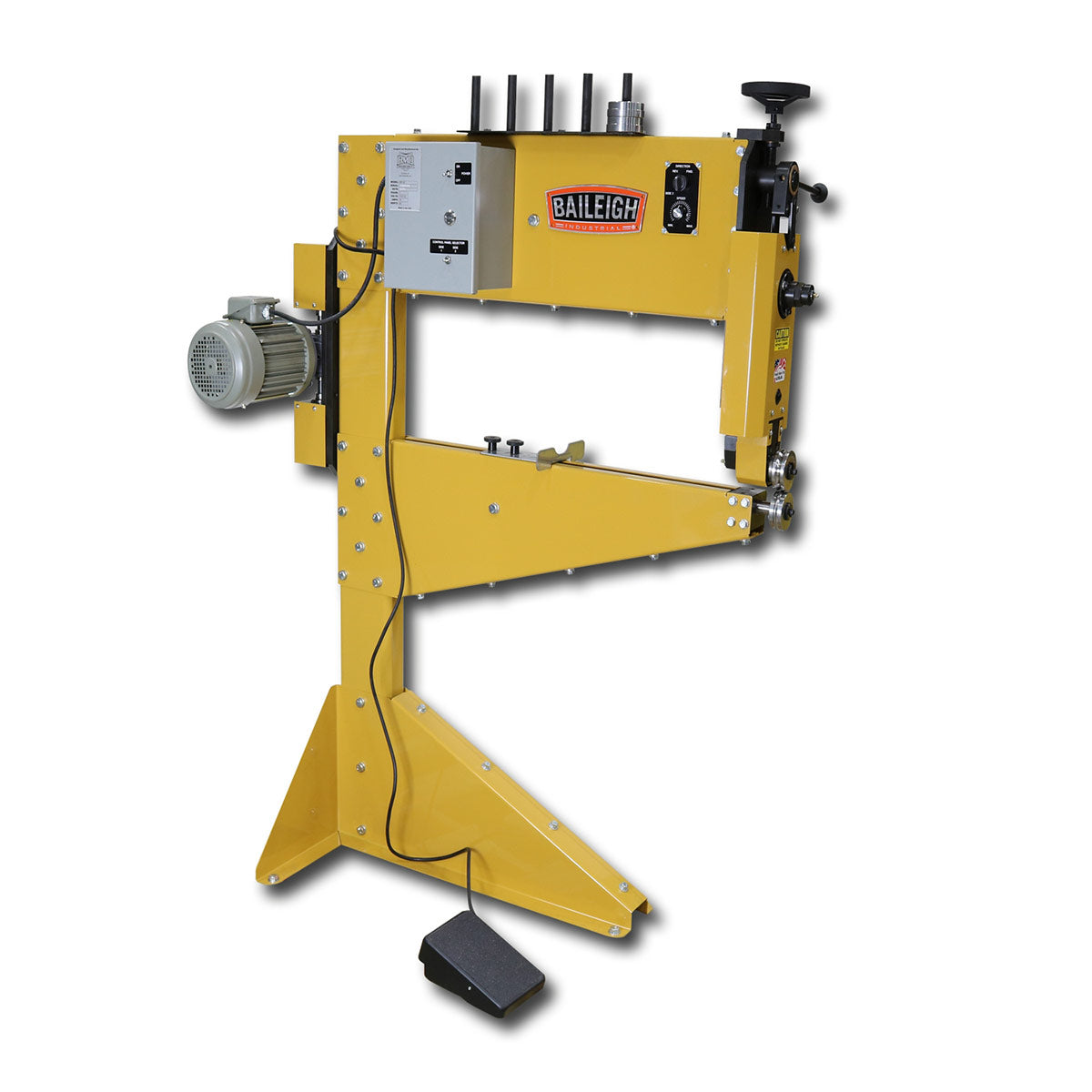

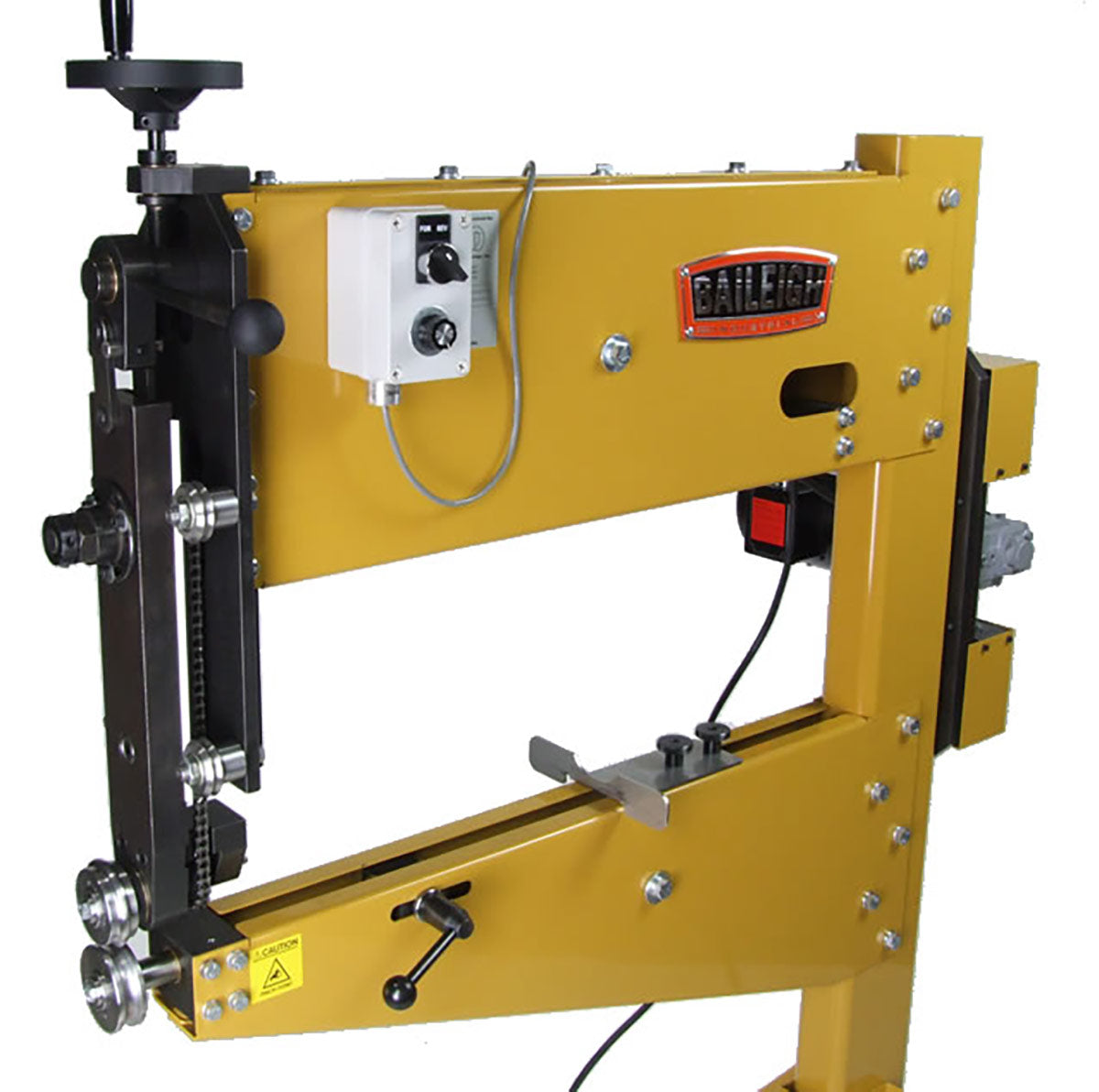

The BR-16E-36 bead roller from Baileigh Industrial is a machine that has all the best features that fabricators want, as well as some they didn’t know that they needed, until now. The BR-16E-36 bead roller has a large 36” throat depth with integrated adjustable depth stop. It uses an open concept working area to enable large sheets of sheet metal as well as panels with radii already in them to have beads or steps applied. The BR-16E-36 also has a unique quick release top die that maintains it’s forming depth. Because it maintains the correct depth of the top die, the BR-16E-36 bead roller allows the operator to begin or end a design in the middle of the panel without having to worry if the depth is set correct. Forming depth is adjusted by a large hand wheel located just above the working area so it is easily accessible for adjustment on the fly. Unlike most other bead rollers on the market, the BR-16E-36 allows the bottom die to be slid in or out depending on the offset that the finished item requires, which will open up a world of possibilities in metal forming. A variable speed foot pedal controls the speed of the material feed, but can be locked in at one speed if that is what the operator chooses.
Baileigh Industrial 1000862 Includes
- (1) Bead Roller
Baileigh Industrial 1000862 Features
- 16 gauge mild steel maximum capacity.
- 36” throat depth enables you to work on the middle of large panels.
- Industrial .5 hp motor runs on 110-volt power. Plug it into any household outlet.
- Both rolls are driven. Chain drive on the top roll prevents slippage.
- Variable-speed foot pedal lets you slow down your feed rate for more delicate work.
- You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed.

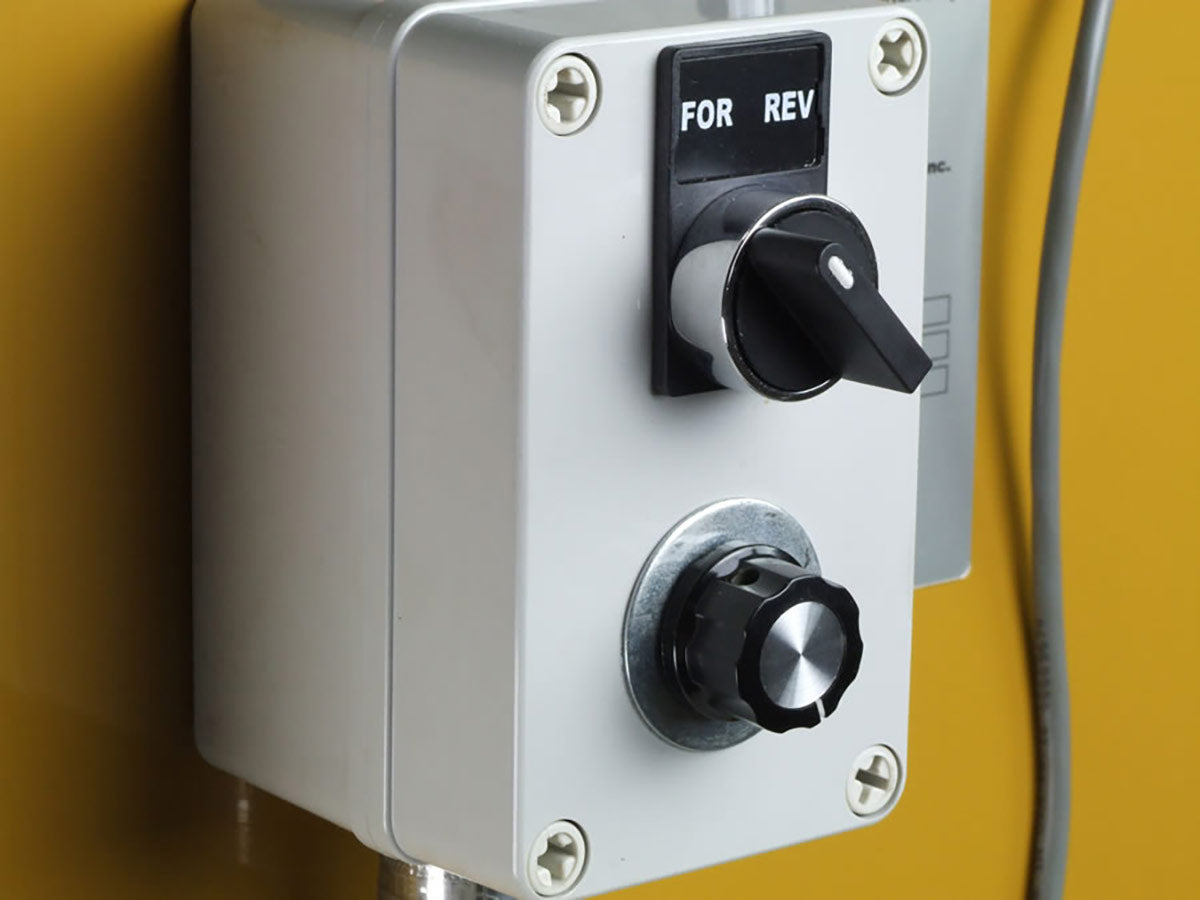

- Rollers can run forward or in reverse, so you can go over a pattern as needed.
- Left- and right-hand controls are the same on both sides of the machine.

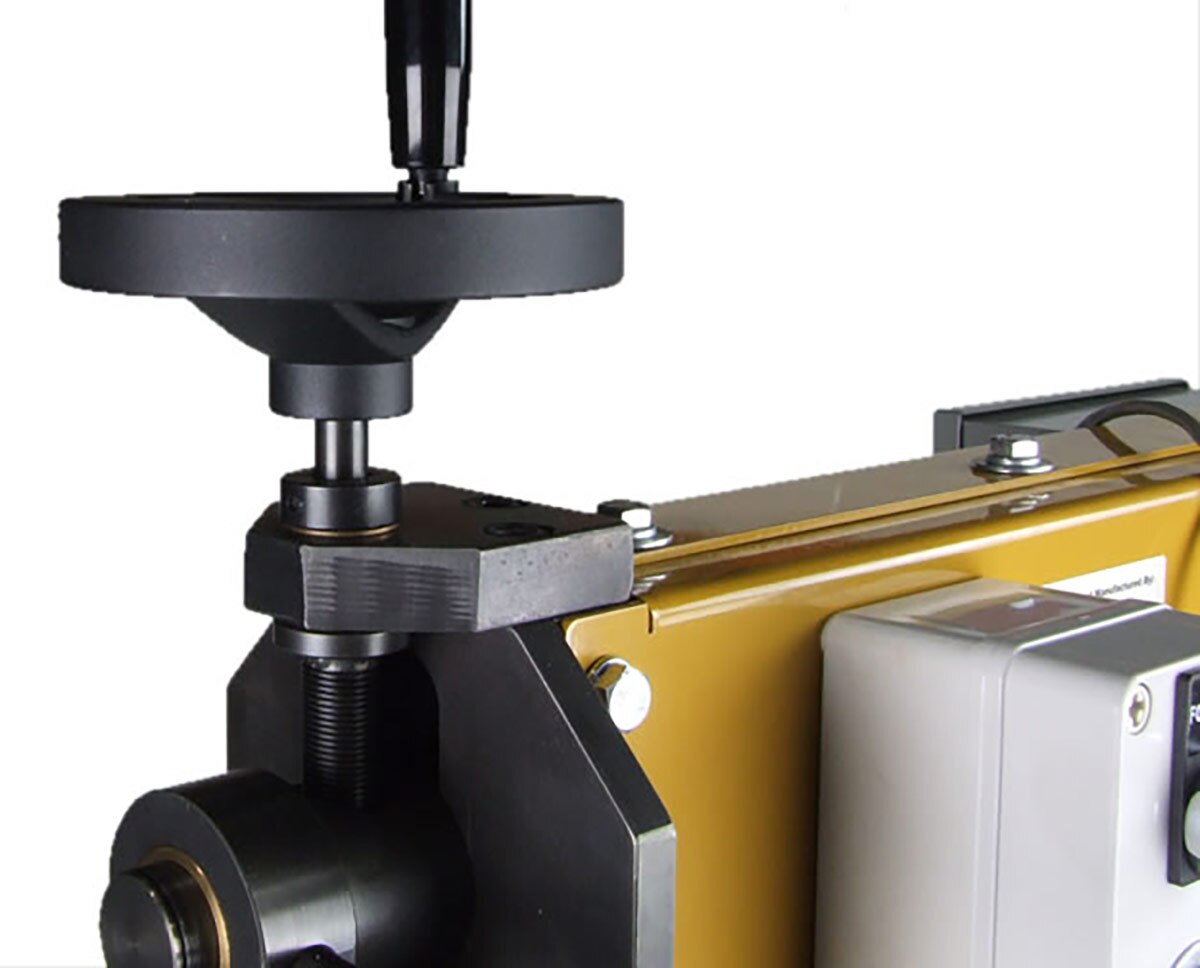

- Adjust the forming depth by turning a hand wheel just above the working area.
- Quick-release top die can open and close without altering the depth pressure.
- You can begin or end a design in the middle of the panel and not worry if the depth is set correctly.
- Depth stop allows you to easily make straight, repeable beads.
- Comes standard with a ¼” round bead tooling set and a .05" step roll set.
- Shaft is compatible with standard tooling. You could reuse rolls from another brand.

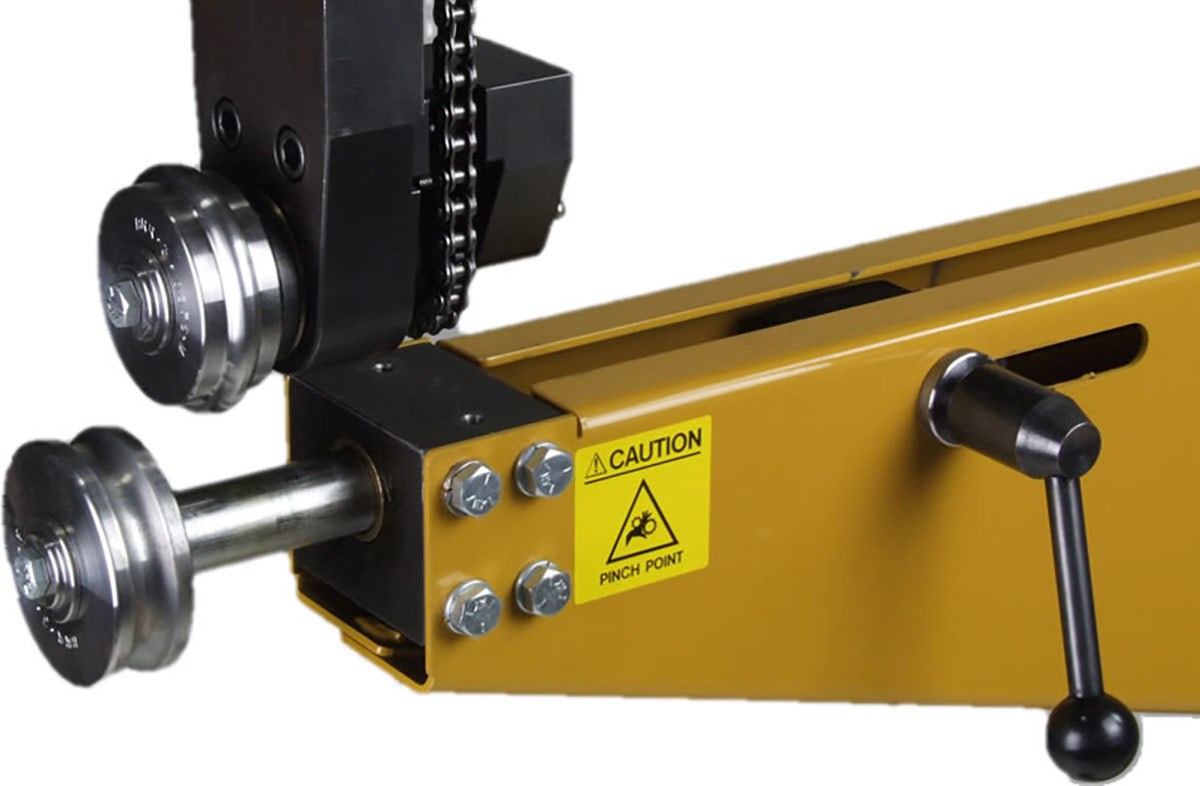

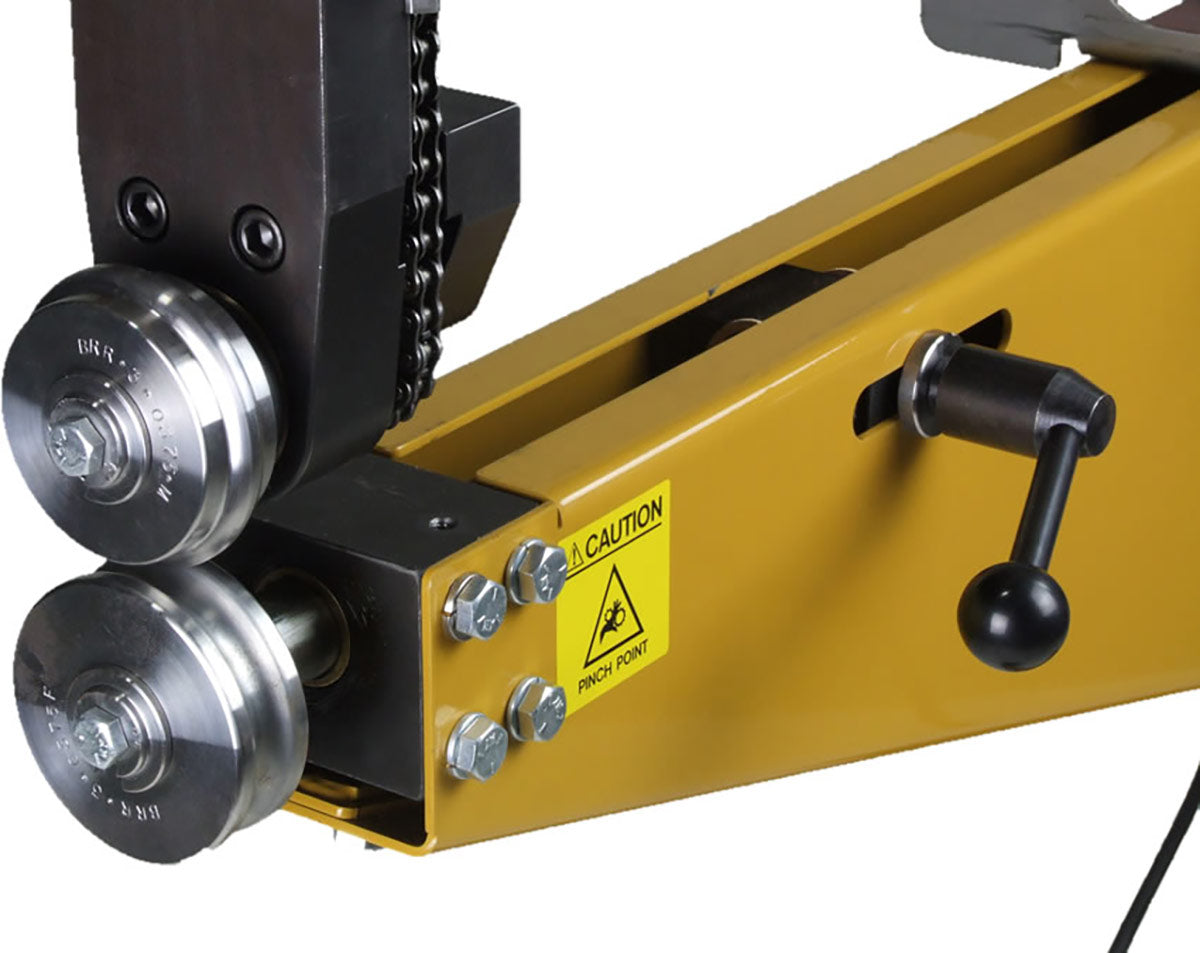

- Bottom die can slide in or out, so you can create custom profiles by varying the offset.
- All friction points turn on bronze bushings that last for decades. Grease fittings allow for convenient maintenance.
- Heavy steel frame ensures accurate beads over many years of use and helps prevent flex.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1000862 Specifications
| Dimensions | 60" x 44" x 70" |
| Motor | 1/2 HP |
| Mild Steel Capacity | 16 Gauge |
| Throat Depth | 36" |
| Capacity (Mild Steel) | 16 Gauge |
| Aluminum Capacity | 14 Gauge |
| Power | 110V |
| Country of Origin | United States |
