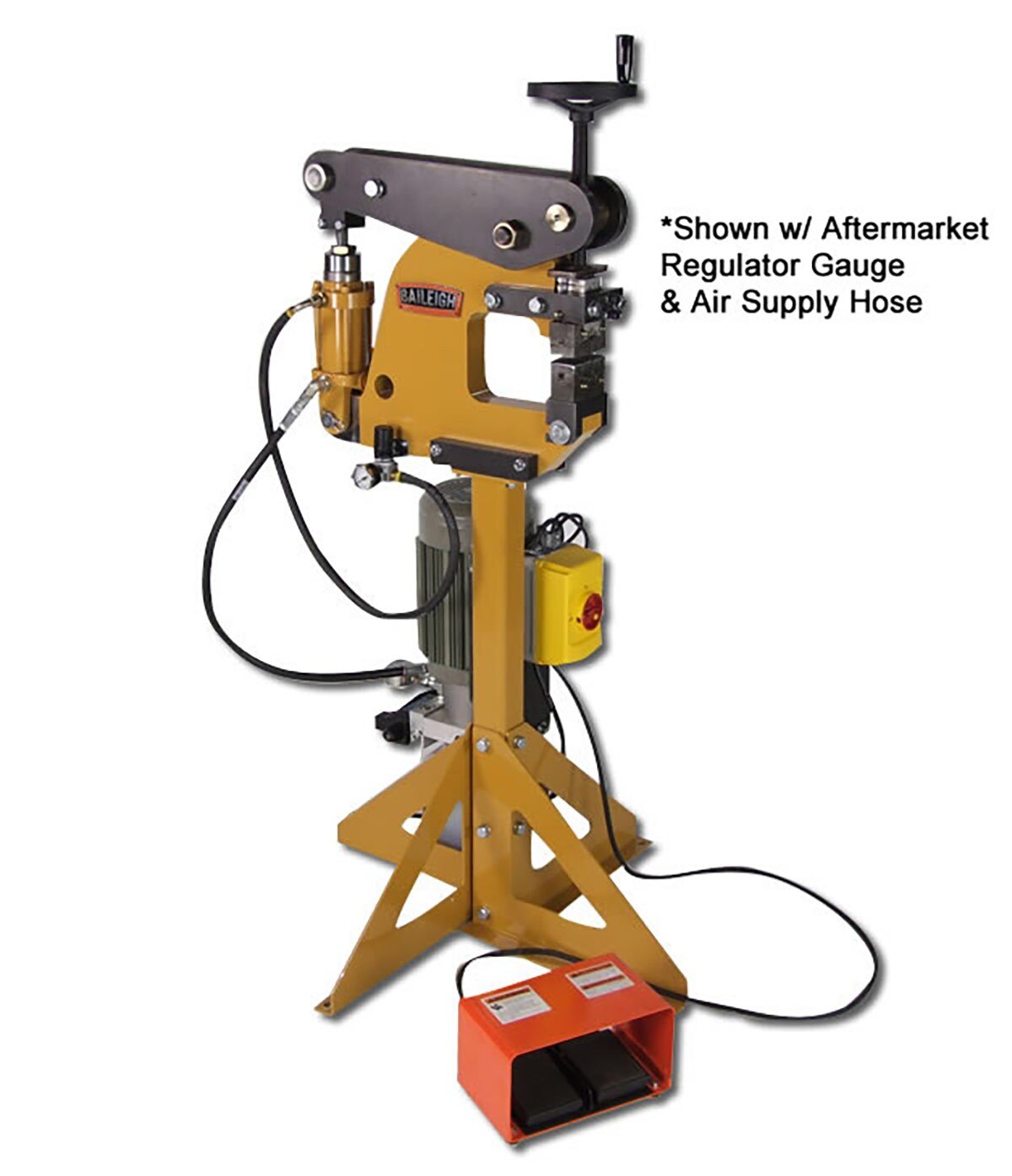

Baileigh Industrial BA9-MDL-MSS14H Metal Forming Shrinker Stretcher MSS-14H
Description
Description
Baileigh Industrial 1005698 Description
Have you ever had the thought of shrinking anything more than 16 gauge mild steel, but when you try it the machine and jaws just can’t quite cut it. Unique on the market, our patented* hydraulic shrinker stretcher lets you shape thick sheet metal at amazing speeds. Foot pedal operation and magnetic tooling also save you time. The engineers at Baileigh Industrial had the same problem, this is when the concept for the MSS-14H hydraulic shrinker stretcher came from. The MSS-14H hydraulic shrinker stretcher is 100% made in the USA from solid plate steel.
Baileigh Industrial 1005698 Includes
- (1) Metal Froming Shrinker Stretcher
- (1) Stand
Baileigh Industrial 1005698 Features
- This Baileigh shrinker stretcher is made in the USA.
- 14 gauge mild steel and 12 gauge aluminum capacity.

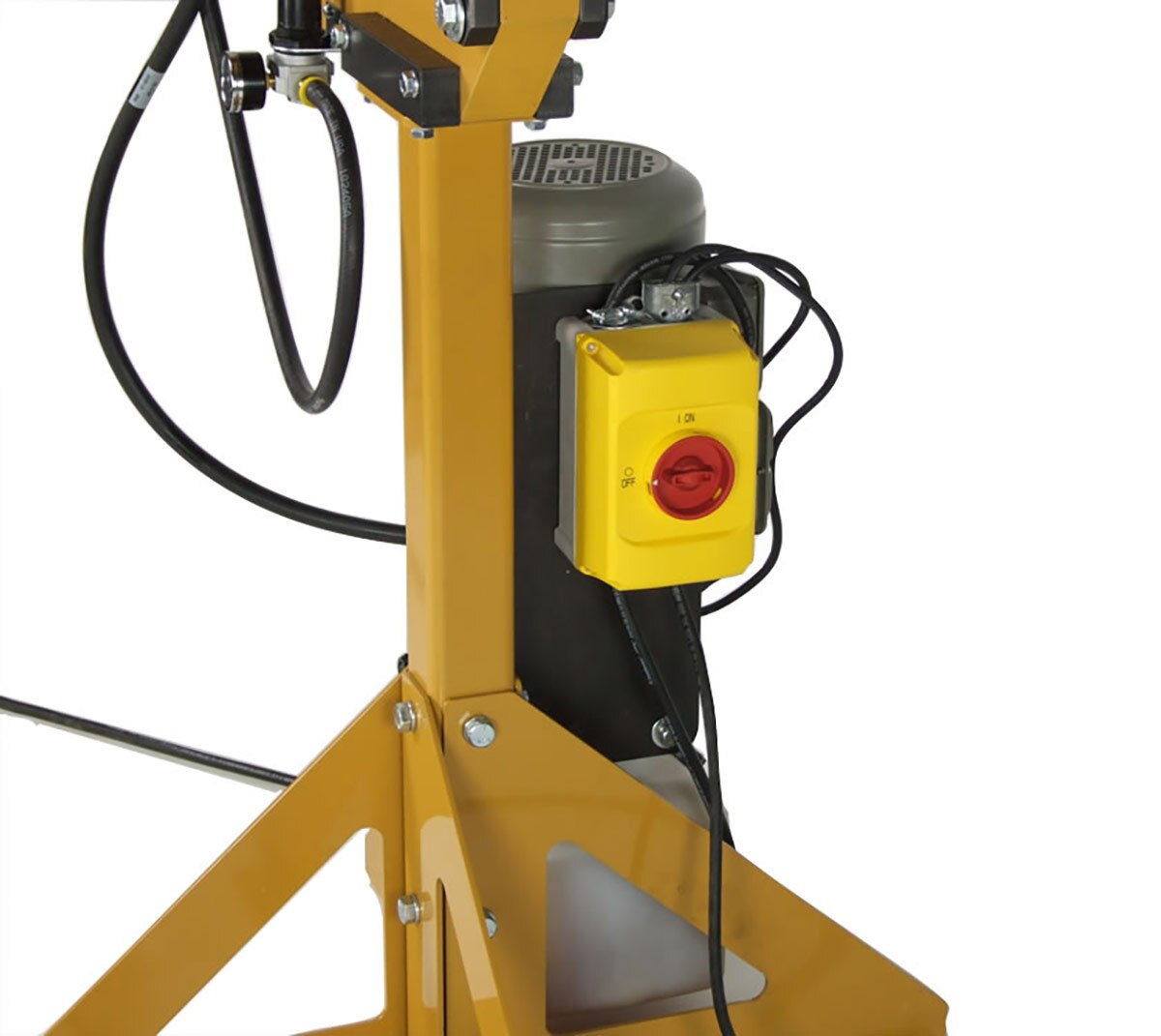

- Runs on 110-volt single-phase power, so you can use it anywhere.
- 7” throat enables you to work deep into a piece of sheet metal.

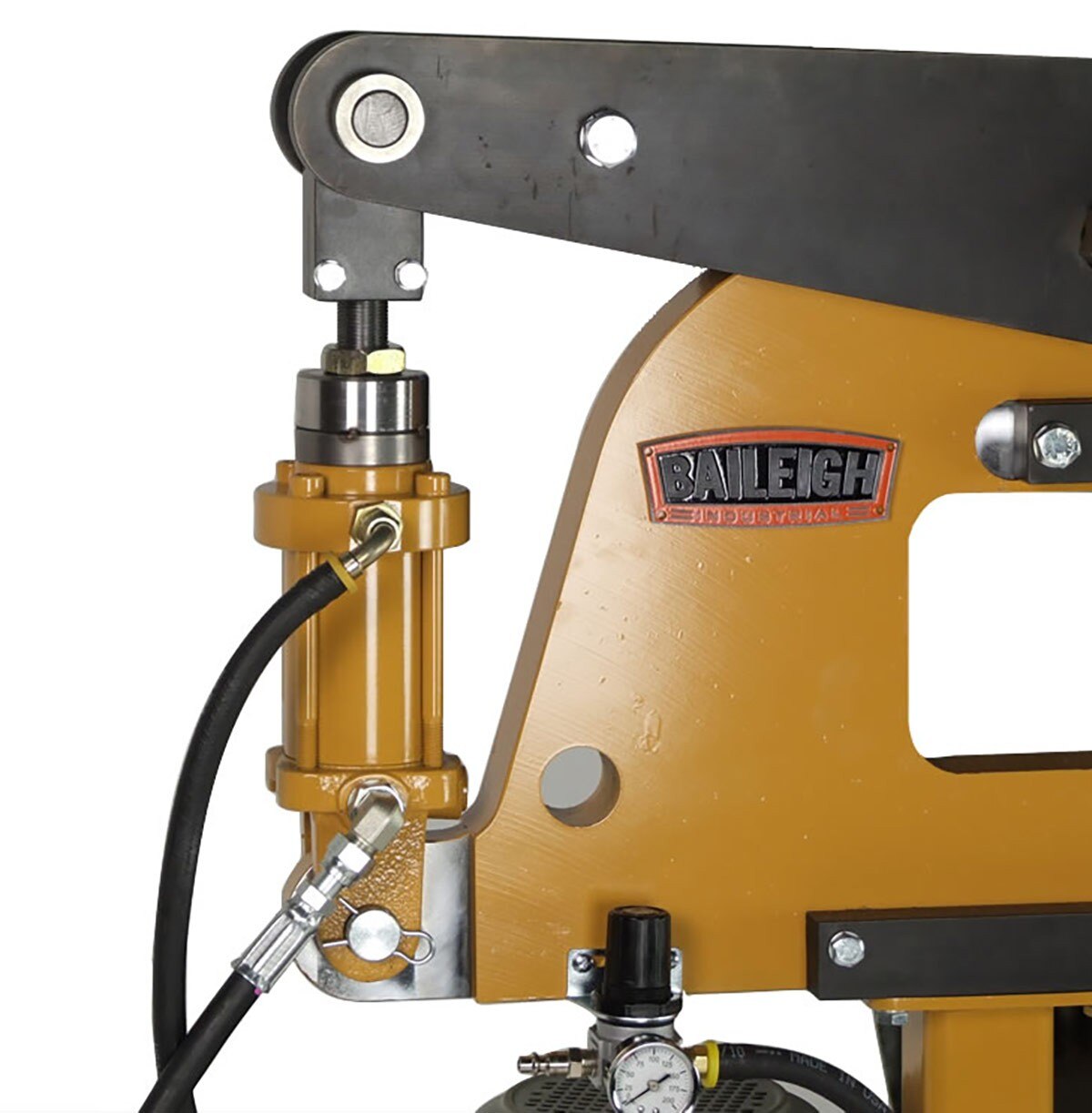

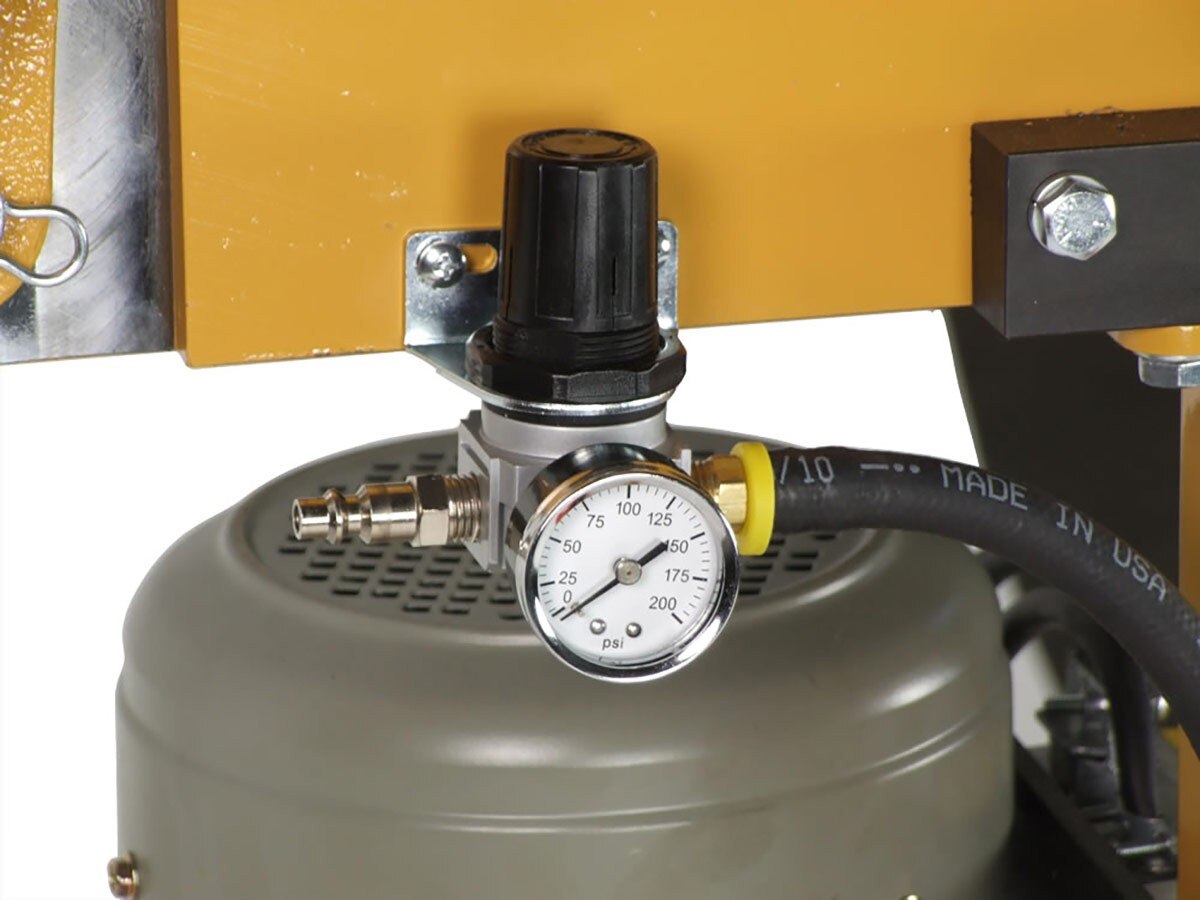

- Hydraulic/pneumatic system drives 30 to 40 strokes per minute.

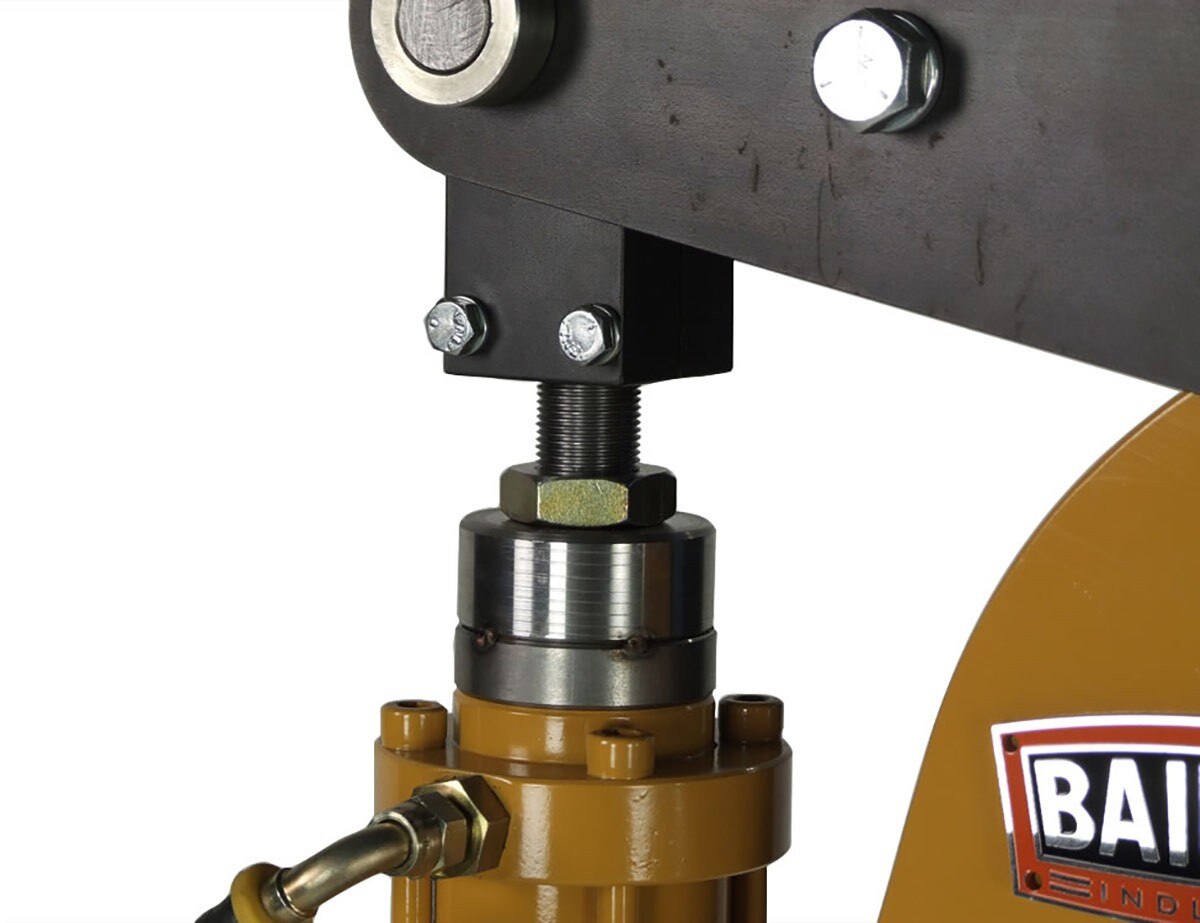

- Hydraulic downstroke delivers greater power than a manual model could, while the air pressure-assisted upstroke moves faster.
- Foot pedal control allows for hands-free operation.

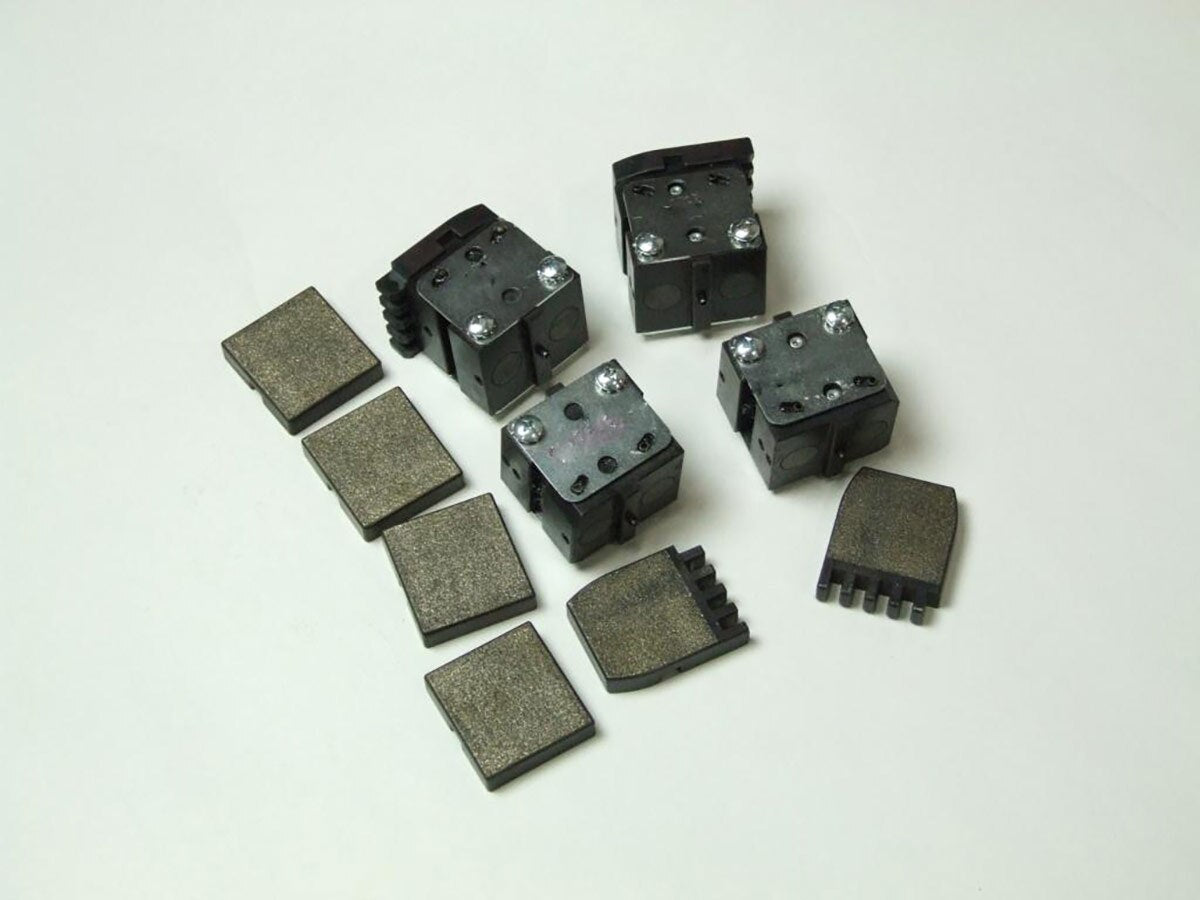

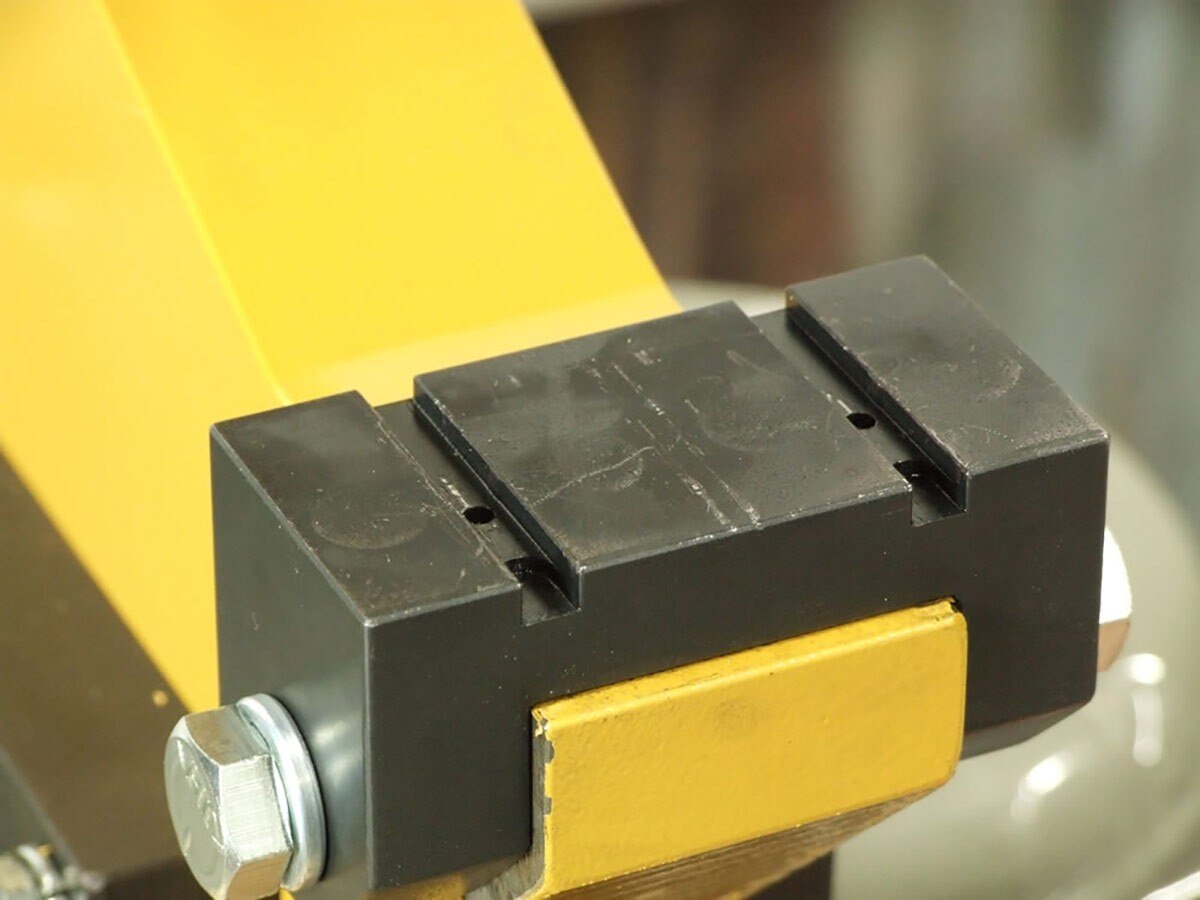

- Comes standard with a set of 4 quick-change magnetic jaws.

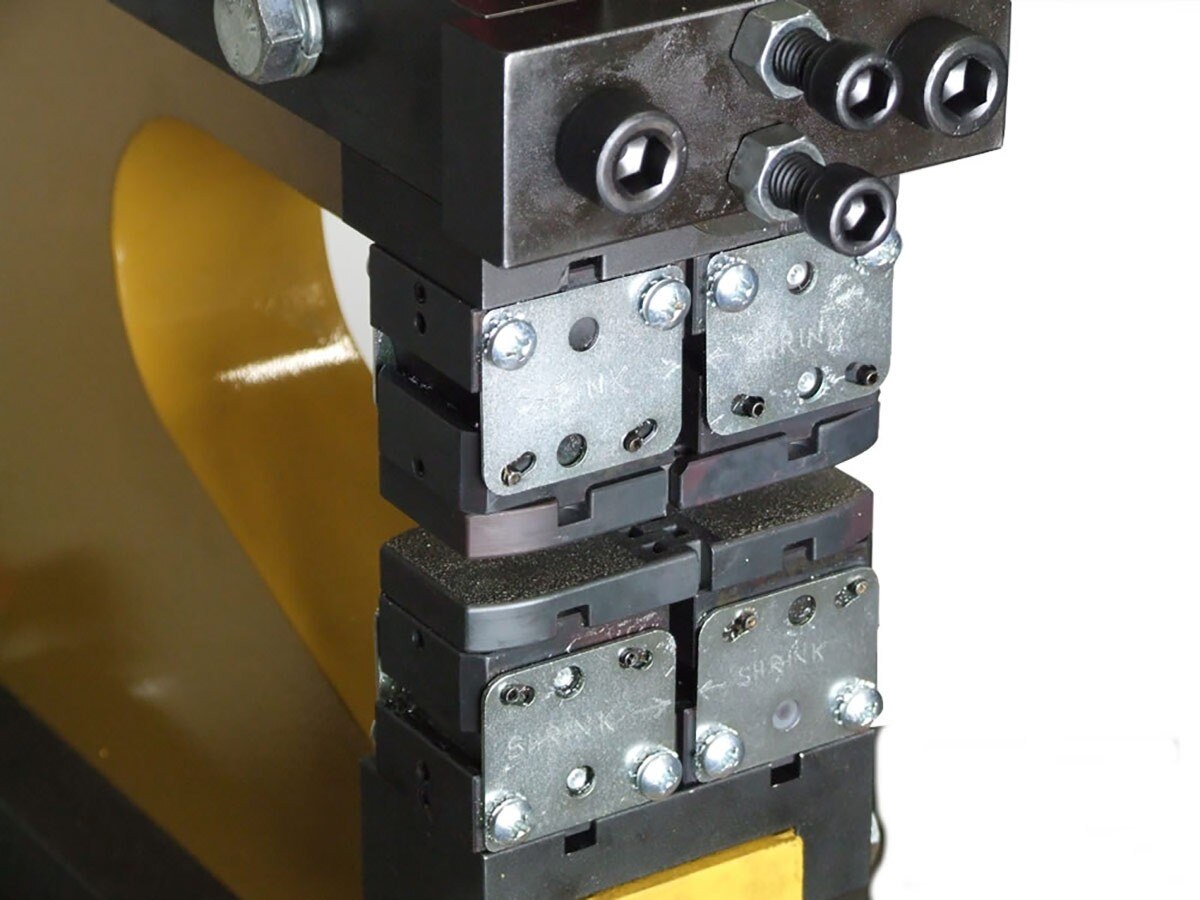

- You can switch between shrinking and stretching in seconds simply by turning the jaws around.

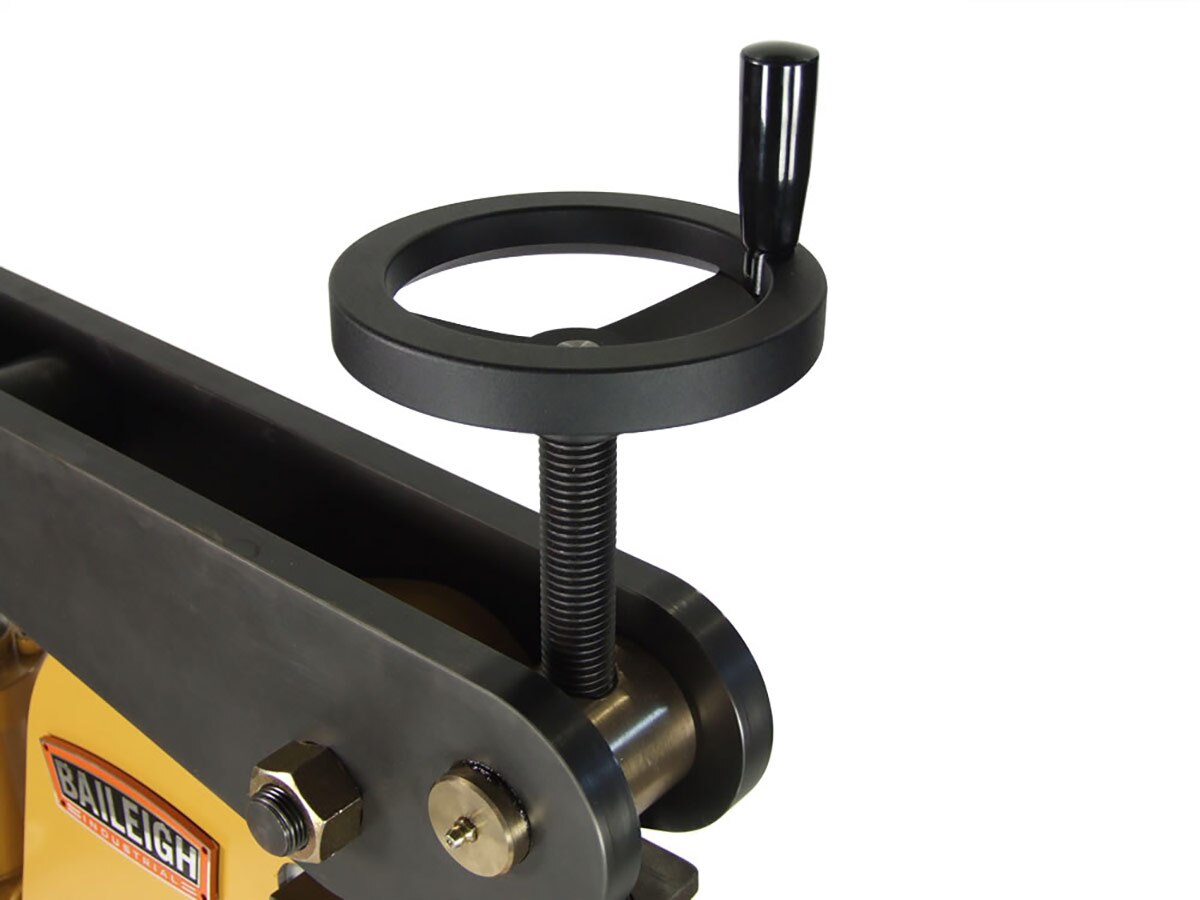

- Turn the wheel on top of the shrinker stretcher to adjust the jaw gap.
- Solid plate steel frame gives the machine enough structural strength to stay accurate at maximum capacity for many years.
- We cover this metal shrinker stretcher machine1-year parts warranty.
Baileigh Industrial 1005698 Specifications
| Mild Steel Capacity | 14 Gauge |
| Movement | Hydraulic Down / Pneumatic Up |
| Throat Depth | 6" |
| Working Height | 37.5" |
| Stand | Included |
| Aluminum Capacity | 12 Gauge |
| Power | Manual |
| Shipping Dimensions | 60" x 44" x 77" |
| Country of origin | united States |
