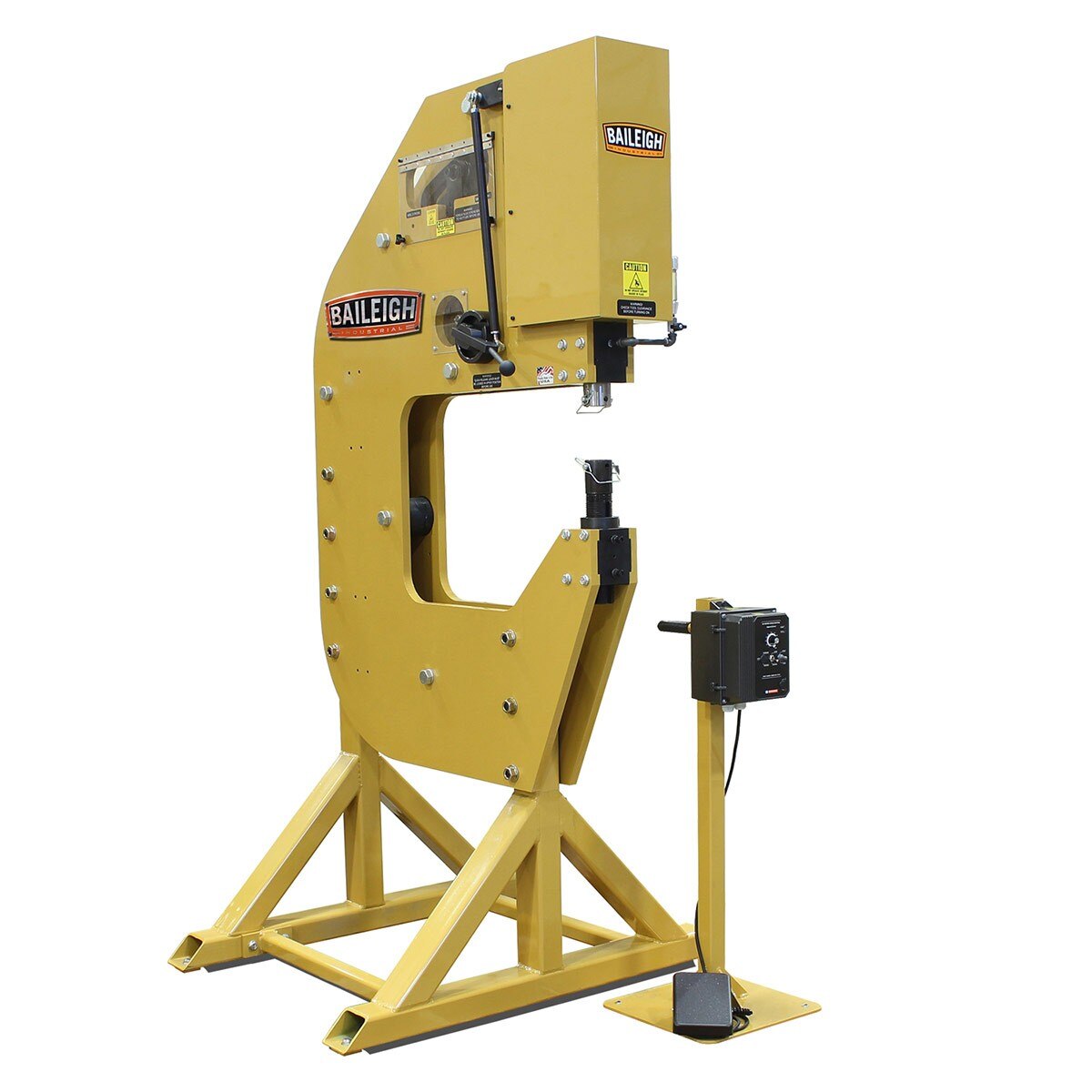

Baileigh Industrial BA9-PH28HD PH-28HD-VS Power Hammer

Baileigh Industrial 1021656 Features

• 28” throat with deep cutout designed for fenders.
• Large 14 gauge mild steel capacity.

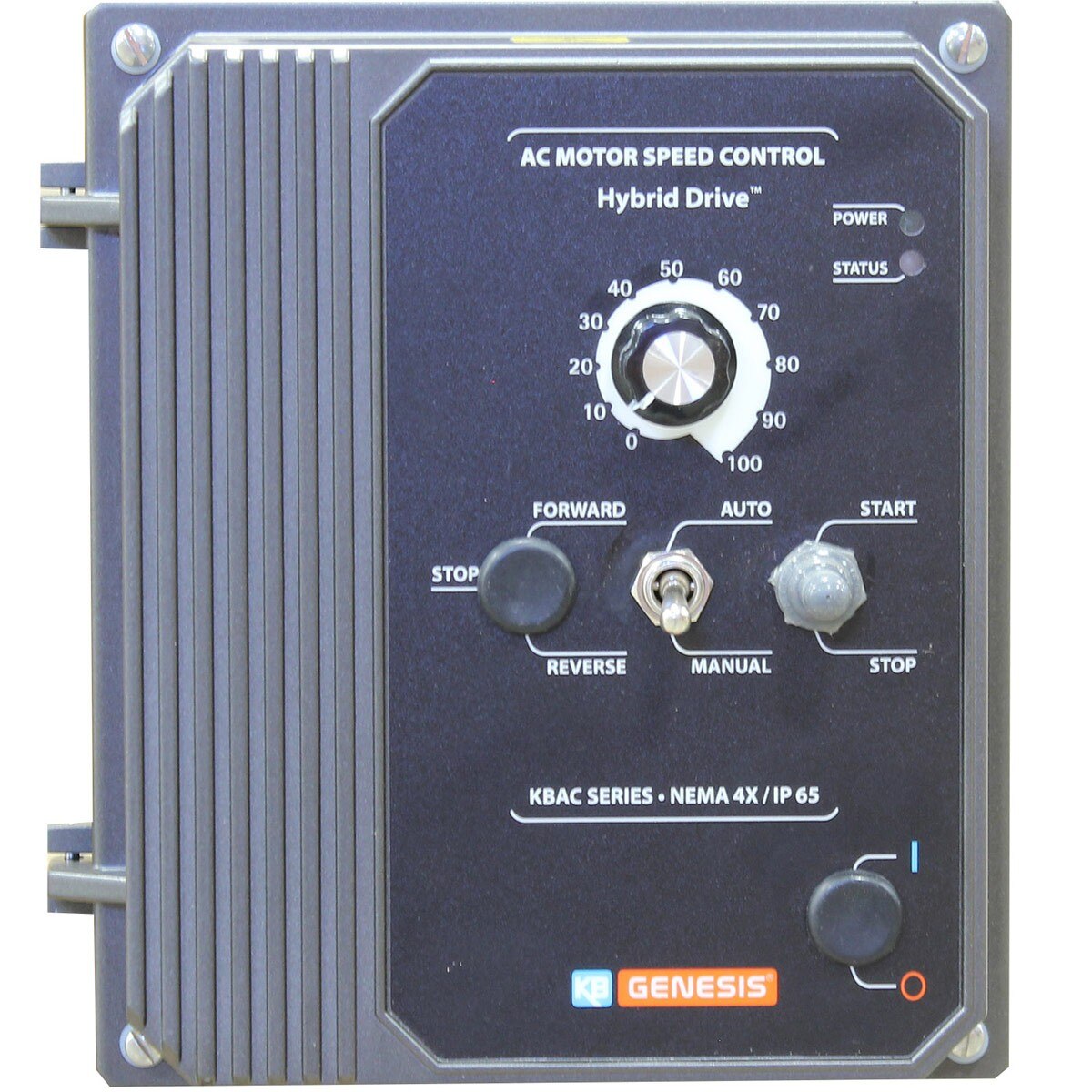

• Variable speed from 0 to 1,000 beats per minute.

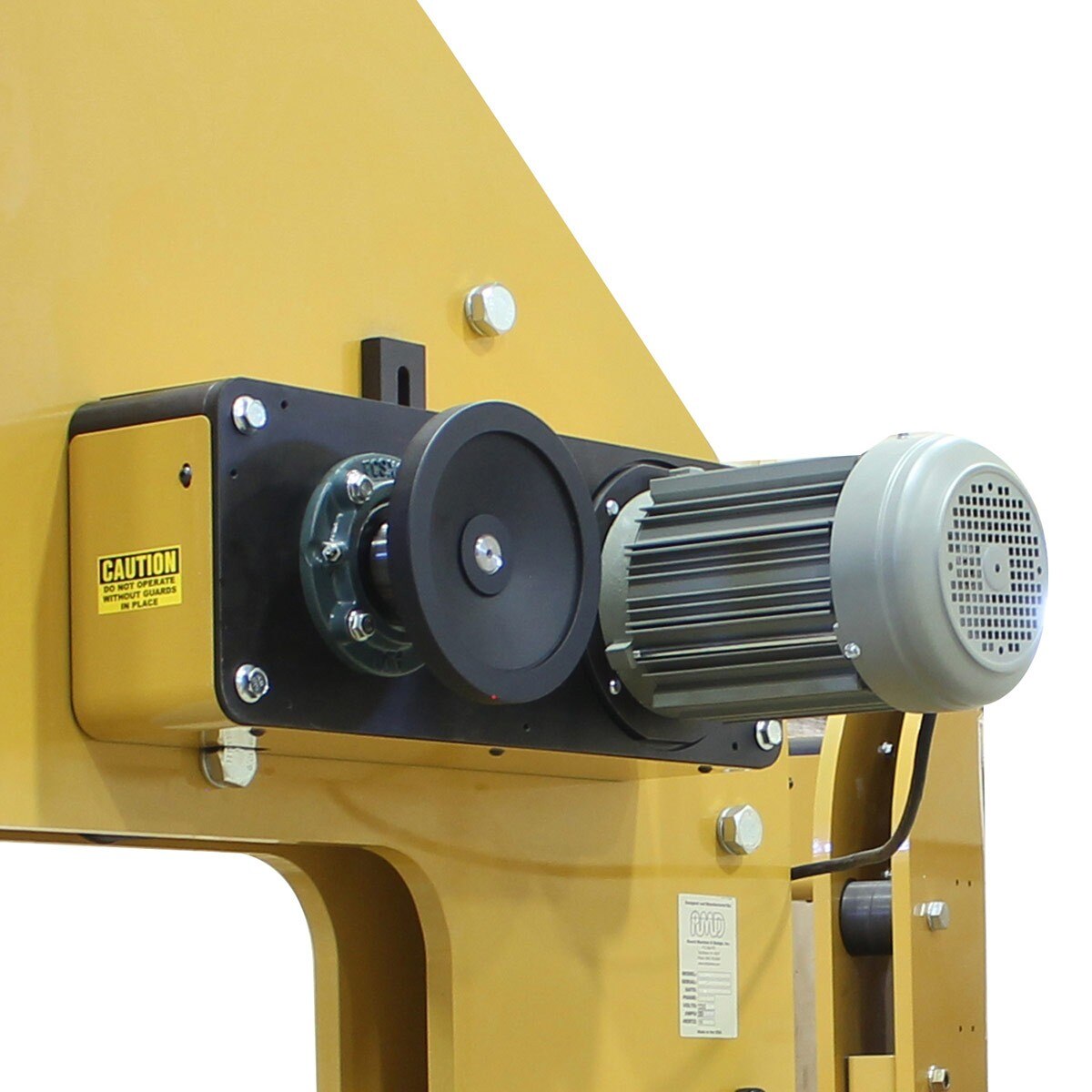

• 3 hp motor runs on 220-volt single-phase power.
• Developed over 20 years of research to find what’s most important to metal shapers.
• Hits up to 75% harder than its predecessor, the MH-19.

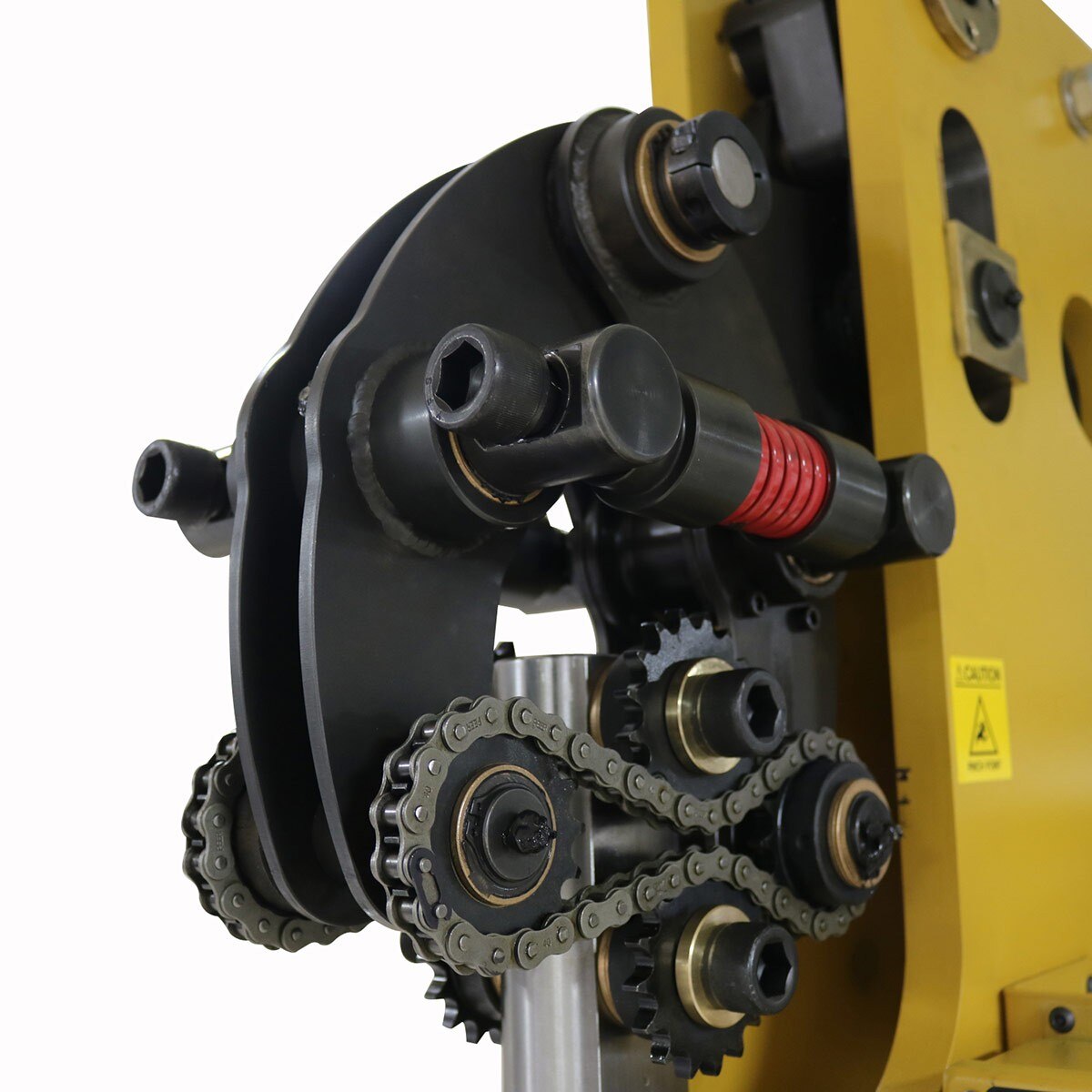

• Incorporates Dupont linkage (also used on our massive MH-37HD) to shape heavier gauges of steel.

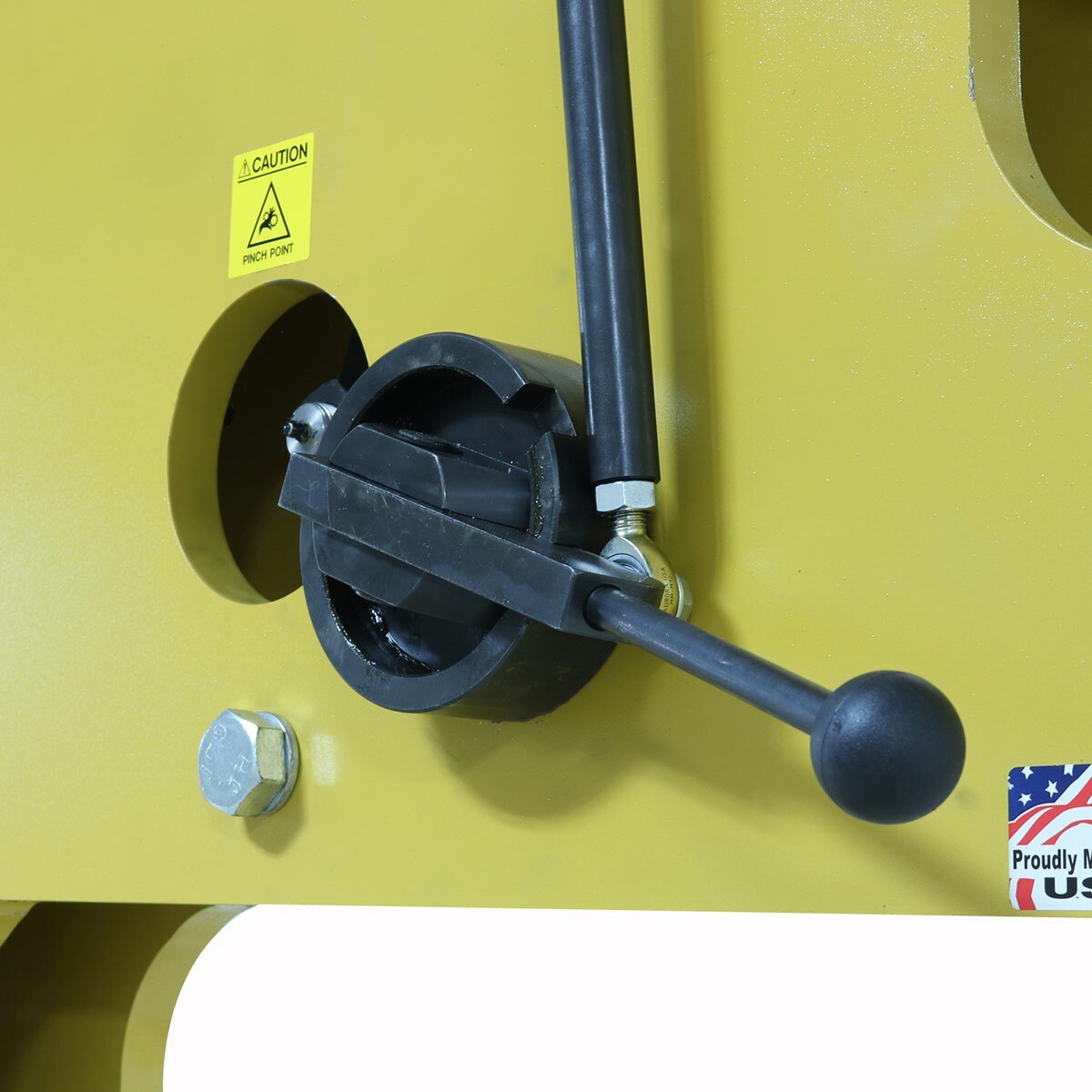

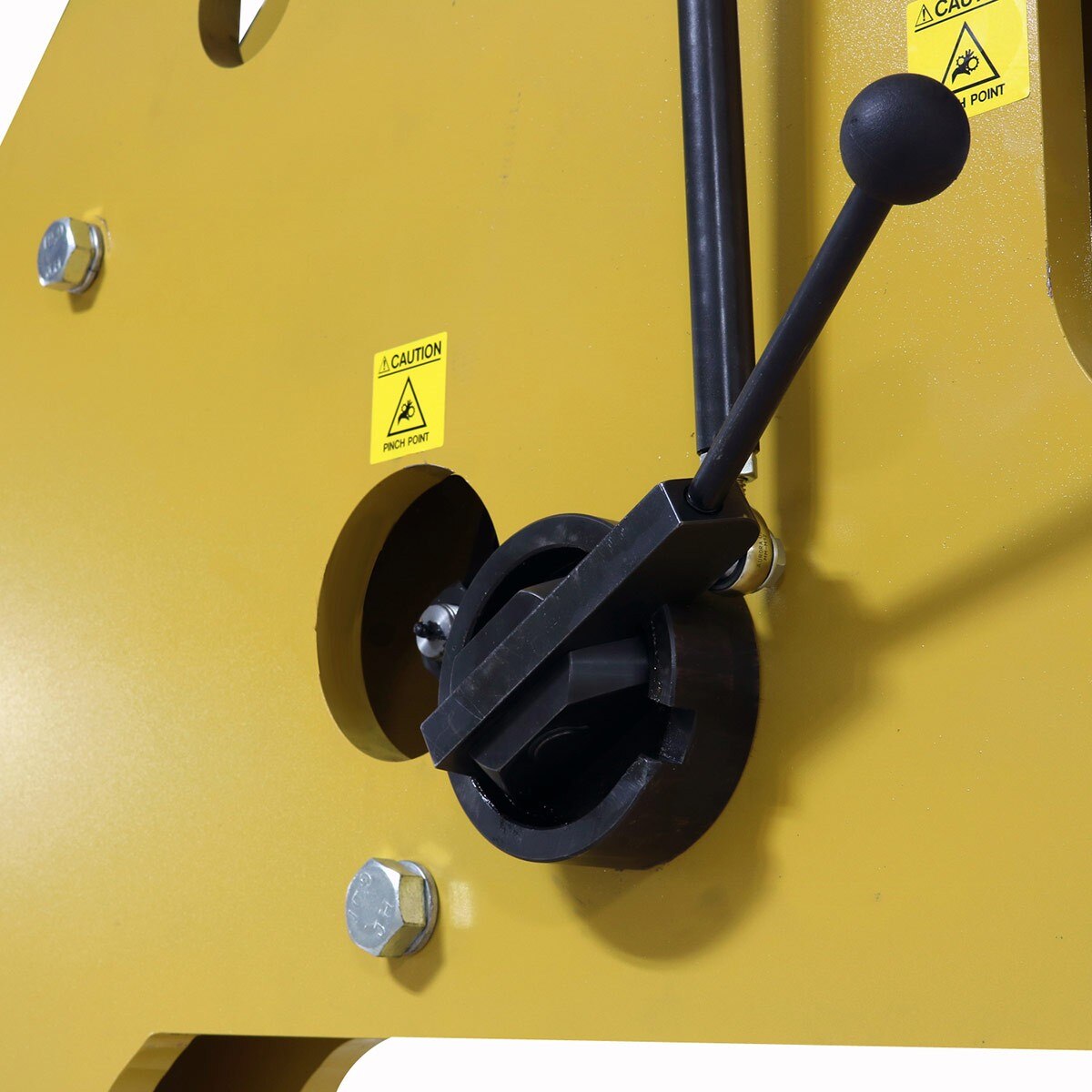

• Quick-release design lets you get the tooling out of the way to add or remove your panel.

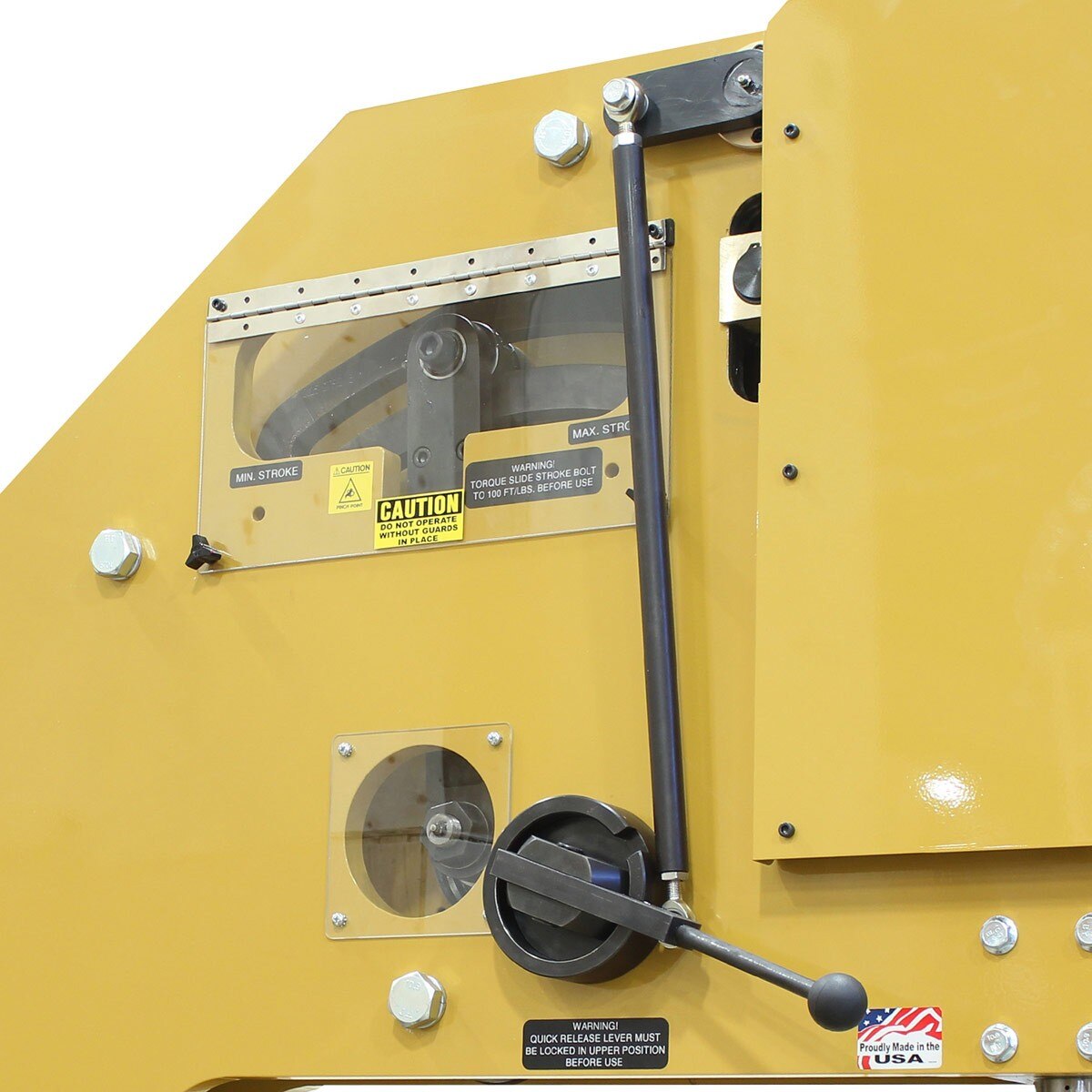

• Switch between 3 fixed stroke settings on the fly: ¼”, ½”, ¾”.
• Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required.

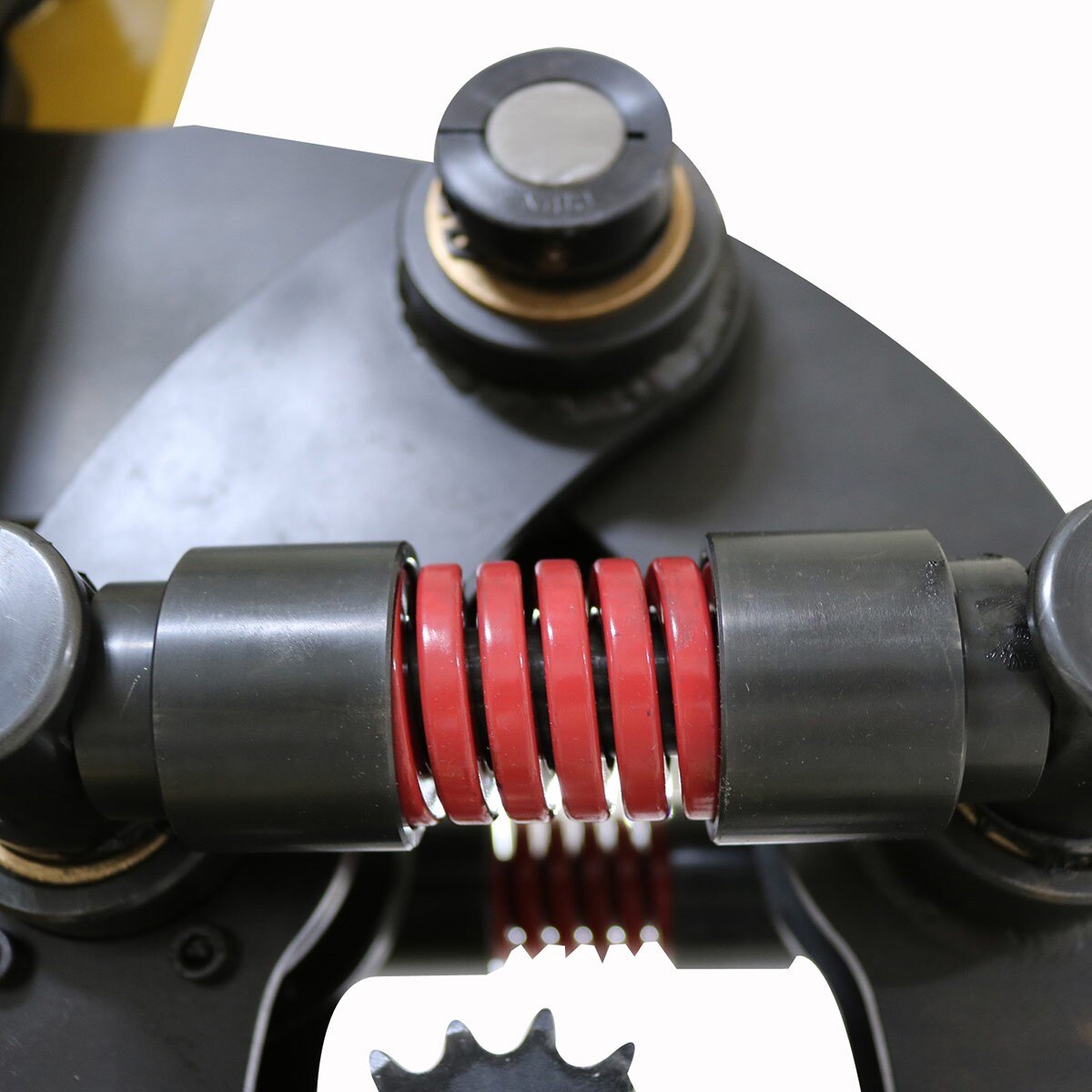

• Simple, proven mechanism uses easily replaceable, off-the-shelf die springs.

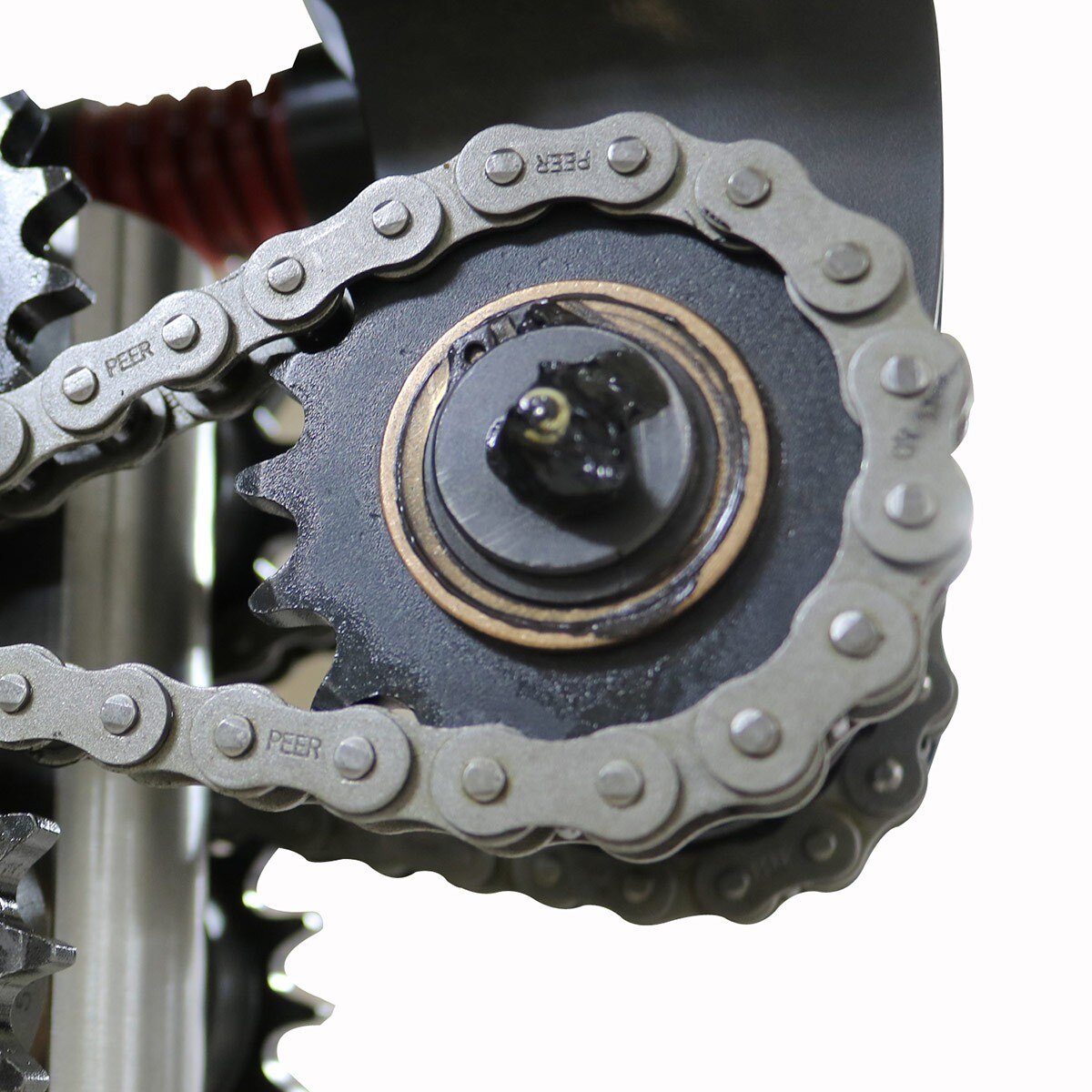

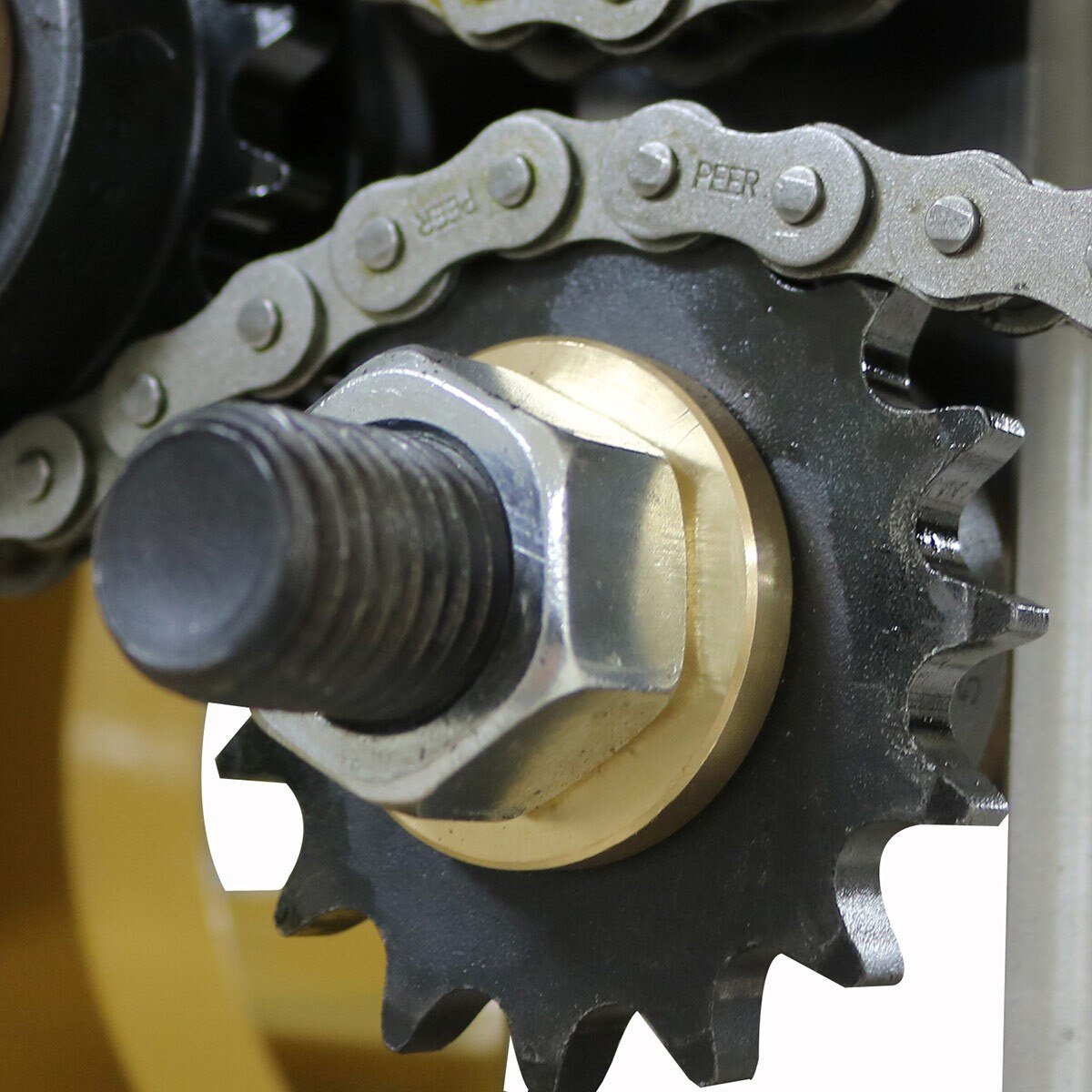

• Floating chain and sprocket setup eliminates the leather strap commonly found on legacy hammers.
• You can add an optional planishing hammer attachment to the side of this power hammer.
• Rigid 1” plate steel frame ensures high-quality, controllable shaping force and won’t buckle under the heavy hits.
• Portable pedestal raises the working height and allows better visibility of the hit mark.
• Covered by a 1-year parts warranty. The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out. Recommended for: Automotive shops that need to shape metal quickly and often work on fenders.
