B&B Sumner 3310SWH Description

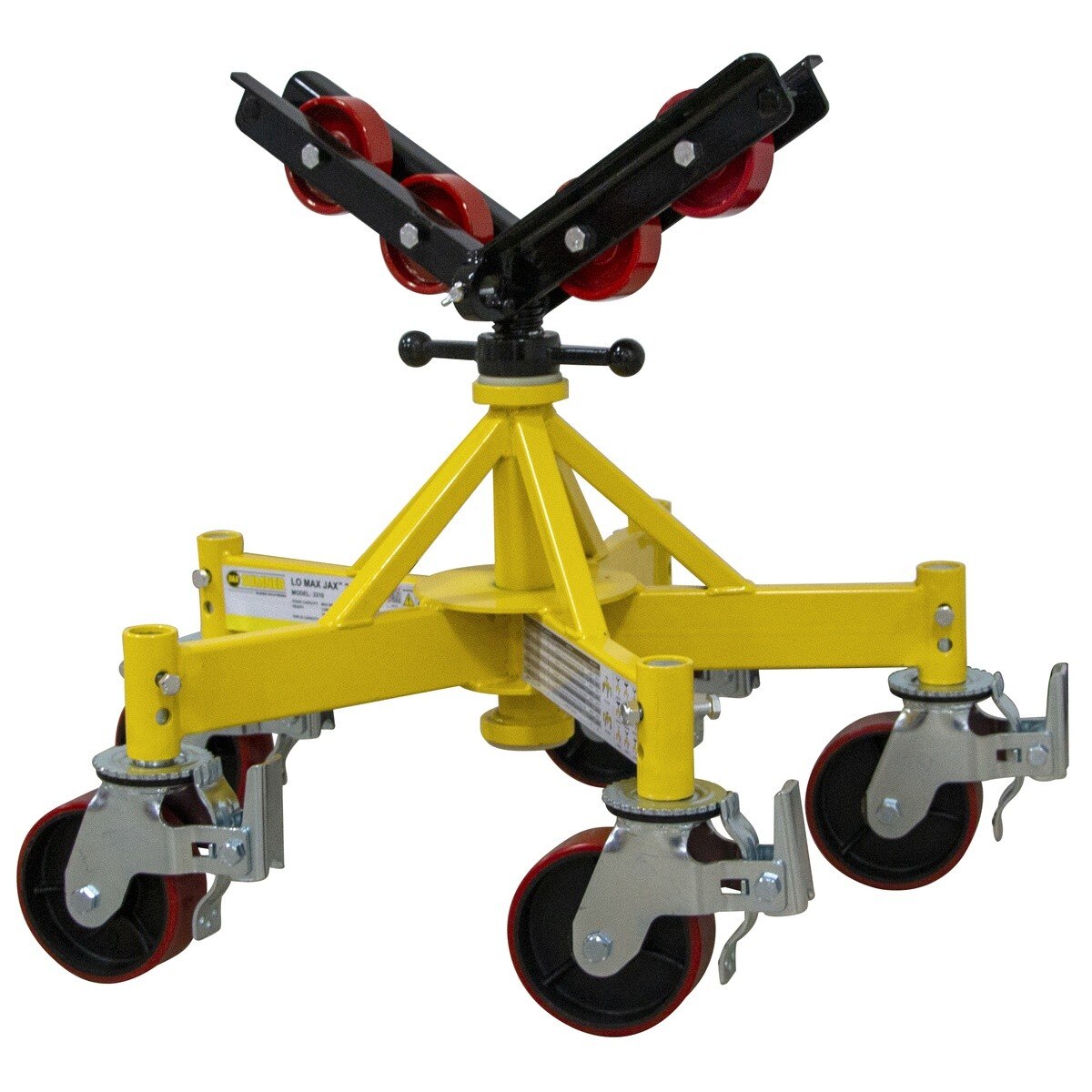

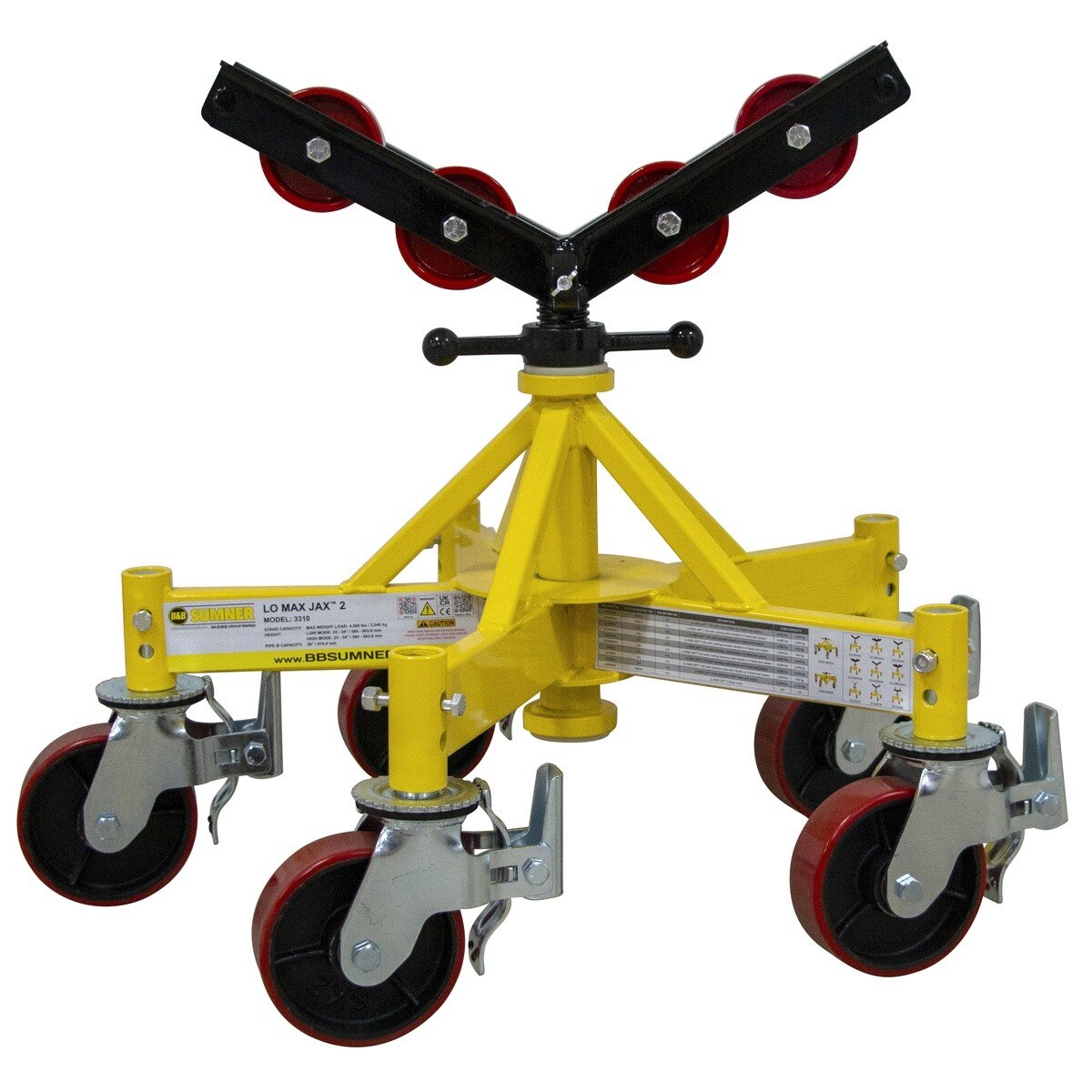

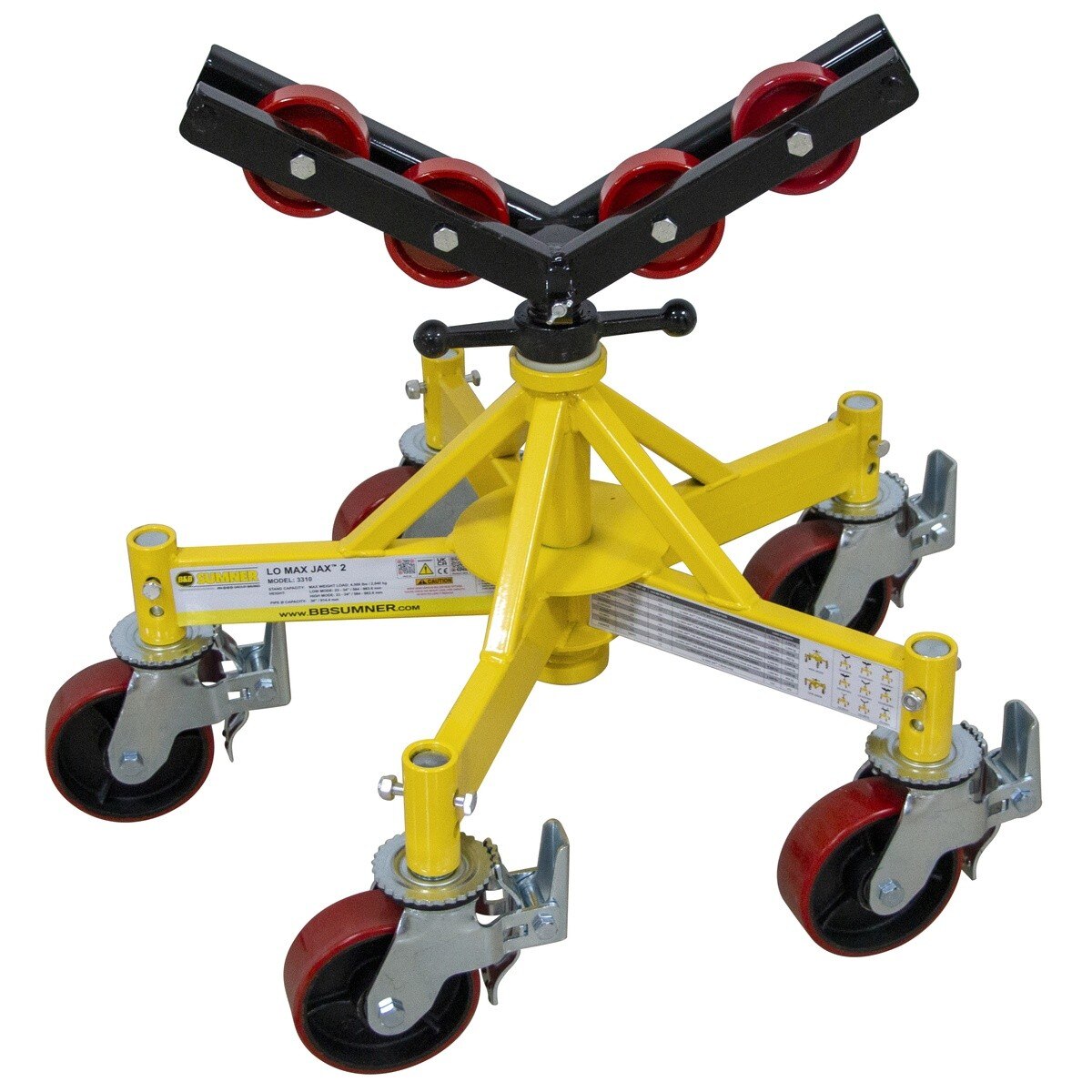

The B&B Sumner Lo Max Jax 2 fabrication stand kit is built for pipe fit-up, rotation, and welding. It supports up to 4,500 lbs and handles pipe diameters from 4 to 36 inches, with a 23 to 34 inch adjustable height range. This kit features a V-head with steel wheels on 6-inch casters (urethane over steel with solid hubs) for durable mobility on the job site.
B&B Sumner 3310SWH Includes
- (1) Lo Max Jax 2 Kit with Steel Wheels in V-Head and Casters (3310SWH)
B&B Sumner 3310SWH Features
- Supports loads up to 4,500 lbs (2,040 kg)
- Accommodates 4 in. to 36 in. pipe diameter (101.6 to 900 mm)
- Dual height adjustment range: 23 in. to 34 in. (584 to 863.6 mm)
- V-head design helps support pipe fit-up, rotation, and welding tasks
- Steel wheels on 6-inch casters for improved mobility
- Urethane over steel casters with solid hubs for durability and safety
- Compatible with optional stainless steel sleeves, hold-down chain device, and ball transfer attachments
B&B Sumner 3310SWH Specifications
| Load Capacity | 4,500 lbs / 2,040 kg |
| Height Range | 23 - 34 inches / 584 - 863.6 mm |
| Pipe Diameter Capacity | 4 - 36 inches / 101.6 - 900 mm |
| Head Type | V-Head |
| Caster Wheel Type | Steel wheels on 6-inch casters |
| Wheel Material | Urethane over steel with solid hub |
| Shipping Weight | 112 lbs / 50.9 kg |
| Shipping Dimensions | 34 x 28 x 34 inches (L x W x H) |
| Available Add-ons | Stainless steel sleeves, hold-down chain device, ball transfer attachments |
| Country Of Origin | United States |
Toolup Part # :
833757
