BBSumner 3600 Description

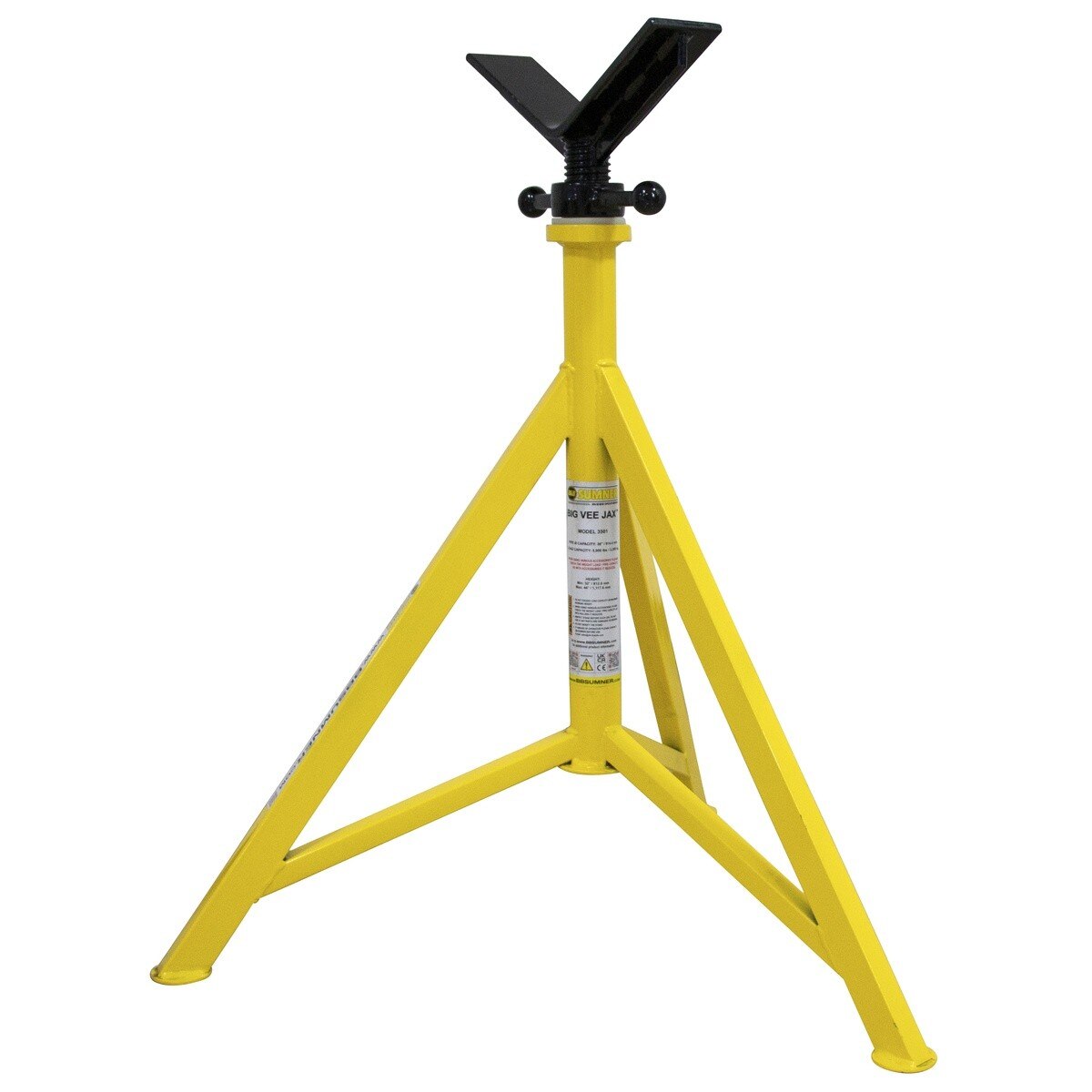

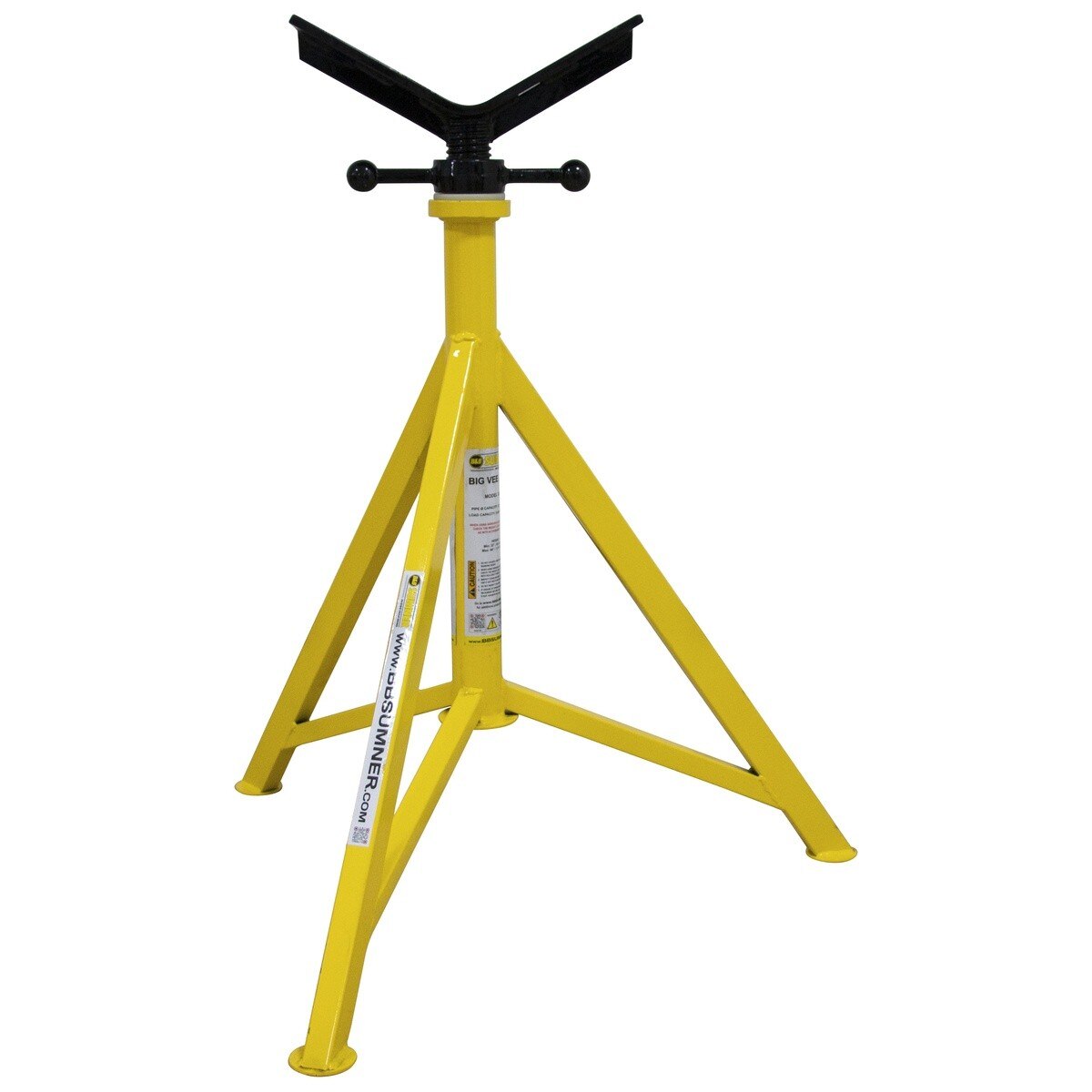

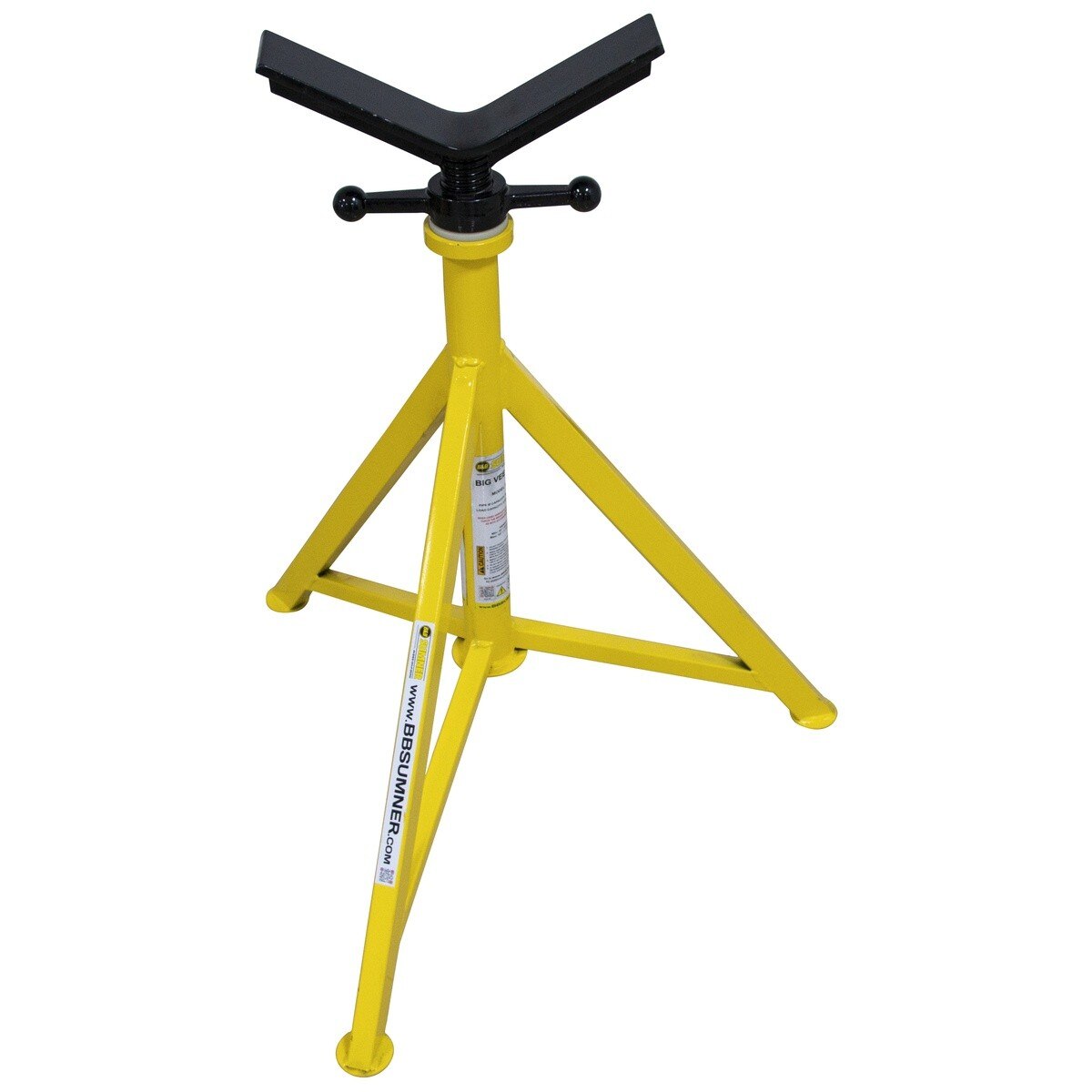

The BBSumner Three Leg Mega Jack with V-Head is engineered for heavy-duty pipe support with a wider, more stable three-leg stance to improve safety on uneven surfaces. It features a double reinforced 16-inch V-head with V-gussets and a solid ACME-threaded height adjustment rod for precise control. This jack supports up to 5,000 lbs with a minimum working height of 32 inches and a maximum working height of 44 inches.
BBSumner 3600 Includes
- (1) Three Leg Mega Jack with V-Head
BBSumner 3600 Features
- Wider, more stable three-leg stance for enhanced safety during heavy-duty operations
- Improved balance on uneven surfaces to help reduce tipping or shifting under load
- Generously sized 16-inch V-head reinforced with durable V-gussets
- Supports up to 5,000 lbs (2,265 kg)
- 1.75-inch solid ACME-threaded height adjustment mechanism for precise control
- Simplified adjustment process that eliminates traditional components like washers, inner support tube, and T-handle
- Machined ACME nut with tri-handle for durability and easier adjustment
- Over-sized legs and braces for increased capacity and stability
- Third party tested with over a 3:1 safety ratio
- Increased footprint for additional stability
BBSumner 3600 Specifications
| Load Capacity | 5,000 lbs / 2,265 kg |
| Head Type | Generously sized 16-inch double reinforced V-head with V-gussets |
| Height Adjustment Rod Diameter | 1.75 inches |
| Height Adjustment Mechanism | Solid ACME-threaded rod with machined ACME nut and tri-handle |
| Minimum Working Height | 32 inches / 812.8 mm |
| Maximum Working Height | 44 inches / 1,117.6 mm |
| Safety Rating | Over 3:1 safety ratio (third party tested) |
| Legs and Braces | Over-sized for increased capacity and stability |
| Footprint | Increased footprint for additional stability |
| Overall Length | 52 inches / 1,320.8 mm |
| Shipping Dimensions (L x W x H) | 40 inches x 48 inches x 29 inches |
| Shipping Weight | 80 lbs / 36.3 kg |
| Country of Origin | United States |
Toolup Part # :
833768
