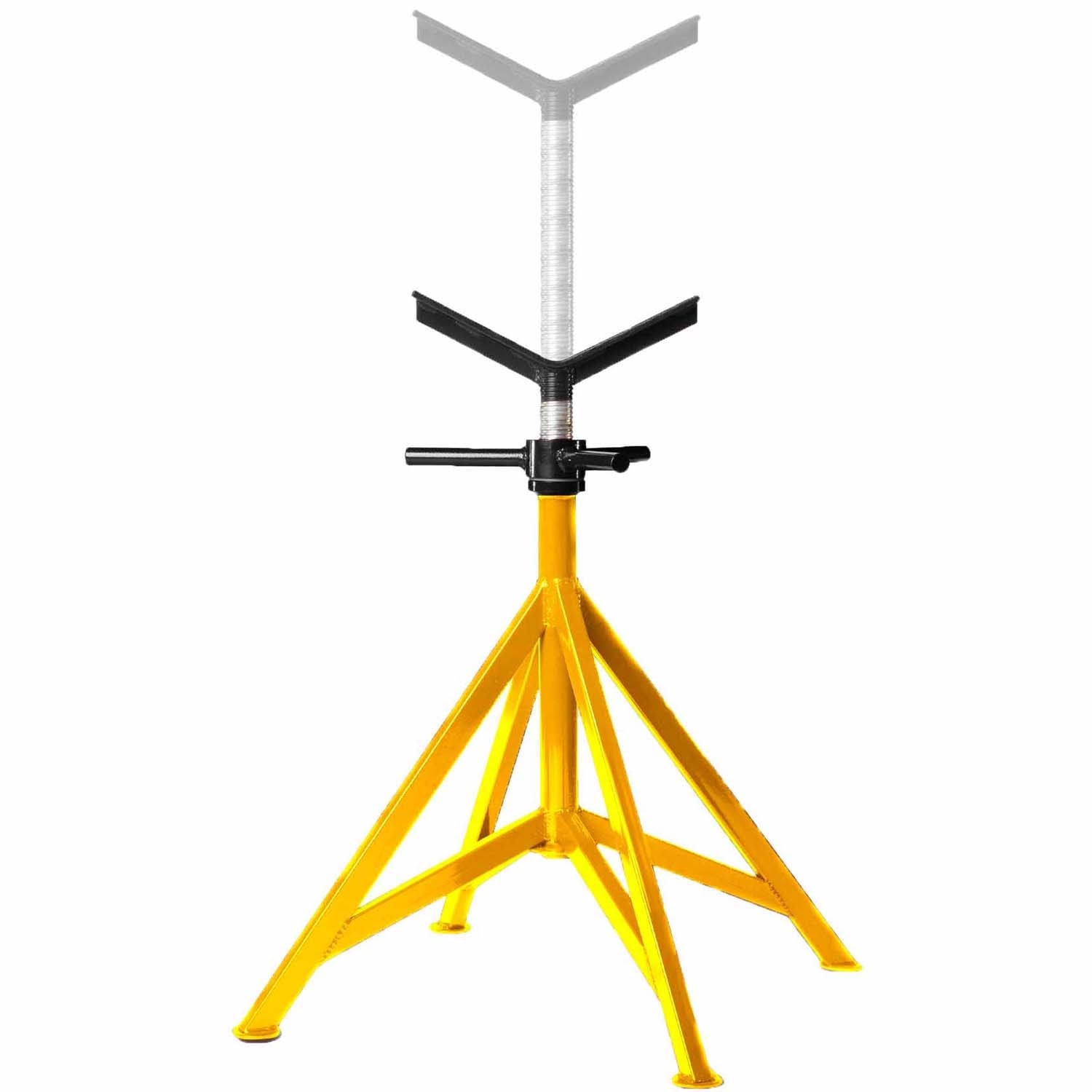

BB Sumner 3604 Four Leg Mega Jack with V-Head, 5,000lb capacity, 31-49" height
Free Shipping
$327.53
$480.00
Unit price
/
Unavailable
Description
Description
B&B Sumner 3604 Description
Heavy-duty four-leg pipe jack with double-reinforced 16-inch V-head, 5,000 lb capacity, and 31–49 inch ACME-threaded height adjustment for superior stability and precise positioning.
B&B Sumner 3604 Includes
- (1) Four Leg Mega Jack with V-Head
B&B Sumner 3604 Features
- High Load Capacity: supports up to 5,000 lbs (2,265 kg)
- Enhanced Stability: four-leg base with increased footprint
- Robust V-Head Design: 16-inch, double-reinforced V-head with V-gussets; handles pipe up to 32 inches diameter
- Precise Height Adjustment: 1.75-inch solid ACME-threaded rod (31"–49")
- Simplified Operation: eliminates traditional components to reduce operator error
- Exceptional Durability: oversized legs/braces and machined ACME nut with tri-handle
- Certified Safety: third-party tested with over 3:1 safety ratio
- Versatile Application: suited for automotive, construction, and industrial use
B&B Sumner 3604 Specifications
| Load Capacity | 5,000 lbs / 2,265 kg |
| Head Type | V-head (double reinforced, 16-inch) |
| Pipe Diameter Capacity | up to 32 inches / 813 mm |
| Height Adjustment Type | 1.75 inch solid ACME rod adjustment |
| Maximum Height | 49 inches / 1,244.6 mm |
| Minimum Height | 31 inches / 787.4 mm |
| Base Configuration | Four-leg base with increased footprint |
| Safety Rating | Over 3:1 safety ratio (third party tested) |
| ACME Nut Type | Machined ACME nut with tri-handle |
| Product Length | 26 inches / 660.4 mm |
| Shipping Weight | 82 lbs / 37.2 kg |
| Shipping Dimensions (LxWxH) | 40 x 48 x 33 inches (1016 x 1219 x 838 mm) |
| Country of Origin | United States |
