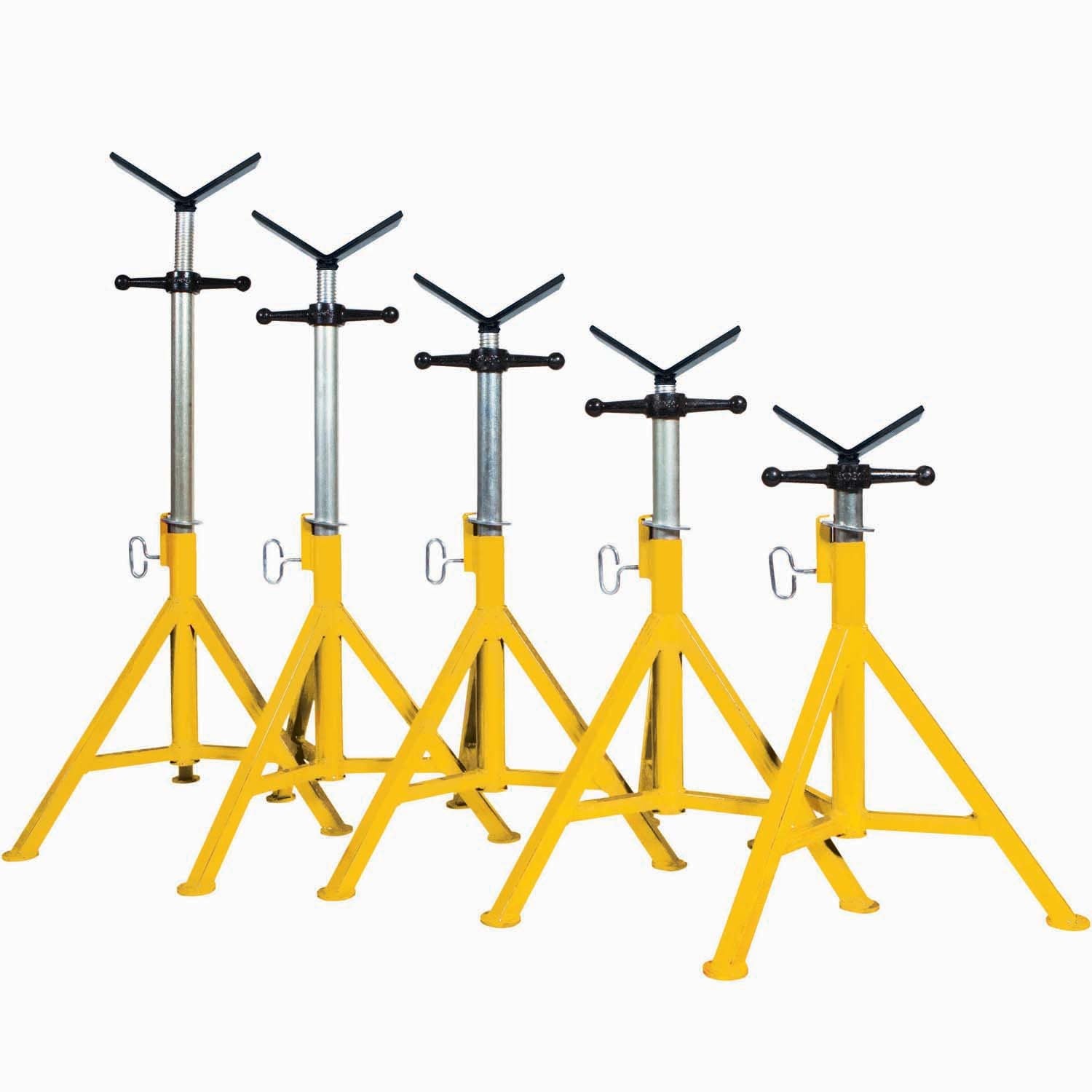

BB Sumner 4100 Hi Heavy Duty Pro-Jack with Oversized 10" V-Head for Pipe Support
$104.00
$130.00
Unit price
/
Unavailable
Description
Description
B&B Sumner 4100 Description
The B&B Sumner Hi Heavy Duty Pro-Jack is a robust fixed-leg pipe jack designed for demanding fabrication environments. It supports up to 2,500 lbs, features an oversized 10-inch V-head, and offers quick, secure height adjustments with a 2:1 safety ratio for reliable pipe support.
B&B Sumner 4100 Includes
- (1) Hi Heavy Duty Pro-Jack with V-Head
B&B Sumner 4100 Features
- High Load Capacity: Supports up to 2,500 lbs (1,135 kg) for heavy-duty pipe and material handling.
- Certified Safety: Third-party tested with a robust 2:1 safety ratio, ensuring reliable and secure operation.
- Rugged Fixed-Leg Construction: Built with durable steel and oversized square tube legs and braces for industrial demands.
- Industry-Leading ACME Rod: Features the largest 1 1/2" (1.5") ACME rod for unparalleled strength and stability.
- Enhanced Stability: Engineered with an increased width stance and square tube bracing for superior balance and rigidity.
- Oversized 10" V-Head: Provides increased safety and compatibility with pipe diameters up to 12" (300 mm).
- Quick Height Adjustment: Utilizes a quick lock washer for easy, fast, and secure height modifications.
- Wide Working Height Range: Adjustable from a minimum of 28" (711.2 mm) to a maximum of 49" (1245 mm).
- Operator Safety Features: Includes a safety washer that can be locked onto the base for added protection.
- Versatile Applications: Designed for pipe, fittings, and various fabrication tasks, offering an extensive range of head options.
B&B Sumner 4100 Specifications
| Load Capacity | 2,500 lbs / 1,135 kg |
| Pipe Diameter Capacity | up to 12" / 300 mm |
| Minimum Working Height | 28" / 711.2 mm |
| Maximum Working Height | 49" / 1245 mm |
| Safety Ratio | at least 2:1, third party tested |
| ACME Rod Size | 1 1/2" (1.5") |
| Head Type | Oversized 10" V-head |
| Leg & Brace Design | Oversized square tube legs and braces |
| Height Adjustment | Quick lock washer |
| Stability Feature | Increased width stance |
| Operator Safety | Lockable safety washer on base |
| Product Dimensions (Shipping) | 24 inches (L) x 21 inches (W) x 29 inches (H) |
| Product Weight (Shipping) | 24 lbs / 10.89 kg |
| Country of Origin | United States |
