BBSUMNER | SKU:
4100BTH

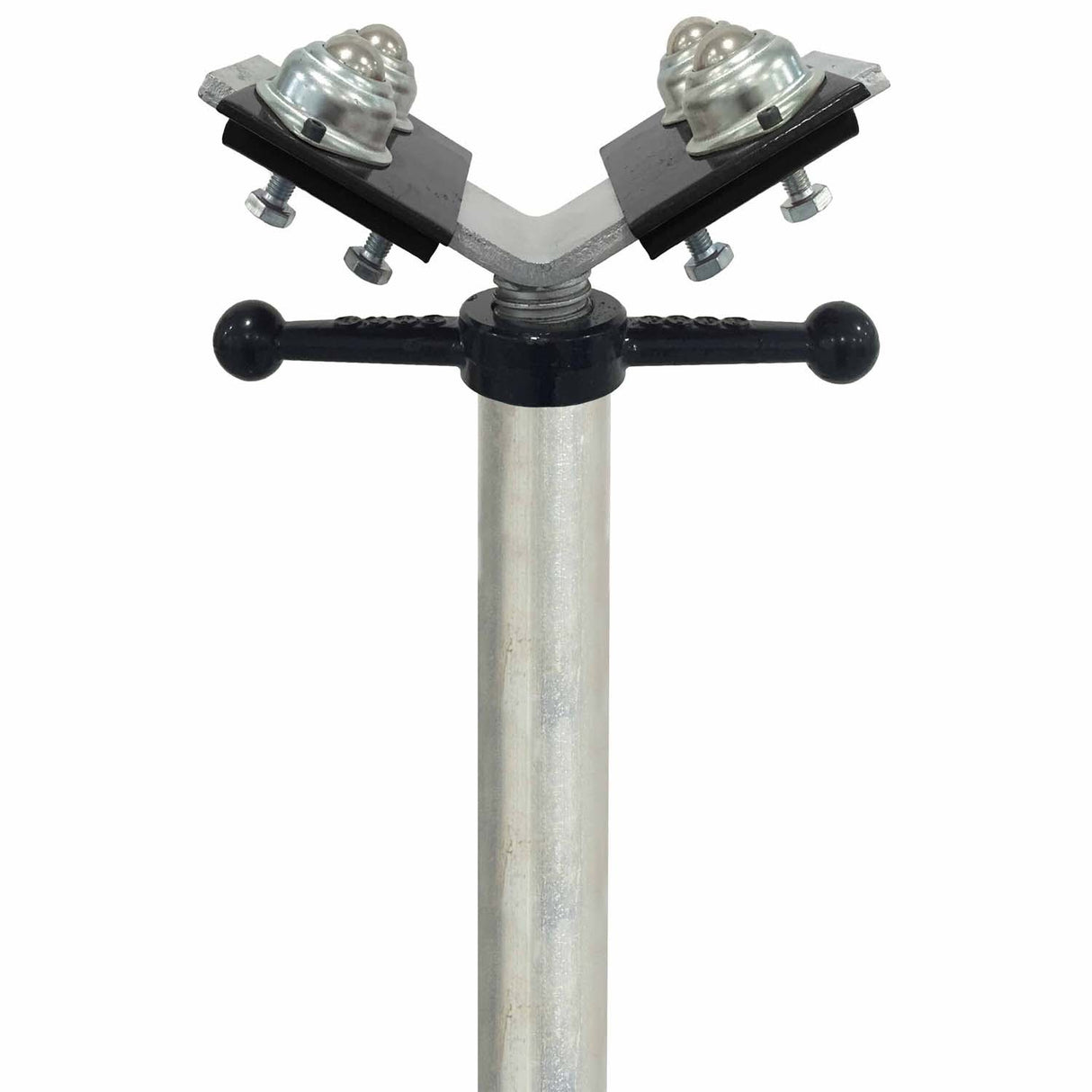

BB Sumner 4100BTH Hi Heavy Duty Pro-Jack Pipe Stand with Stainless Steel Ball Transfer Head 28-49 in 1000 lb Capacity
Free Shipping
$270.00
Unit price
/
Unavailable
Description
Description
B&B Sumner 4100BTH Description
The B&B Sumner Hi Heavy Duty Pro-Jack (4100BTH) is a fixed-leg pipe support designed for industrial fabrication, featuring a stainless steel ball transfer head for easy pipe rotation, a 1,000 lb load capacity, and an adjustable working height range of 28 to 49 inches.
B&B Sumner 4100BTH Includes
- (1) Hi Heavy Duty Pro-Jack with Stainless Steel Ball Transfer Head
B&B Sumner 4100BTH Features
- Provides robust and stable support for heavy-duty pipework in industrial settings
- Safely handles loads up to 1,000 lbs (450 kg)
- Third-party tested with at least a 2:1 safety ratio
- Rugged fixed-leg steel construction with oversized square tube legs and braces
- 1 1/2 in (1.5 in) ACME rod for strength and stability
- Stainless steel ball transfer head for effortless pipe rotation and movement
- Adjustable working height from 28 in to 49 in with quick-lock adjustment
- Increased width stance and square tube bracing for enhanced stability
- Accommodates pipe diameters up to 12 in (300 mm)
- Safety washer can be securely locked onto the base for added operator safety
B&B Sumner 4100BTH Specifications
| Load Capacity | 1,000 lbs / 450 kg |
| Pipe Diameter Capacity | up to 12 in / 300 mm |
| Minimum Working Height | 28 in / 711.2 mm |
| Maximum Working Height | 49 in / 1245 mm |
| Safety Ratio | at least 2:1, third party tested |
| ACME Rod Size | 1 1/2 in (1.5 in) |
| Head Type | Stainless Steel Ball Transfer Head (pair) |
| Construction | Rugged fixed-leg steel with oversized square tube legs and braces |
| Stability Features | Increased width stance and square tube bracing |
| Height Adjustment | Quick lock washer |
| Shipping Dimensions (L x W x H) | 24 in x 21 in x 29 in |
| Shipping Weight | 28 lbs / 12.7 kg |
| Country Of Origin | United States |
Toolup Part # :
833793
