BBSUMNER  |  SKU: 4100GVH

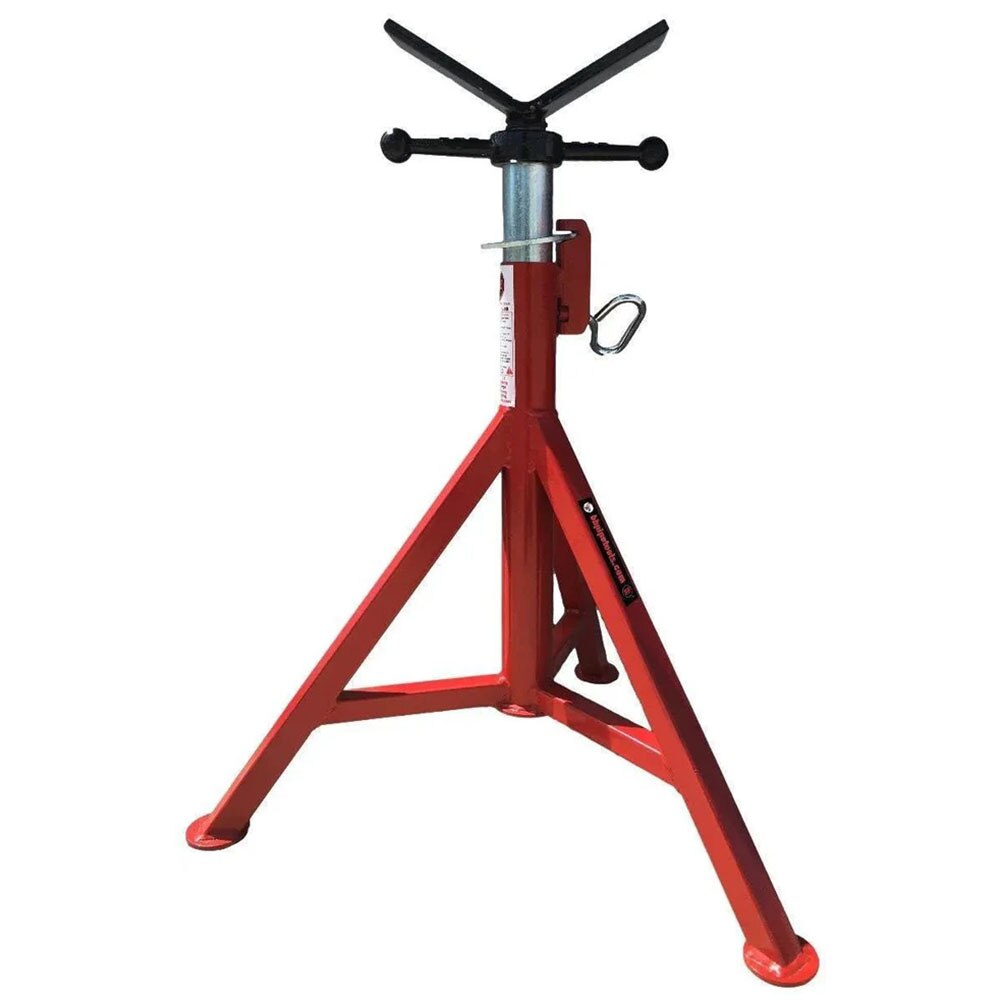

BB Sumner 4100GVH Hi Heavy Duty Pro-Jack Fixed Leg Pipe Jack with Gusset V-Head 2500 lb Capacity

$126.24 $185.00

Description

B&B Sumner 4100GVH Description

The B&B Sumner Hi Heavy Duty Pro-Jack with Gusset V-Head (4100GVH) is a fixed-leg steel pipe jack built for stable, heavy-duty pipe support, featuring an oversized 10-inch V-head, a 2,500 lb load capacity, and a 28 to 49 inch working height range.

B&B Sumner 4100GVH Includes

  • (1) Hi Heavy Duty Pro-Jack with Gusset V-Head (4100GVH)

B&B Sumner 4100GVH Features

  • Supports up to 2,500 lbs (1,135 kg)
  • Third-party tested with at least a 2:1 safety ratio
  • Rugged fixed-leg steel construction
  • Oversized square tube legs and braces for durability
  • Largest 1 1/2 in. ACME rod for strength and stability
  • Increased width stance and square tube bracing for stability
  • Gusset V-head with oversized 10 in. V-head for safer pipe handling
  • Working height adjusts from 28 in. to 49 in. with quick-lock adjustment
  • Holds pipe diameters up to 12 in.
  • Safety washer can be locked onto the base for operator protection

B&B Sumner 4100GVH Specifications

Load Capacity 2,500 lbs / 1,135 kg
Pipe Diameter Capacity up to 12 in / 300 mm
Minimum Working Height 28 in / 711.2 mm
Maximum Working Height 49 in / 1245 mm
Safety Ratio at least 2:1, third party tested
ACME Rod Size 1 1/2 in (1.5 in)
Head Type Gusset V-head with oversized 10 in V-head
Construction Material Fixed-leg steel
Leg/Brace Design Oversized square tube legs and braces
Product Length 24 inches
Product Width 21 inches
Product Height 29 inches
Product Weight 26 pounds
Country of Origin United States
Toolup Part # : 833800
