B&B Sumner 4100SVH Description

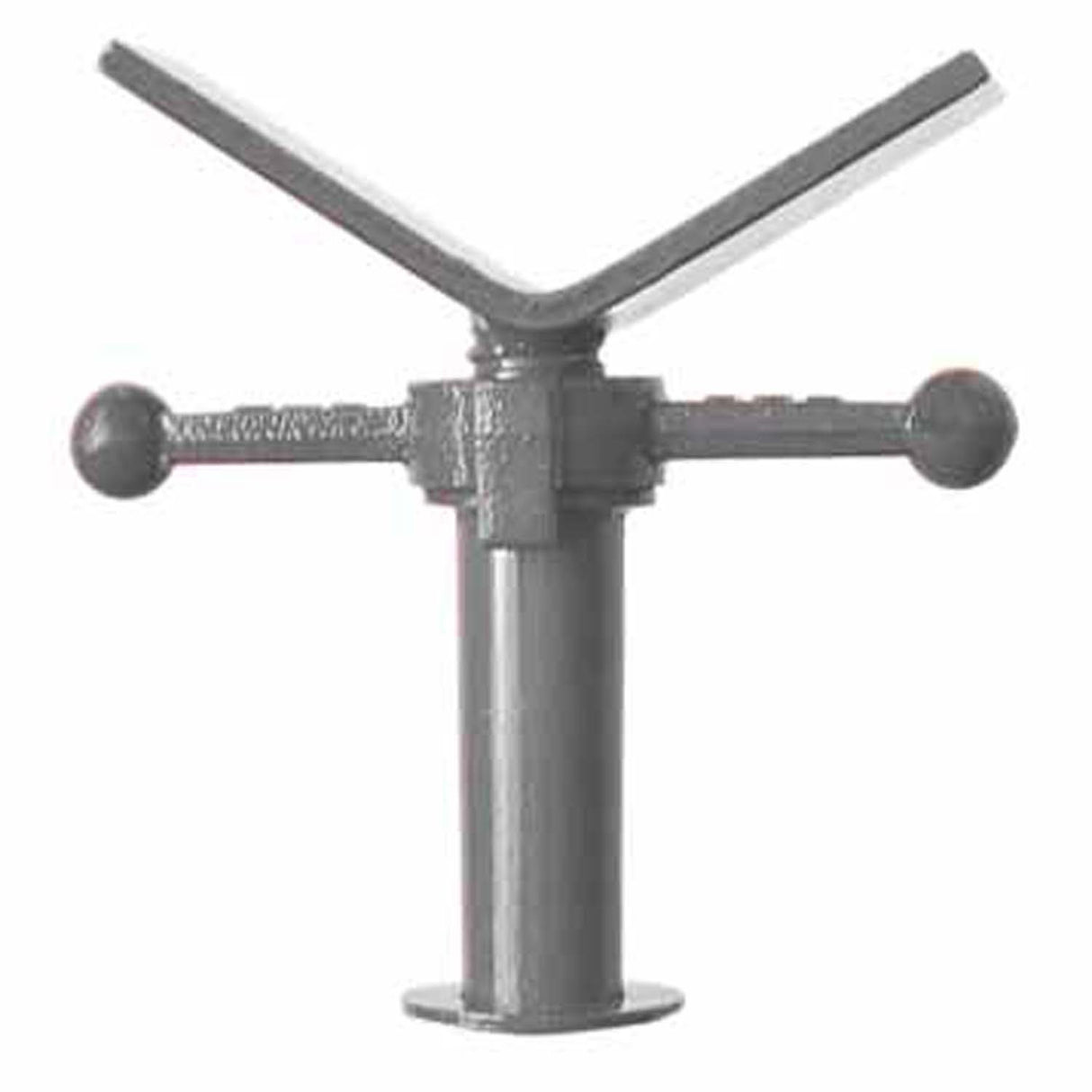

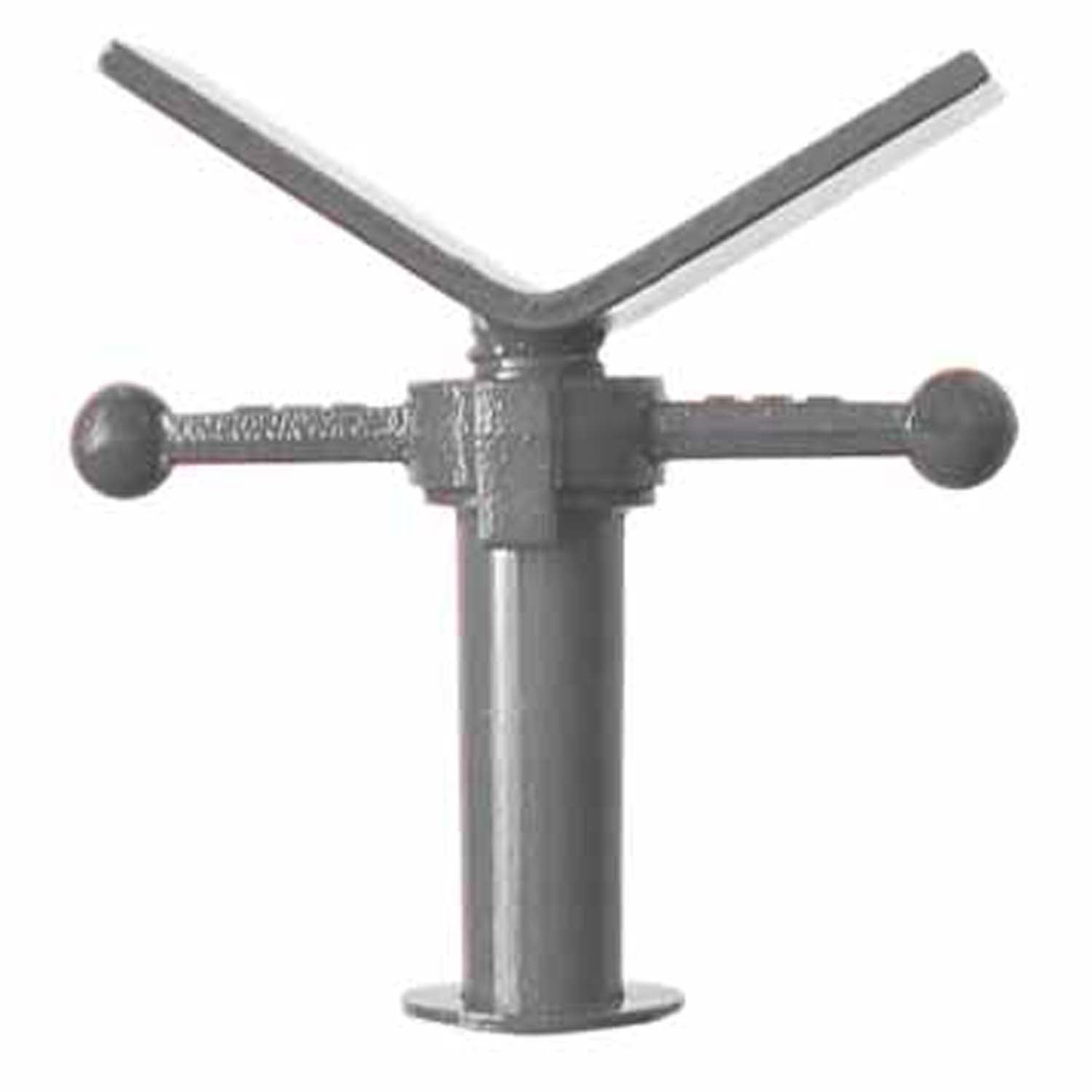

The B&B Sumner Hi Heavy Duty Pro-Jack with Safety V-Head is a fixed-leg pipe jack built for demanding fabrication and industrial pipe support, featuring rugged steel construction, an oversized 10 in. safety V-head, and quick height adjustment from 28 in. to 49 in. It is third-party tested to at least a 2:1 safety ratio and supports loads up to 2,500 lb with pipe capacity up to 12 in. diameter.
B&B Sumner 4100SVH Includes
- (1) Hi Heavy Duty Pro-Jack with Safety V-Head
B&B Sumner 4100SVH Features
- Supports up to 2,500 lbs (1,135 kg) load capacity
- Third-party tested to at least a 2:1 safety ratio
- Rugged fixed-leg steel construction with oversized square tube legs and braces
- Largest 1 1/2 in. (1.5 in.) ACME rod for strength and stability
- Increased width stance and square tube bracing for improved balance
- Quick lock washer for secure height adjustment from 28 in. to 49 in.
- Supports pipe diameters up to 12 in. (300 mm)
- Includes oversized 10 in. safety V-head for secure pipe positioning
- Safety washer can be locked onto the base for added operator protection
- Compatible with an extensive selection of B&B Sumner head options
B&B Sumner 4100SVH Specifications
| Load Capacity | 2,500 lbs / 1,135 kg |
| Pipe Diameter Capacity | Up to 12 in / 300 mm |
| Minimum Working Height | 28 in / 711.2 mm |
| Maximum Working Height | 49 in / 1245 mm |
| Safety Ratio | At least 2:1, third party tested |
| ACME Rod Size | 1 1/2 in (1.5 in) |
| Head Type | Oversized 10 in safety V-head |
| Product Length | 24 inches |
| Product Width | 21 inches |
| Product Height | 29 inches |
| Product Weight | 26 pounds |
| Country of Origin | United States |
