BBSumner 4700 Description

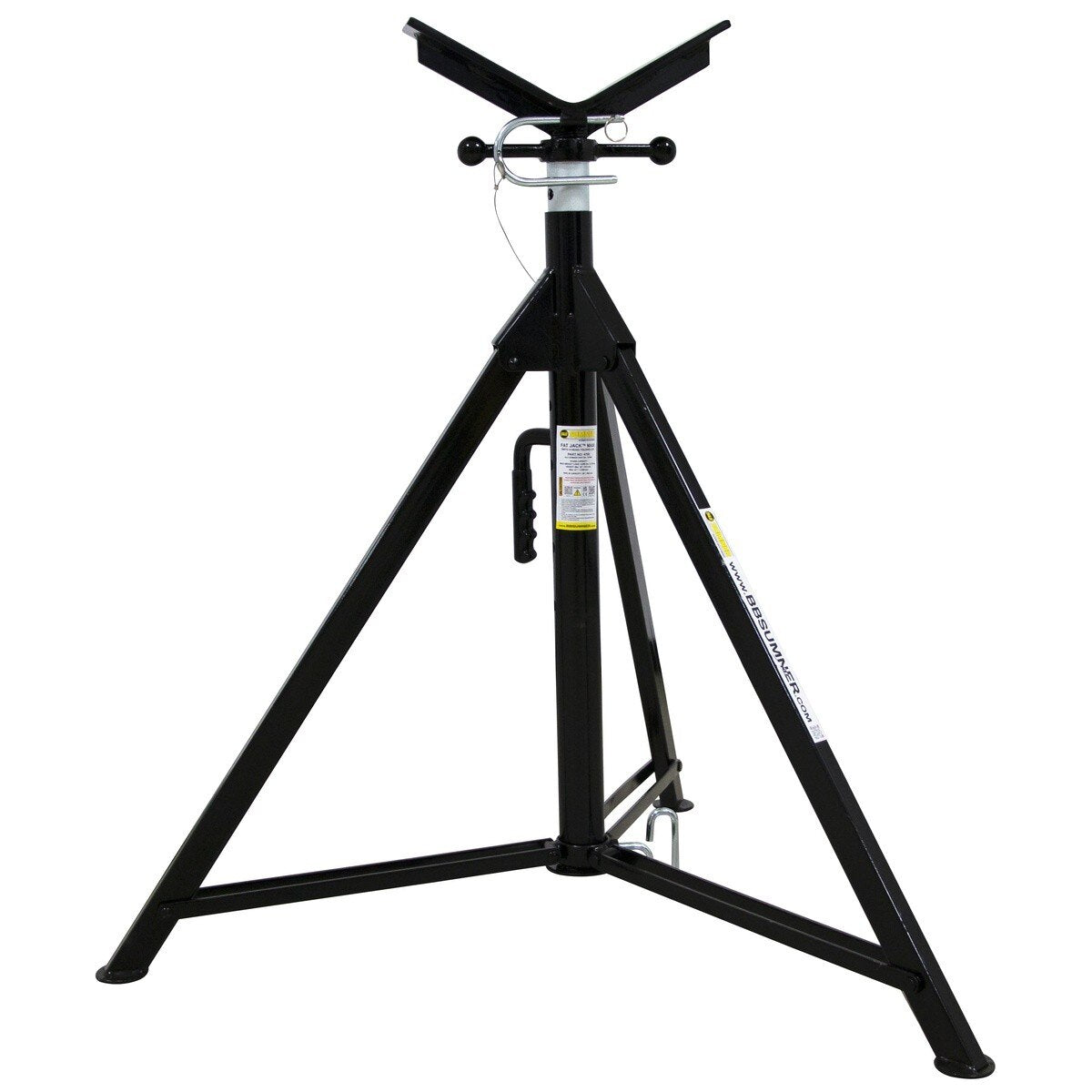

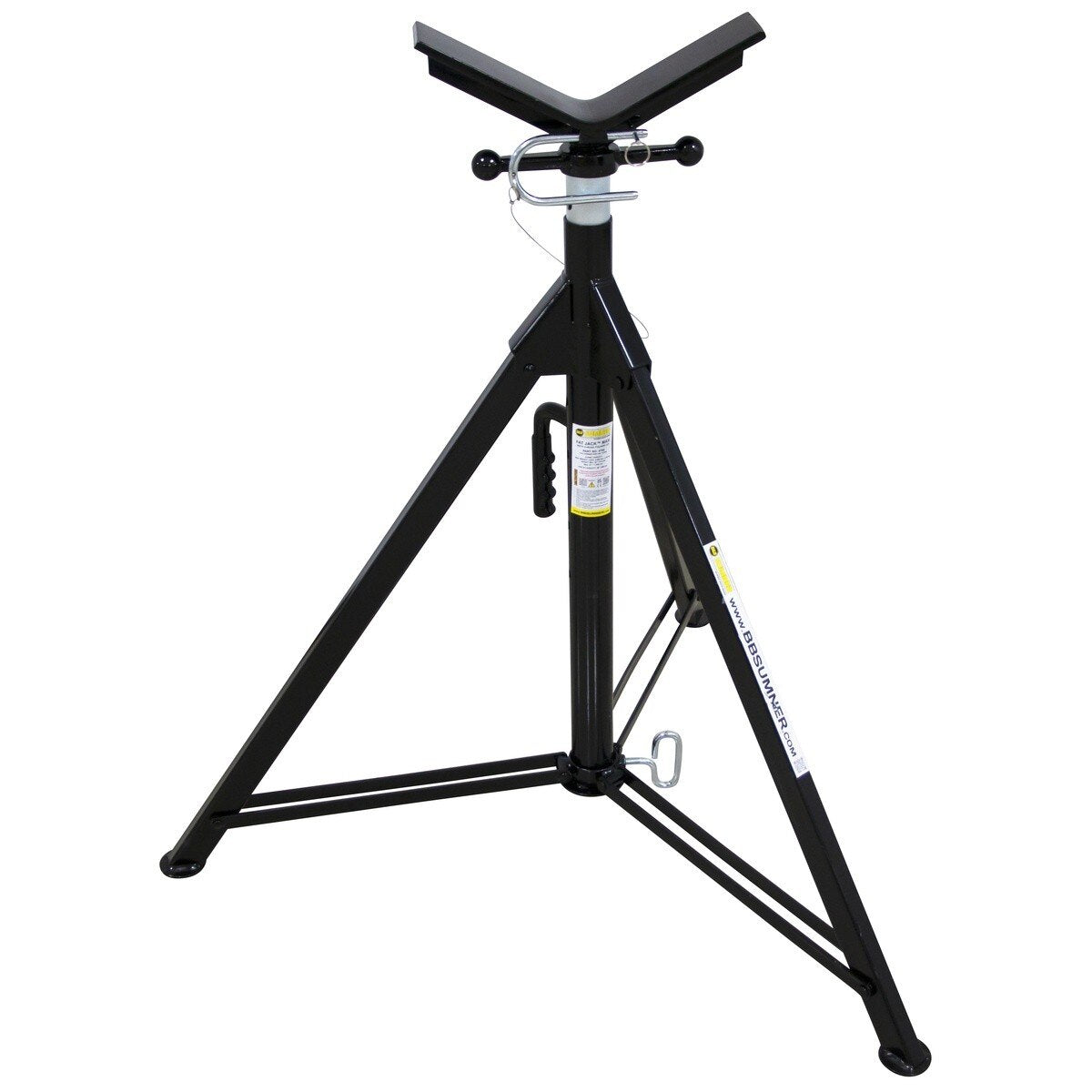

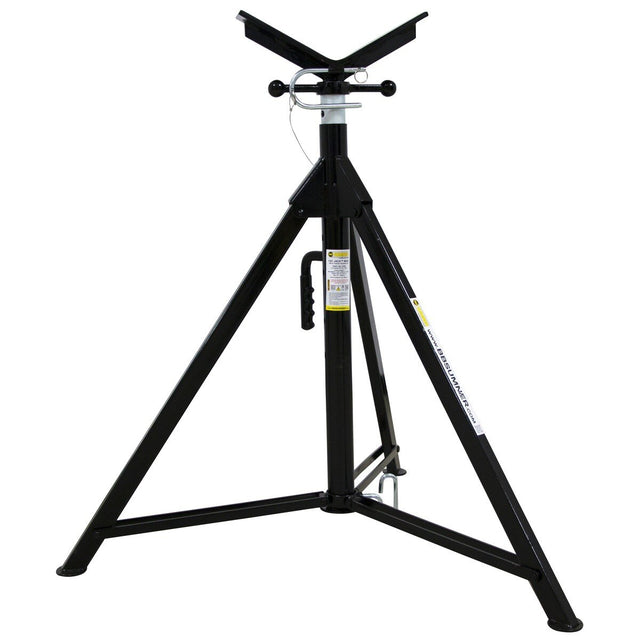

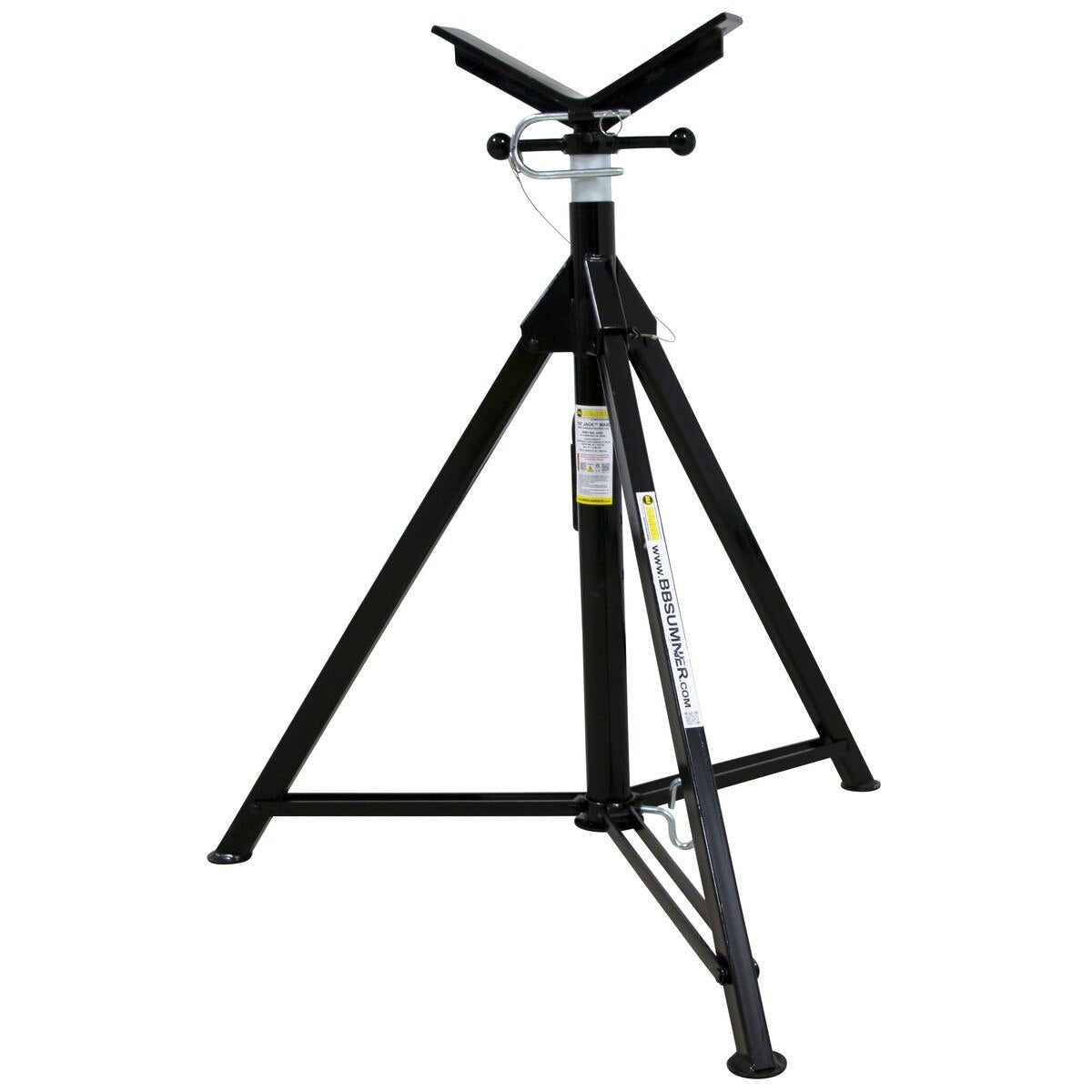

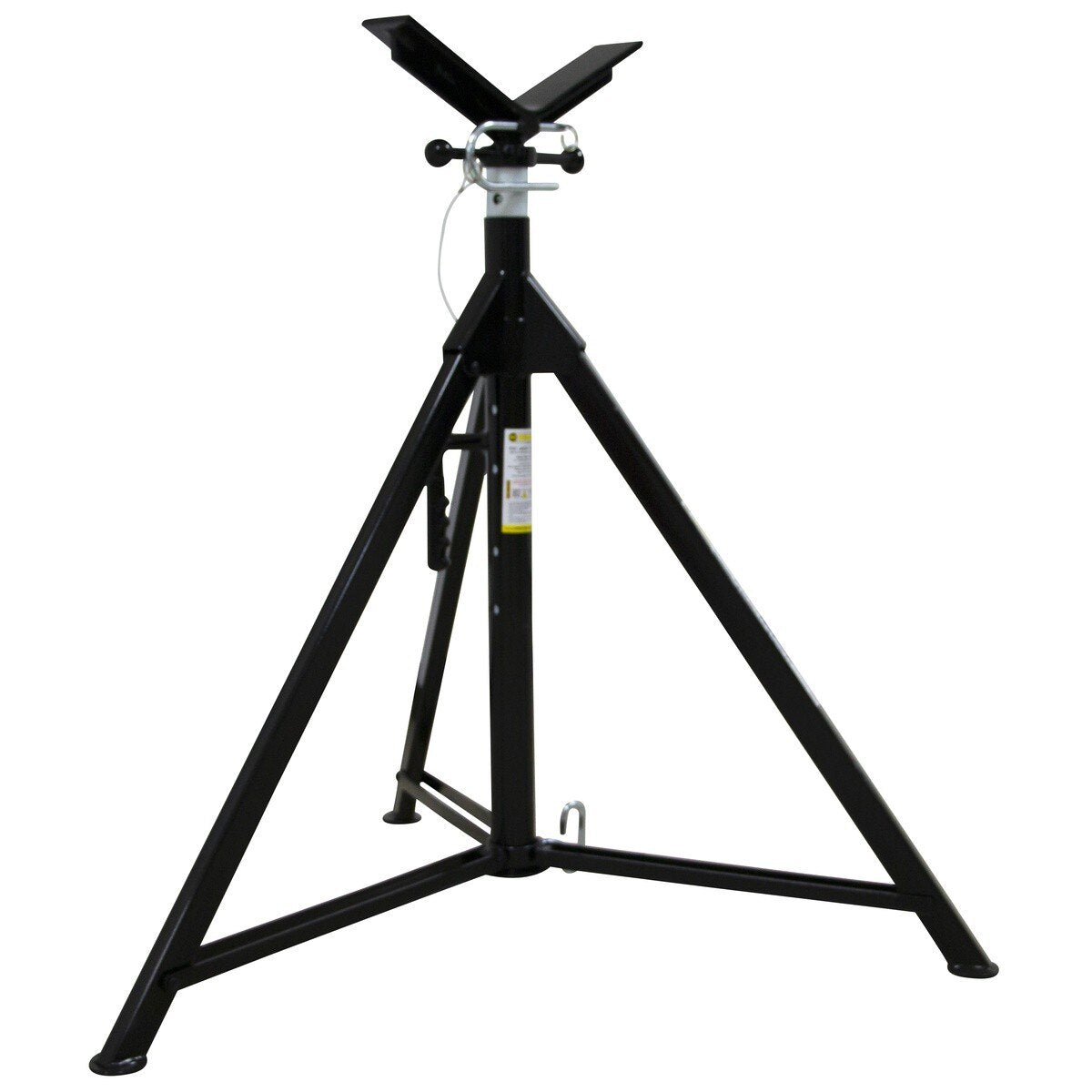

The BBSumner Fat Jack Maxi with V-Head is an industrial pipe jack stand built for demanding support applications. It supports up to 6,000 lb and offers precise height adjustment from 36 to 61 inches, with a wide base and folding legs for stability and portability.
BBSumner 4700 Includes
- (1) Fat Jack Maxi Pipe Jack Stand with V-Head
BBSumner 4700 Features
- Supports up to 6,000 lb (2,725 kg) for heavy-duty industrial applications
- Height range adjusts from 36 in to 61 in (914 mm to 1,549 mm)
- V-head accommodates pipe up to 36 in (900 mm) diameter
- 1.5 in ACME fine adjustment thread for smooth, precise height changes
- Large ergonomic handle for easier adjustment
- Quick-secure double locking pin system for fast, reliable height locking
- Rugged 1.25 in steel tubing construction for durability
- Wide base design improves stability on job sites
- Folding leg design for easier storage and transport
- Part of the Fat Jack series with multiple head options available
BBSumner 4700 Specifications
| Capacity | 6,000 lbs / 2,725 kg |
| Height Range | 36 in / 914 mm to 61 in / 1,549 mm |
| Adjustment Thread | 1.5 in ACME fine adjustment thread |
| Handle Type | Large ergonomic handle |
| Height Locking | Quick-secure double locking pin system |
| Construction Material | 1.25 in steel tubing |
| Base Design | Wide base for stability |
| Max Pipe Capacity (V-head) | 36 in / 900 mm |
| Max Pipe Capacity (Roller heads) | 24 in / 600 mm |
| Head Options Available | V-head, steel wheel head, stainless steel wheel head |
| Country of Origin | United States |
| Shipping Dimensions (L x W x H) | 34 x 34 x 34 inches |
| Shipping Weight | 47 pounds |
Toolup Part # :
833836
