BBSumner 4701 Description

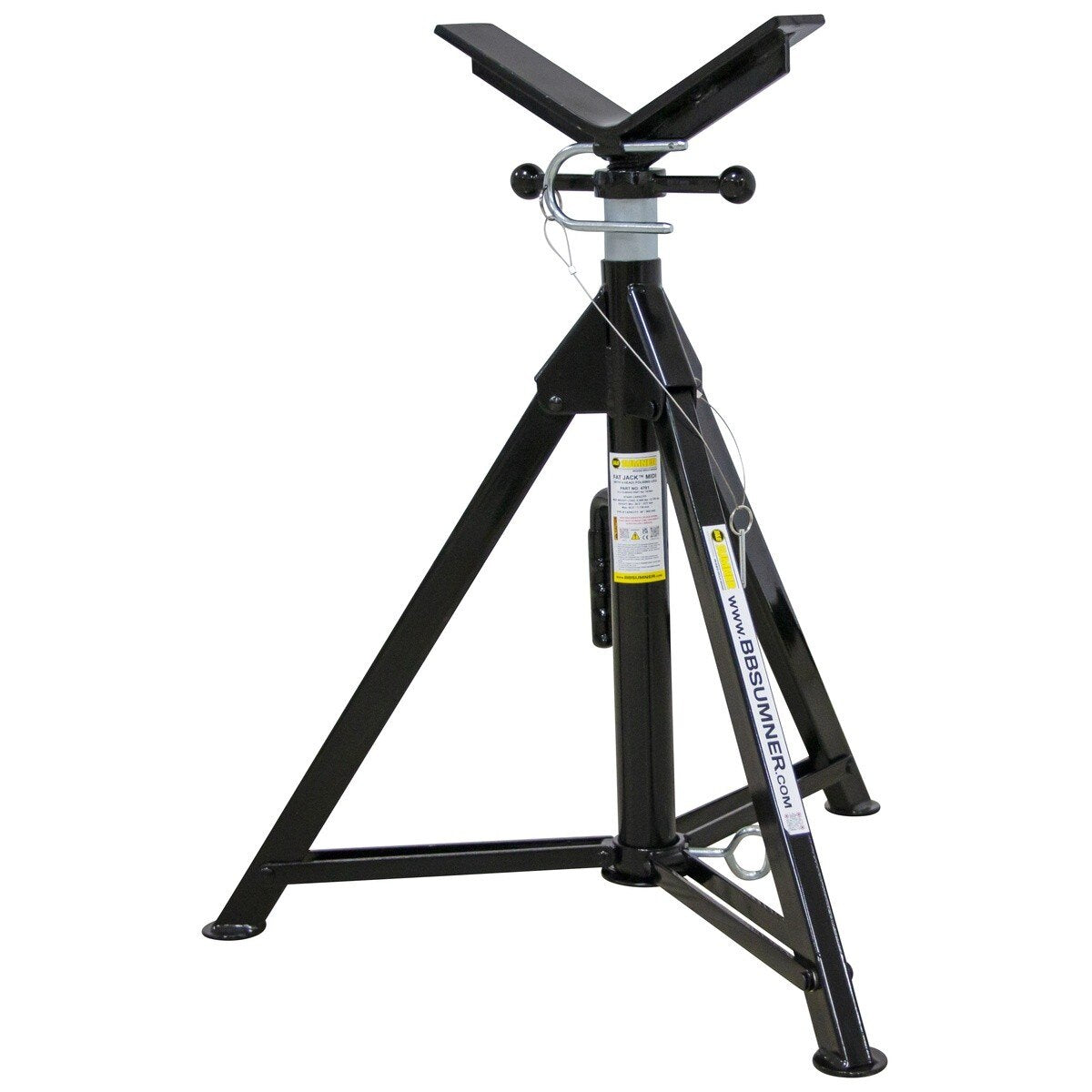

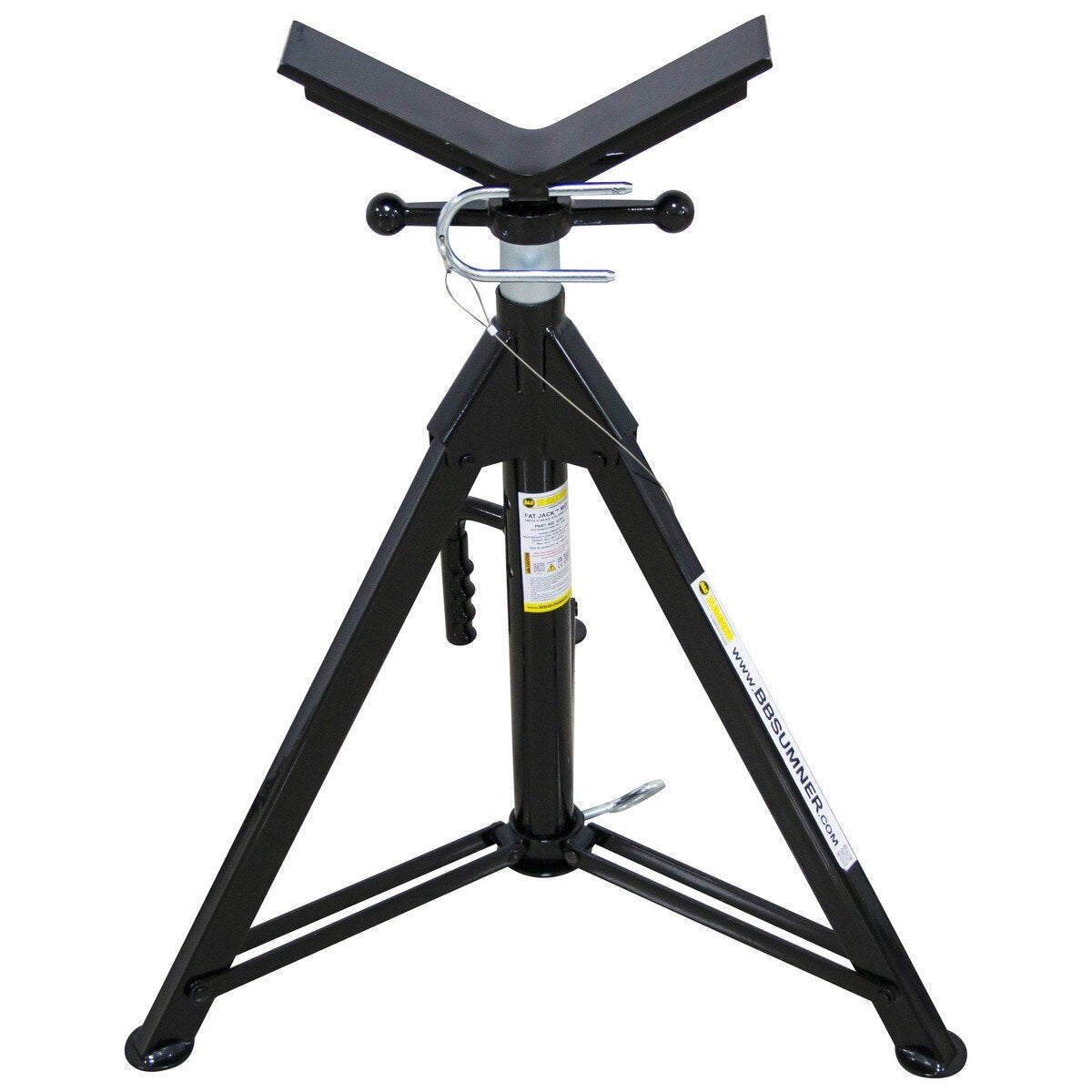

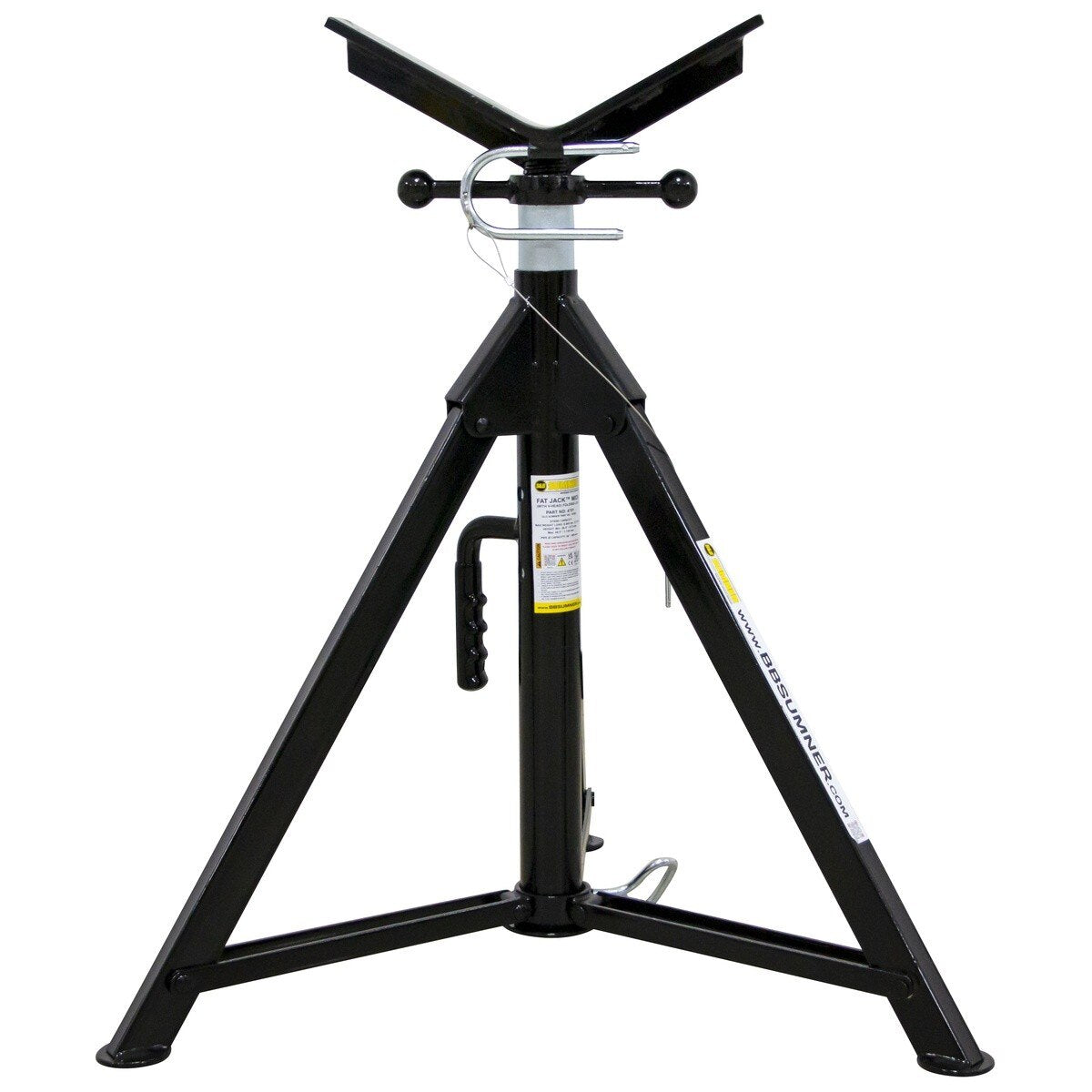

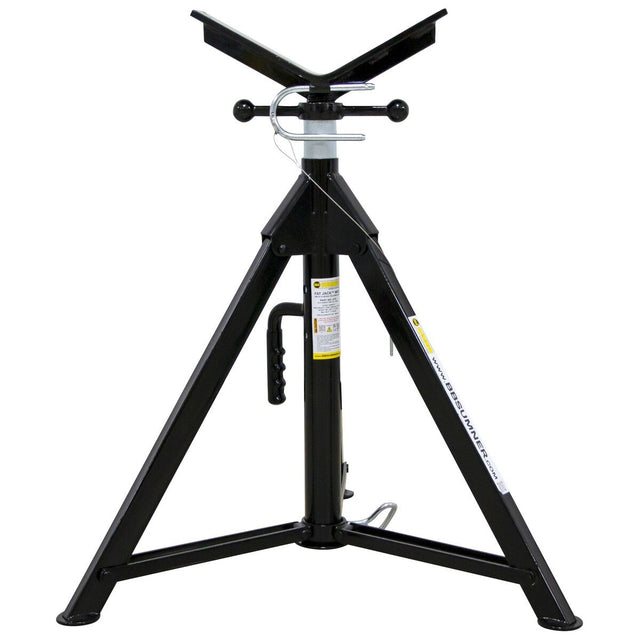

The Fat Jack Midi with V-Head is an industrial-grade pipe jack stand built from rugged 1.25 in. steel tubing with a wide base for stability. It supports up to 6,000 lb and features a 1.5 in. ACME fine adjustment thread with a large ergonomic handle plus a quick-secure double locking pin system for reliable height locking.
BBSumner 4701 Includes
- (1) Fat Jack Midi Pipe Jack Stand with V-Head
BBSumner 4701 Features
- Supports loads up to 6,000 lb (2,725 kg)
- 1.5 in. ACME fine adjustment thread for precise height adjustment
- Large ergonomic handle for smooth and accurate height changes
- Quick-secure double locking pin system for fast, reliable height locking
- Rugged construction using 1.25 in. steel tubing
- Wide base design helps provide exceptional jobsite stability
- V-head included; compatible with steel wheel head and stainless steel wheel head
- Accommodates up to 36 in. (900 mm) diameter pipe with V-head
- Accommodates up to 24 in. (600 mm) diameter pipe with roller heads
- Folding leg design for easier transport and storage
- Height range: 26.5 in. to 44.5 in.
- Ships in a compact 21 x 21 x 21 in. carton
- Shipping weight: 37 lb
- Made in the United States
- Designed for demanding industrial pipe support applications
BBSumner 4701 Specifications
| Capacity | 6,000 lbs / 2,725 kg |
| Adjustment Thread | 1.5 in. ACME fine adjustment thread |
| Handle Type | Large ergonomic handle |
| Height Locking | Quick-secure double locking pin system |
| Construction Material | 1.25 in. steel tubing |
| Base Design | Wide base for stability |
| Max Pipe Capacity (V-head) | 36 in. / 900 mm |
| Max Pipe Capacity (Roller heads) | 24 in. / 600 mm |
| Head Options Available | V-head, steel wheel head, stainless steel wheel head |
| Height Range | 26.5 in. / 673 mm to 44.5 in. / 1,130 mm |
| Leg Type | Folding leg |
| Head Type | V-head |
| Shipping Dimensions (in) | 21 x 21 x 21 |
| Shipping Weight (lb) | 37 |
| Country of Origin | United States |
Toolup Part # :
833837
