BBSumner 4702 Description

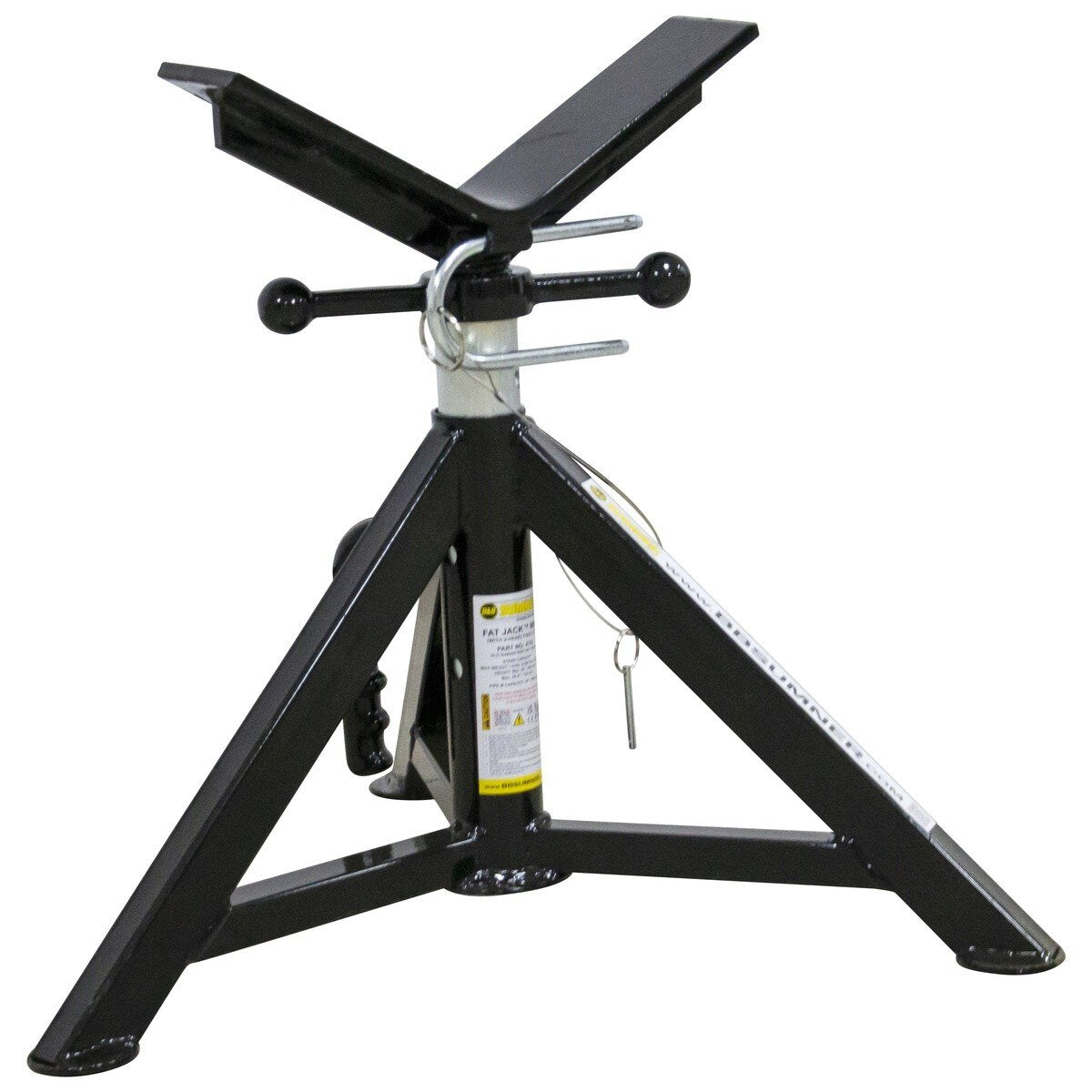

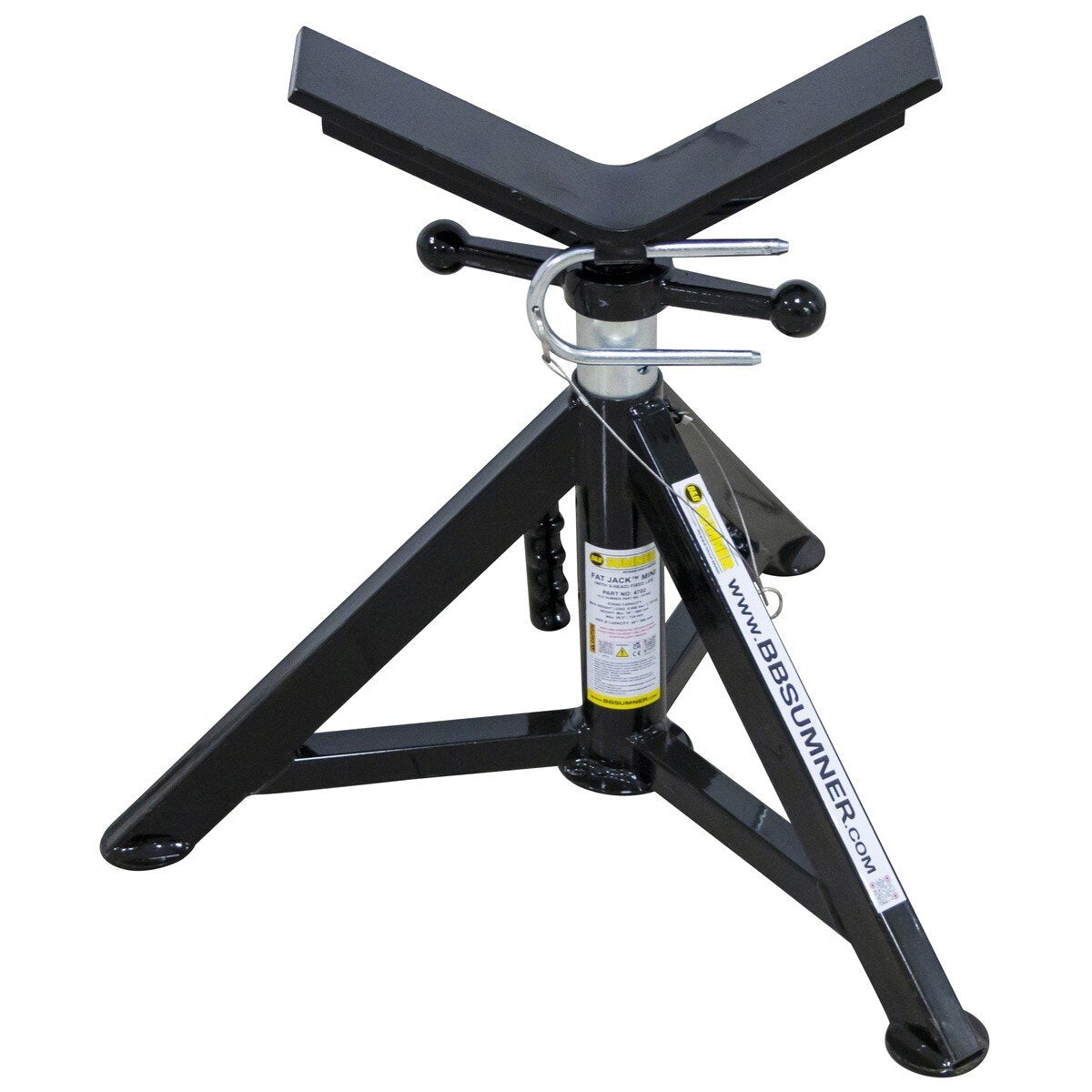

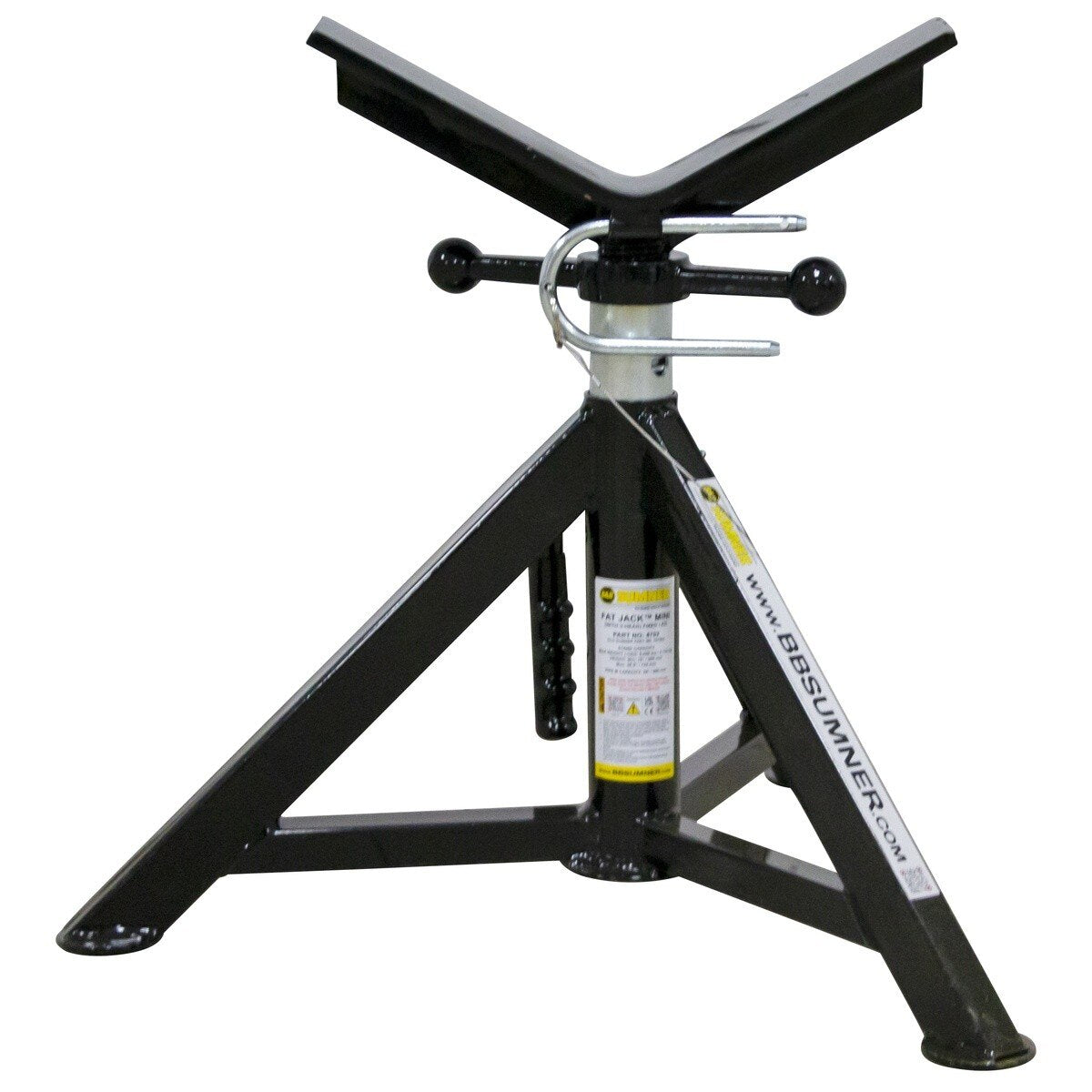

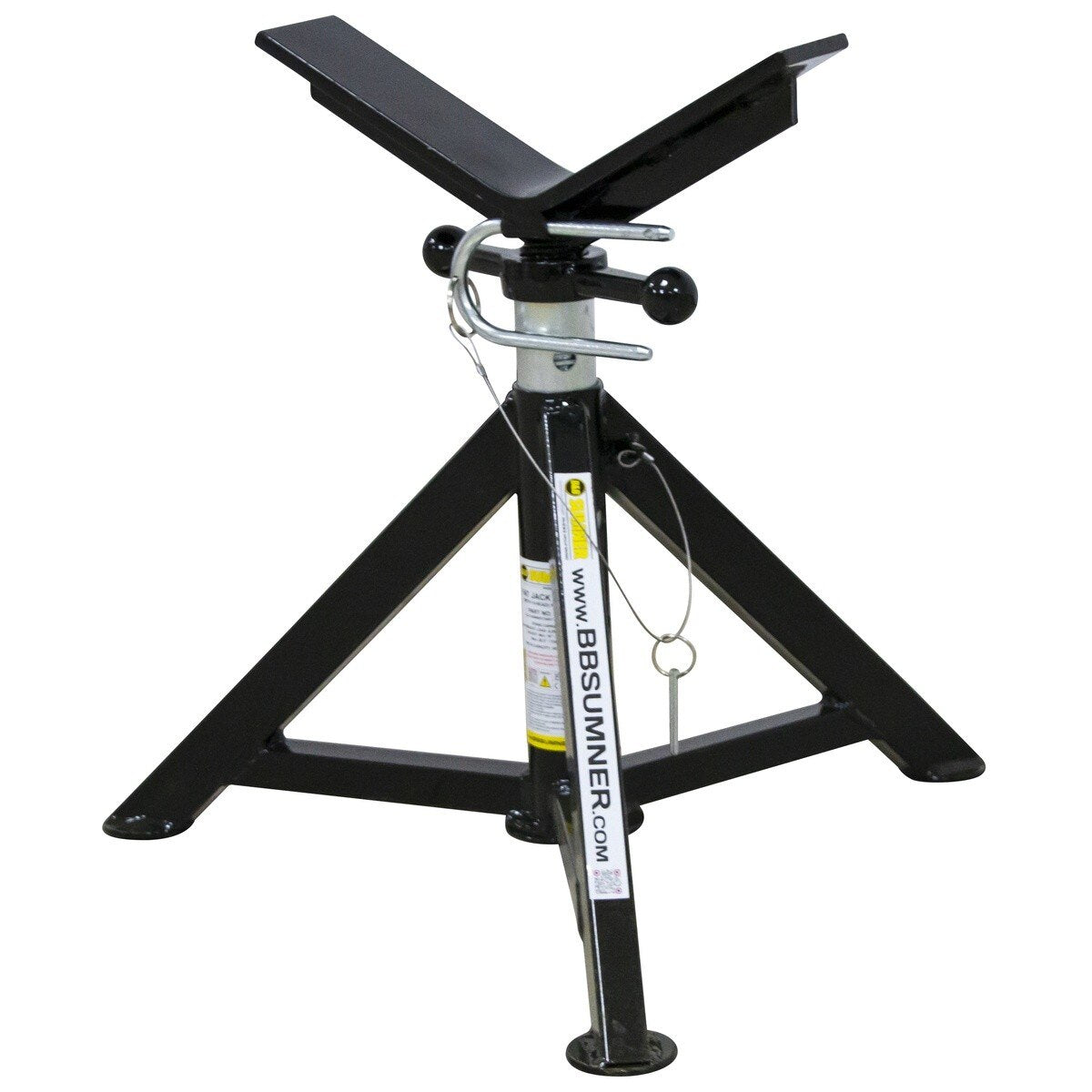

The BBSumner Fat Jack Mini with V-Head is a heavy-duty pipe jack stand engineered for demanding industrial support and handling tasks. Built from rugged 1.25 in steel tubing with a wide base for stability, it provides fine height adjustment via a 1.5 in ACME thread and locks securely with a double locking pin system.
BBSumner 4702 Includes
- (1) Fat Jack Mini with V-Head Pipe Jack Stand
BBSumner 4702 Features
- 6,000 lb (2,725 kg) load capacity for heavy-duty industrial applications
- Fine height adjustment with 1.5 in ACME thread and large ergonomic handle
- Quick-secure double locking pin system for fast, reliable height locking
- Rugged 1.25 in steel tubing construction for long-lasting durability
- Wide base design enhances stability on varied job site surfaces
- V-head supports up to 36 in (900 mm) diameter pipe
- Working height range adjusts from 16 in to 28.5 in
- Fixed leg design for stable, reliable support
BBSumner 4702 Specifications
| Capacity | 6,000 lbs / 2,725 kg |
| Adjustment Thread | 1.5 in ACME fine adjustment thread |
| Handle Type | Large ergonomic handle for smooth and accurate height changes |
| Height Locking | Quick-secure double locking pin system |
| Construction Material | 1.25 in steel tubing |
| Base Design | Wide base for stability |
| Max Pipe Capacity (V-head) | 36 in / 900 mm |
| Max Pipe Capacity (Roller heads) | 24 in / 600 mm |
| Head Options Available | V-head, steel wheel head, stainless steel wheel head |
| Working Height Range | 16 in / 406 mm to 28.5 in / 724 mm |
| Leg Type | Fixed leg |
| Shipping Dimensions | 19 x 19 x 19 inches |
| Shipping Weight | 28 lbs / 11.4 kg |
| Country Of Origin | United States |
