Benner-Nawman BNGPB Description

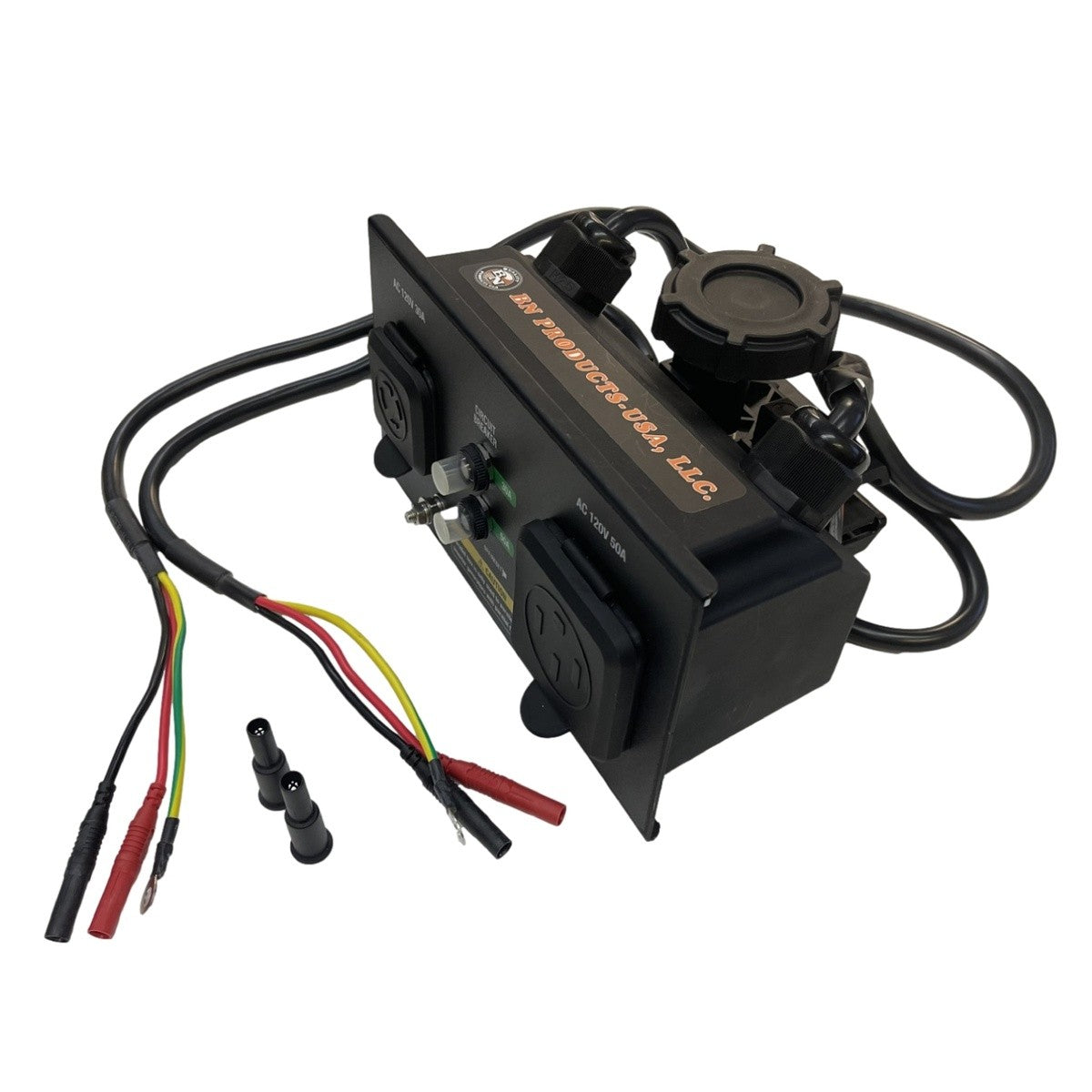

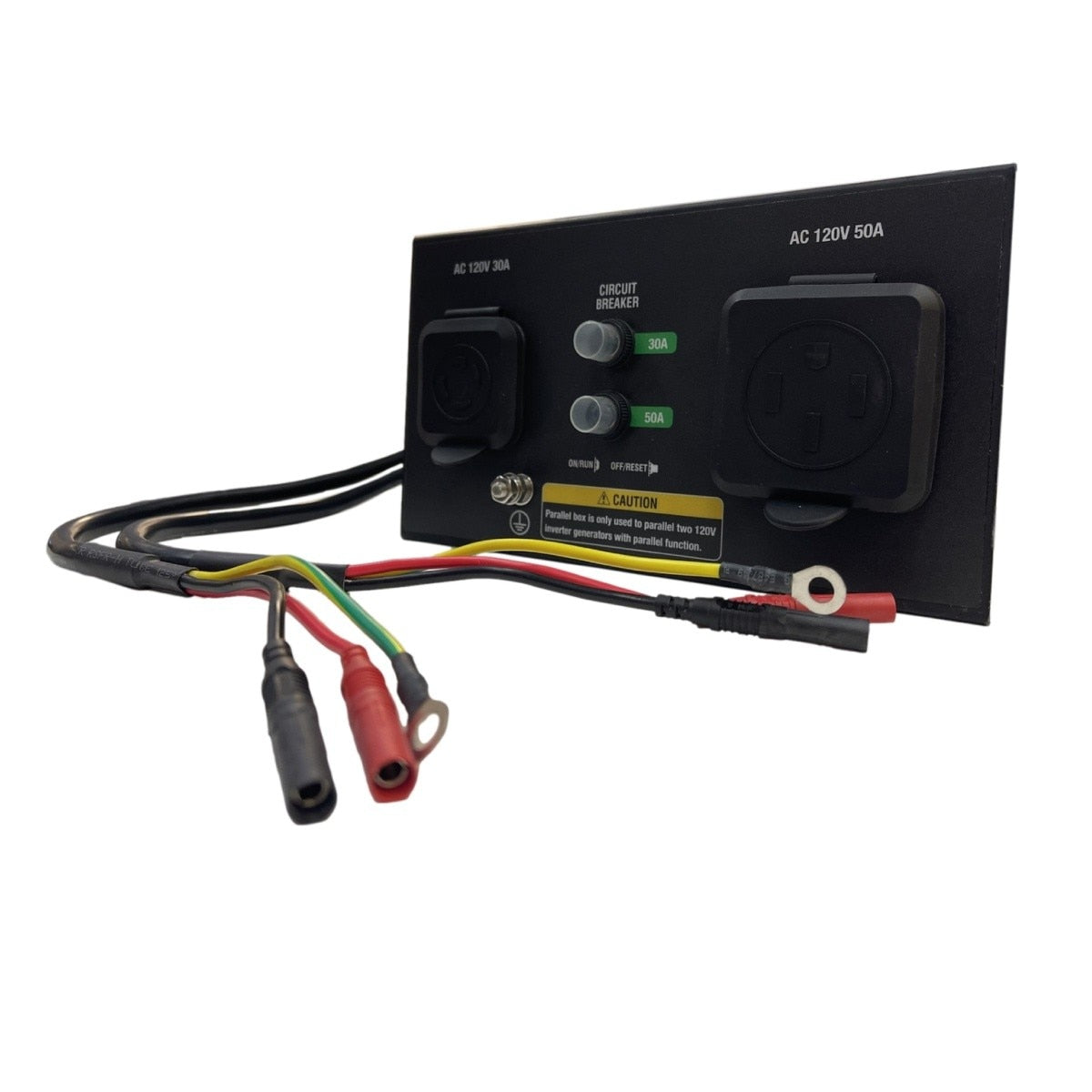

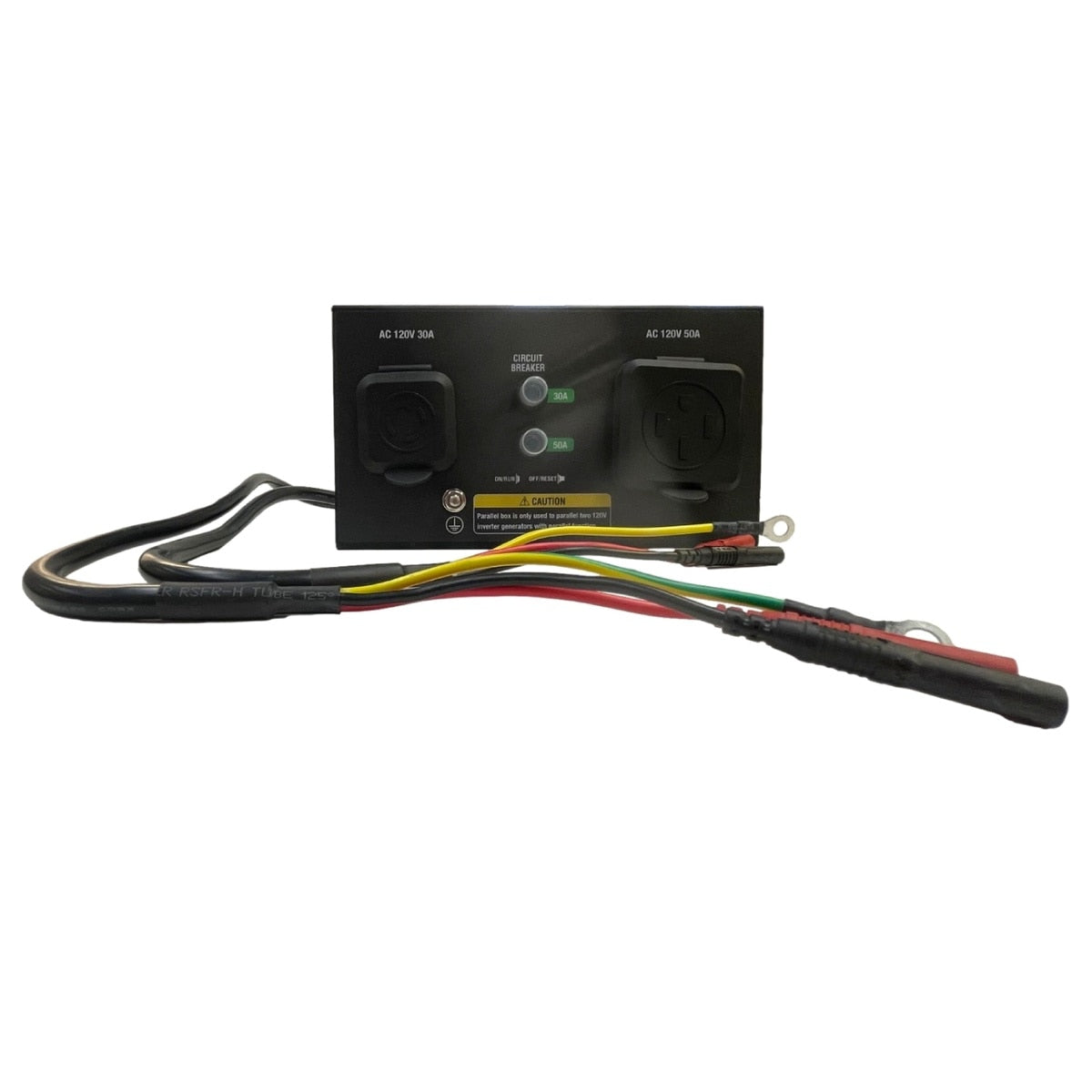

This 50A and 30A parallel connection kit lets you combine two compatible BNG Series parallel-ready inverter generators to increase available power when needed. Features a 120V 50A (14-50R) outlet and a 120V 30A locking (L5-30R) outlet with separate circuit breakers, plus a hand-tightened mounting clamp for easy attachment.
Benner-Nawman BNGPB Includes
- (1) BNGPB Parallel Kit
- (1) Hand-tightened mounting clamp
- (1) Parallel connection cable set
Benner-Nawman BNGPB Features
- Connects two identical BNG Series parallel-ready inverter generators
- Compatible with BNG2300iSAC, BNG2800iE, and BNG3800iAEFIC inverter generators
- 120V 50A (14-50R) outlet
- 120V 30A locking (L5-30R) outlet
- Dedicated 50A and 30A circuit breakers help prevent overloads
- No tools necessary for attachment
- Hand-tightened clamp for easy mounting
- Provides the option to run higher-demand loads by paralleling two inverters
Benner-Nawman BNGPB Specifications
| Product Type | Parallel connection kit for inverter generators |
| Compatible Generator Models | BNG2300iSAC; BNG2800iE; BNG3800iAEFIC |
| AC Output Voltage | 120V AC |
| Frequency | 60Hz |
| Outlet 1 | 120V 50A (14-50R) |
| Outlet 2 | 120V 30A locking (L5-30R) |
| Circuit Breakers | Separate 50A and 30A breakers |
| Mounting Clamp Included | Yes |
| Shipping Weight | 18 lb |
Toolup Part # :
872651
