Bosch 85146 Description

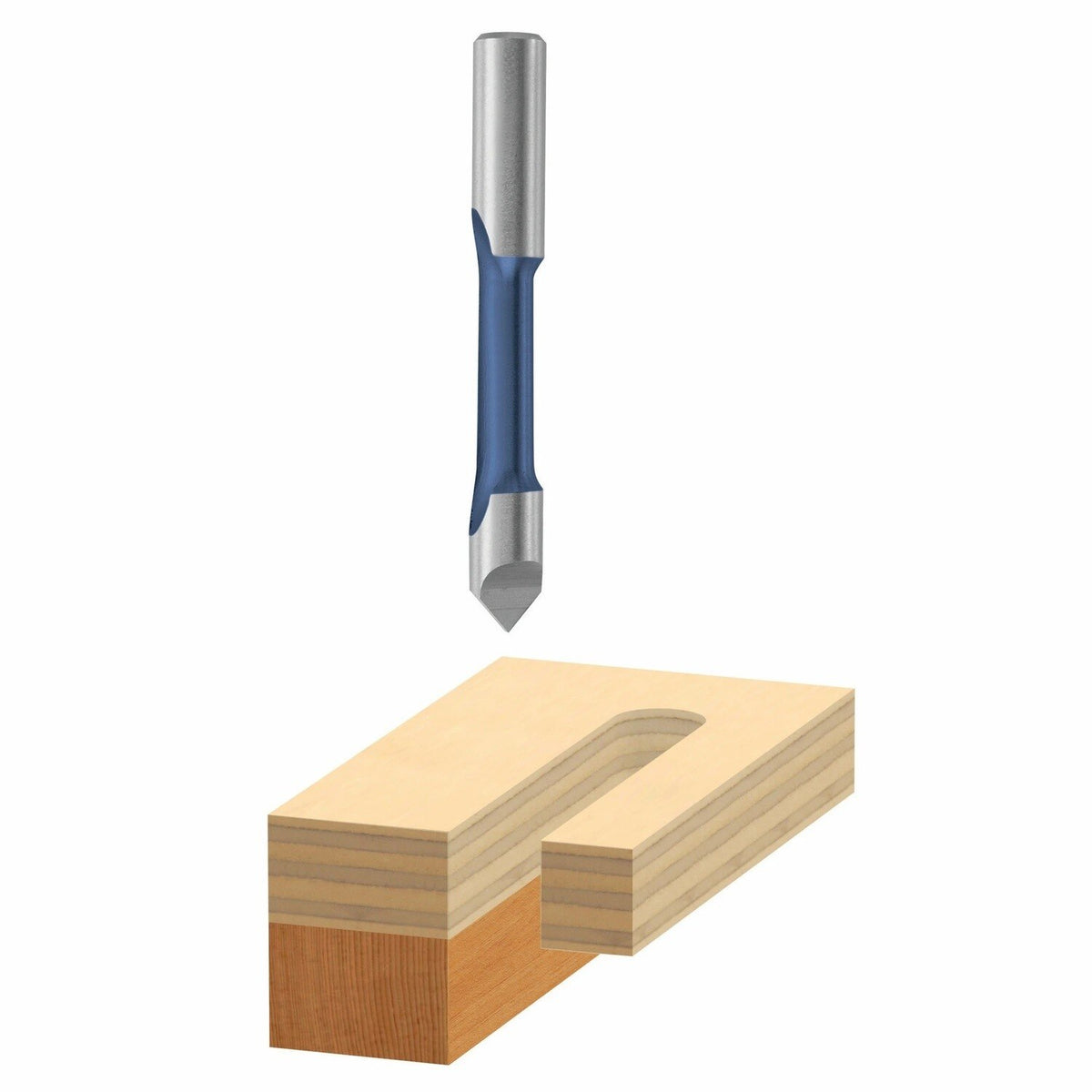

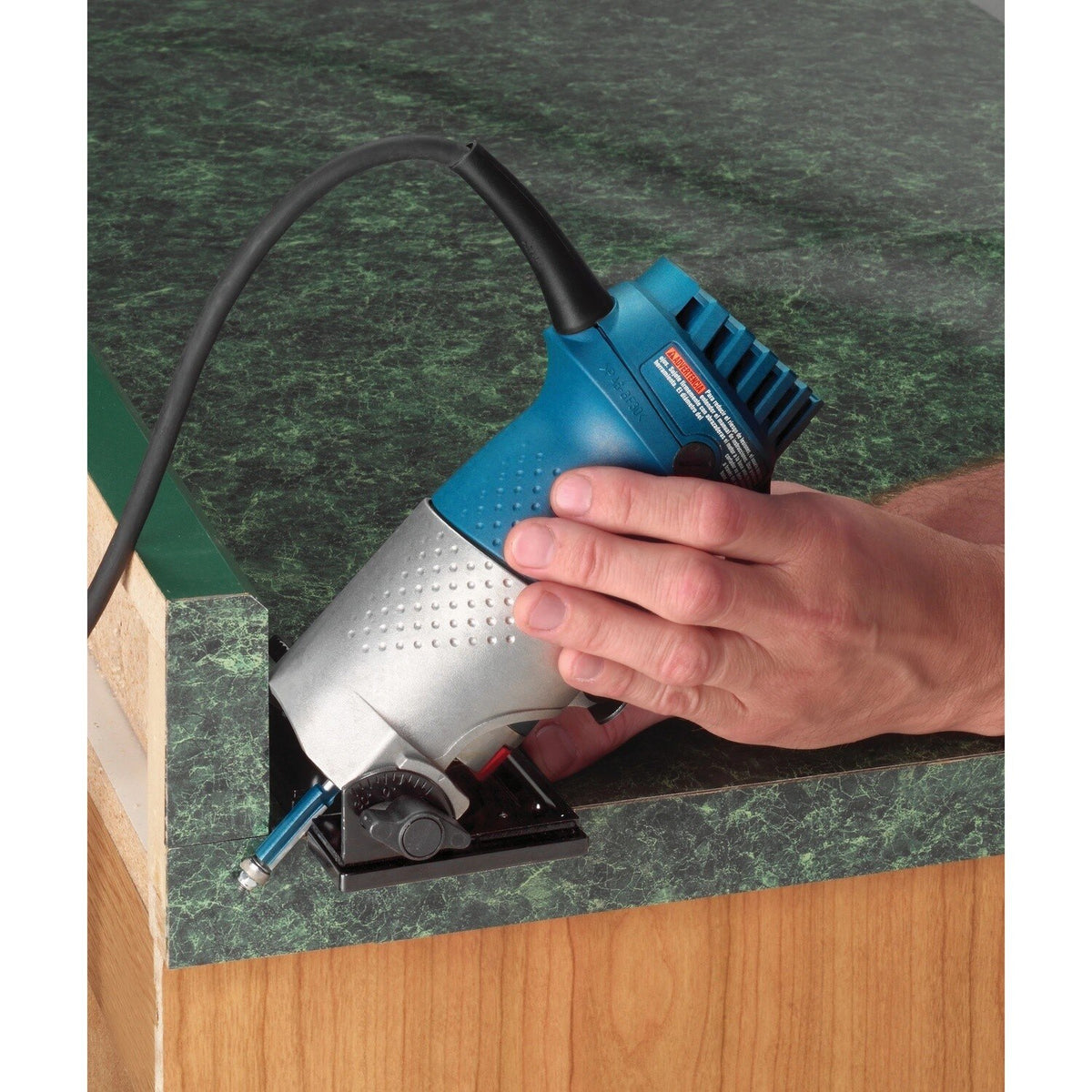

This Bosch pilot panel straight bit is made from high speed steel for smooth, precise cuts and can be sharpened to a fine edge. Its drill-through pilot point is designed for window and door cutouts in abrasive insulation materials, plywood, and paneling, and it performs best in softwoods and light plastics.
Bosch 85146 Includes

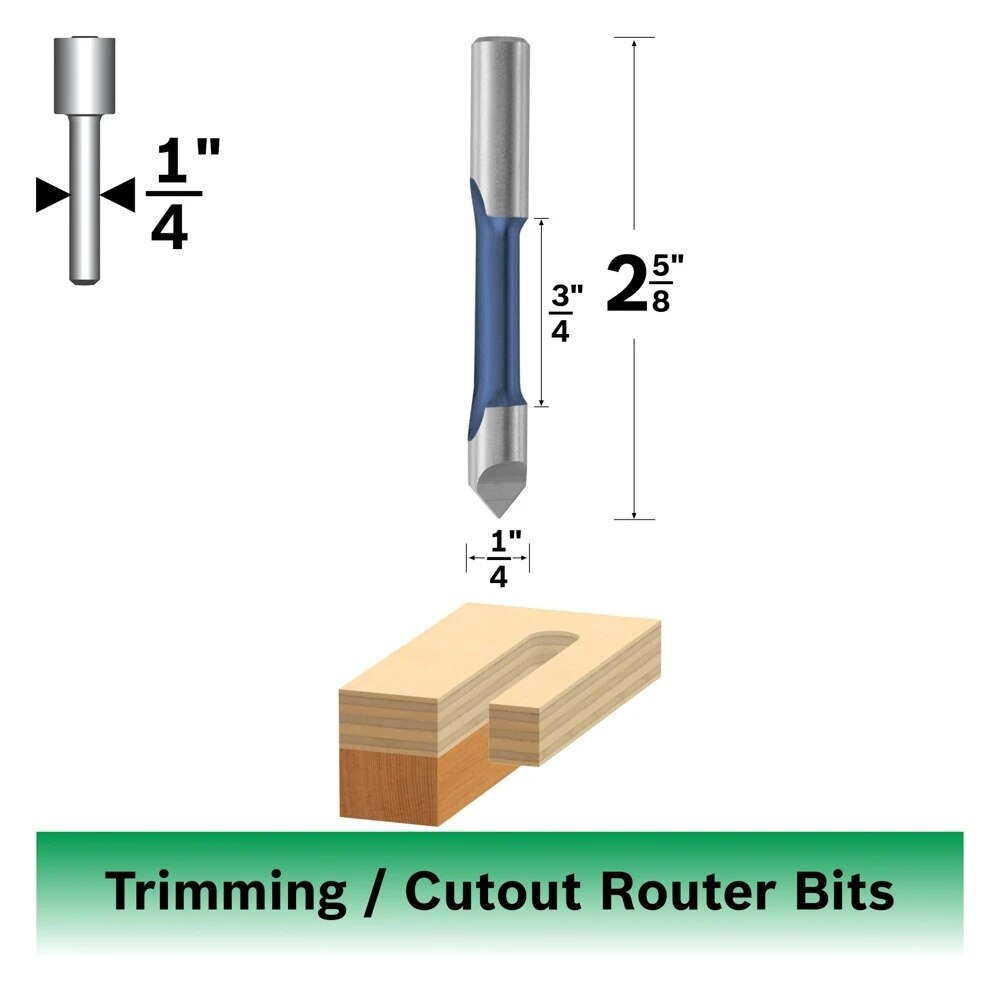

- (1) 1/4 in. x 3/4 in. High Speed Steel 1-Flute Pilot Panel Straight Bit
Bosch 85146 Features
- Single flute allows for faster feed rates
- For window and door cutouts in abrasive insulation materials, plywood, and paneling

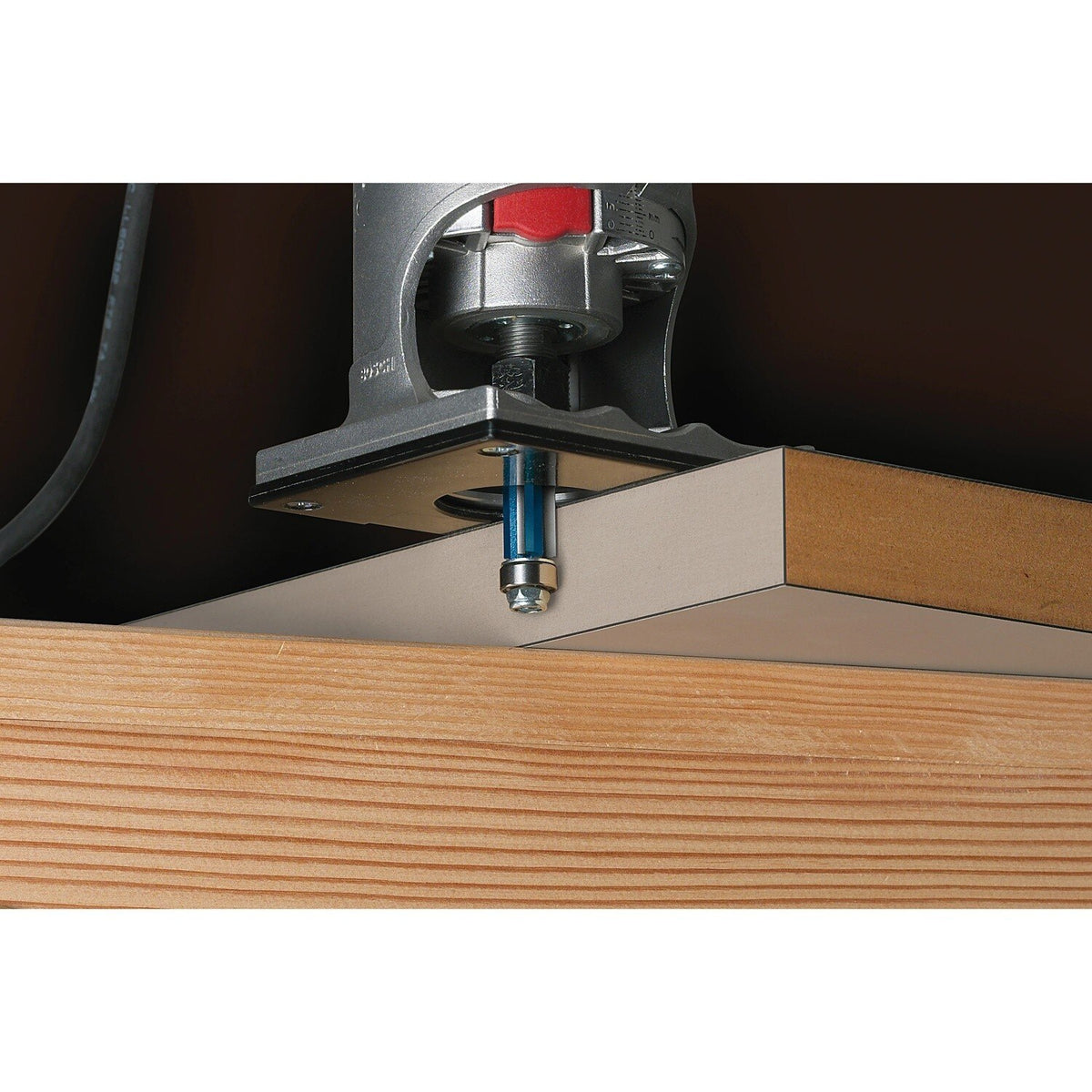

- Drill-through pilot for guiding on templet or framing after panel has been mounted
- Fully hardened steel shank
Bosch 85146 Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | High Speed Steel |
| Cut Diameter (in) | 0.25 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 |
| Shank Diameter | 1/4 in |
| Shank Length (in) | 1.925 |
| Overall Length in | 2.625 |
| Set / Individual | Individual |
Toolup Part # :
216057
