Bosch 85147 Description

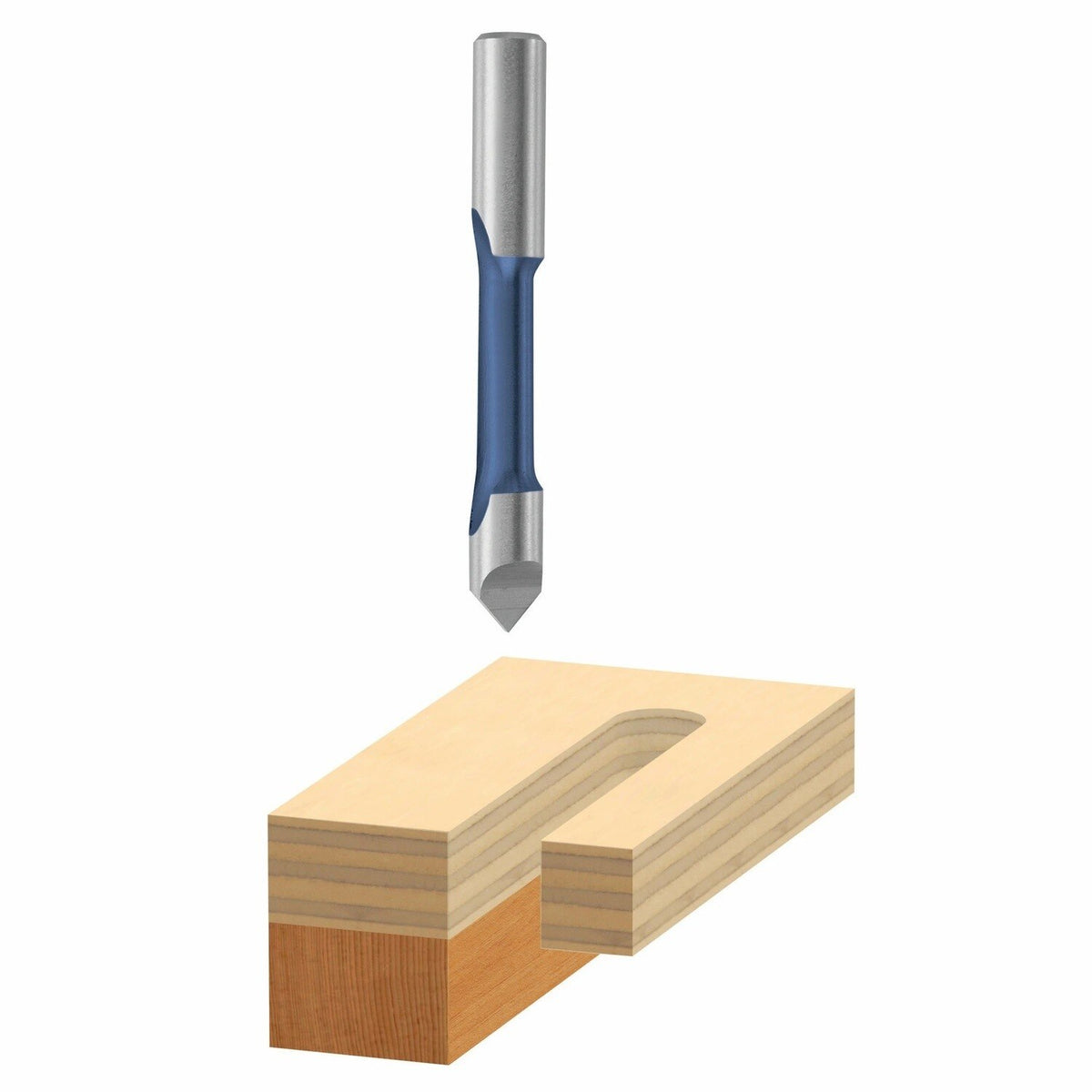

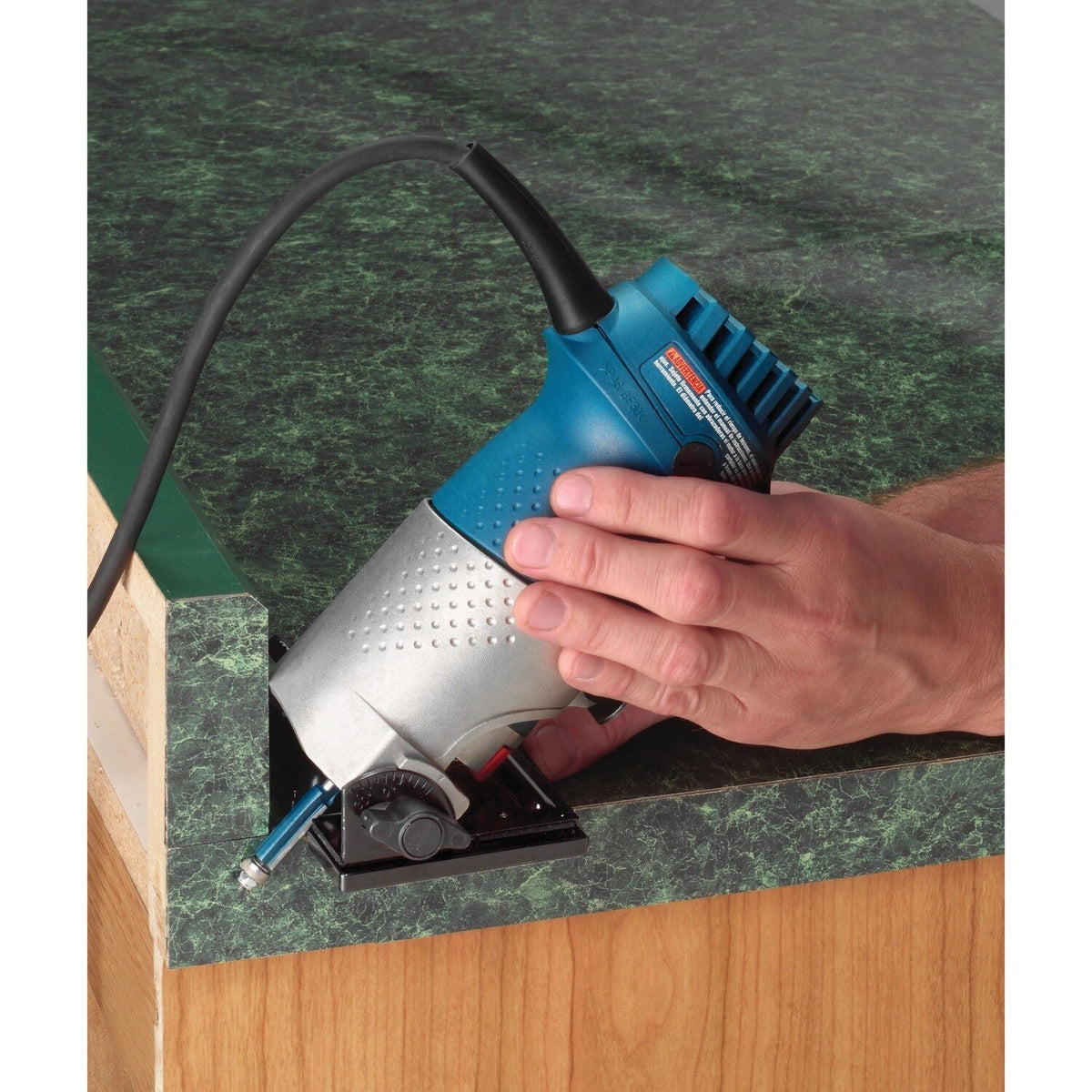

The Bosch 85147 pilot panel straight router bit is designed for window and door cutouts in abrasive insulation materials, plywood, and paneling. Its drill-through pilot point helps guide the bit on a template or framing after the panel is mounted, and the single-flute design supports faster feed rates for smooth trimming and cutout work.
Bosch 85147 Includes
- (1) Pilot Panel Straight Router Bit
Bosch 85147 Features
- Single-flute design supports faster feed rates
- Designed for window and door cutouts in abrasive insulation materials, plywood, and paneling

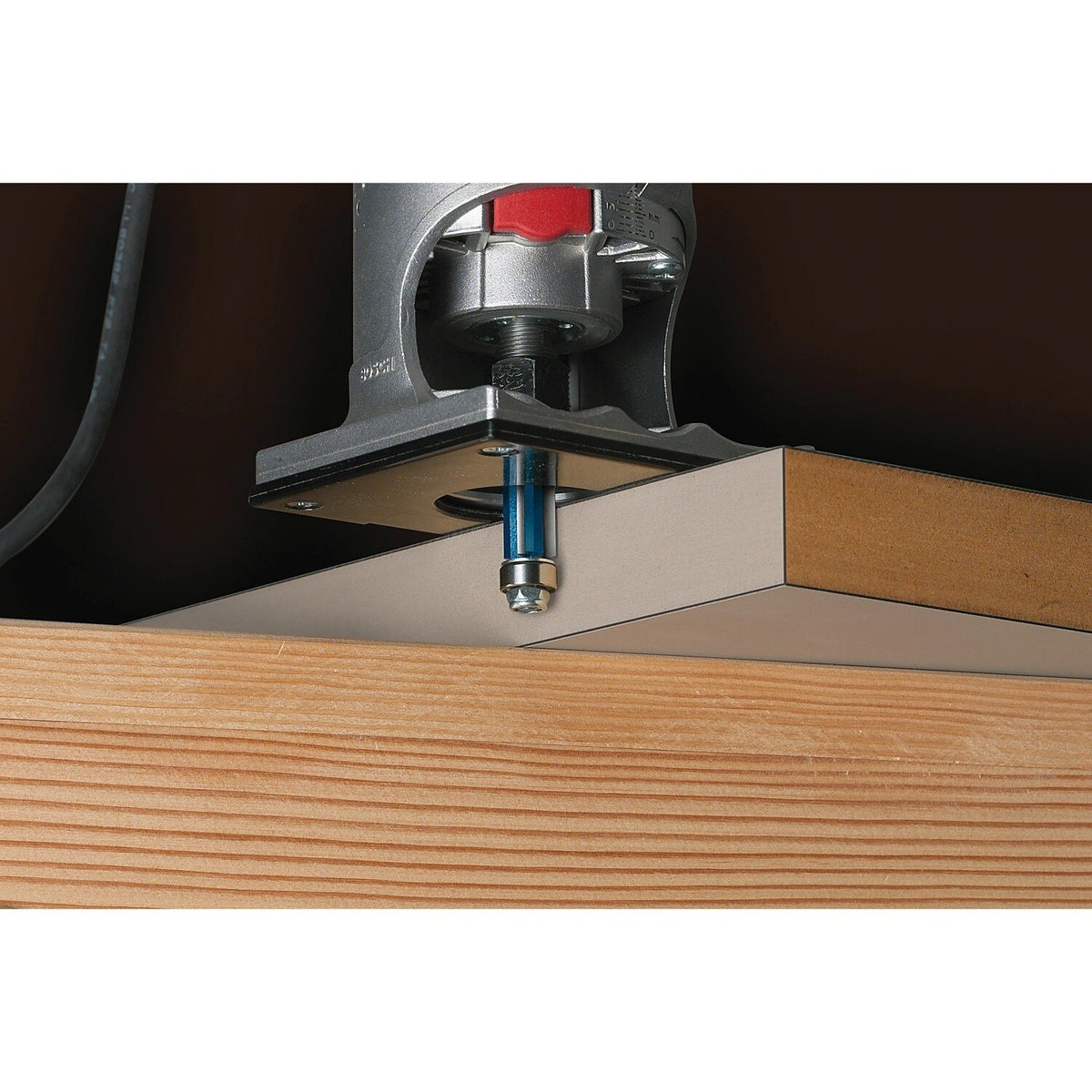

- Drill-through pilot point helps guide on a template or framing after the panel is mounted
- Fully hardened steel shank for durability

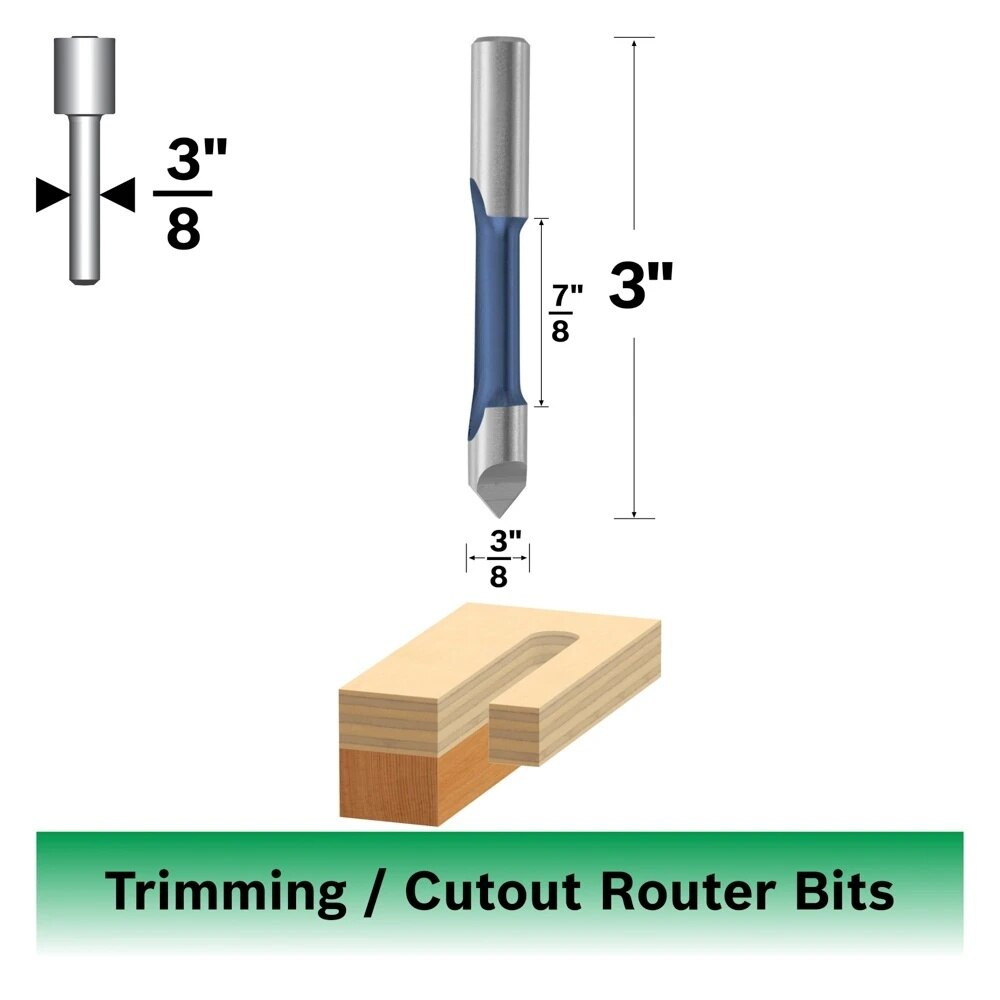

Bosch 85147 Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.375 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 |
| Shank Diameter | 3/8 in |
| Shank Length (in) | 2.125 |
| Overall Length (in) | 3 |
| Set / Individual | Individual |
Toolup Part # :
216059
