Bosch 85184 Description

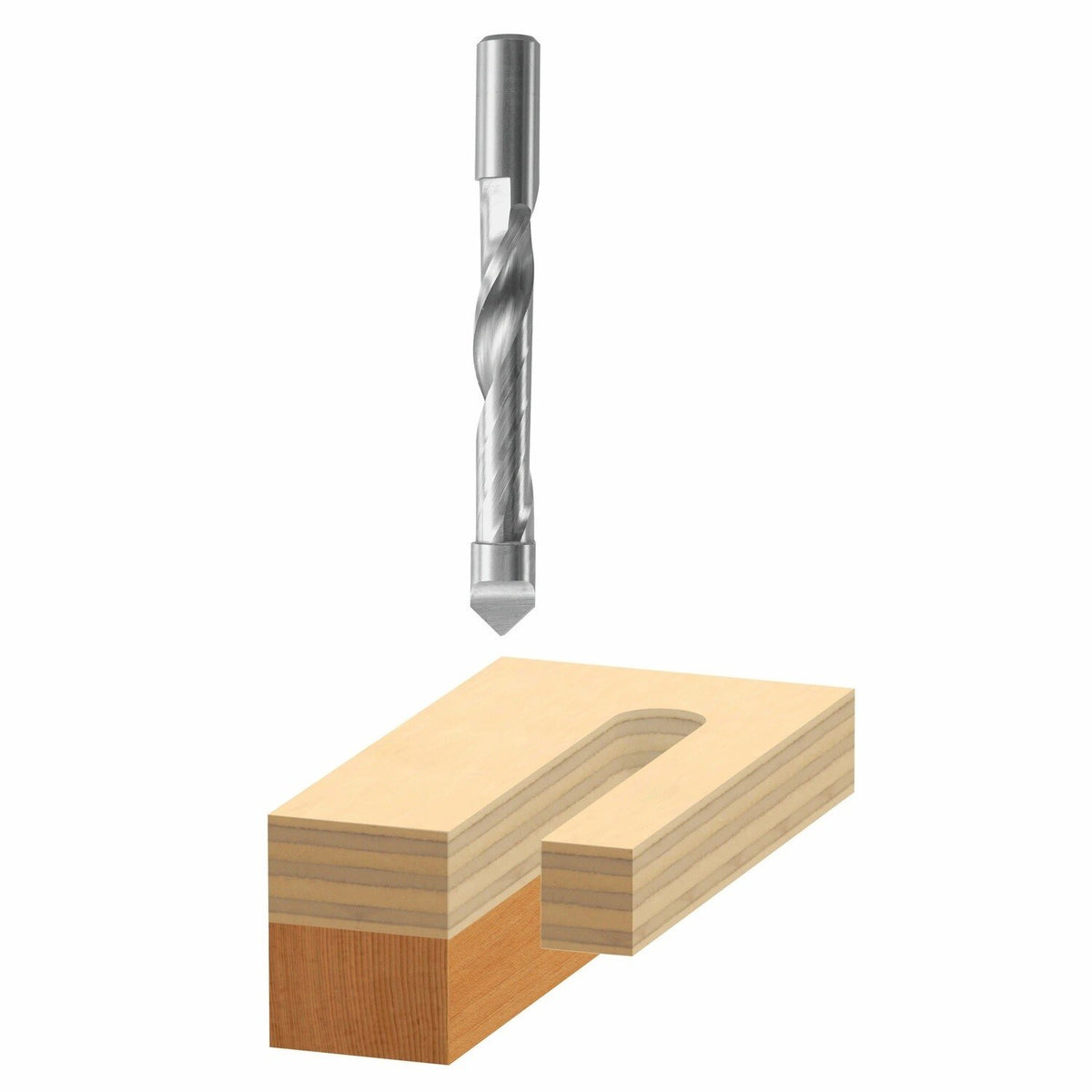

This high speed steel pilot panel down spiral router bit can be sharpened to a fine edge for smooth, precise cuts in softwoods and light plastics. Its drill-through pilot point plunges through material for cutting aluminum sheets, insulation sheeting, wall panels, plywood, and similar materials.
Bosch 85184 Includes
- (1) Pilot Panel Down Spiral Router Bit
Bosch 85184 Features
- Down spiral design pushes chips downward to reduce chip build-up and clogging
- Designed for cutting aluminum sheets, wall panels, plywood, chip boards, insulation sheeting, and other synthetic boards
- Helps eliminate chipping and upward tearing of material
- Reduces vibration and helps extend bit life
- Drill-through pilot guides on template or framing after the panel has been mounted
Bosch 85184 Specifications

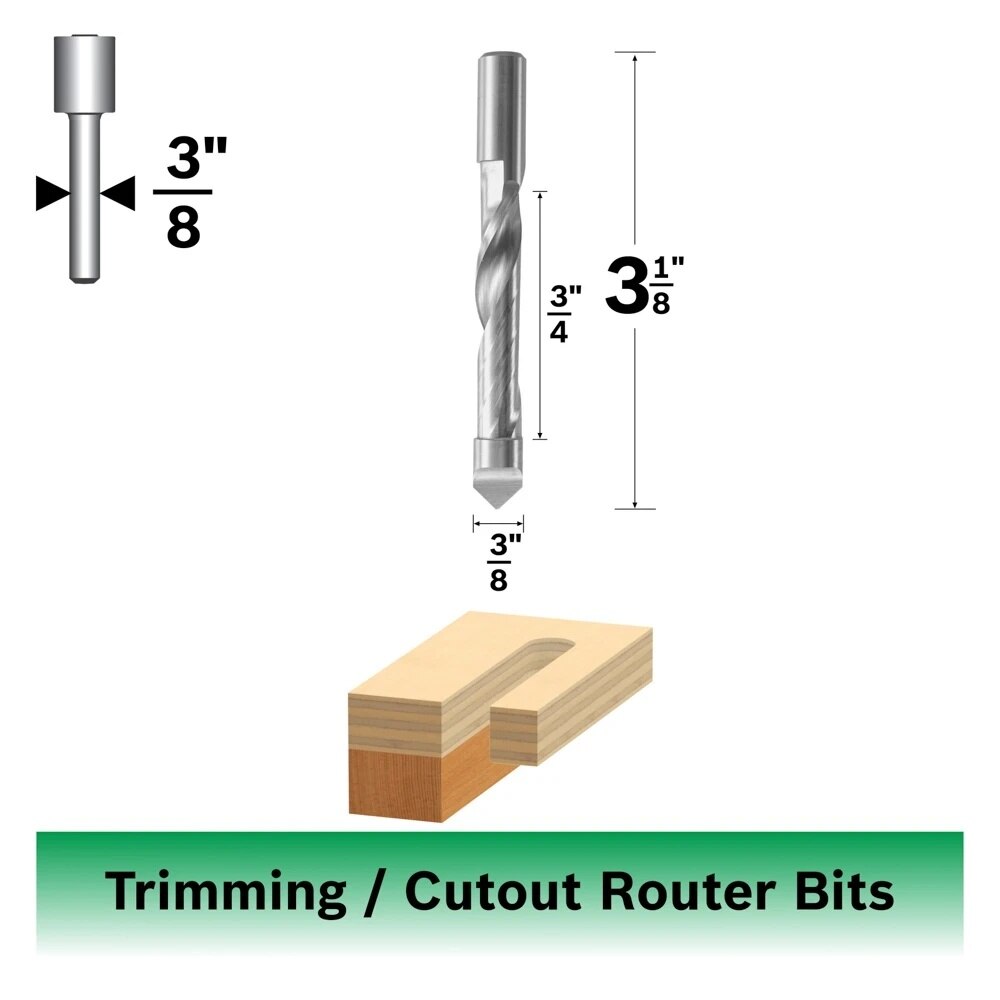

| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | High Speed Steel |
| Cut Diameter (in) | 0.375 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 Degree |
| Shank Diameter | 3/8 in |
| Shank Length (in) | 2.375 |
| Overall Length (in) | 3.125 |
| Set / Individual | Individual |
Toolup Part # :
216073
