Bosch 85185 Description

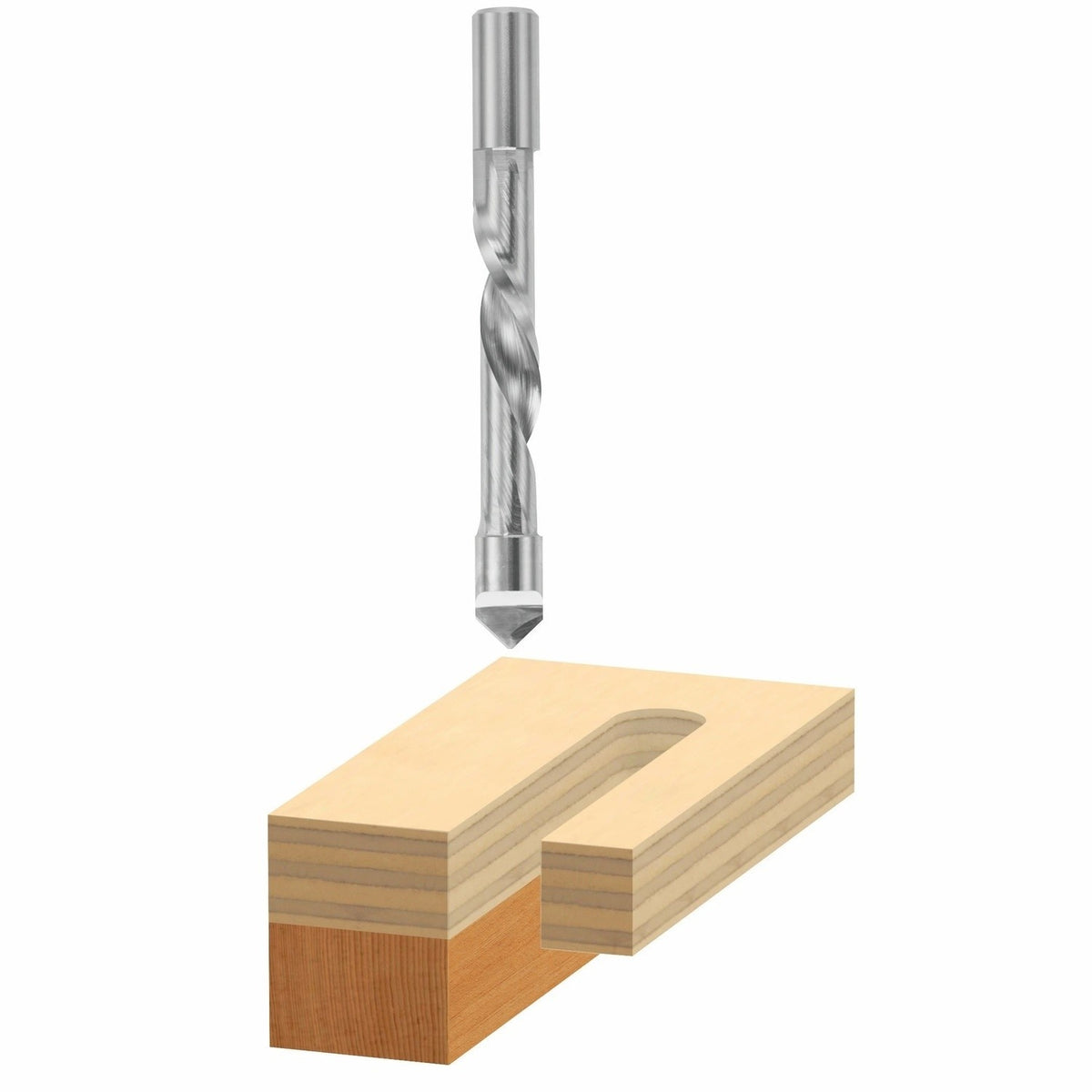

The Bosch 85185 high speed steel pilot panel down spiral router bit is built for smooth, precise cutouts in aluminum sheets, wall panels, plywood, insulation sheeting, and other synthetic boards. Its down spiral design pushes chips downward to reduce clogging, minimize chipping and upward tearing, and help extend bit life, while the drill-through pilot guides cuts on mounted panels.
Bosch 85185 Includes
- (1) Pilot Panel Down Spiral Router Bit
Bosch 85185 Features
- Down spiral design pushes chips downward to reduce chip build-up and clogging
- Cuts aluminum sheets, wall panels, plywood, chip boards, insulation sheeting, and other synthetic boards
- Helps eliminate chipping and upward tearing for cleaner results
- Reduces vibration to support smoother cutting and longer bit life

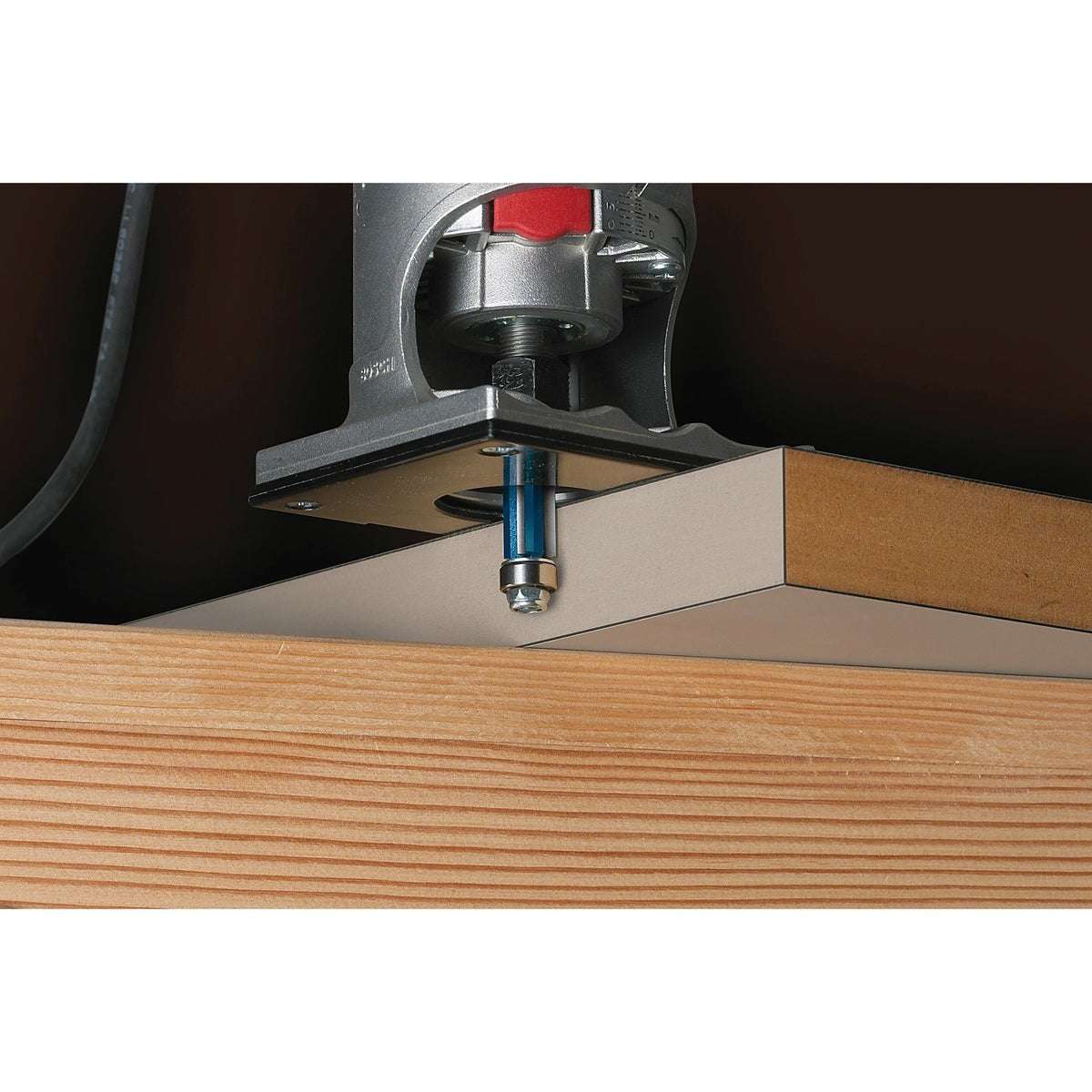

- Drill-through pilot helps guide cuts on templates or framing after panel installation

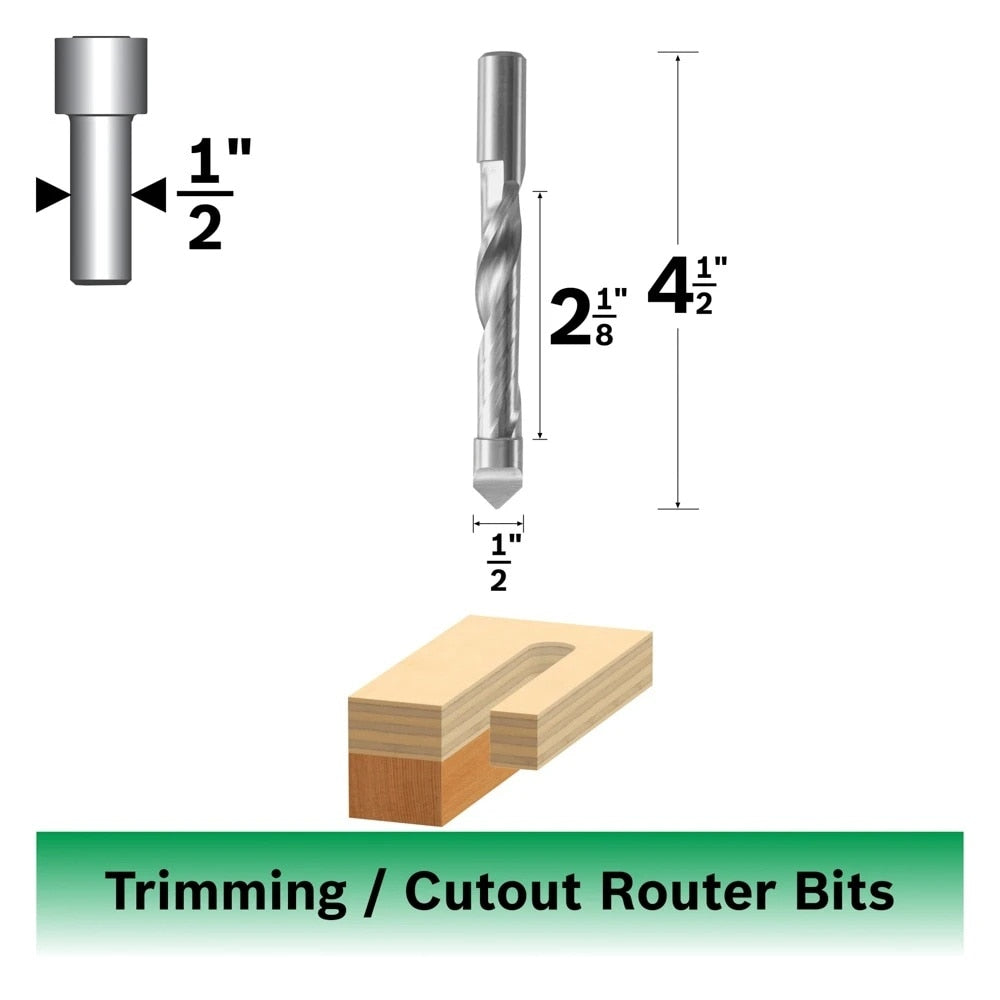

Bosch 85185 Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | High Speed Steel |
| Cut Diameter (in) | 0.5 |
| Number of Flutes | 2 |
| Router Bit Angle | 0 Degree |
| Shank Diameter | 1/2 in |
| Shank Length (in) | 1.875 |
| Overall Length (in) | 4.5 |
| Set / Individual | Individual |
Toolup Part # :
216075
