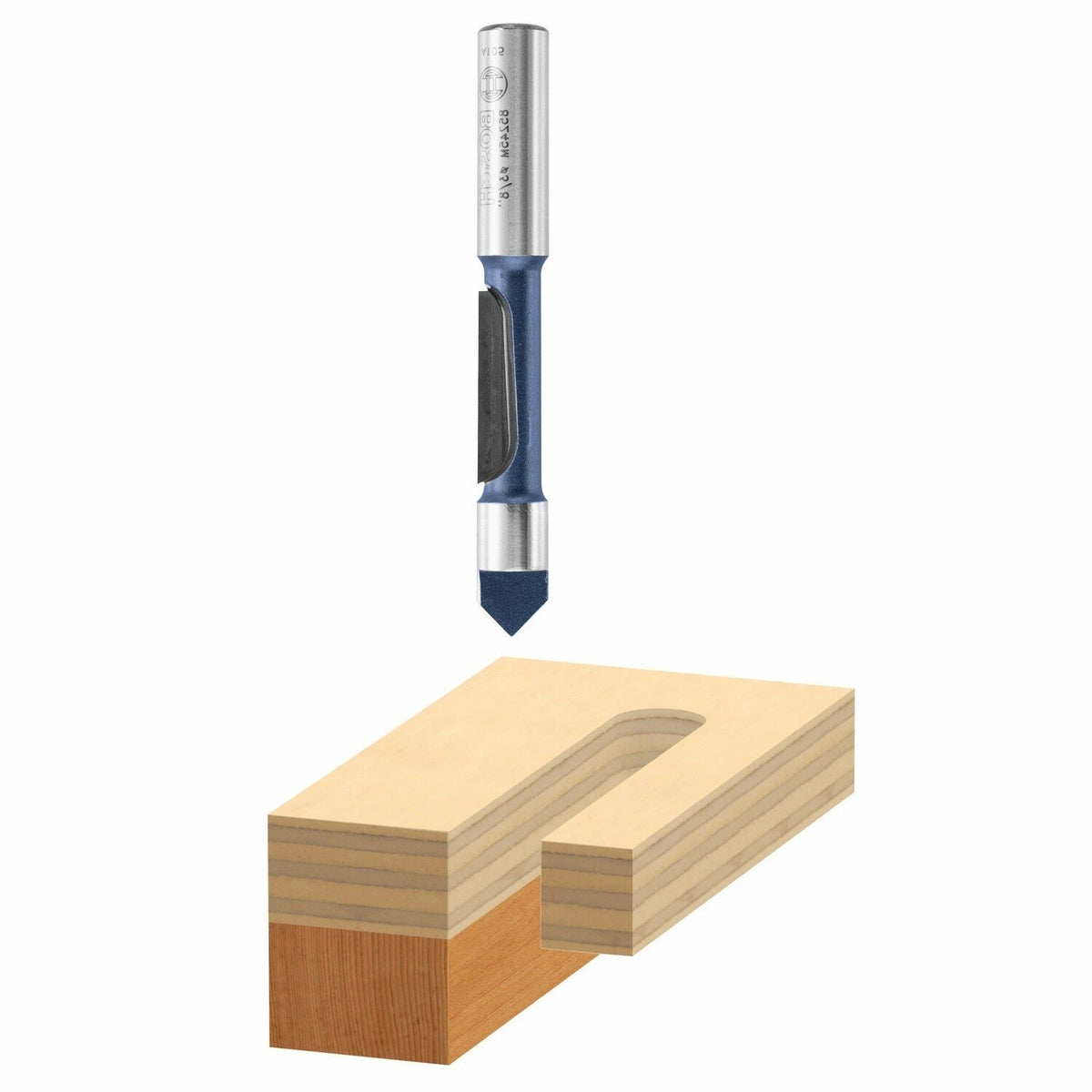

Bosch 85246M Description
This Bosch pilot panel concave router bit features premium micrograin carbide tips that are precision ground for maximum sharpness, wear resistance, and long edge life. The drill-through pilot point helps guide window and door cutouts after the panel is mounted, while the hardened and tempered steel shank adds durability for use in abrasive insulation materials, plywood, and paneling.
Bosch 85246M Includes
- (1) Pilot Panel Concave Router Bit
Bosch 85246M Features
- Single flute design allows faster feed rates
- Designed for window and door cutouts in abrasive insulation materials, plywood, and paneling

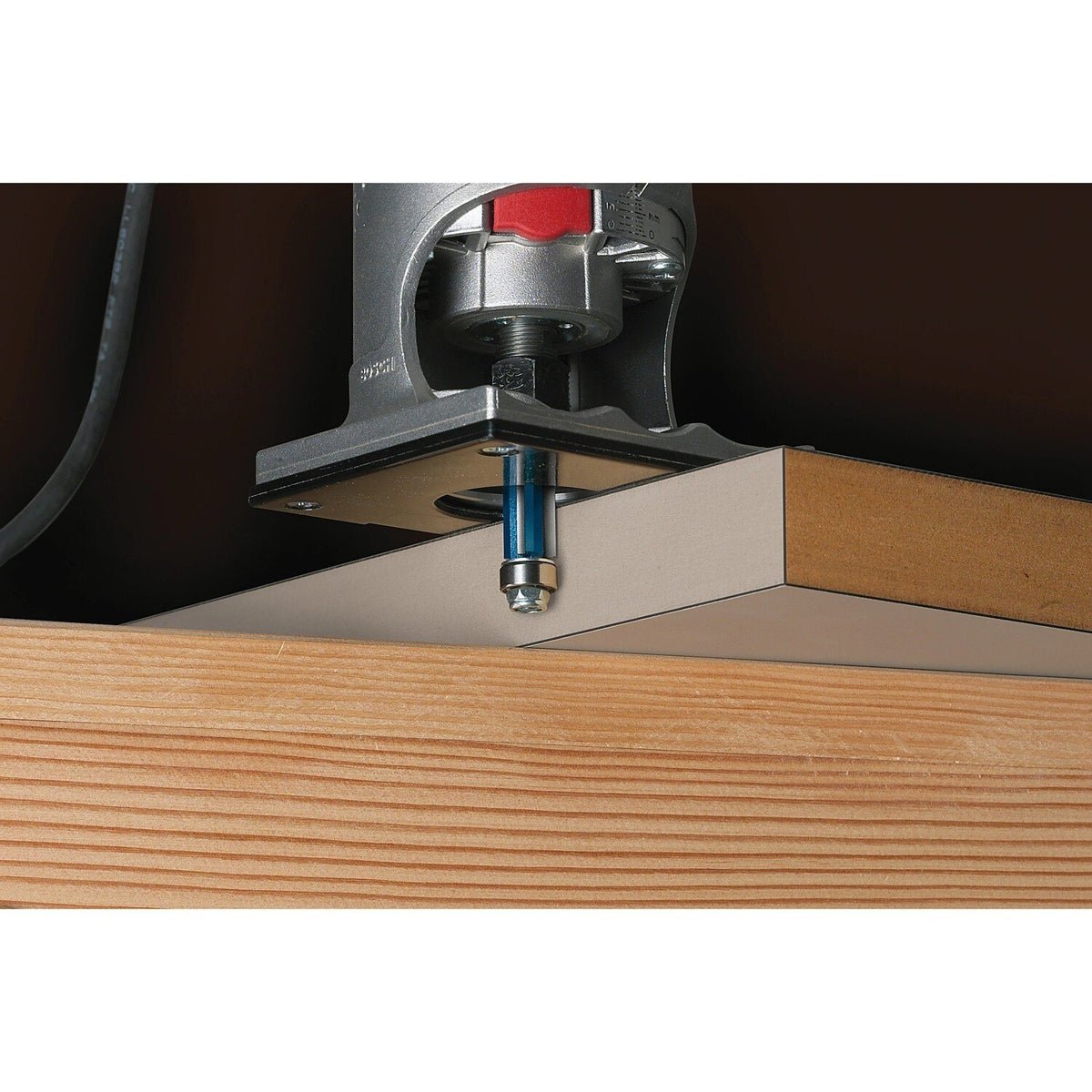

- Drill-through pilot guides on a template or framing after the panel has been mounted
- Concave grind delivers a faster cut
- Micrograin carbide tip provides superior wear resistance and long life

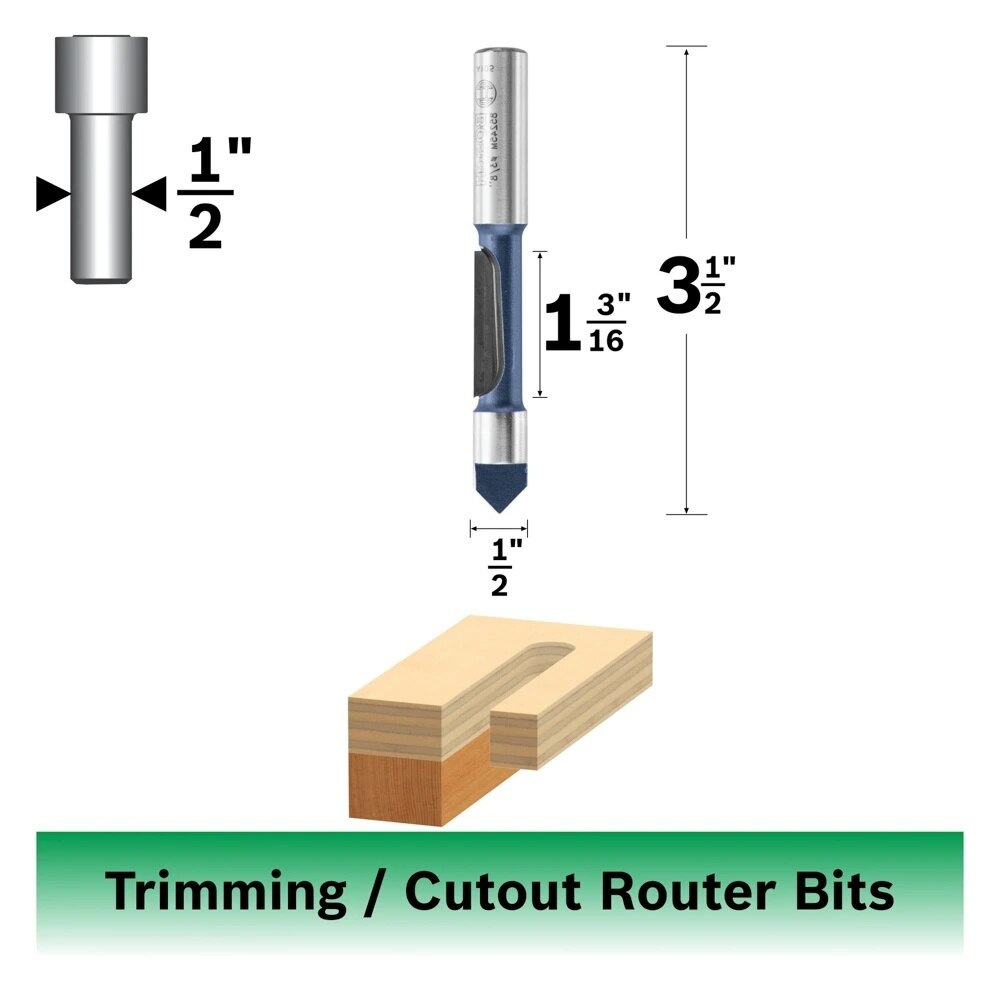

Bosch 85246M Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.5 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 |
| Shank Diameter | 1/2 in. |
| Shank Length (in) | 2.43 |
| Overall Length (in) | 3.625 |
| Set / Individual | Individual |
Toolup Part # :
216129
