Bosch 85674M Description
The Bosch 85674M carbide tipped top bearing dado clean out bit is designed for template and pattern routing in laminate and trim applications with hand-held and palm routers. Its top mounted ball bearing follows the template for clean, controlled cuts, while micrograin carbide tips and a hardened steel shank deliver smooth performance, long edge life, and durability.
Bosch 85674M Includes

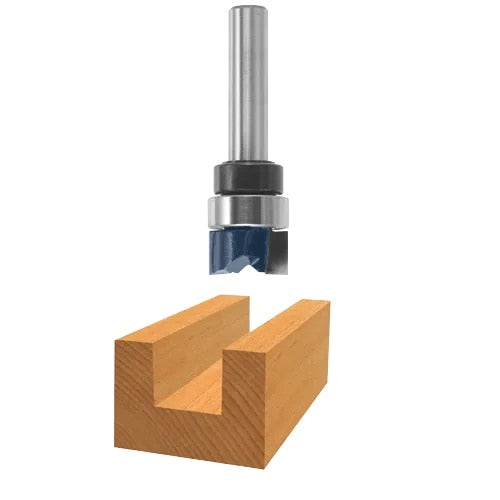

- (1) 1/2 In. x 1/4 In. Carbide Tipped 2-Flute Top Bearing Dado Clean Out Bit
Bosch 85674M Features
- Top mounted ball bearing rides against a template for pattern routing
- Micrograin carbide tips provide superior wear resistance and long life
- 2-flute design helps deliver a smoother finish
- Balanced cutting action minimizes vibration
- Shielded compact ball-bearing pilot guides the bit along the edge of the material
- Fully hardened and tempered steel shank provides durability
- Designed for use with hand-held routers and palm routers
Bosch 85674M Specifications
| Router Bit Type | Pattern Cutting |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.5 |
| Working Length (in) | 1/4 |
| Number of Flutes | 2 |
| Router Bit Angle | 0 Degree |
| Shank Diameter | 1/4 in |
| Shank Length (in) | 1.375 |
| Overall Length (in) | 1.625 |
| Set / Individual | Individual |
| For Use With | Hand-held routers, Palm routers |
Toolup Part # :
216315
