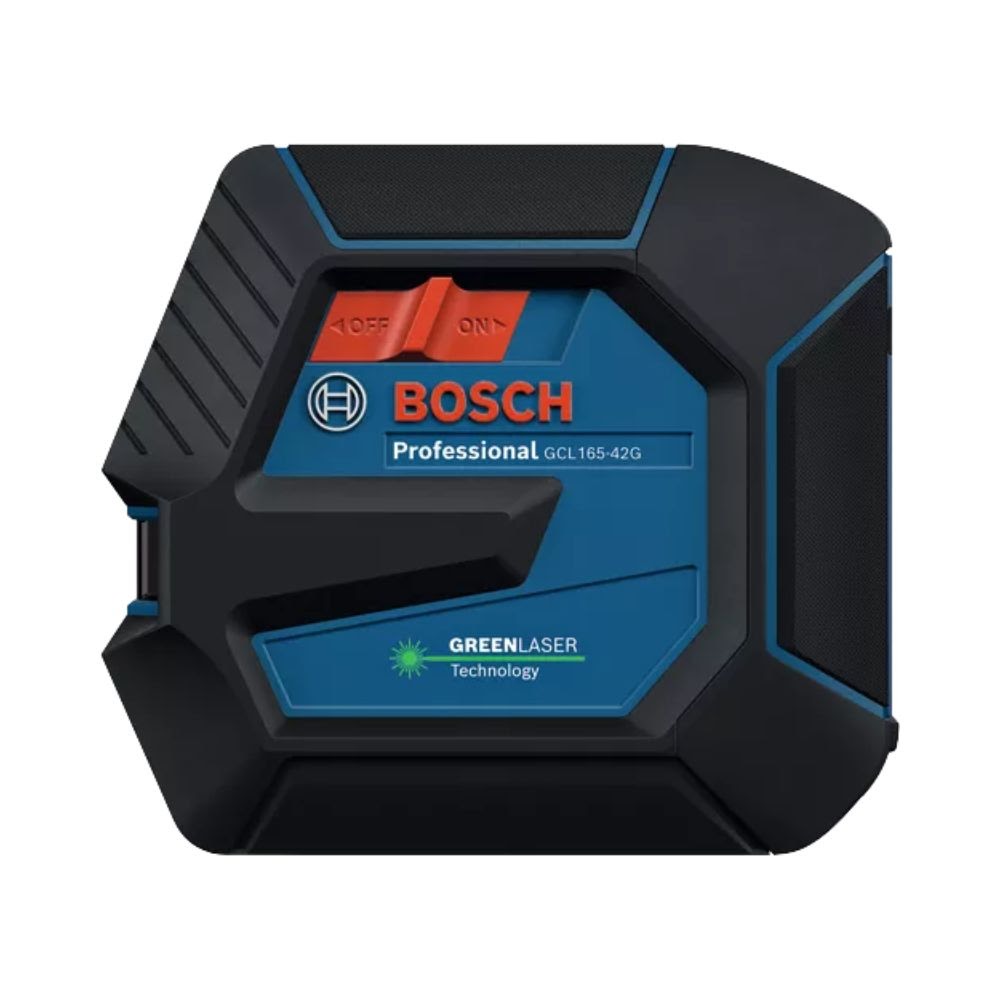

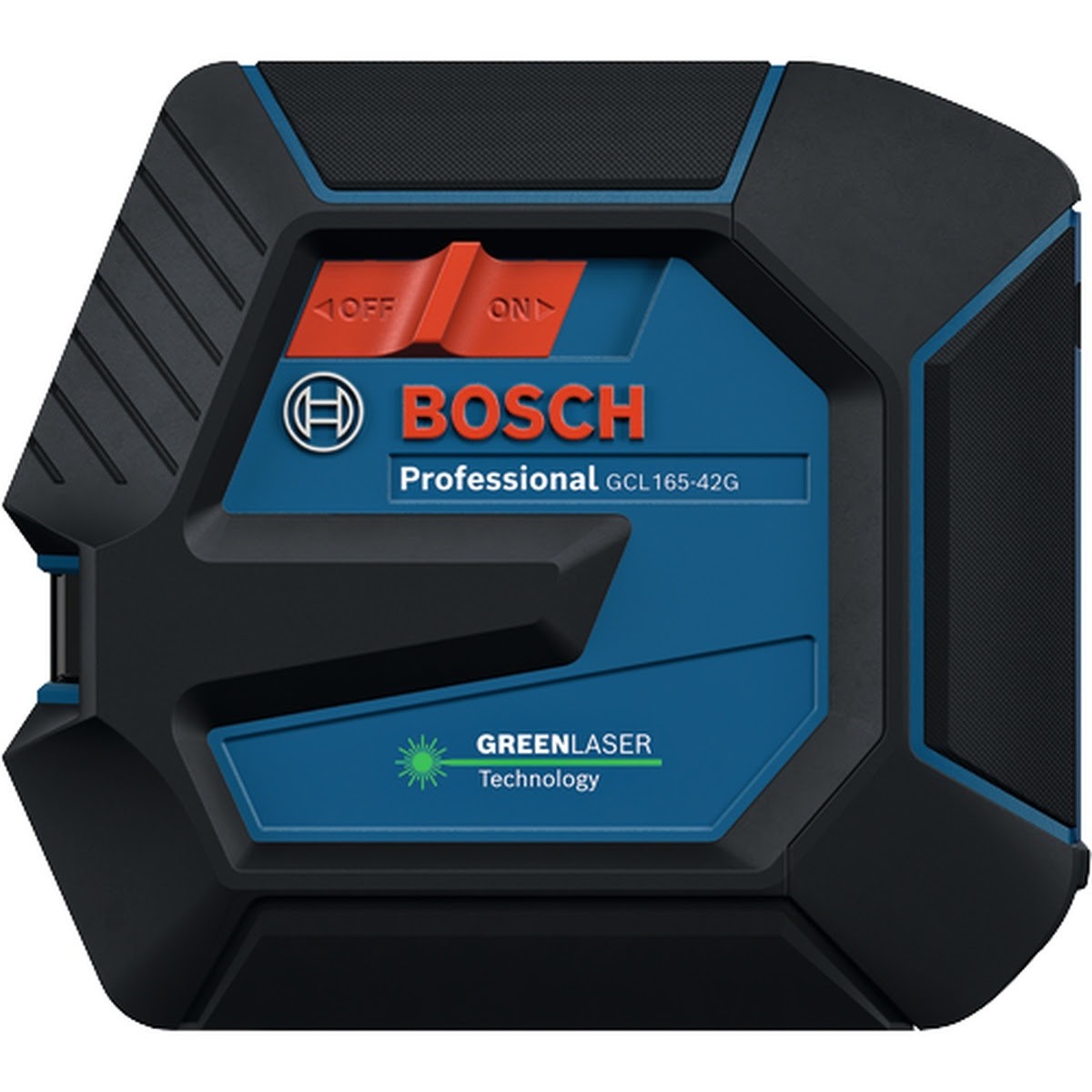

Bosch GCL165-42GL Description

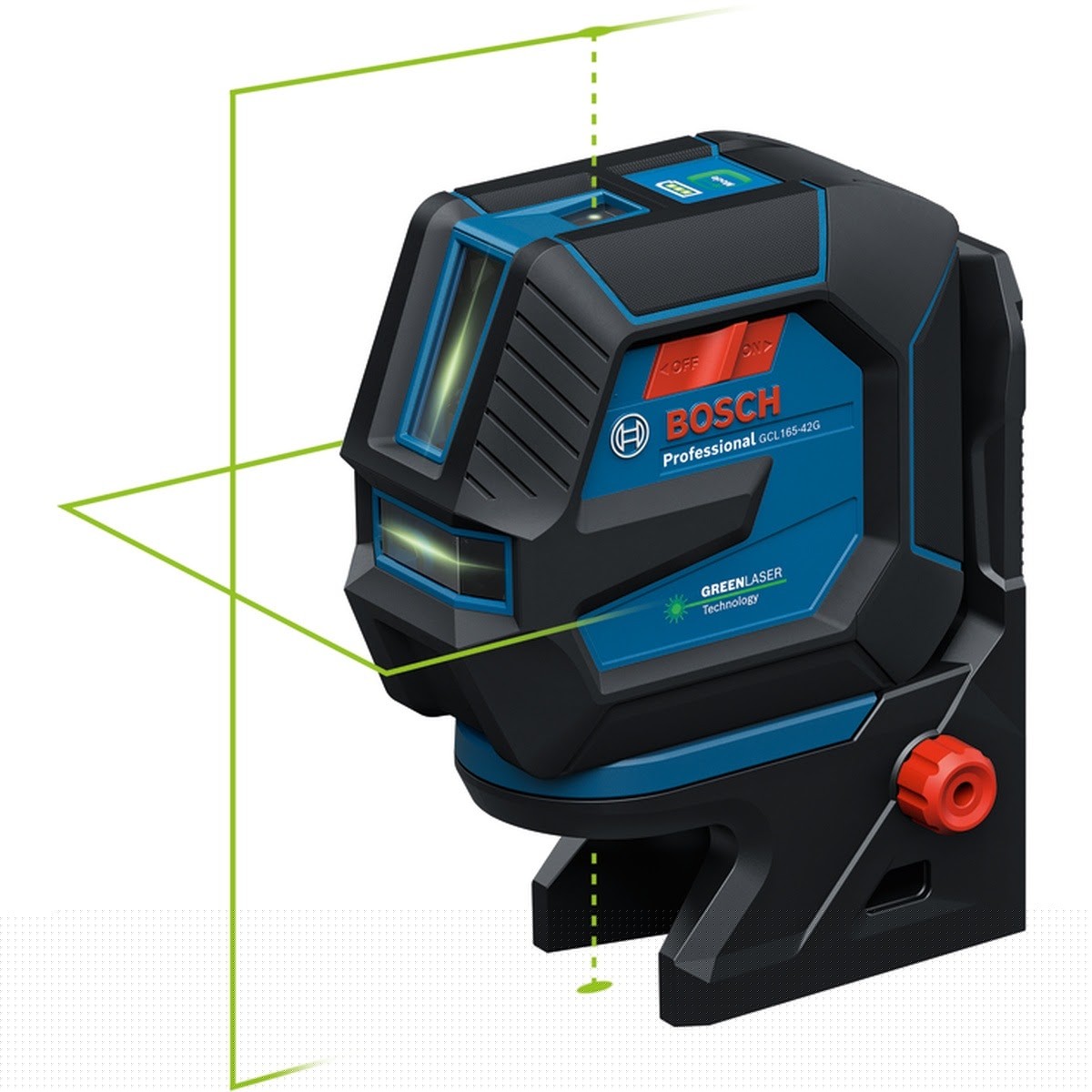

The Bosch GCL165-42GL 3.7V Green-Beam Self-Leveling Cross-Line Laser with Plumb Points delivers remarkable power flexibility paired with advanced green-beam technology that projects lines up to 4X brighter than standard red beams. Built for all-day productivity, it runs up to 8 hours on the included rechargeable 3.7V Li-Ion 3.0 Ah battery, or can be powered by AA batteries (sold separately) for added versatility on the job. The USB-C charging cord provides the convenience of charging the tool even while it is in use. Built-in VisiMax technology monitors temperature and power consumption to maximize line brightness, optimize energy efficiency, and extend tool longevity. IP65-rated and wrapped in full rubber overmold housing, the GCL165-42GL is engineered for dust-tight and water-resistant durability in demanding jobsite conditions. A Smart Pendulum System self-levels within 4 degrees, blinks to indicate out-of-level conditions, and locks when switched off for safe transport. The fine adjustment knob and pivot rotation allow the laser to rotate around the plumb point for precise point-to-point alignment. With a working range of up to 100 Ft. and 1/8 In. accuracy at 30 Ft., it also supports range extension up to 330 Ft. when used with a compatible receiver (sold separately).
Bosch GCL165-42GL Includes
- (1) GCL165-42GL 3.7V Green-Beam Self-Leveling Cross-Line Laser with Plumb Points
- (1) GBA37V30 3.7V Lithium-Ion 3.0 Ah Battery

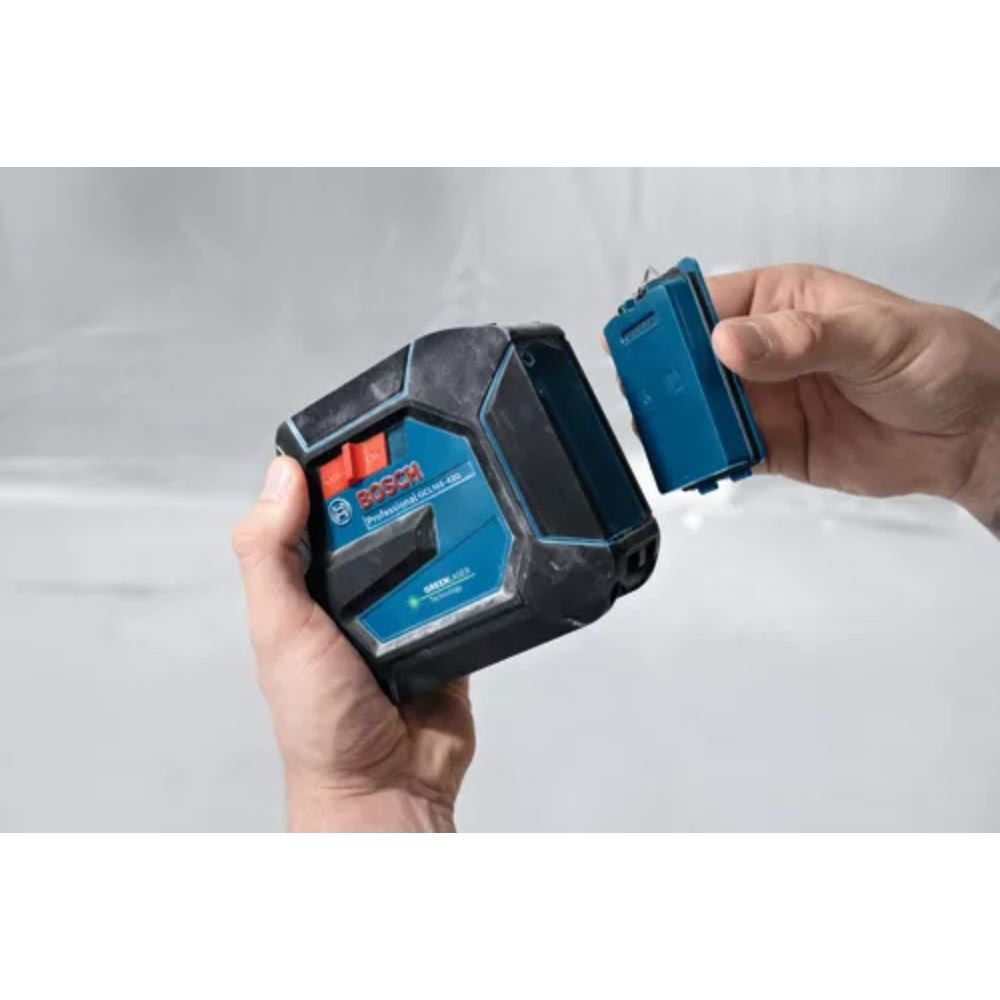

- (1) Alkaline Battery Adapter
- (1) Fine Adjustment Mount
- (1) USB-C Charging Cord
- (1) Hard Carrying Case

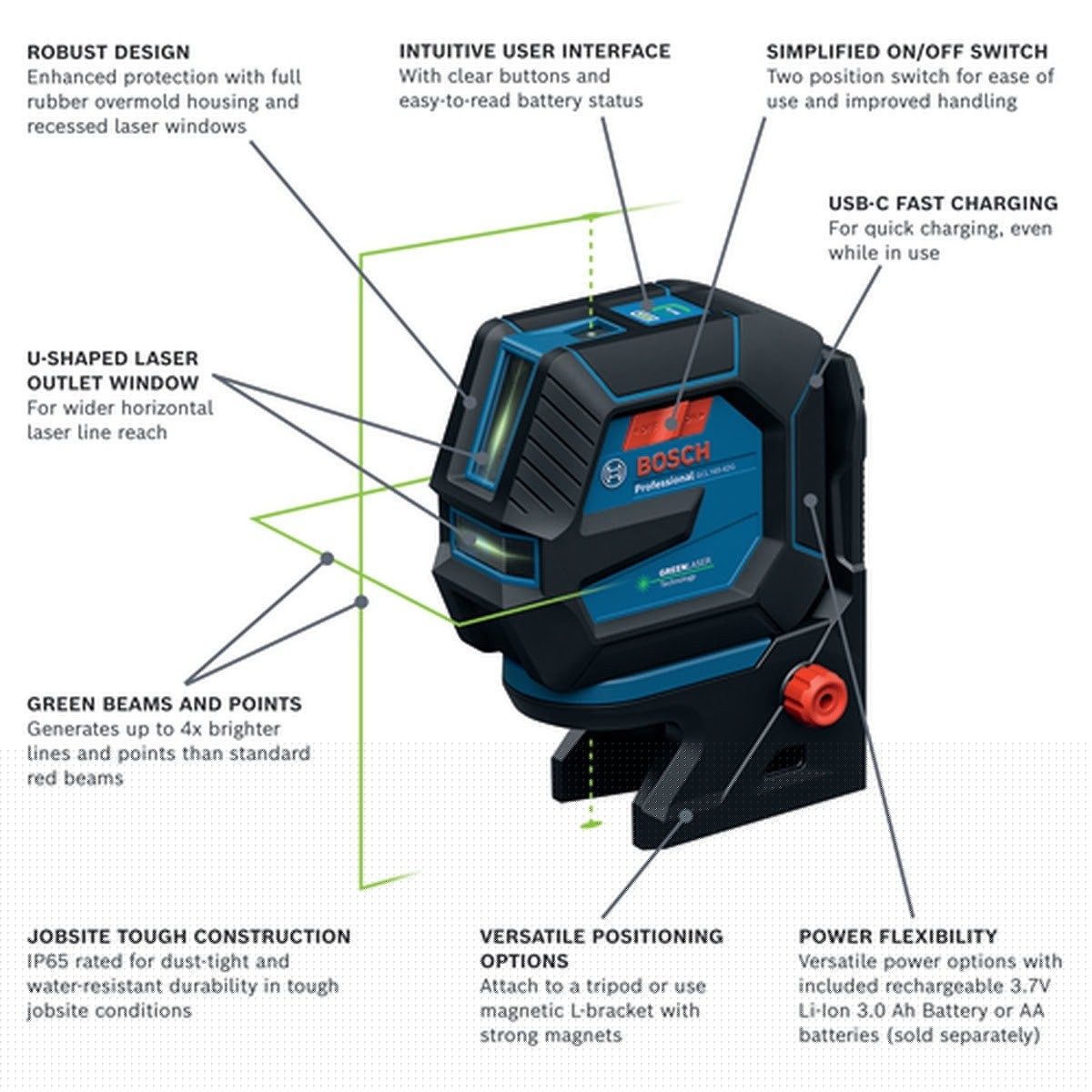

Bosch GCL165-42GL Features
- Power Flexibility: Works with the included rechargeable 3.7V Li-Ion 3.0 Ah battery or AA batteries (sold separately) for less downtime on the job
- Jobsite Tough Construction: IP65 rated for dust-tight and water-resistant durability in tough jobsite conditions

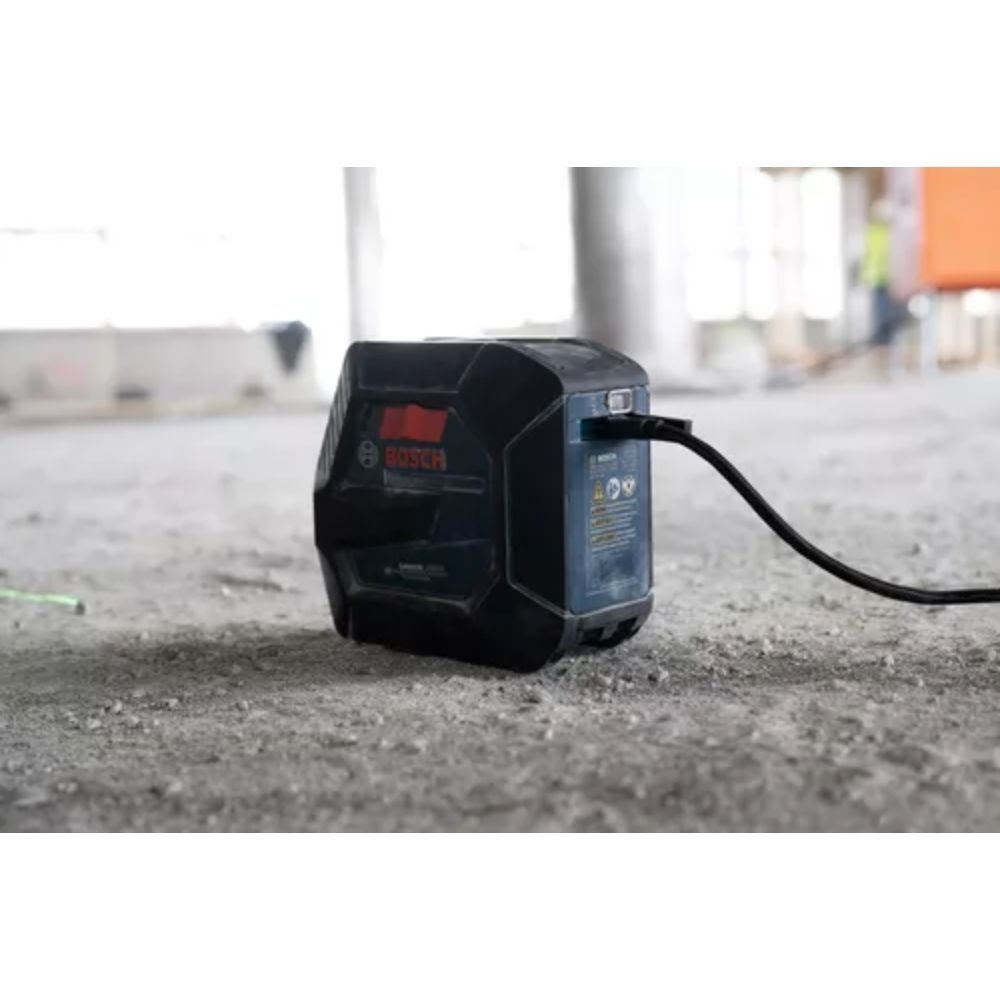

- USB-C Charging: Fast charging via USB-C cord, even while the tool is in use
- Built-In VisiMax Technology: Monitors power consumption to maximize line visibility and extend battery life
- Bright Green-Beam Laser: Projects up to 4X brighter than standard red beams
- Outstanding Runtime: Delivers 8 hours of operation when using the Li-Ion battery for all-day power

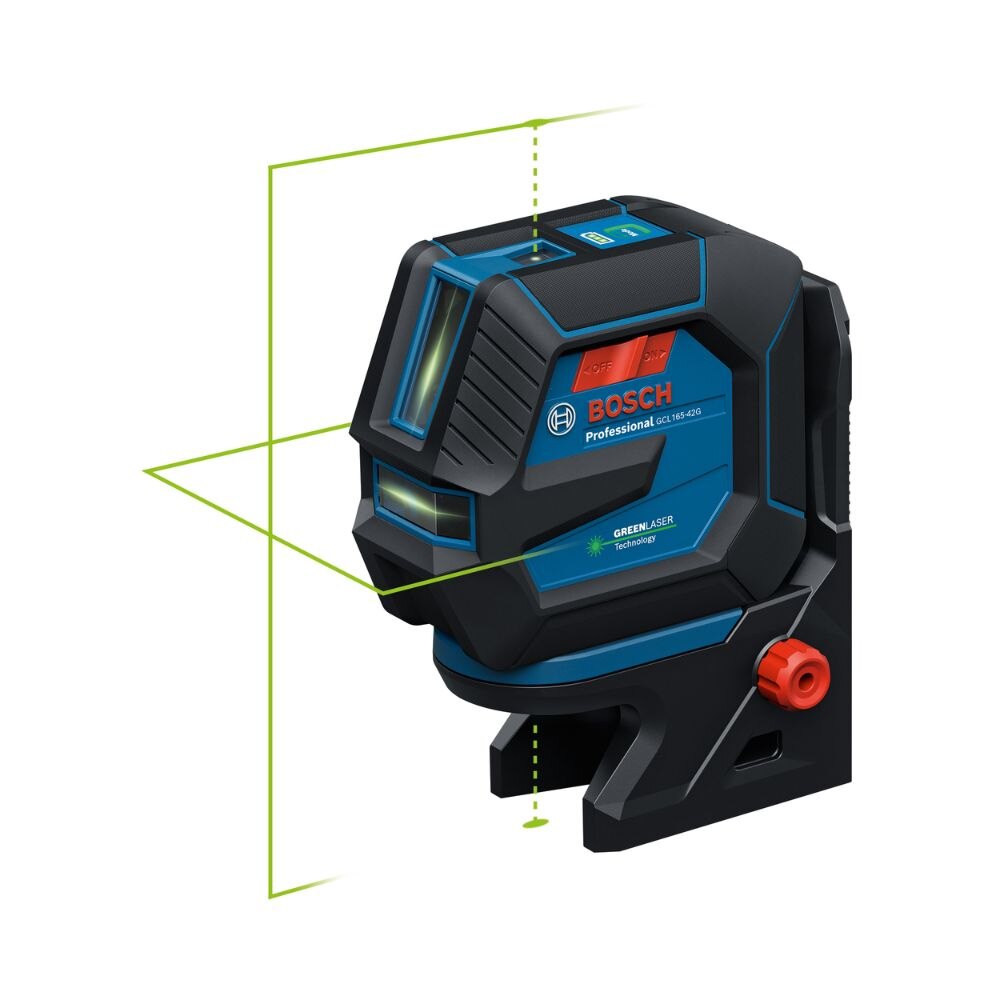

- Fine Adjustment Knob with Pivot Rotation: Mount rotates while staying centered on the plumb point for accurate point-to-point alignment
- U-Shaped Laser Outlet Window: Provides wider horizontal laser line reach
- Bright, Thin Lines: 100 Ft. working range with 1/8 In. accuracy at 30 Ft.
- Smart Pendulum System: Self-levels, indicates out-of-level condition by blinking, and locks when switched off for secure transport
- Receiver Compatible: Extends range up to 330 Ft. measured at the horizontal line (receiver sold separately)

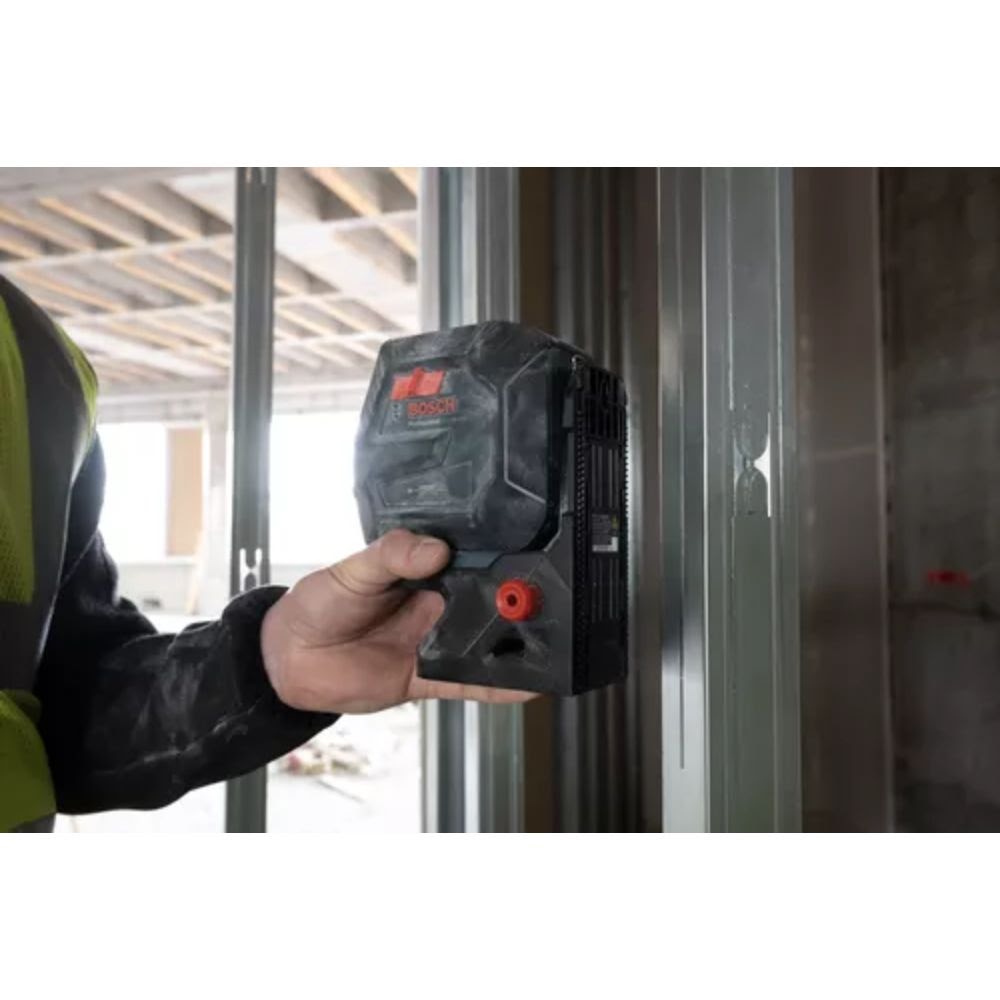

- Magnetic Fine Adjustment Mount: Strong magnets for versatile and secure positioning
- 1/4 In. Threading Mount: For secure tripod attachment
- Full Rubber Overmold Housing: Protects every major impact point with a roll-cage-style design
- Rubber Grip Base: Provides stable operation and grip in challenging work environments
- Intuitive User Interface: Clear buttons and easy-to-read battery status indicator
- Simplified On/Off Switch: Two-position switch for ease of use and improved handling
Bosch GCL165-42GL Specifications
| Laser Beam Color | Green |
| Laser Diode | <10 mW @ 500 nm - 540 nm, Class 2 |
| Leveling Type | Self-Leveling, Up to 4° |
| Range | Up to 330 ft. (with optional receiver) |
| Accuracy | 1/8 in. at 30 ft. |
| IP Rating | IP 65 |
| Runtime | 8 hours (Li-Ion battery) |
| Mount Threading | 1/4-20 |
| Material | Plastic with Over-Mold |
| Operating Temperature | 14°F / -10°C to 113°F / 45°C |
| Connected | No |
| Length | 13.5 in. |
| Width | 11 in. |
| Height | 5 in. |
| Weight | 5.3 lb |
