Bosch EXCM341-305GD Description

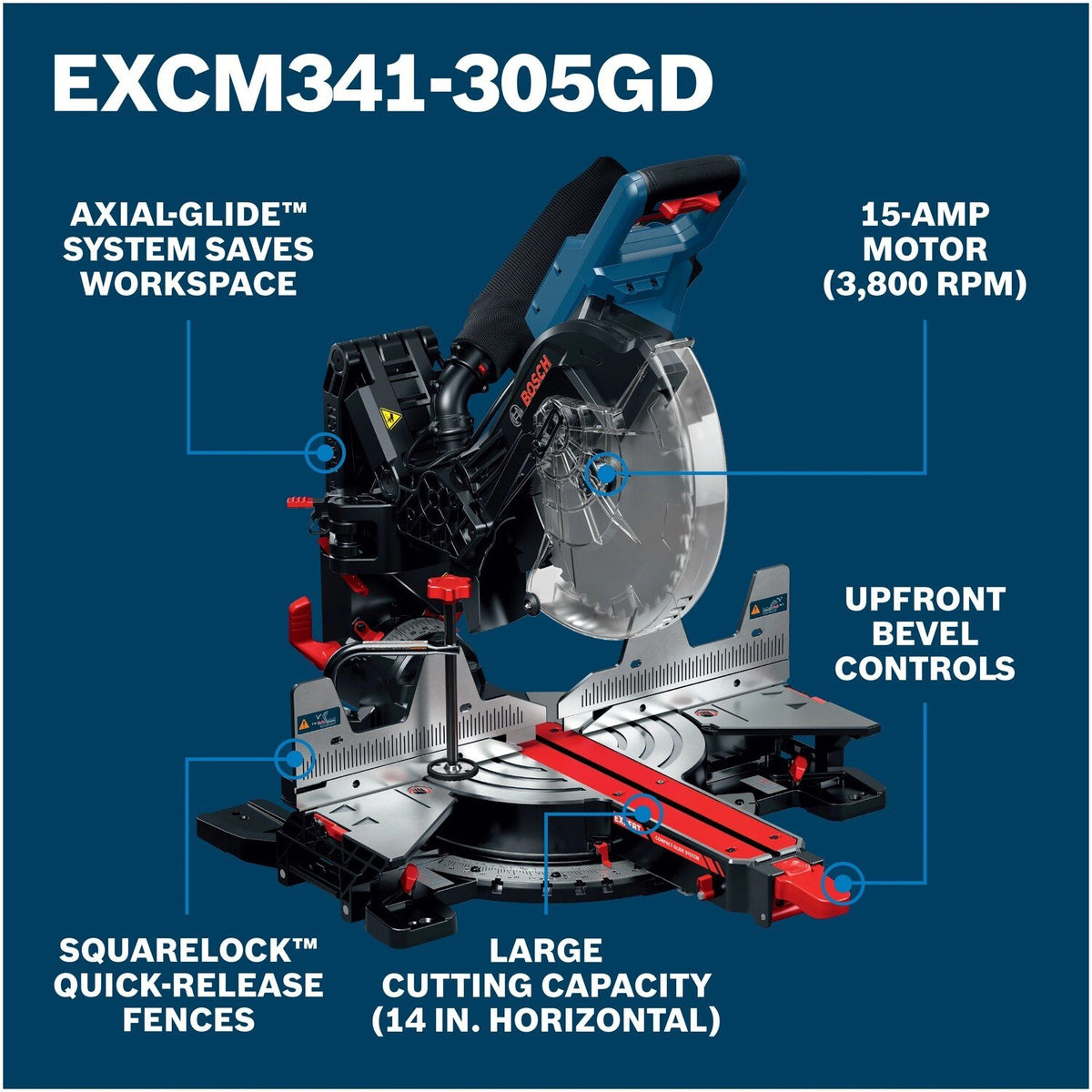

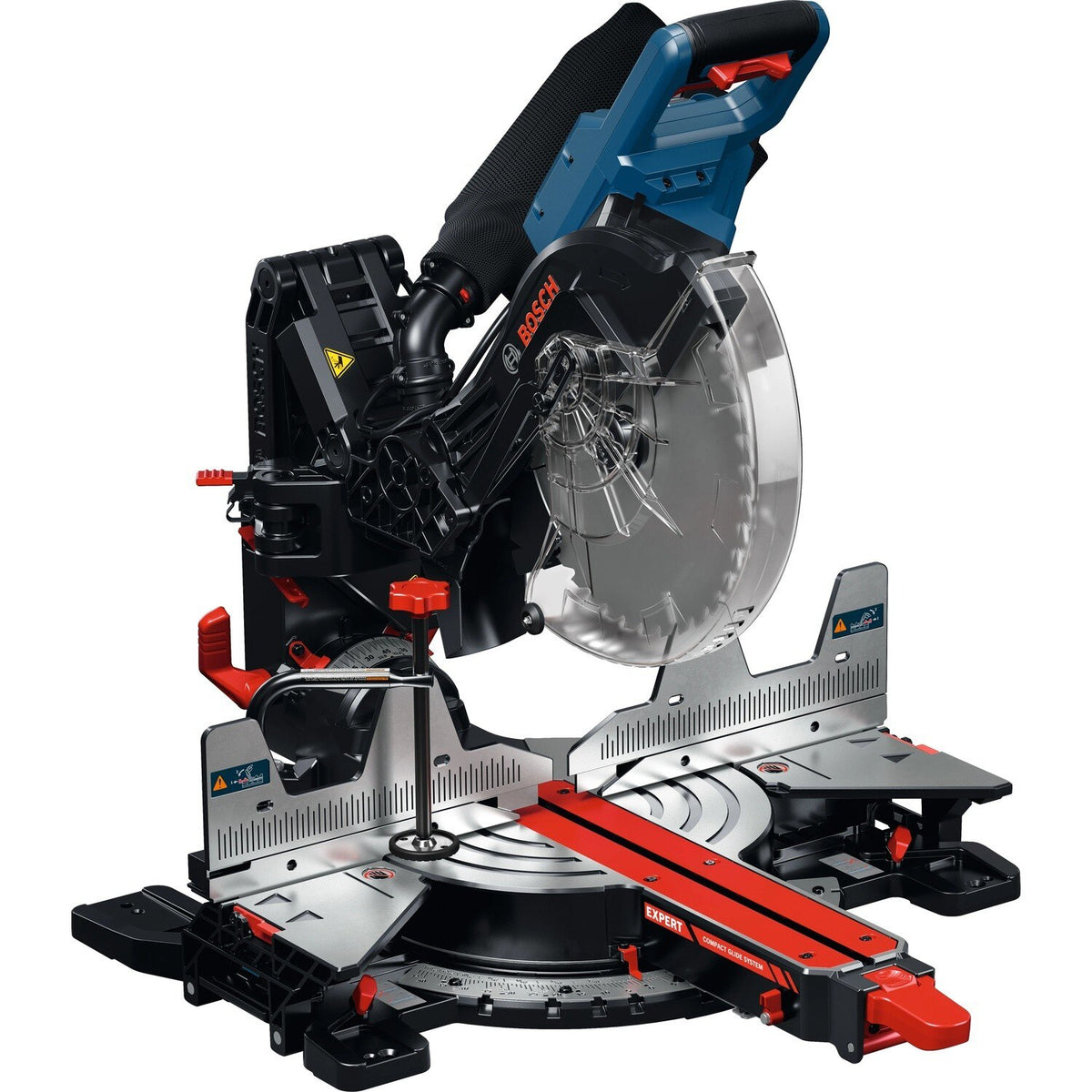

The Bosch EXPERT EXCM341-305GD 12 In. 15-Amp Dual-Bevel Glide Miter Saw combines smooth cutting performance with a space-saving compact glide system. It delivers up to 13-7/16 In. horizontal and 4-1/8 In. vertical cutting capacity, 47 Degree left and right bevel capability, integrated base extensions, and built-in length stops for efficient repeat cuts. A shadow LED cutline and enhanced dust management help improve accuracy and keep the work area cleaner.
Bosch EXCM341-305GD Includes
- (1) EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw
- (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
- (1) Wrench
- (1) Toolless Vertical Work Clamp
- (1) Dust Bag/Assembly
Bosch EXCM341-305GD Features

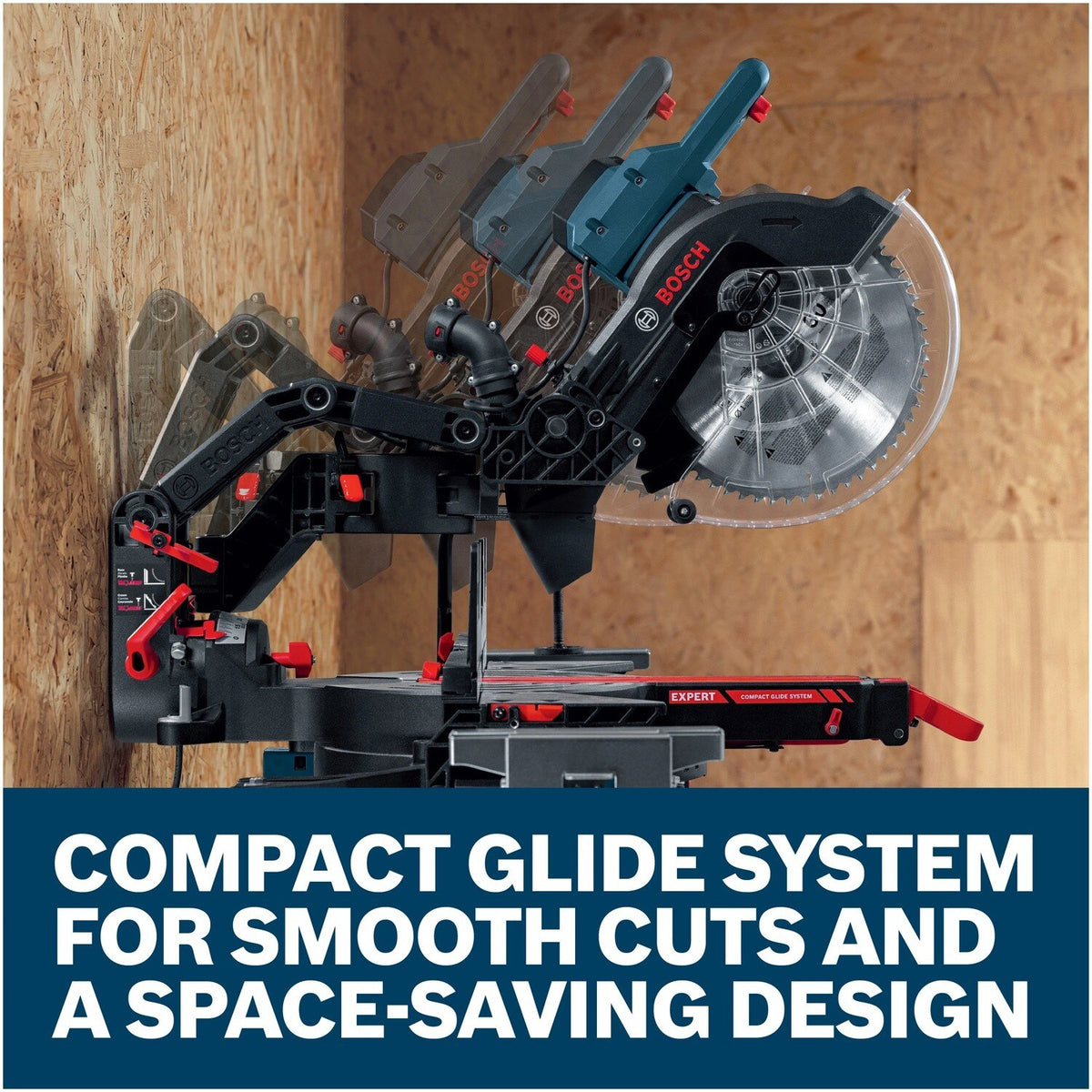

- Compact glide system delivers smooth cutting performance in a space-saving design
- 15-Amp motor powers demanding miter saw applications

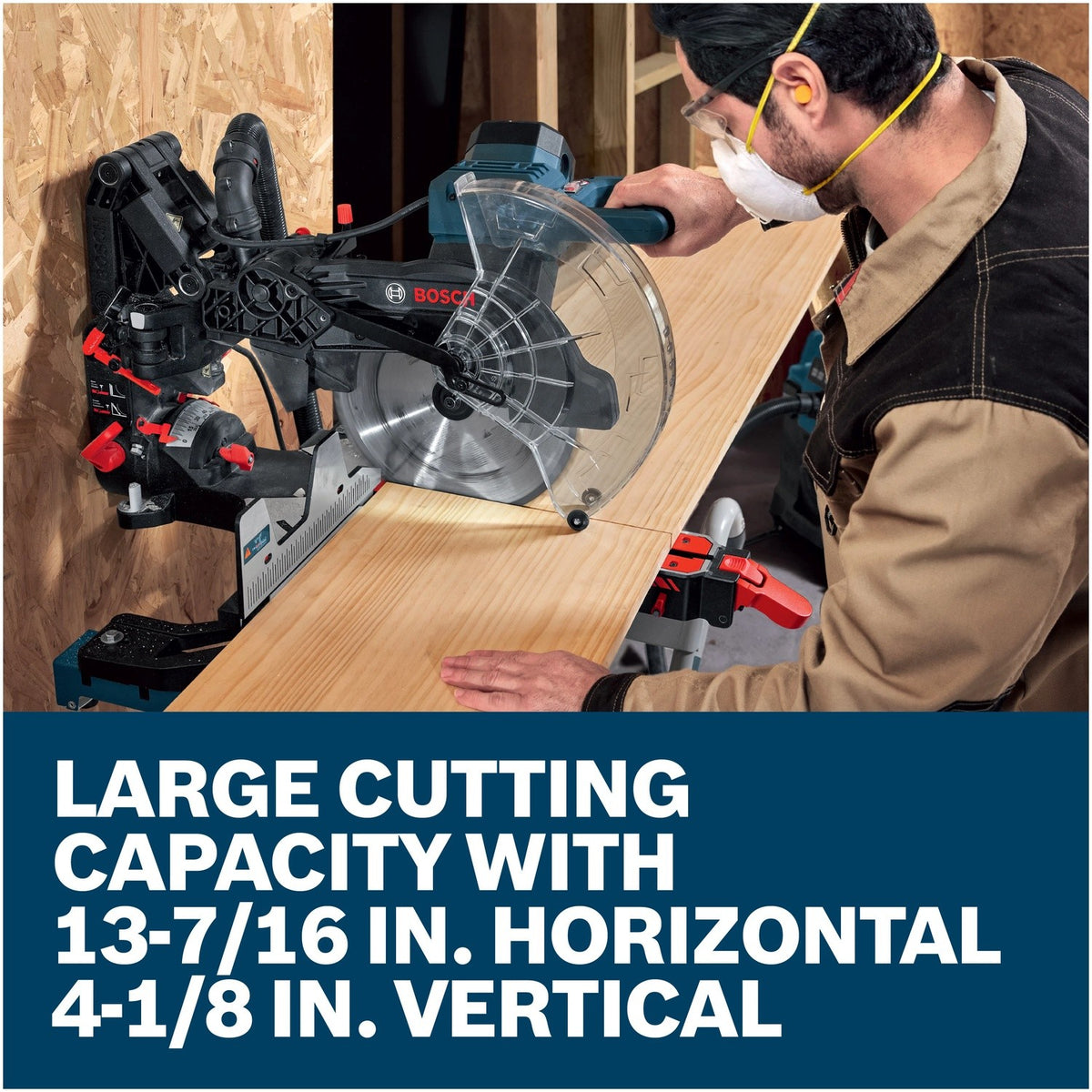

- Large cutting capacity handles up to 13-7/16 In. horizontally and 4-1/8 In. vertically
- Cuts up to 7 In. base molding against the fence
- Cuts crown molding up to 6-3/4 In. at 38 Degree and 7-1/2 In. at 45 Degree angled against the fence
- Cuts crown molding up to 11 In. flat on the table
- 47 Degree dual-bevel capability allows compound cuts to either side

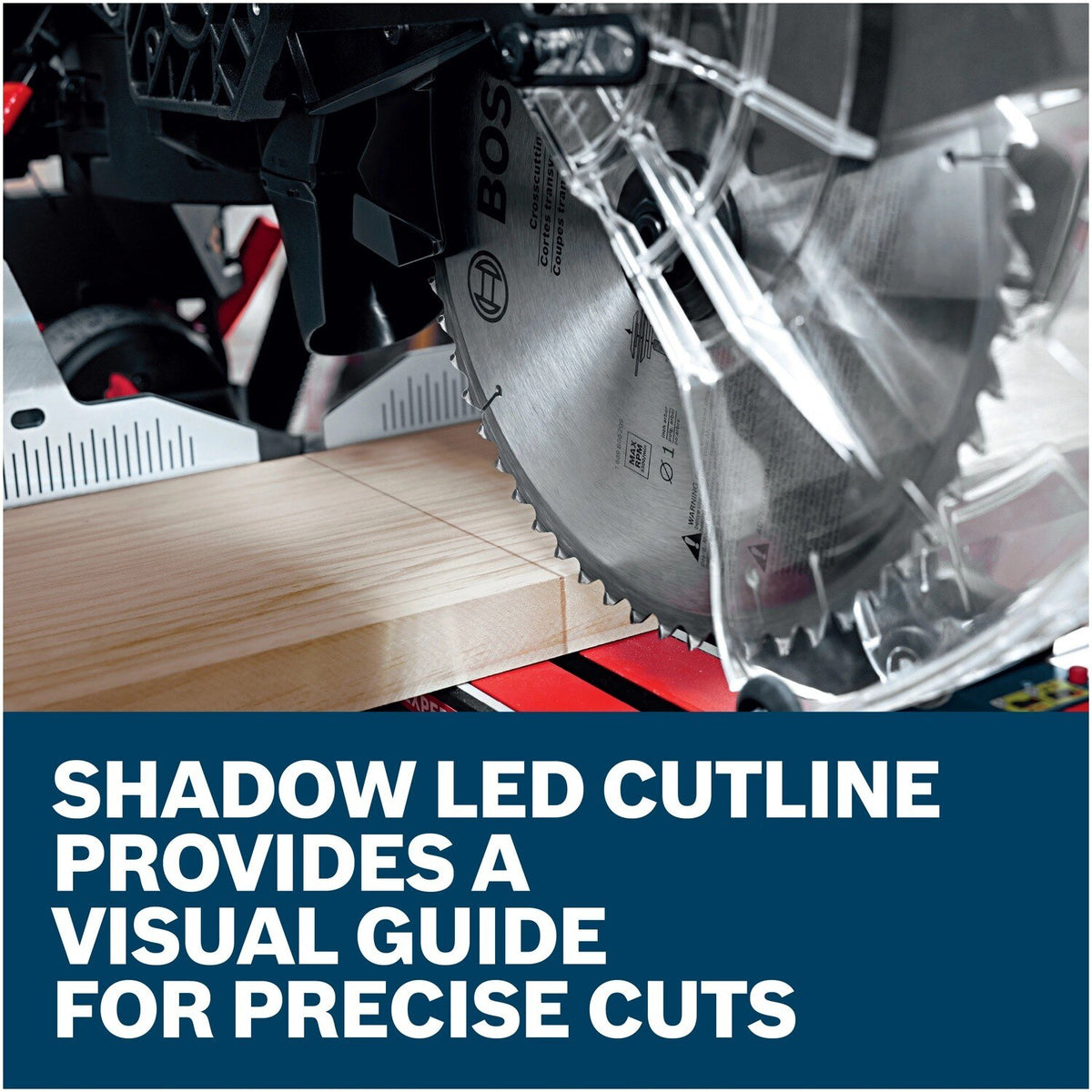

- Shadow LED cutline provides a visual guide for precise cuts
- Integrated base extensions and built-in length stops support repetitive cuts
- Large dust chute and optimized dust management help keep the work area cleaner
- Cam-lock design allows quick and secure angle adjustments
- Preset bevel stops speed setup at common angles
Bosch EXCM341-305GD Specifications
| Amperage | 15 Amp |
| Arbor Size (in) | 1 |
| Miter Saw Type | Sliding Dual Bevel Compound Miter |
| Saw Blade Diameter (in) | 12 in |
| Bevel Angle Range | 47 Degree left and 47 Degree right |
| Bevel Stops | 0 Degree, 33.9 Degree, 45 Degree and 47 Degree (L/R) |
| Miter Range | 52 Degree left and 60 Degree right |
| Dust Port | Yes |
| Cord Length (ft.) | 6 ft |
| Horizontal Cut Capacity | 13-7/16 in |
| Vertical Cut Capacity | 4-1/8 in |
| Product Length (in) | 31.18 |
| Product Width (in) | 22.52 |
| Product Height (in) | 20.87 |
| Shipping Weight (lb) | 85.32 |
Toolup Part # :
894013
