Bosch GRL18V-34P Description
The Bosch GRL18V-34P rotary laser kit is built for complex outdoor leveling and grading tasks with green-beam horizontal and vertical operation, up to 1,500 ft. working range, and Bluetooth remote setup. It runs on the included 18V 4 Ah battery or four C alkaline batteries with the adapter, features dial-in slope control up to 15% on the Y-axis, and includes an LR20 receiver, charger, alkaline adapter, and protective rotary laser backpack.

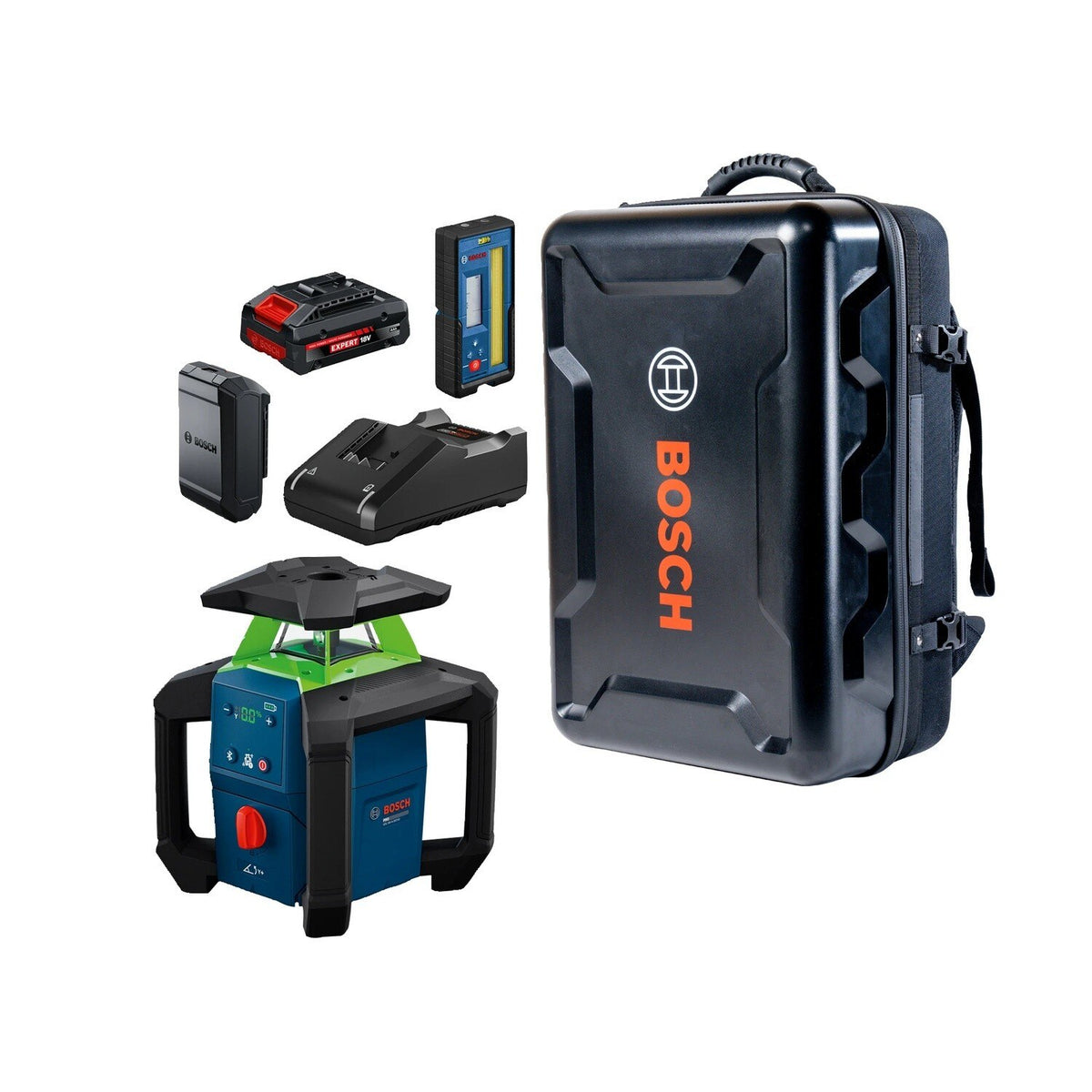

Bosch GRL18V-34P Includes
- (1) GRL18V-4-34CVG Rotary Laser
- (1) EXBA18V-40 18V 4 Ah Battery
- (1) GAL18V-40 Battery Charger
- (1) BA18-C Alkaline Adapter
- (1) LR20 Laser Receiver
- (1) GBP21-17 Rotary Laser Backpack

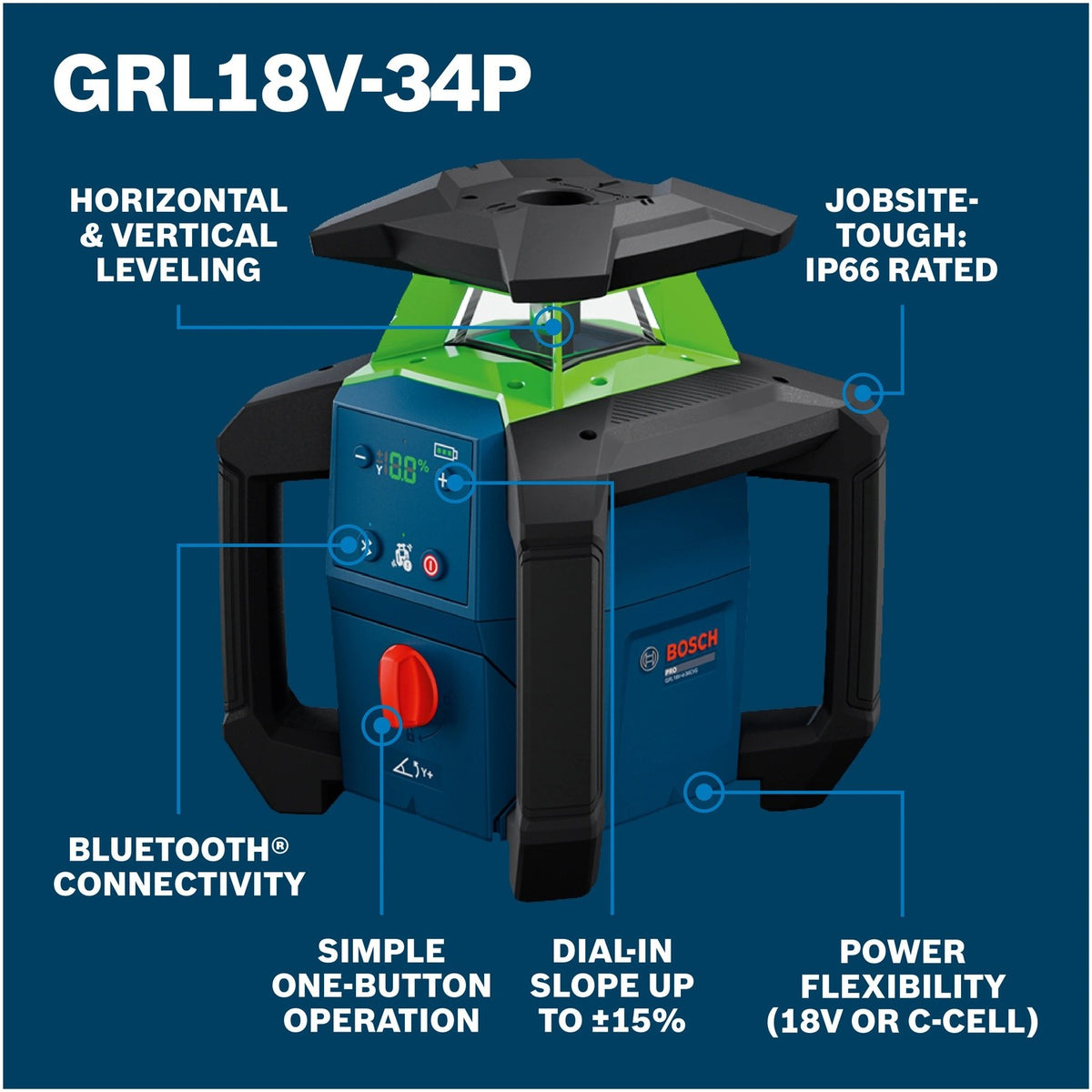

Bosch GRL18V-34P Features

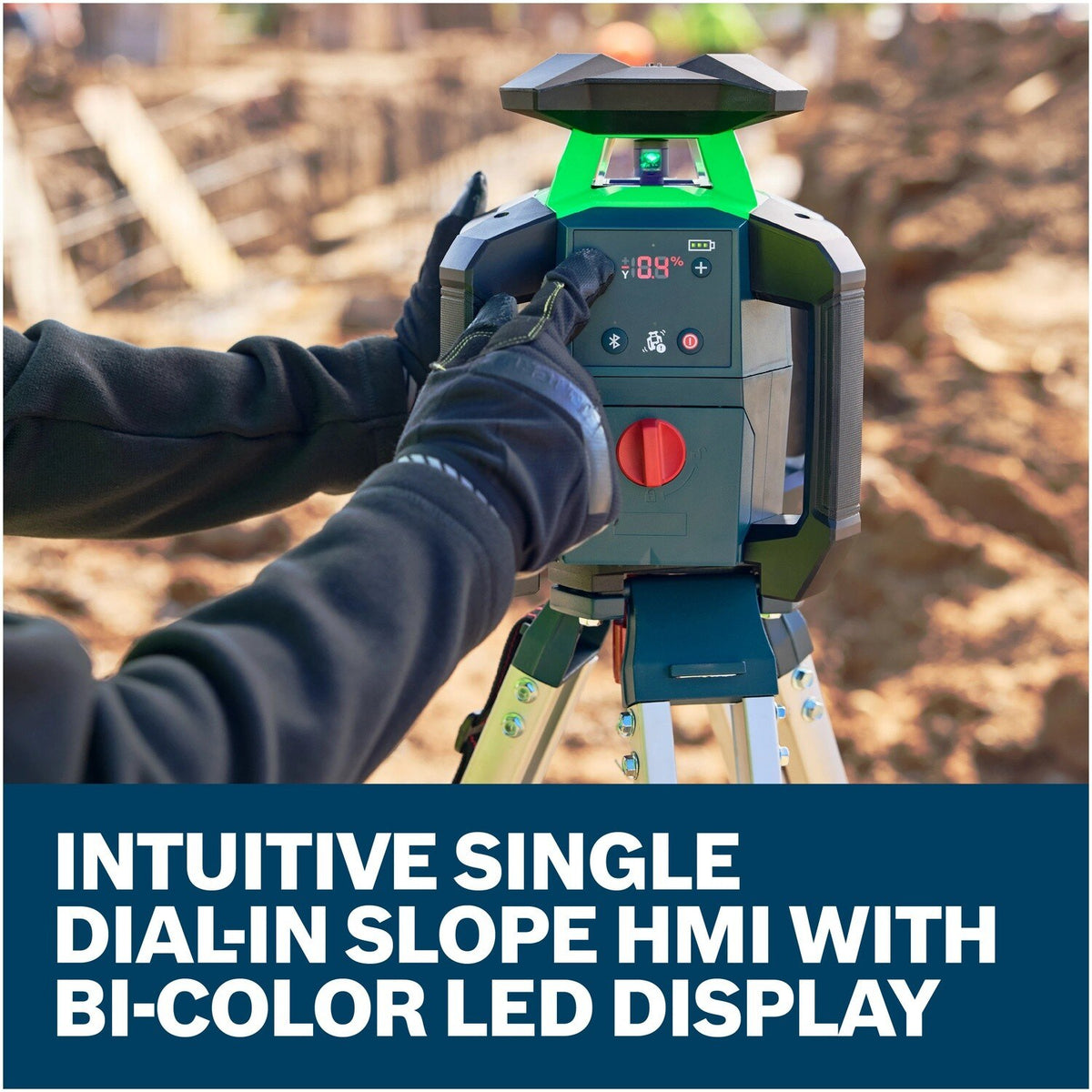

- Simplified interface with an easy-to-read bi-color LED display for quick slope and level feedback
- Dial-in slope control with up to 15% range on the Y-axis

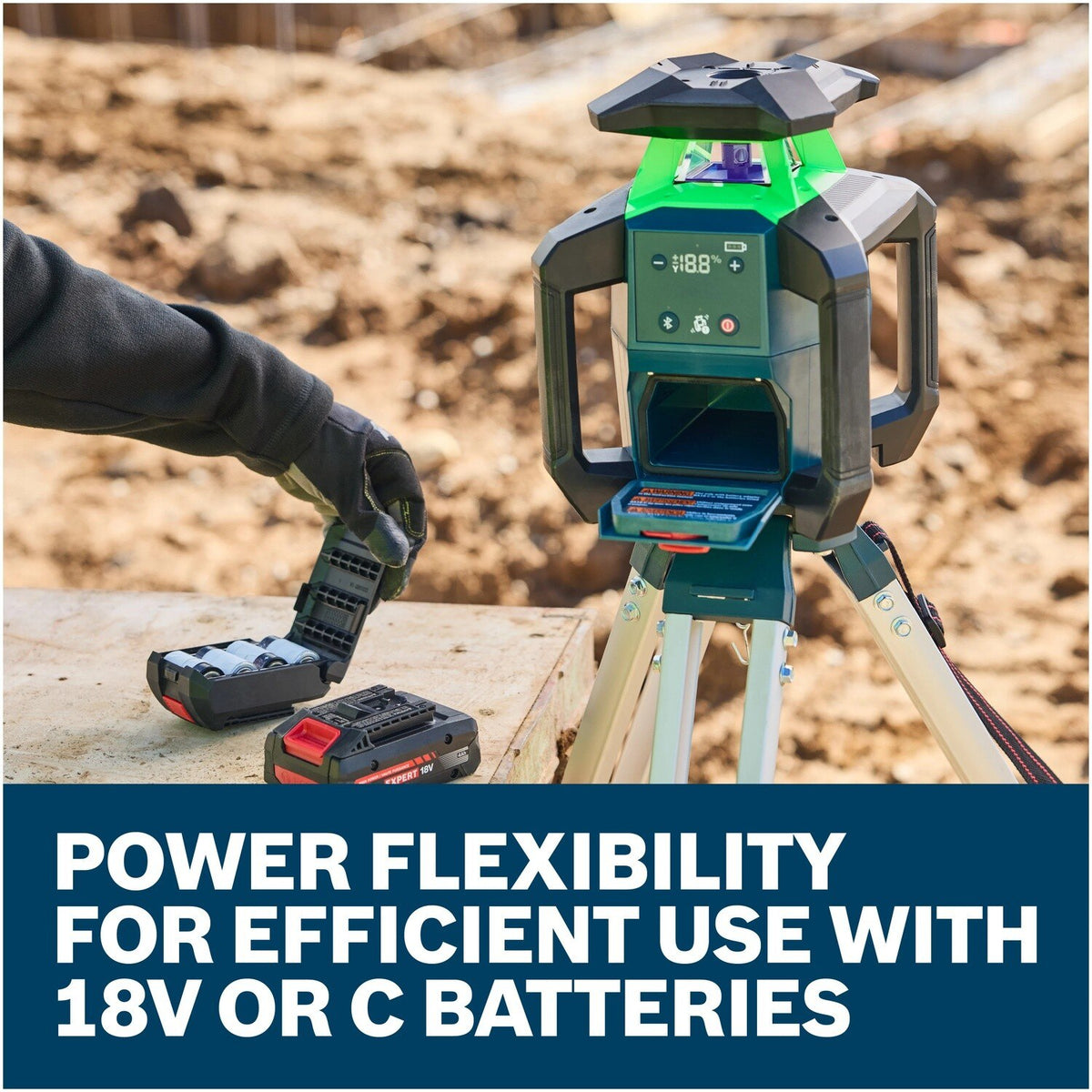

- Runs on the included 18V 4 Ah battery or 4 C alkaline batteries with adapter

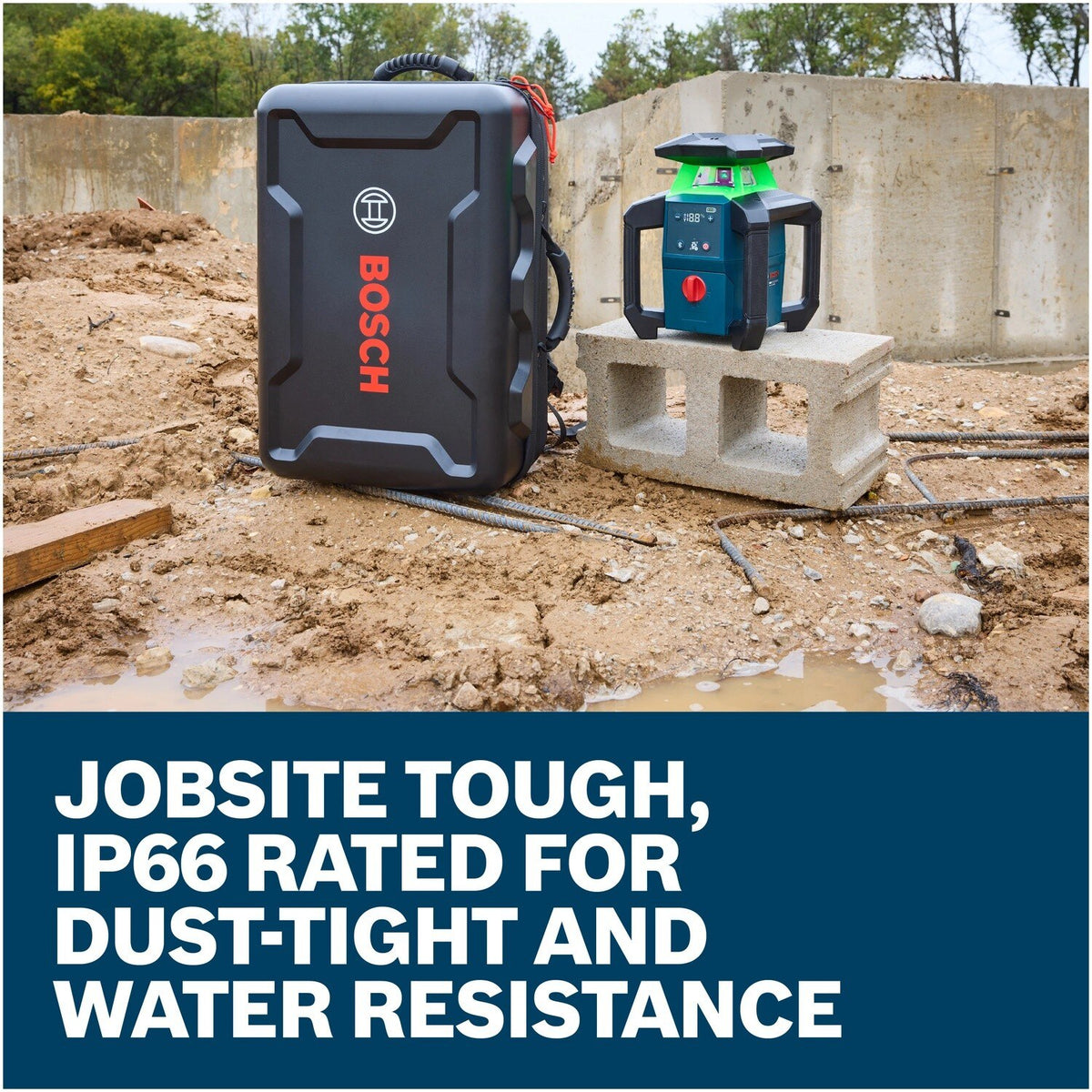

- IP66 dust-tight and water-resistant construction for jobsite durability
- Tested to withstand a 5 ft. tripod tip-over
- Bluetooth connectivity for remote setup with the Bosch Leveling Remote App
- 1/4 in. and 5/8 in. threads provide tripod, batter board, and wall mount compatibility
- Up to 1,500 ft. working range for large jobsite applications
- Accuracy up to ±1/16 in. at 100 ft. horizontal and ±1/8 in. at 100 ft. vertical
- Complete kit includes receiver, battery, charger, alkaline adapter, and backpack
Bosch GRL18V-34P Specifications
| Battery Voltage | 18V |
| Battery Capacity | 4 Ah |
| Power Source | Included 18V battery or 4 x C alkaline batteries with adapter |
| Maximum Working Range | 1500 ft |
| Beam Color | Green |
| Indoor/Outdoor Use | Indoor/Outdoor |
| Mounting Method | Wall or Tripod |
| Tripod Thread Size | 1/4 in. and 5/8 in. |
| Projects 360 Degrees | Yes |
| Bluetooth Connectivity | Yes |
| Ingress Protection | IP66 |
| Legs Included | No |
| Horizontal Accuracy | ±1/16 in. per 100 ft. |
| Vertical Accuracy | ±1/8 in. per 100 ft. |
| Self-Leveling Range | ±15% |
| Slope Range | Up to 15% on Y-Axis |
Toolup Part # :
894249
