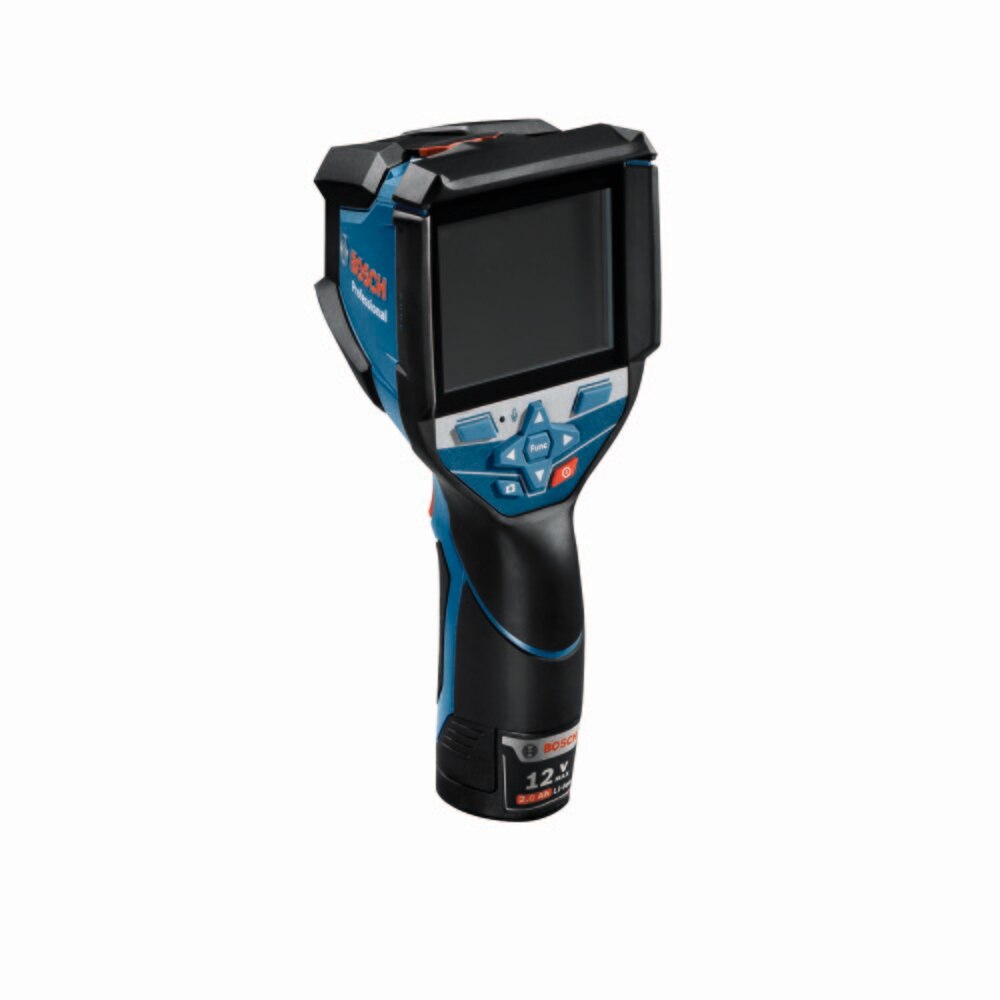

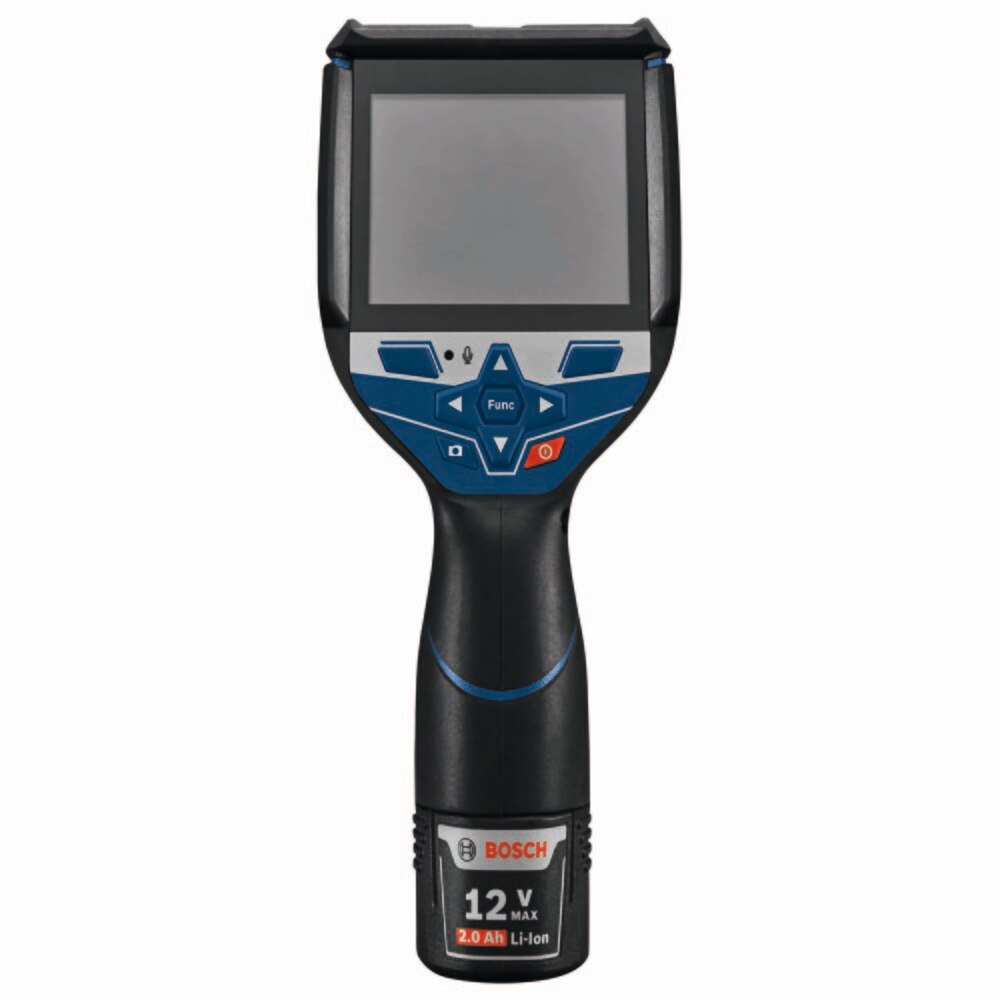

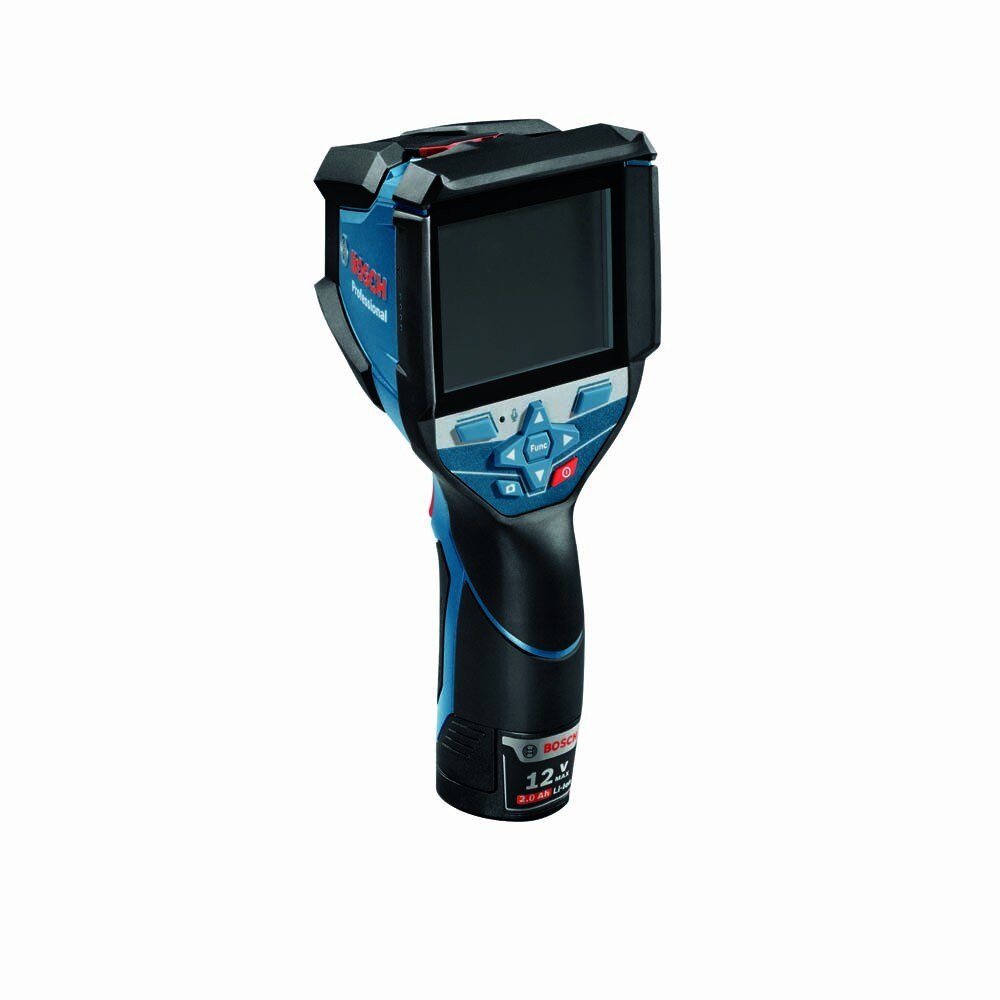

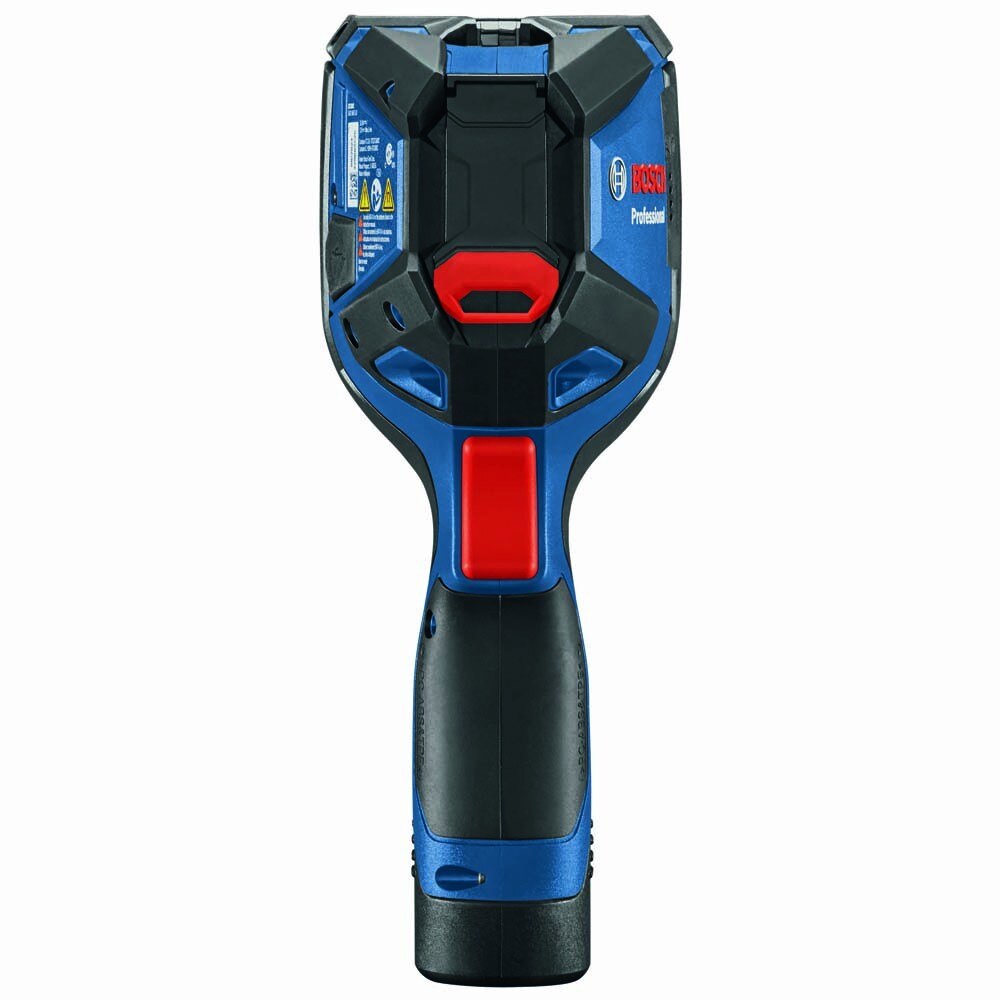

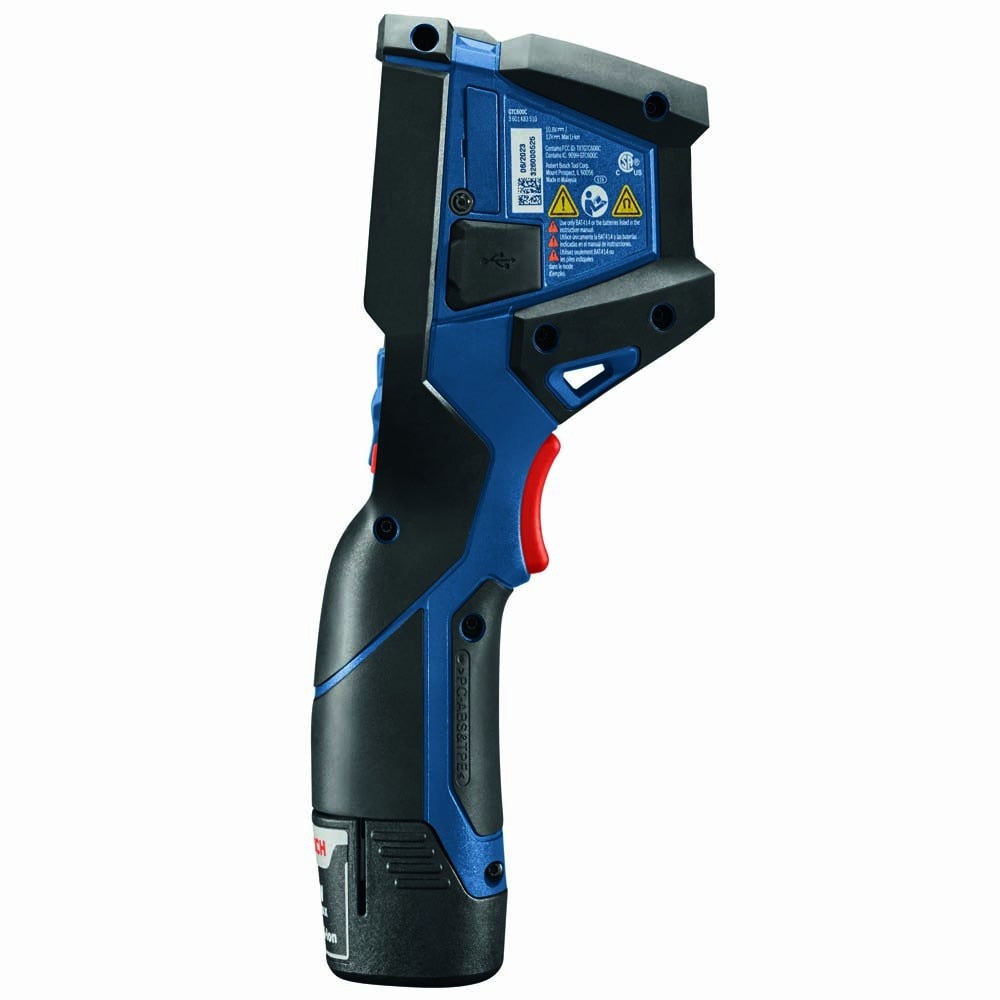

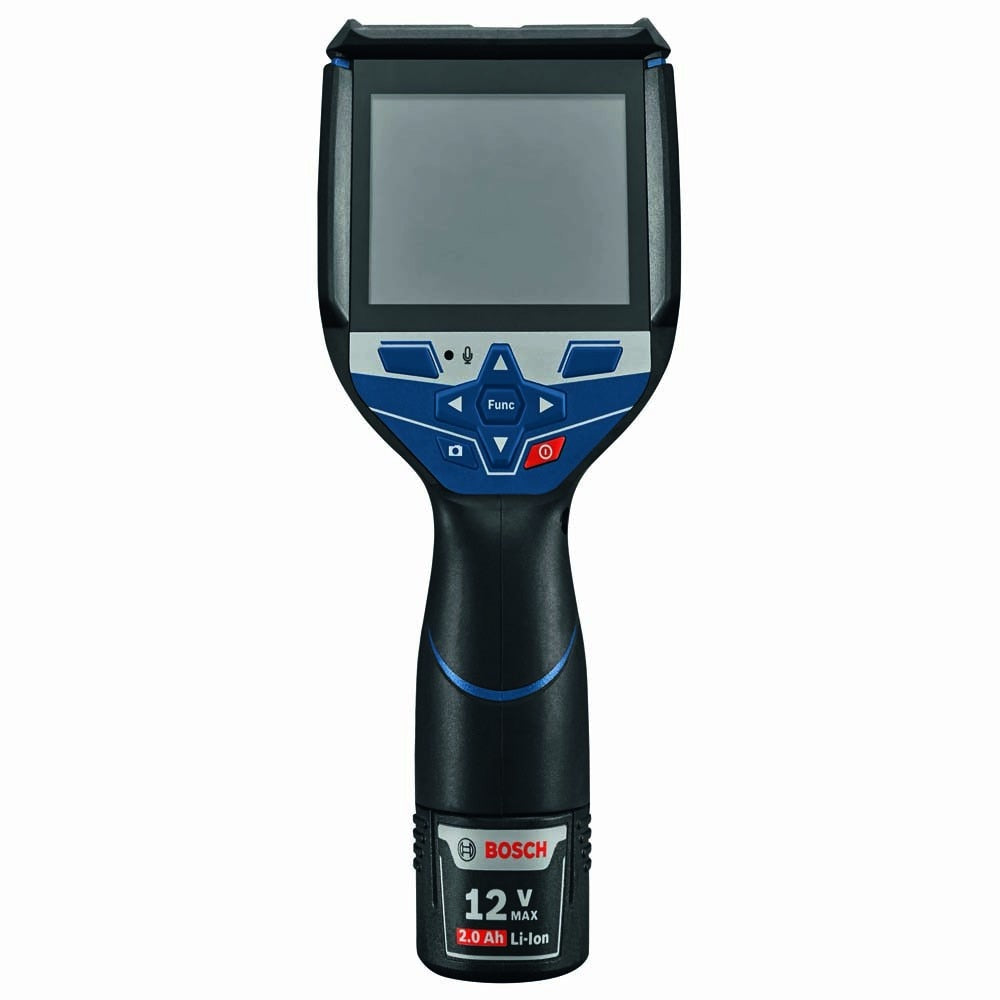

Bosch GTC600C 12V Thermal Camera
Description
Description
Bosch GTC600C Description
Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch Thermal App and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.
Bosch GTC600C Includes
- (1) 12V Thermal Imaging Camera
- (1) 12V 2Ah Li-Ion Battery
- (1) GAL 12V-40 Quick Battery Charger
- (1) L-Boxx Carry Case with Inlay (connects with other L-Boxxes to form one stack)
- (1) USB-C cable

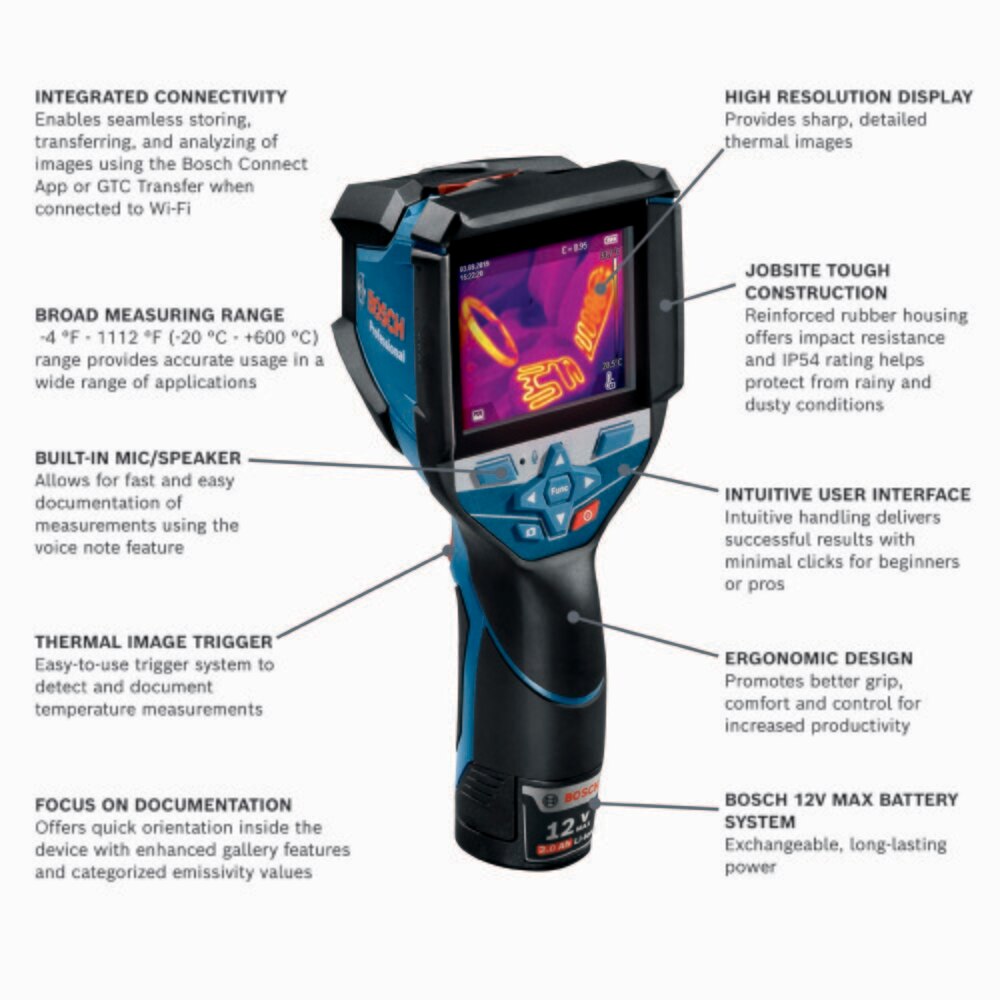

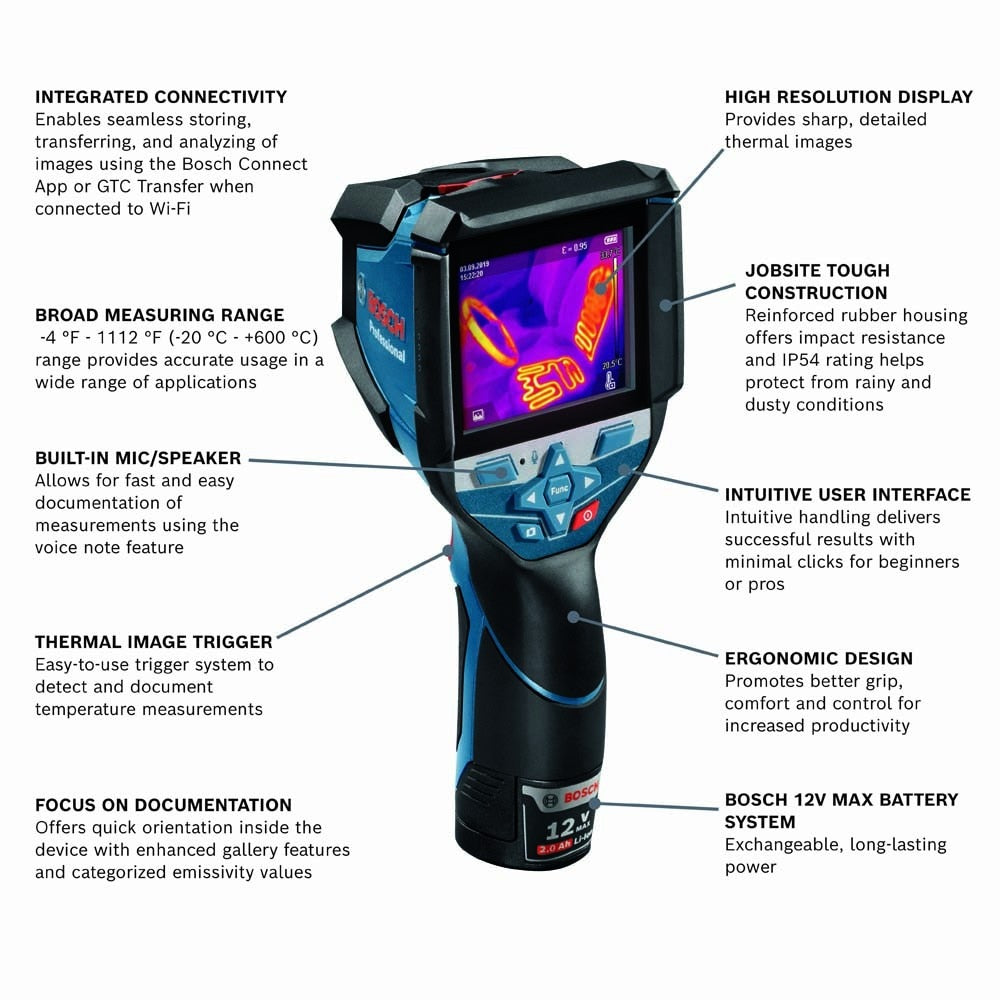

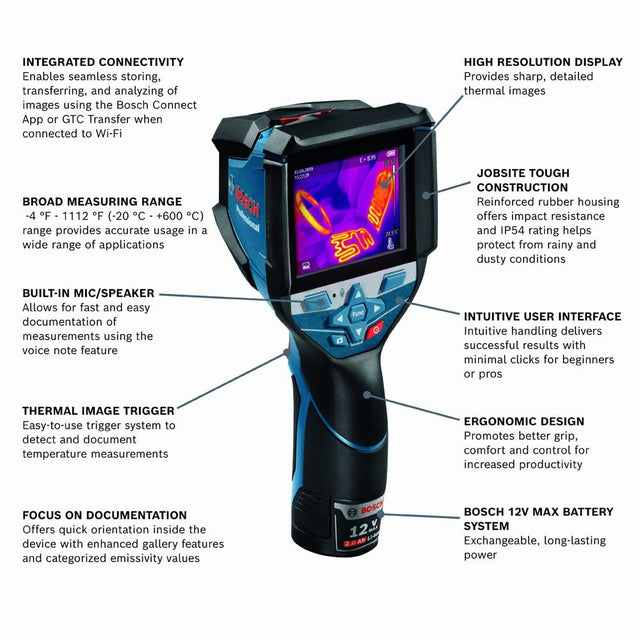

Bosch GTC600C Features
- Detailed visualisation of temperature differences - this Bosch thermal camera detects temperature differences quickly and easily (even outdoors) and presents them in an easily understandable manner via a colour-coded representation

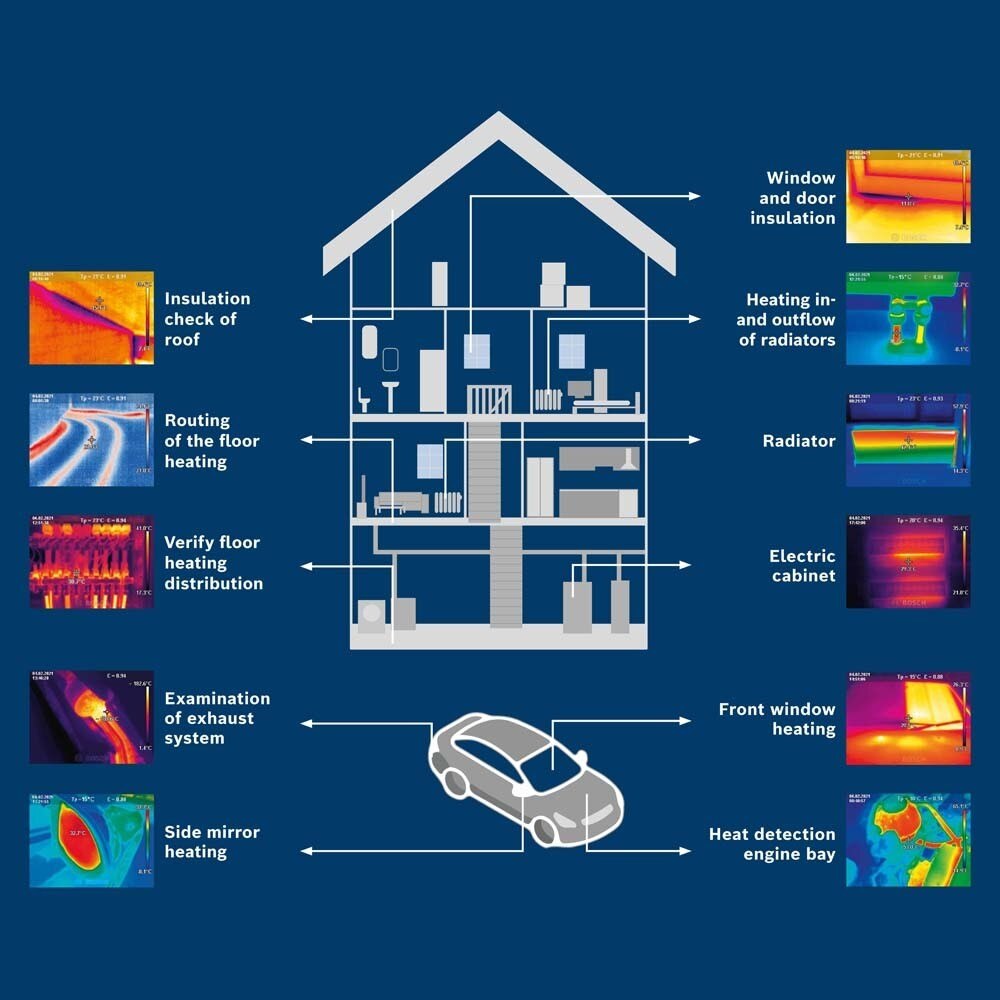

- Huge application range thanks to the large measuring range and high thermal resolution
- Reliable results - this Bosch thermal imaging camera has high accuracy of ± 2 °C
- Voice note function - you can record a voice note and assign it to the image at the point of capture
- Edit and document images and voice notes on your mobile device - integrated Wi-Fi module for easy transfer to the Bosch Thermal App

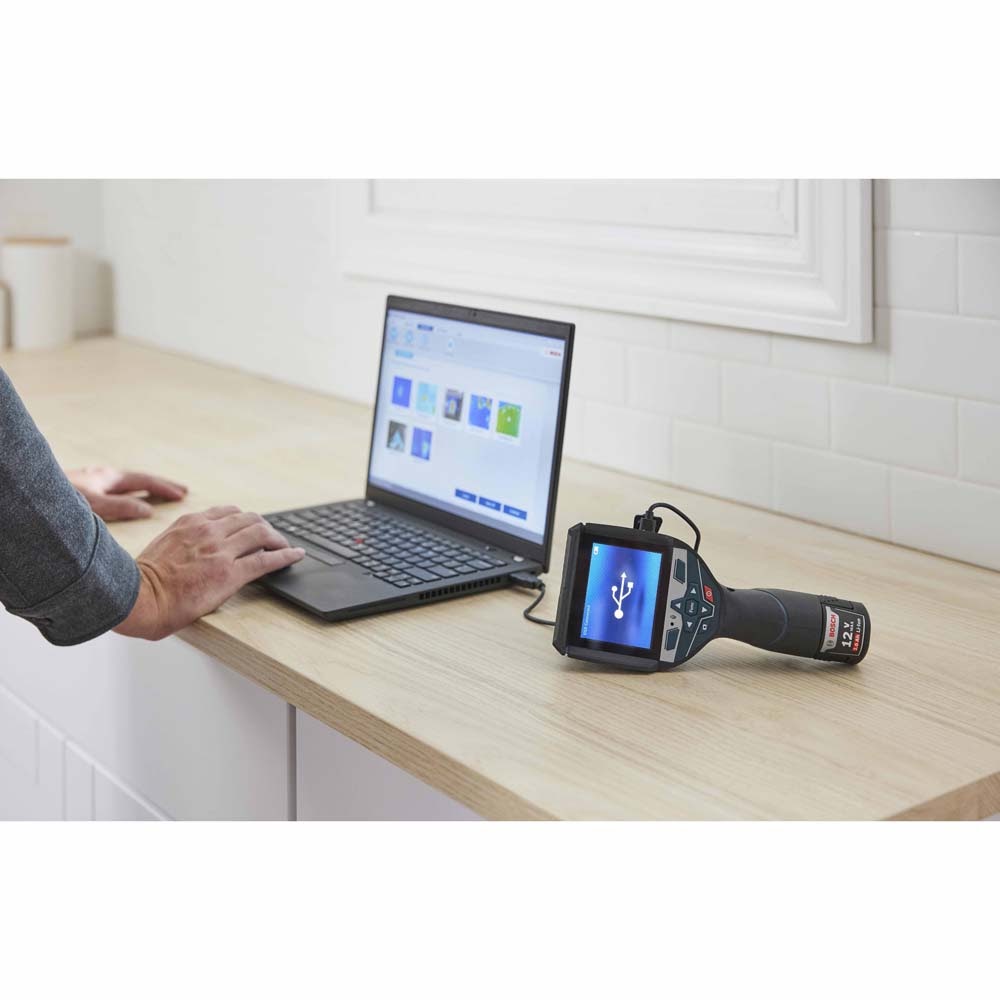

- Transfer images and voice notes to your laptop or computer via the included USB-C cable

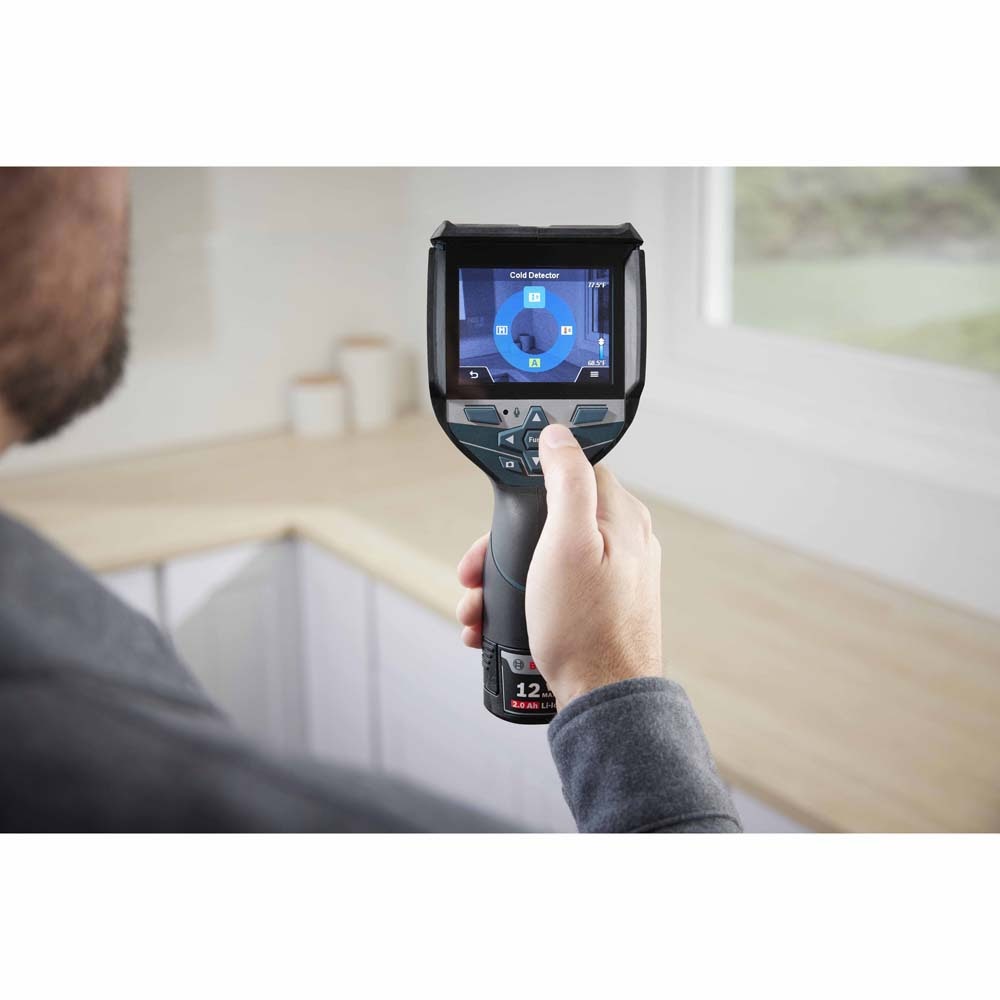

- Successful results in minimum clicks thanks to the intuitive user interface and seamlessly integrated features like emissivity value presets and an improved gallery with both IR and visual images

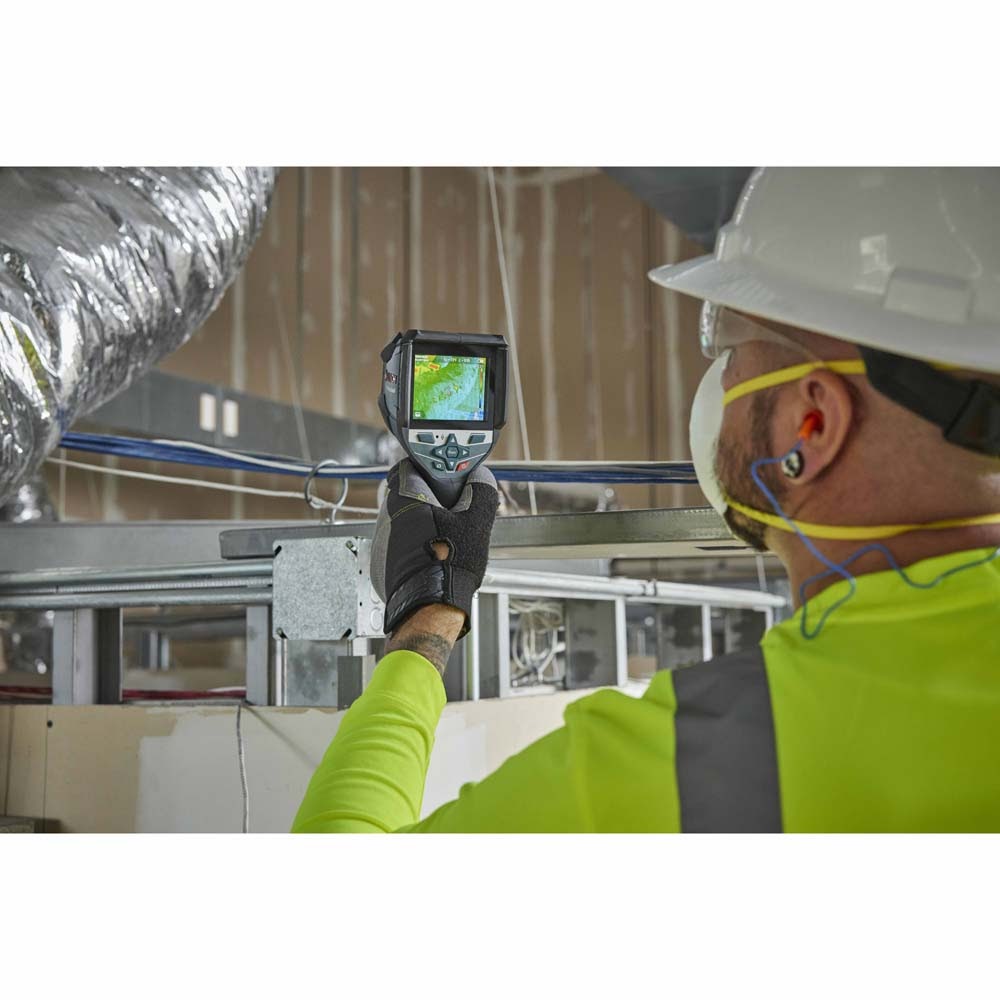

- Robust design for high durability, even when working in tough site conditions: Can withstand falling from a height of 2 m, IP 54 dust and splash protection
- Outstanding runtime of up to 6 hours on one battery charge
Bosch GTC600C Specifications
| Measuring Accuracy of IR | ± 2 °C |
| Resolution | 0.1 °C |
| Thermal Sensitivity (NETD) | |
| Size of IR Sensor | 256 x 192 px |
| Number of Measuring points | 49152 |
| Field of View (FOV) | 45 x 35° |
| Min. Focus Distance | 0.3 m |
| Frame Buffer (number of images) | 600 |
| Frame Buffer (number of images each with audio) | 350 |
| Thermal Image Refresh Rate | 9 Hz |
| Image File Format | .jpg |
| Audio File Format | .wav |
| Data Transfer | Wi-Fi or USB-C |
| Display Size | 3.5" |
| Operating Temperature | -10 to 45 °C |
| Storage Temperature | -20 to 50 °C |
| Battery Voltage | 12V or 10.8V |
| Battery Runtime | 6 hr |
