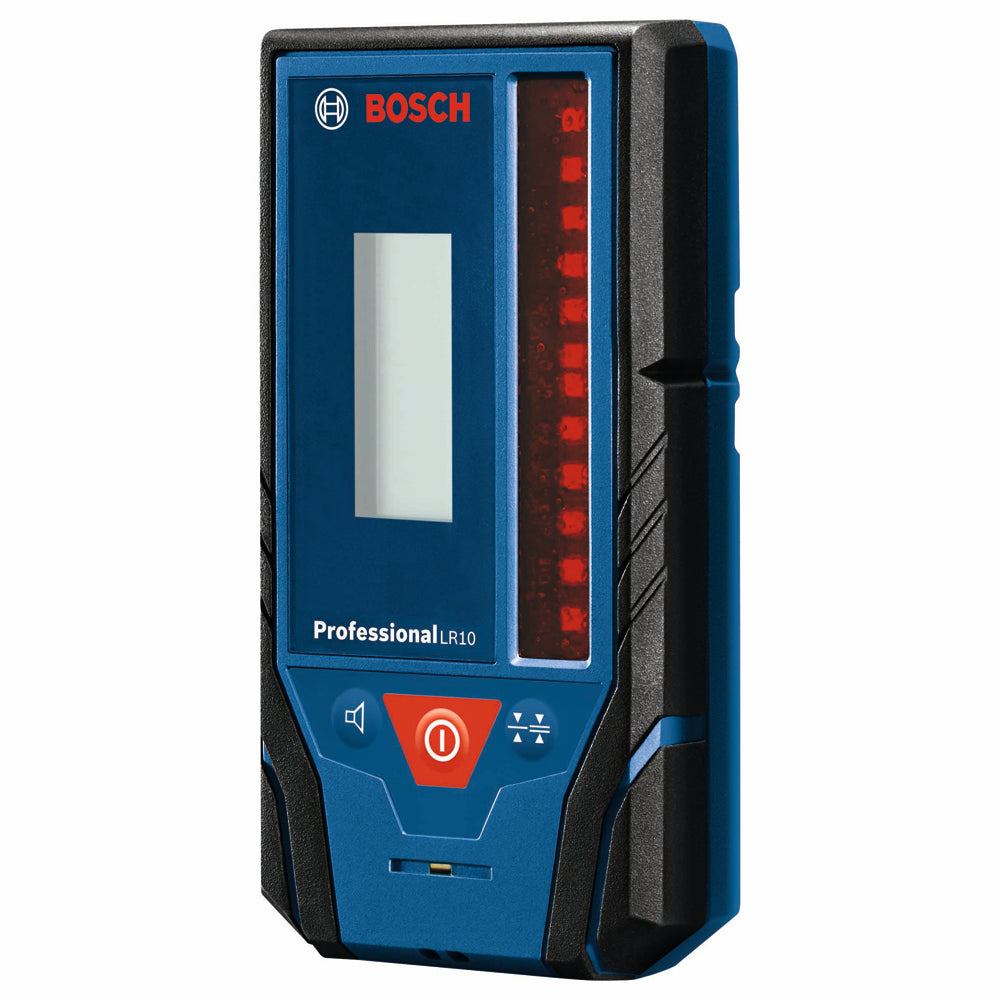

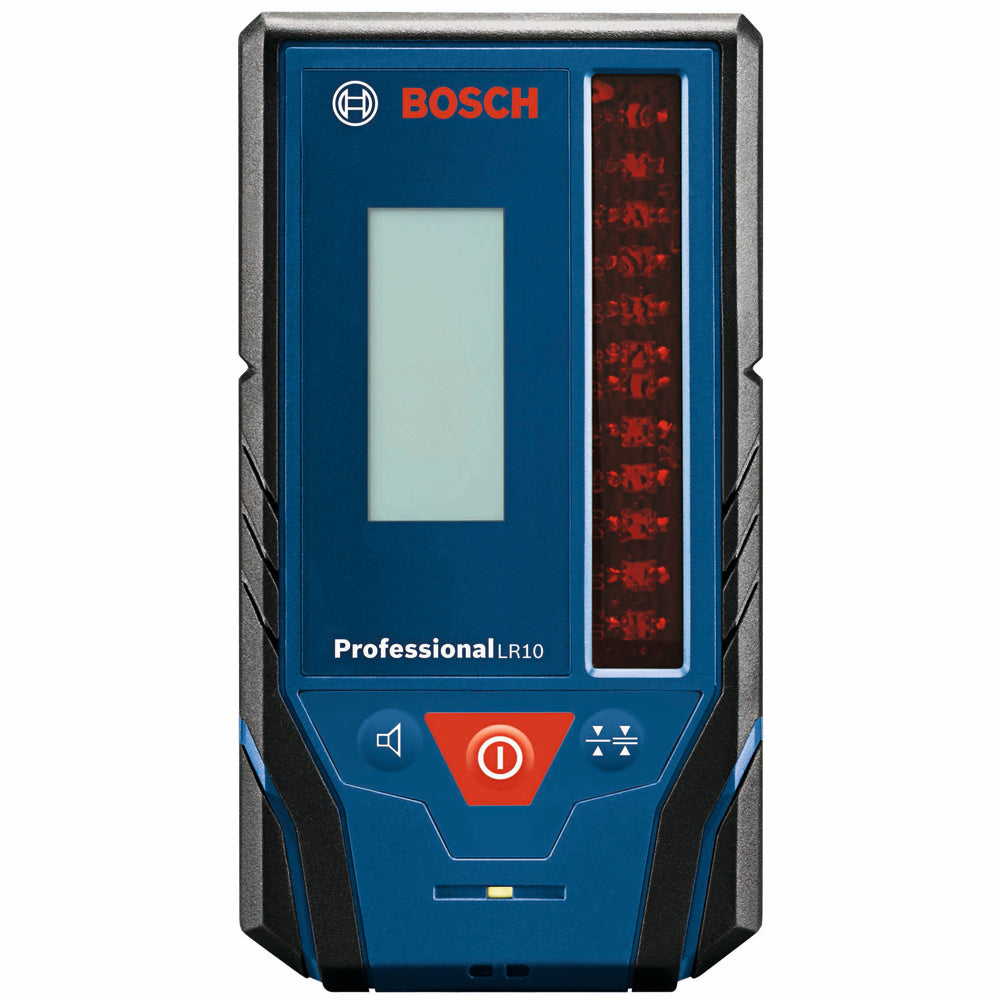

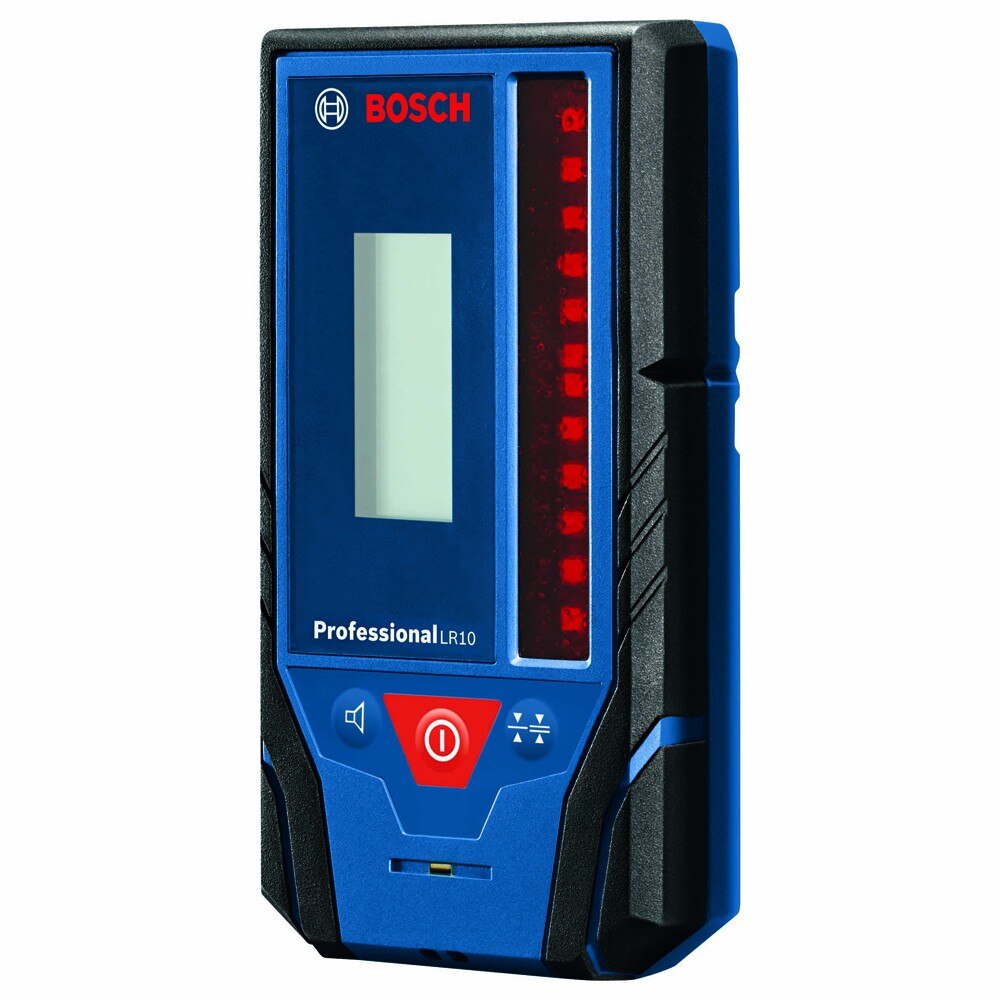

Bosch LR10 Description
The Bosch LR10 Rotary Laser Receiver is designed to increase red beam rotary laser detection up to 500 Ft., with a backlit LCD display for use in darker areas or outdoors. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery level and audio signal. It also has dual-sided indicators, to provide easy visual readout on both sides of the receiver. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive three-button keypad and ergonomic soft grip.
Bosch LR10 Includes
- (1) LR10 500 Ft. Red-Beam Rotary Laser Receiver

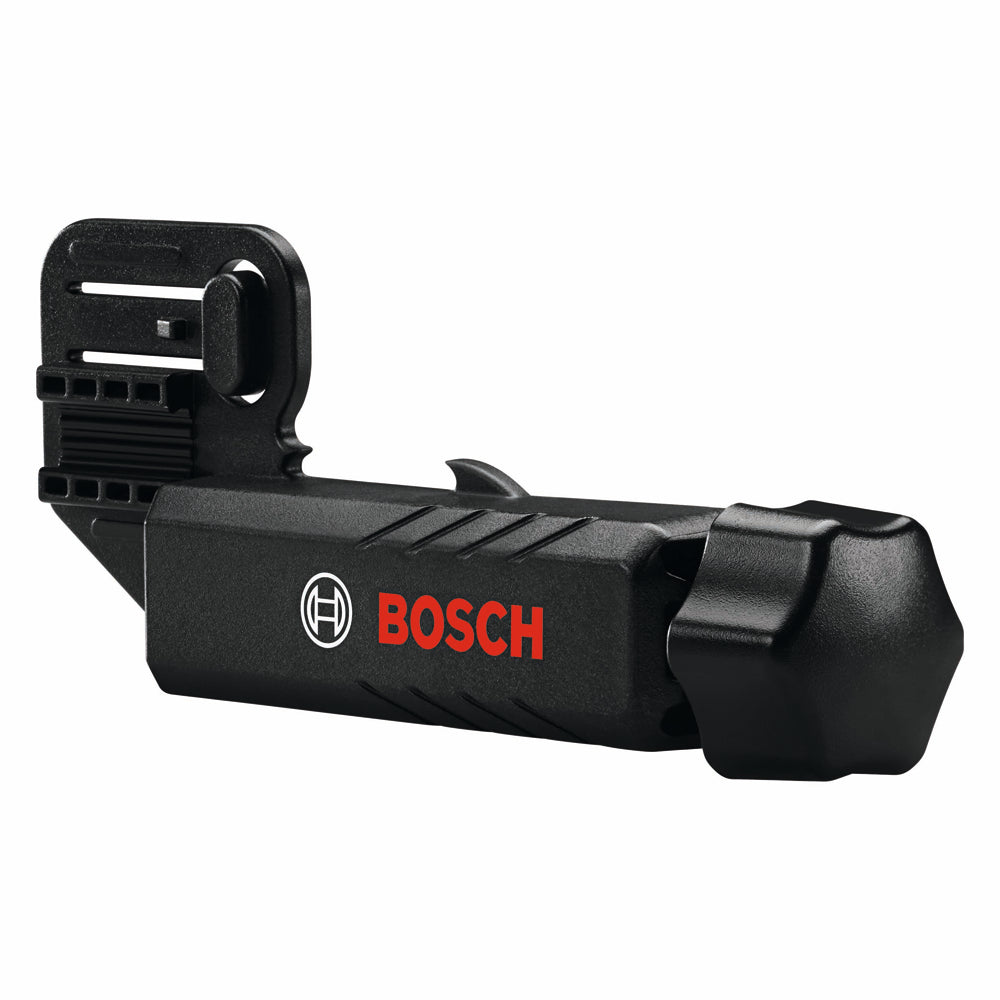

- (1) Mounting Bracket
- (1) 9V Battery

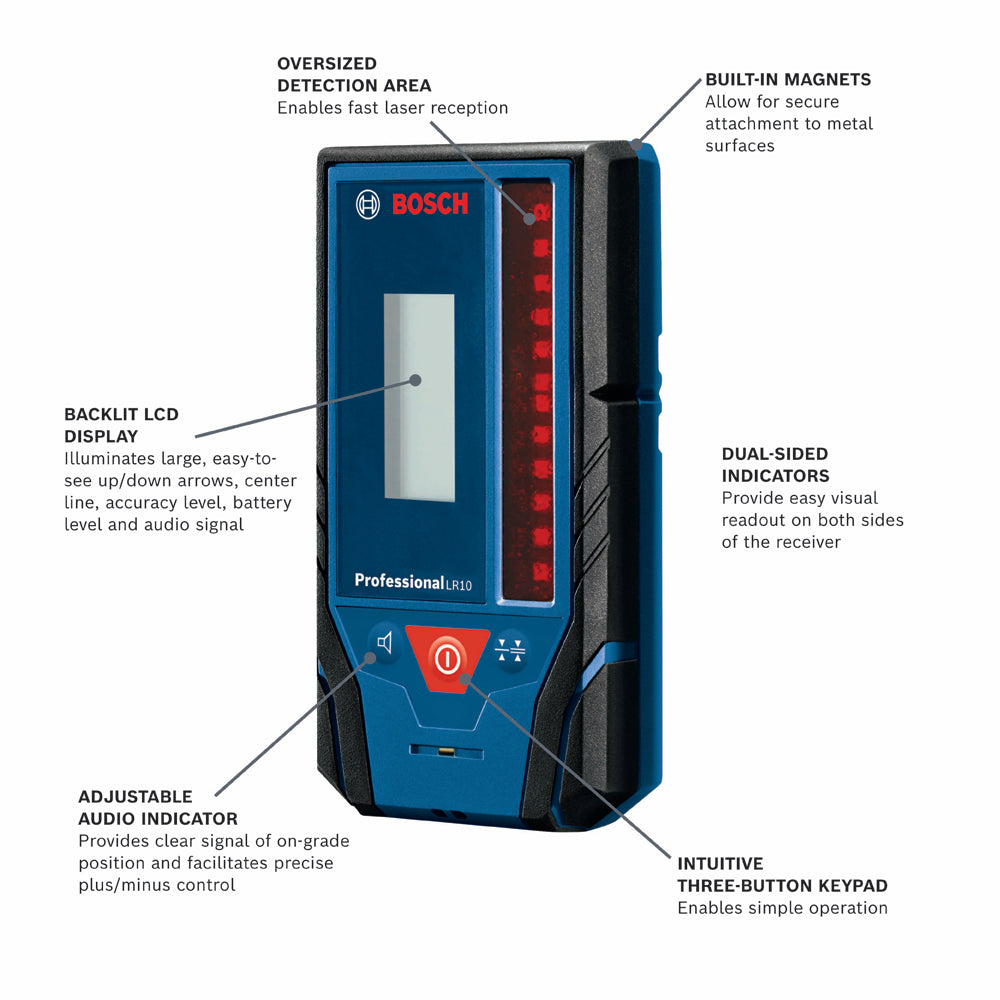

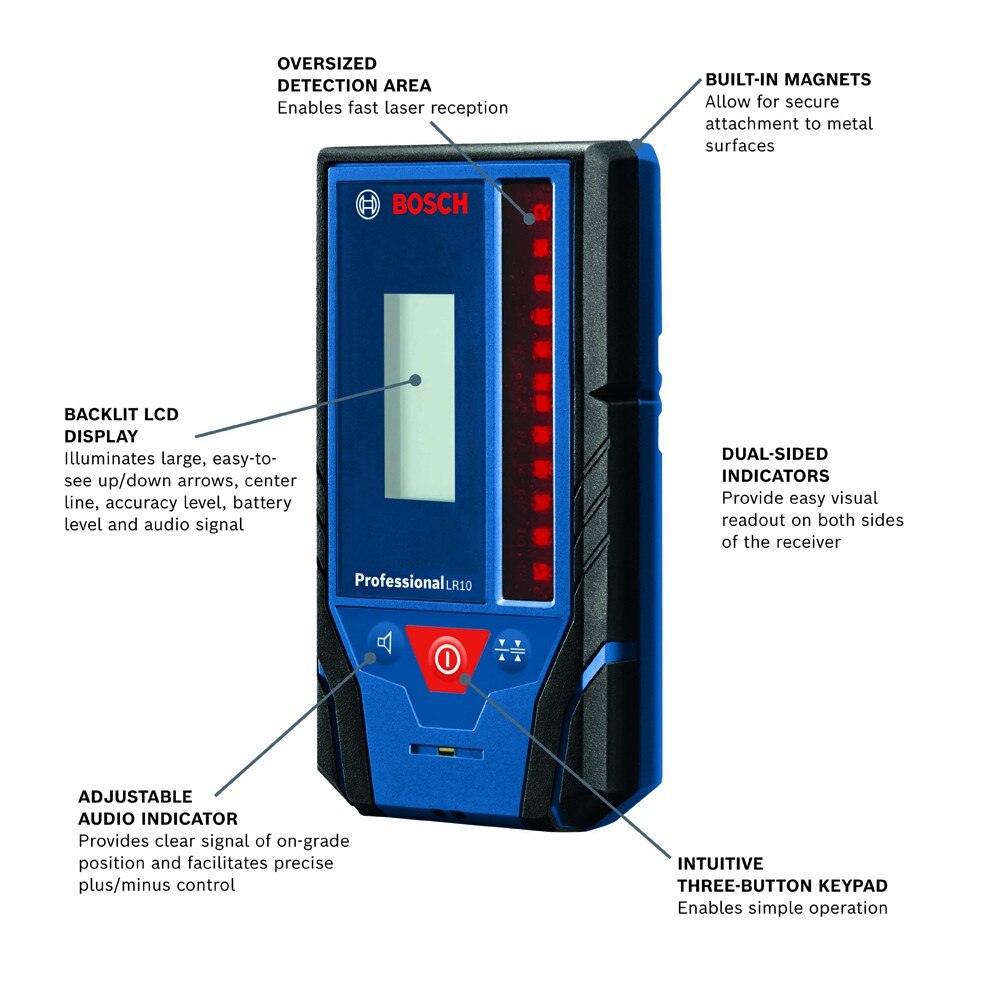

Bosch LR10 Features
- Receiver to extend working range – increases rotary detection up to 800 Ft., with easy-to-see indicators and adjustable audio
- Backlit LCD display – illuminates large, easy-to-see up/down arrows, center line, accuracy level, battery level and audio signal
- Dual-sided indicators – provide easy visual readout on both sides of the receiver
- Oversized detection area – enables fast laser reception
- Built-in magnets – allow for secure attachment to metal surfaces
- Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
- Intuitive three-button keypad – enables simple operation
- Ergonomic soft grip – provides secure handling and comfort
Bosch LR10 Specifications
| Range | Up to 500' |
| Receiving Laser Color | Red |
| Automatic Shut-Off | Yes |
| IP Rating | IP 54 |
| Receivable Wavelength | 635-650 nm |
| Suitable for Rotational Laser Level | GRL 900-20HV, GRL1000-20HV |
| Receiving Angle | 45º |
| Receiving Rotation Speed | 150,300,600 min |
| Accuracy Setting | "fine" |
| Operating Temperature | 14 °F ~ 122 °F (–10 °C ~ +50 °C) |
| Storage Temperature | –4 °F ~ 158 °F (–20 °C ~ +70 °C) |
