Bosch LR20 1,000' Red and Green-Beam Rotary Laser Receiver
Description
Description
Bosch LR20 Description

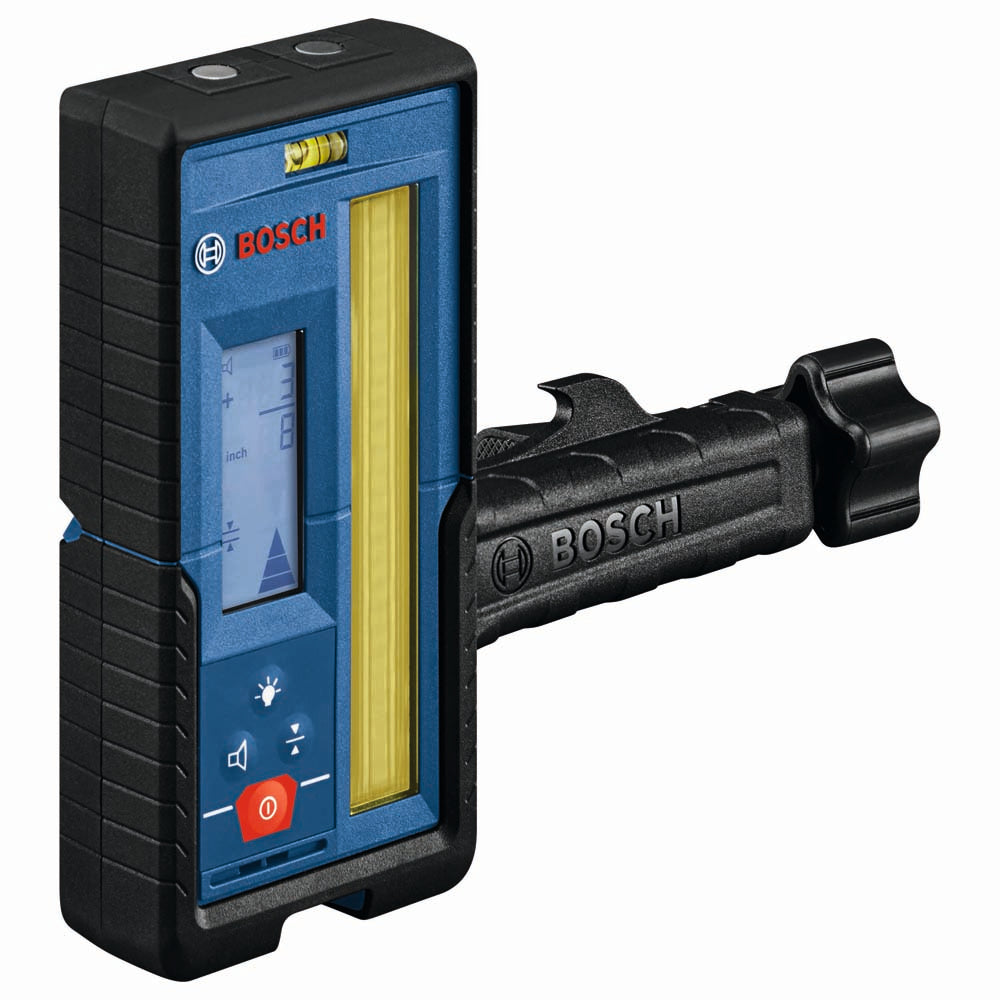

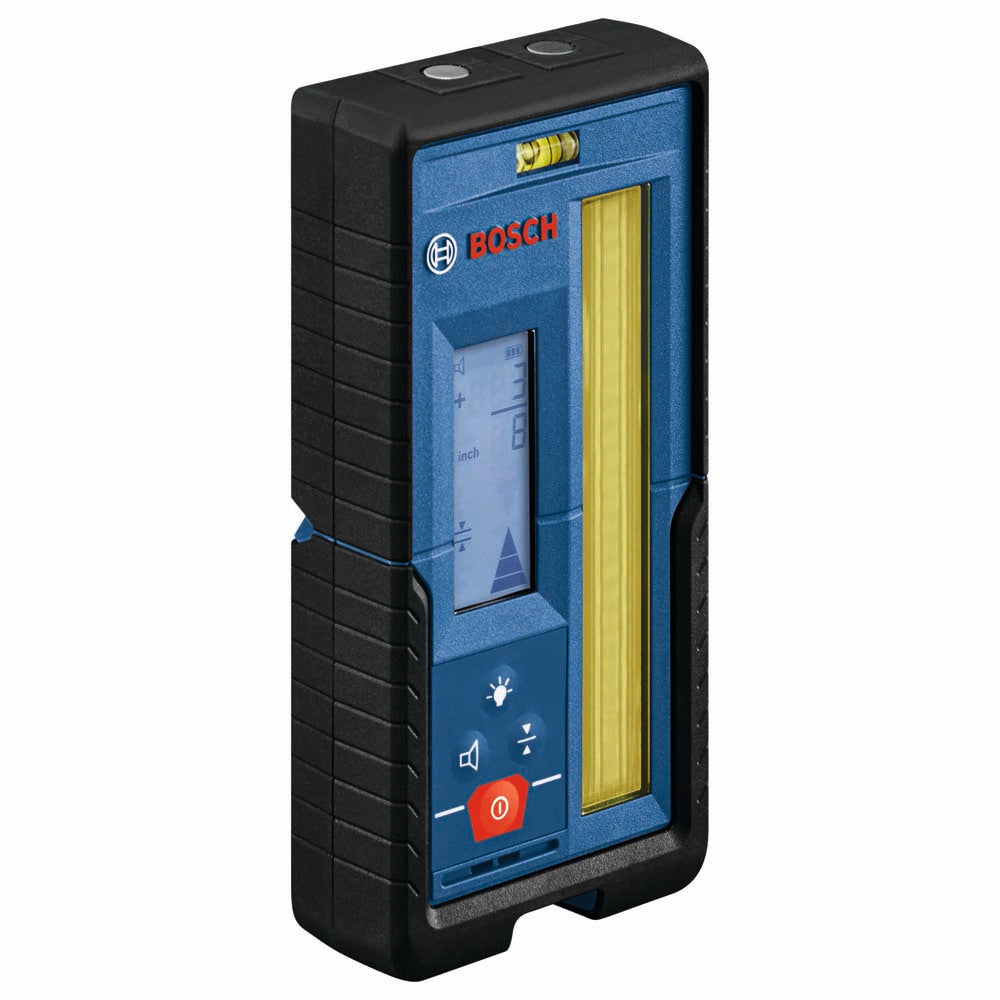

The Bosch LR20 Rotary Laser Receiver is designed to increase the GRL2000-40H and GRL2000-40HV rotary laser detection up to 1,000 Ft., with a backlit LCD display for use in darker areas or outdoors. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery level and audio signal. It also has dual-sided indicators, to provide easy visual readout on both sides of the receiver. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive four-button keypad, receiver vial and ergonomic soft grip.
Bosch LR20 Includes
- (1) LR20 1,000 Ft. Red and Green-Beam Rotary Laser Receiver

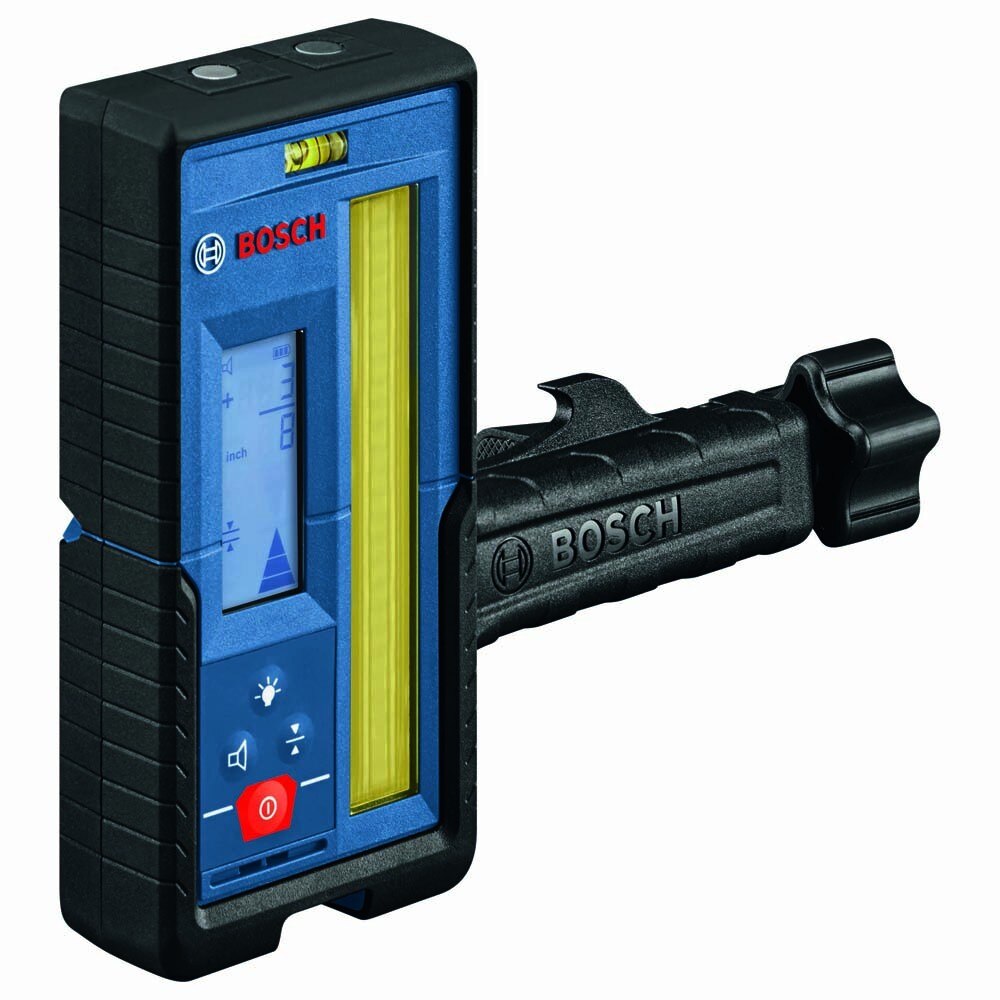

- (1) Mounting Bracket
- (2) AA Batteries

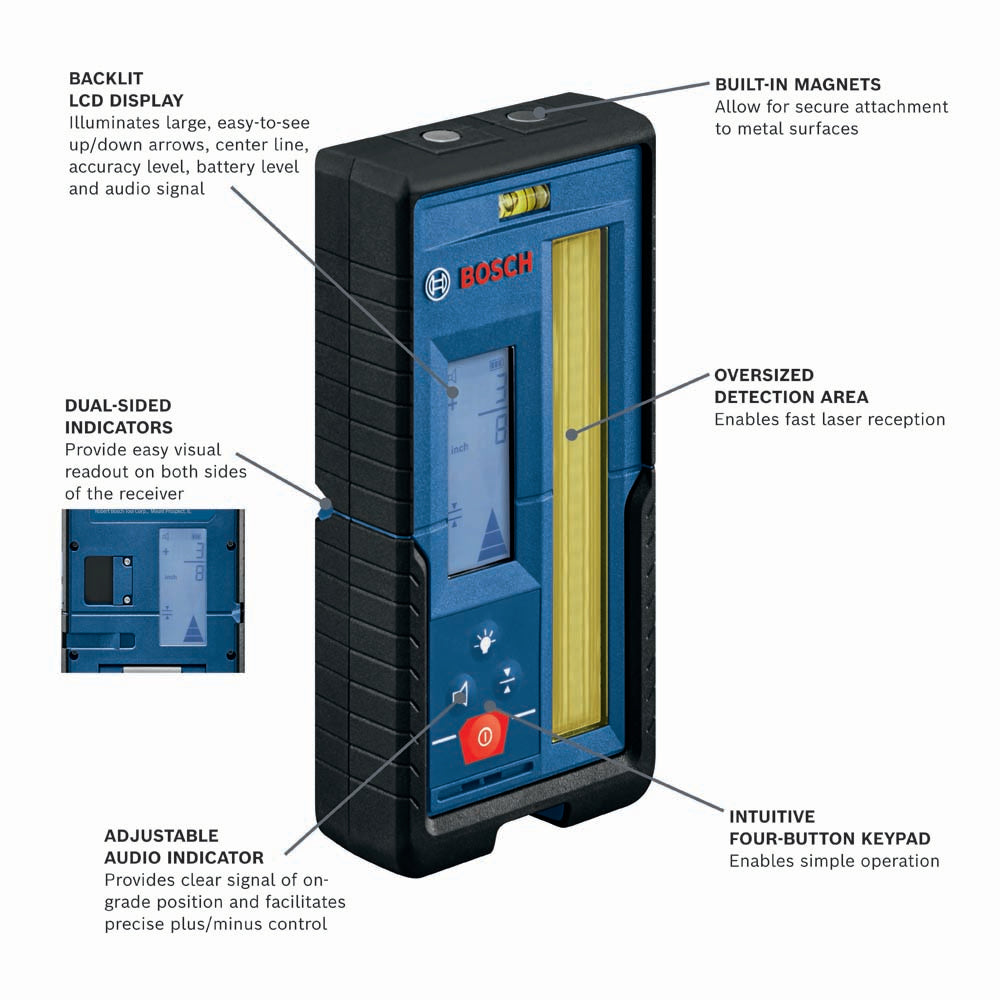

Bosch LR20 Features
- Receiver to extend working range – increases rotary detection up to 1,000 Ft., with easy-to-see indicators and adjustable audio

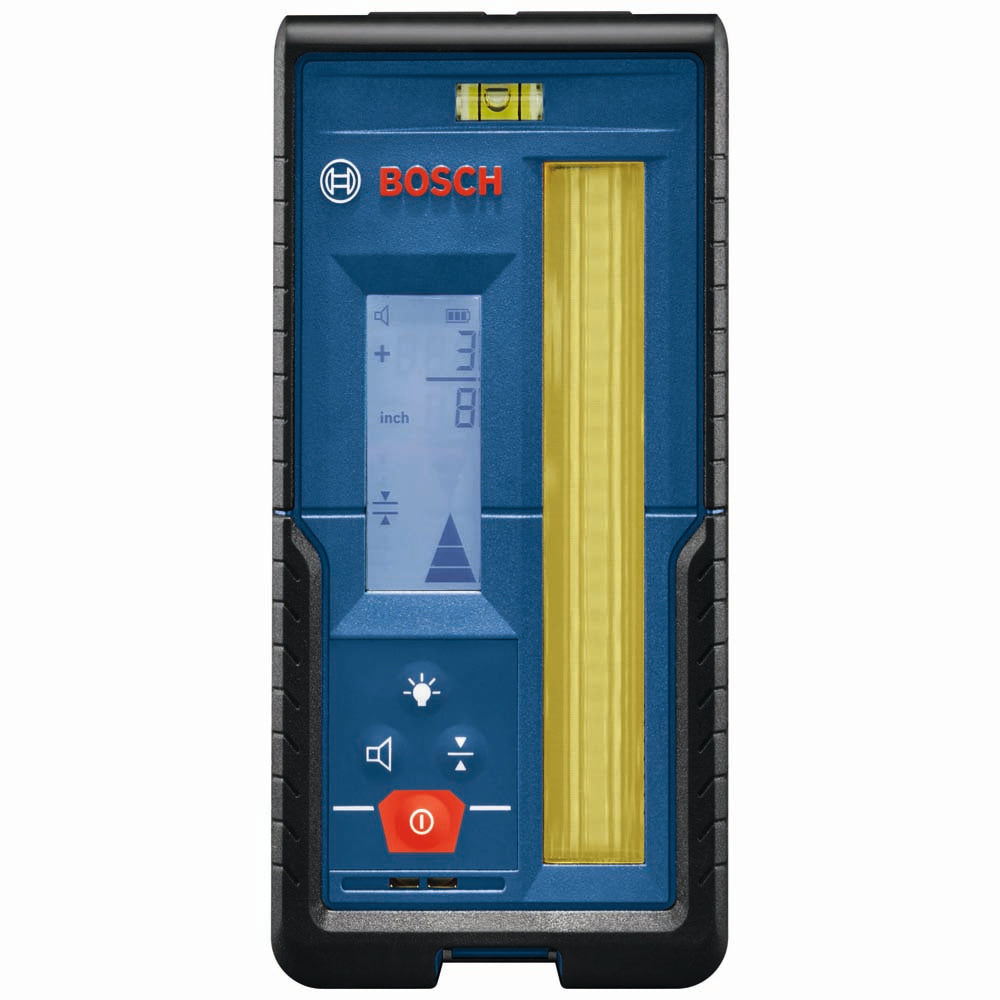

- Backlit LCD display – illuminates large, easy-to-see up/down arrows, center line, accuracy level, battery level and audio signal

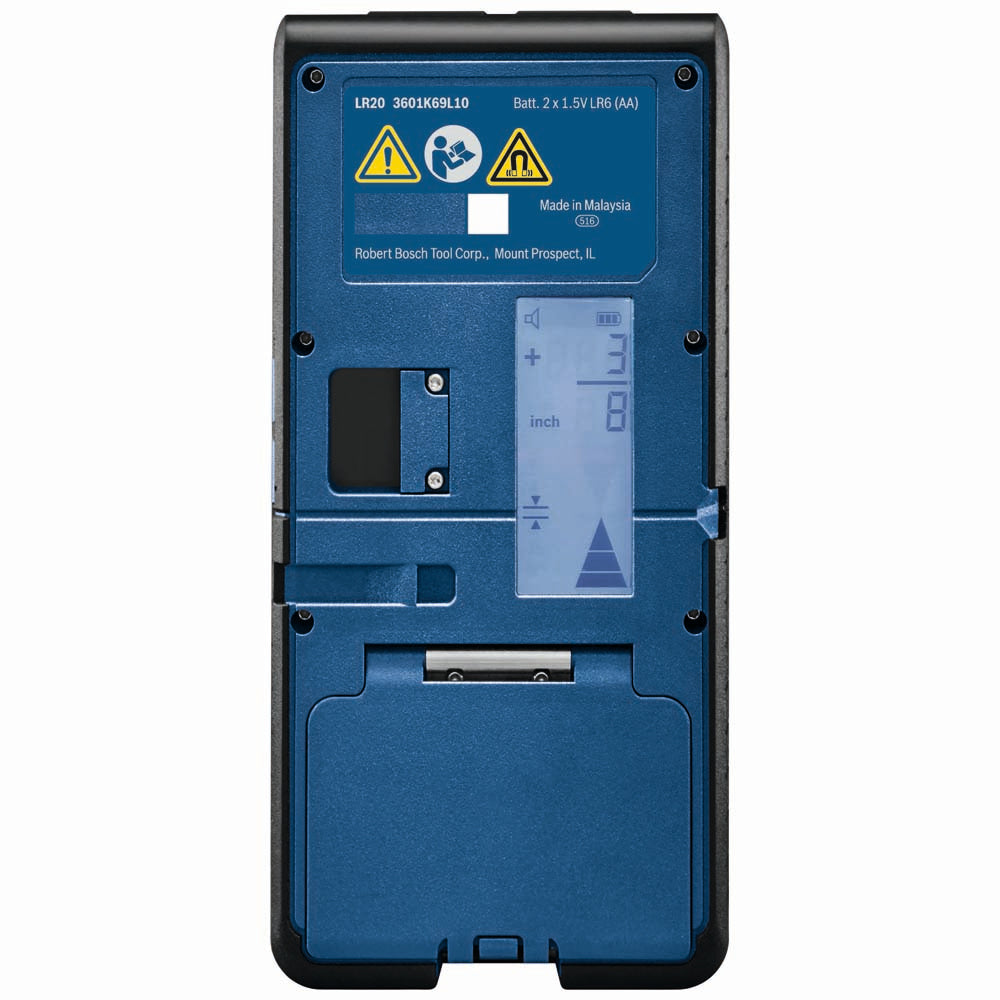

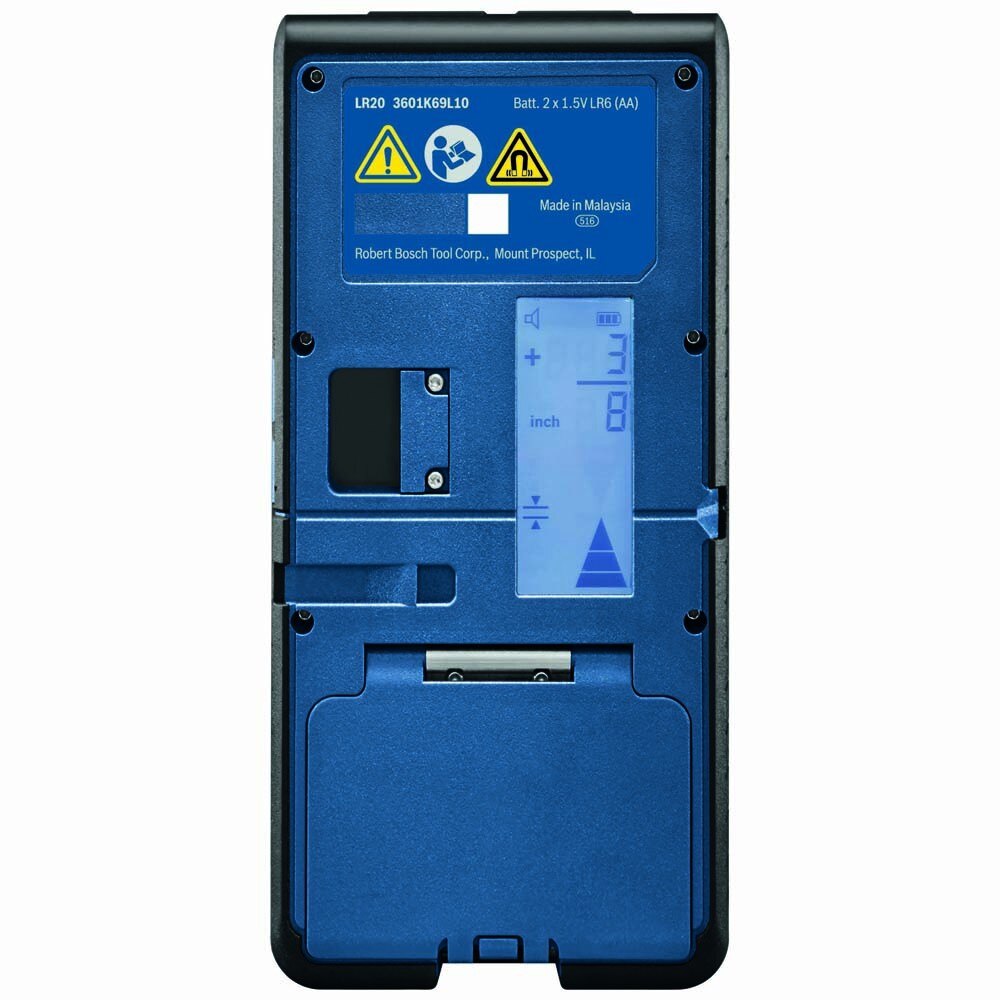

- Dual-sided indicators – provide easy visual readout on both sides of the receiver
- Oversized detection area – enables fast laser reception

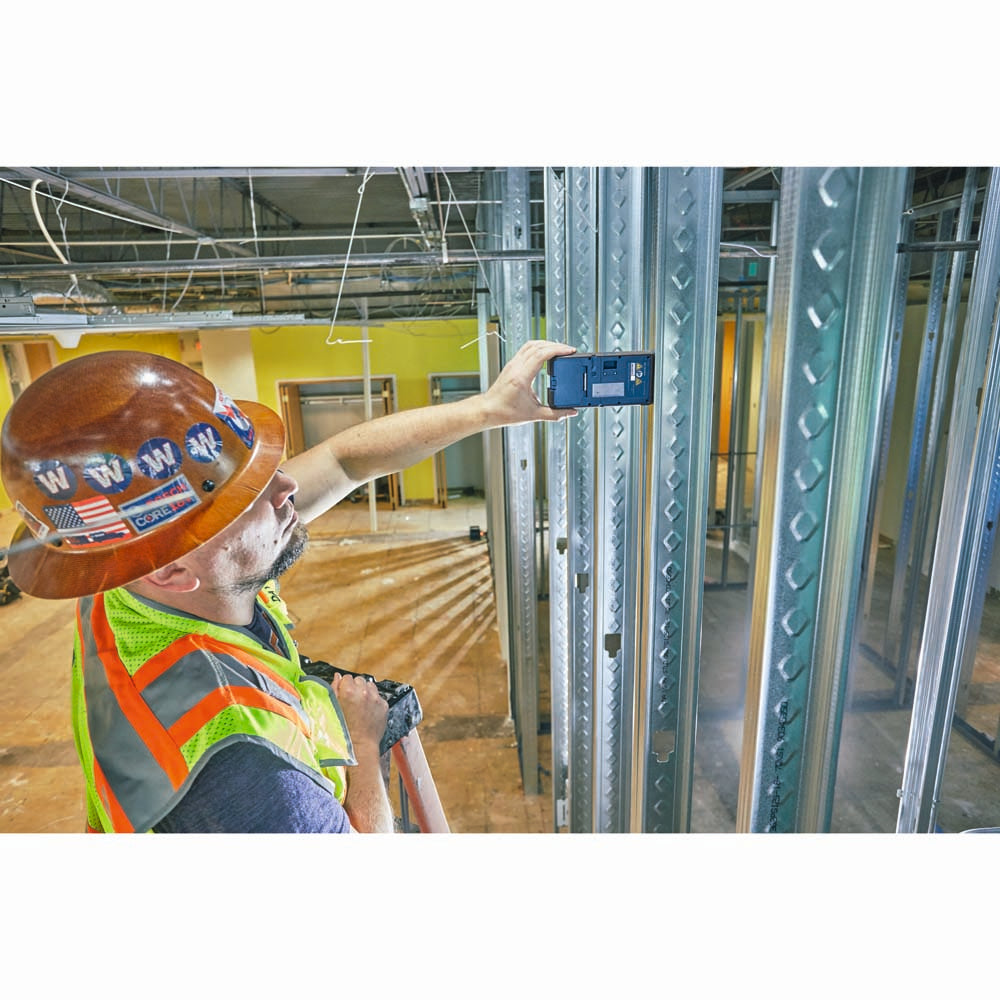

- Built-in magnets – allow for secure attachment to metal surfaces
- Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
- Intuitive four-button keypad – enables simple operation
- Receiver vial – helps ensure accurate leveling results
- Ergonomic soft grip – provides secure handling and comfort
- Built in plumb indicator for fast, accurate grade checking in miniexcavator applications
Bosch LR20 Specifications
| Range | Up to 1000' |
| Receiving Laser Color | Green and Red |
| Automatic Shut-Off | No |
| IP Rating | IP 66 |
| Receivable Wavelength | 635-650 nm |
| Suitable for Rotational Laser Level | GRL2000-40H, GRL2000-40HV |
| Receiving Angle | ±35º |
| Receiving Rotation Speed | 150,300,600 min |
| Accuracy Setting | "fine" |
| Operating Temperature | 14 °F ~ 122 °F (–10 °C ~ +50 °C) |
| Storage Remperature | –4 °F ~ 158 °F (–20 °C ~ +70 °C) |
| Battery | 2 x 1.5V LR6 (AA) |
| Operating Time, Approx. | 40h |
