Bosch MRF01 Description

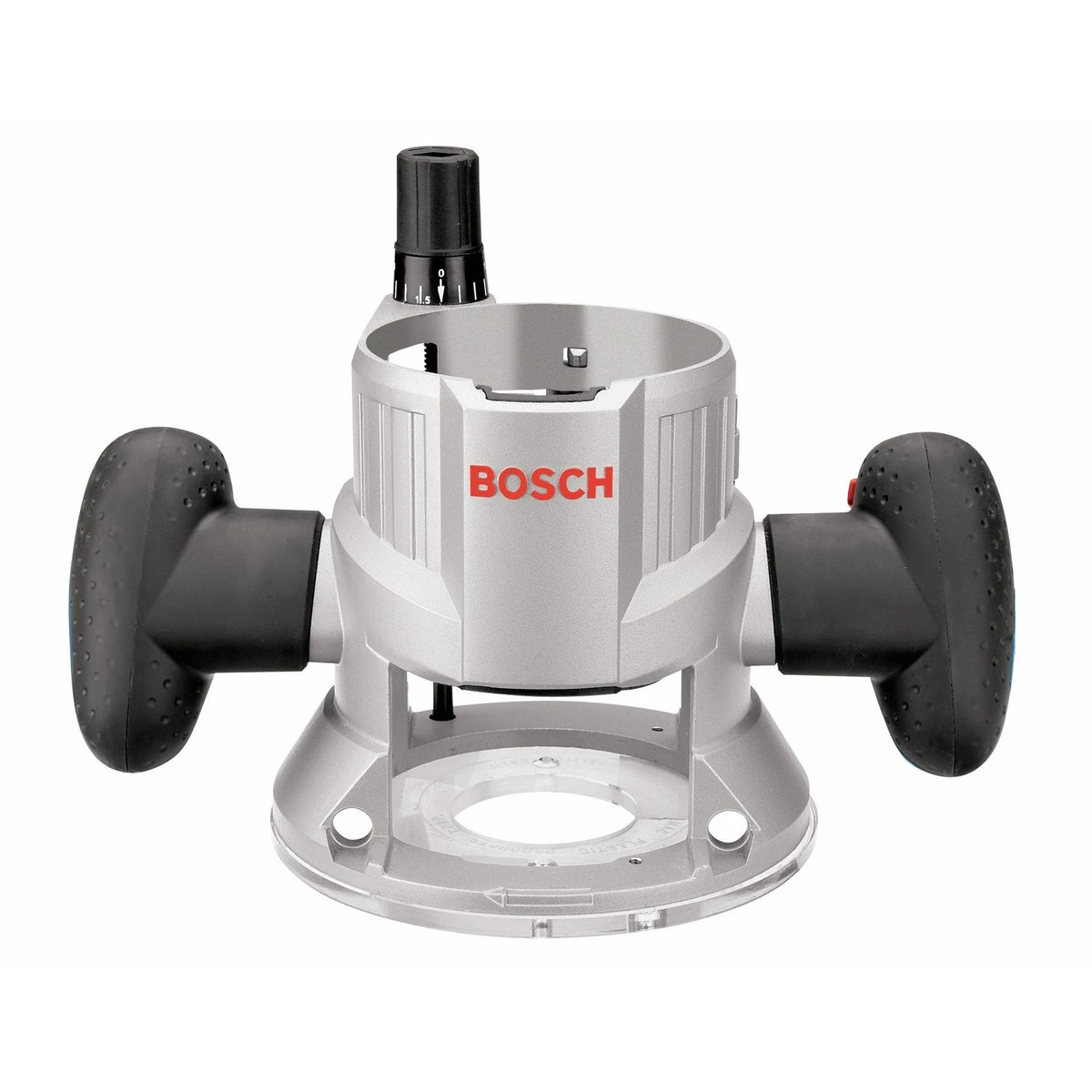

The Bosch MRF01 fixed router base is designed for use with the Bosch MR23EVS router motor and features a trigger-controlled power switch built into the right handle for added convenience and control. Its quick-clamp design allows tool-free motor changes, while the macro and micro-fine depth adjustment system provides precise bit depth settings with a 1-5/8 in. continuous micro-fine adjustment range. The base also features Precision Centering Design for accurate cutline alignment and threaded holes for common 3-hole router table mounting.
Bosch MRF01 Includes
- (1) Fixed Router Base (MRF01)
- (1) T-Wrench
- (1) Router Table Mounting Hardware Set
Bosch MRF01 Features
- Designed exclusively for use with the Bosch MR23EVS router motor
- Trigger-controlled on/off power switch is conveniently located in the right handle
- Quick-clamp system allows tool-free movement of the motor from base to base
- Versatile fixed base adjustment system enables easy and precise bit depth adjustment
- Macro and micro-fine adjustment system includes a resettable depth indicator
- 1-5/8 in. continuous micro-fine adjustment range supports precise routing setup
- Large 3-3/4 in. base opening and 2 in. sub-base opening accept larger bits
- Precision centering design helps keep the bit on the intended cutline when using jigs and templates
- Threaded holes in a common 3-hole pattern support router table mounting
- Depth can be adjusted from above an optional router table using the included T-wrench
- Compatible with Bosch routing attachments including the RA1126 template guide adapter, RA1054 deluxe router guide, and RA1176AT dust hood kit
Bosch MRF01 Specifications
| Product Type | Fixed Router Base |
| Compatible Router Motor | Bosch MR23EVS |
| Adjustable | Yes |
| Color / Finish | Silver |
| Handle | Yes |
| Material | Aluminum |
| Base Opening | 3-3/4 in. |
| Sub-Base Opening | 2 in. |
| Micro-Fine Adjustment Range | 1-5/8 in. |
| Router Table Mounting Pattern | Common 3-hole pattern |
| Length | 11.5 in. |
| Width | 7.5 in. |
| Height | 7.5 in. |
| Shipping Weight | 3.88 lb |
| Contents | 1 Fixed Base |
Toolup Part # :
217605
