Campbell Chain | SKU:
5412405

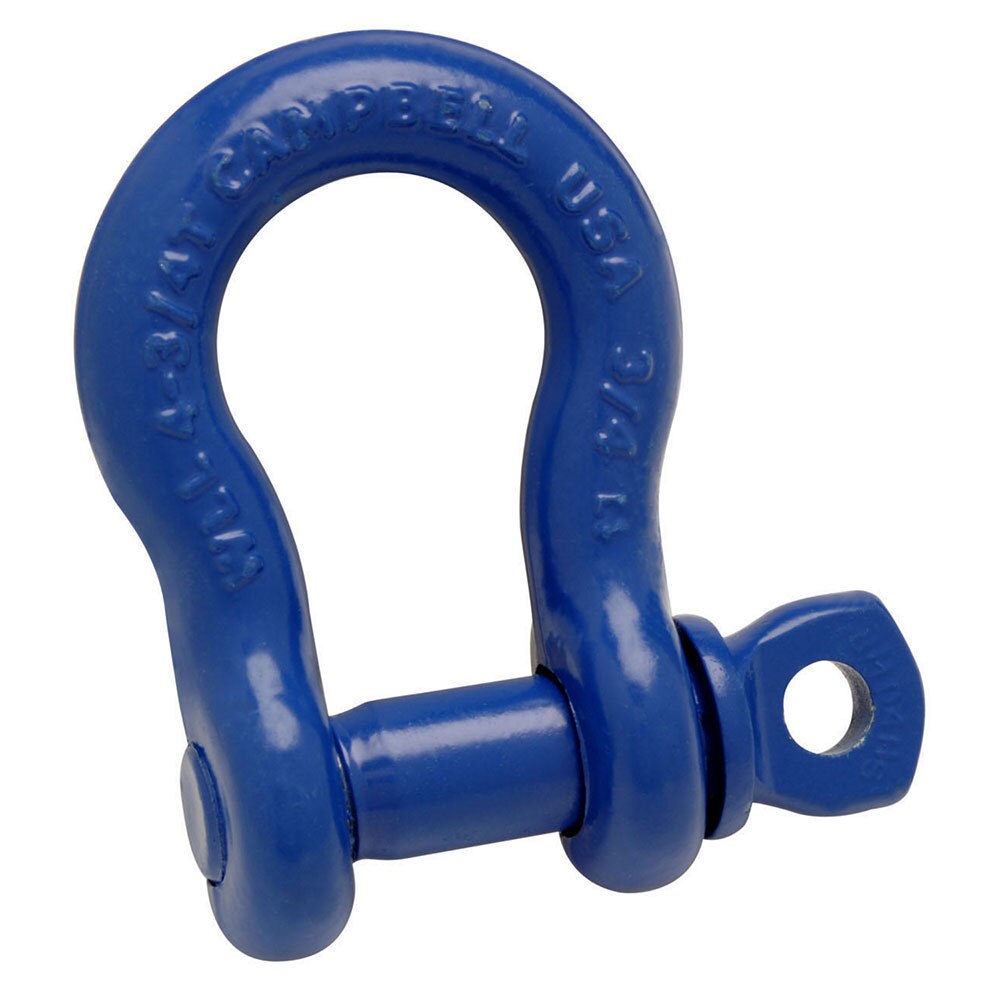

Campbell 5412405 1-1/2" Anchor Shackle, Scr Pin, Frgd Crbn Steel
Free Shipping
$202.41
$346.01
Unit price
/
Unavailable
Description
Description
Campbell Chain 5412405 Includes
- (1) Anchor Shackle
Campbell Chain 5412405 Features
- Shackle Bodies Are Drop-Forged Carbon Steel
- Self Colored (Painted Blue)
- C-419-S Shackles Meet The Design Requirements Of Federal Specification Rr-C-271, Type Iva, Grade A, Class 2
- Working Load Limit, Size, Manufacture Name, Date Code And Usa Permanently Marked On Each Shackle
- Statistically Tested For Impact Resistance, Tensile Strength, Hardness, Ductility And Fatigue
- 419 Series Shackles Meet Or Exceed All Manufacturing Requirements Of The Asme B30.26 "Rigging Hardware". These Include The Material Ductility Requirement (Section 26-1.1.2), The Design Factor Requirement (Section 26.1.2), The Identification Requirement (Section 26-1.5.1), And The Effective Temperature Range (Section 26-1.6.1). The Shackles Can Be Proof Tested In Accordance With Section 26-1.4
- Certification Available Upon Request
- 6 To 1 Design Factor
- Pins And Bolts Are Heat-Treated And Made Of Alloy Steel
Campbell Chain 5412405 Specifications
| Load Capacity | 17 ton |
| Size | 1-1/2" |
| Pin Diameter | 1-5/8" |
| Pin Type | Screw |
| Body Material | Drop Forged Carbon Steel |
| Pin Material | Alloy Steel |
| Finish | Painted Blue |
