Campbell 6991434 Description

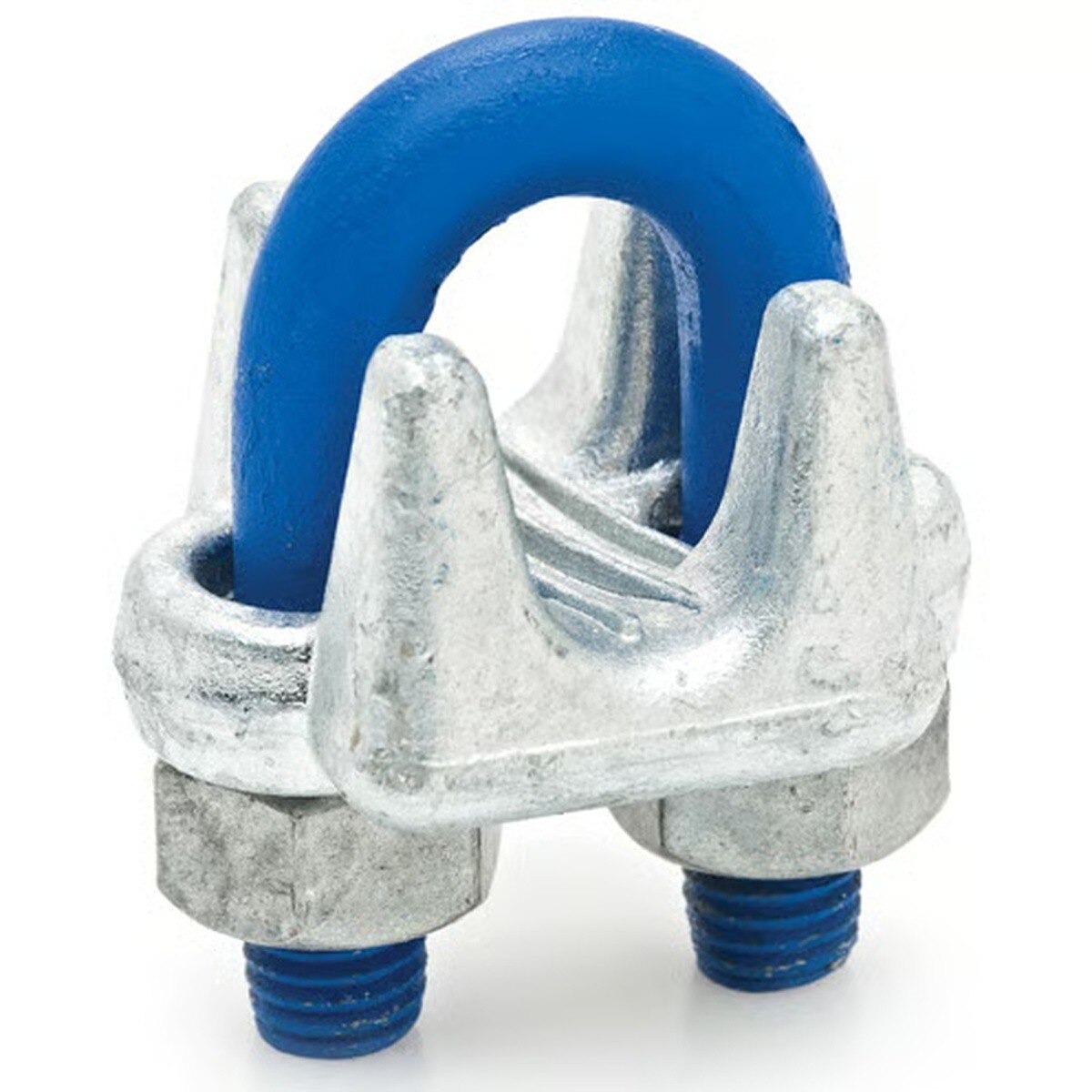

This Campbell wire rope clip is designed for forming secure wire rope terminations on 7/8 in wire rope. It features a drop-forged carbon steel base with heavy hex nuts and a galvanized finish for corrosion resistance, meeting ASTM A-153 and FF-C-450 Type 1 Class 1 specifications.
Campbell 6991434 Includes
- (1) Wire Rope Clip
Campbell 6991434 Features
- Compatible with 7/8 in wire rope
- Drop-forged carbon steel base with heavy hex nuts
- Galvanized finish to ASTM A-153 specification
- Meets specification FF-C-450 Type 1 Class 1
- Torque specification: 225 ft-lbs
- Minimum clips required: 4
- Rope turnback length: 19 in
Campbell 6991434 Specifications
| Compatible Wire Rope Size | 7/8 in |
| Material | Steel |
| Torque | 225 ft-lbs |
| Minimum Clips Required | 4 |
| Rope Turnback Length | 19 in |
| Distance Between Legs | 1.750 in |
| Clip Height | 3.125 in |
| Overall Thickness | 3.250 in |
| Standards | ASTM A-153; FF-C-450 Type 1 Class 1 |
