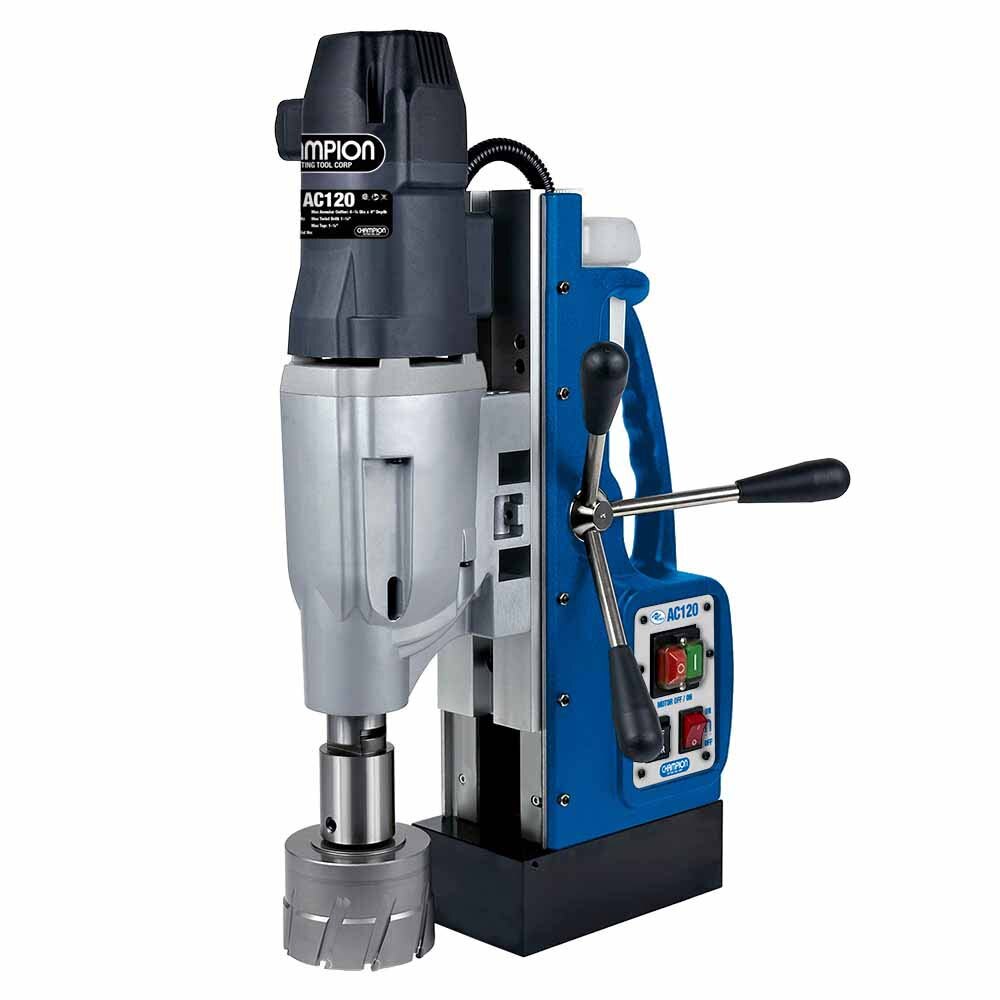

Champion Cutting Tool AC120 AC120 SuperBrute Magnetic Drill Press
Description
Description
Champion Cutting Tool AC120Description
Champion's AC120 SuperBrute Mag Drill is engineered for extreme steel fab applications. Users can drill up to 4-3/4 In. dia and up to 4 In. depth. Operators will experience smooth, heavy duty cutting due to a powerful 1700W motor and strong 7200 lb magnet. By investing in the AC120, users will have the convenience of using annular cutters plus additional cutting tools like twist drills, maintenance reamers, bridge reamers, and taps. The AC120 includes 3/4" arbor, 1-1/4" arbor, coolant tank assembly and drill/chuck adaptor. Rugged, powerful, and easy to use, the AC120 SuperBrute is the ultimate solution for serious users tackling tough steel jobs.
Champion Cutting Tool AC120Includes
- (1)Magnetic Drill Press
- (2) Arbors
- (1) Drill Chuck
- (1) Carrying Case
- (3) Handles
- (1) Coolant Tank Assembly
- (1) Safety Strap
- (1) Chip Guard
- (2) Hex Keys
- (1) Drift Key
Champion Cutting Tool AC120Features
- Extreme steel fabrication - large cutter capacity
- Drill Large And Deep Holes In Steel Plate, Structural Steel, Pipe
- Drill Up To 4-3/4 In. Dia, Up to 4 In. Depth
- Includes Two Arbors-Standard 3/4 In. Weldon Shank Arbor - For Cutters 7/16 to 2-1/4" Dia, Up to 4" Depth and Includes Large 1-1/4 In. Shank Arbor - For Cutters 2-3/8 to 4-3/4" Dia, Up to 2" Depth
- Built-In Coolant Tank Allows Lubricant To Flow Through Cutter For Optimized Cutting

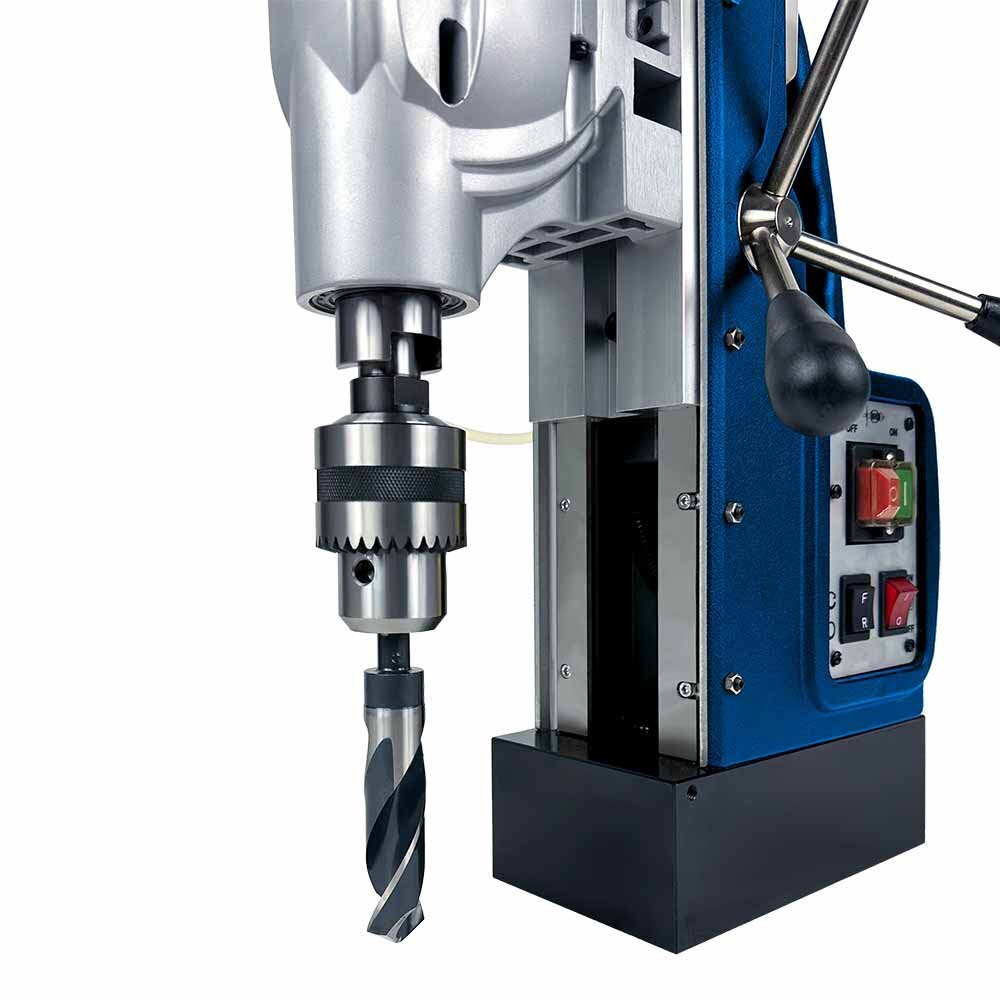

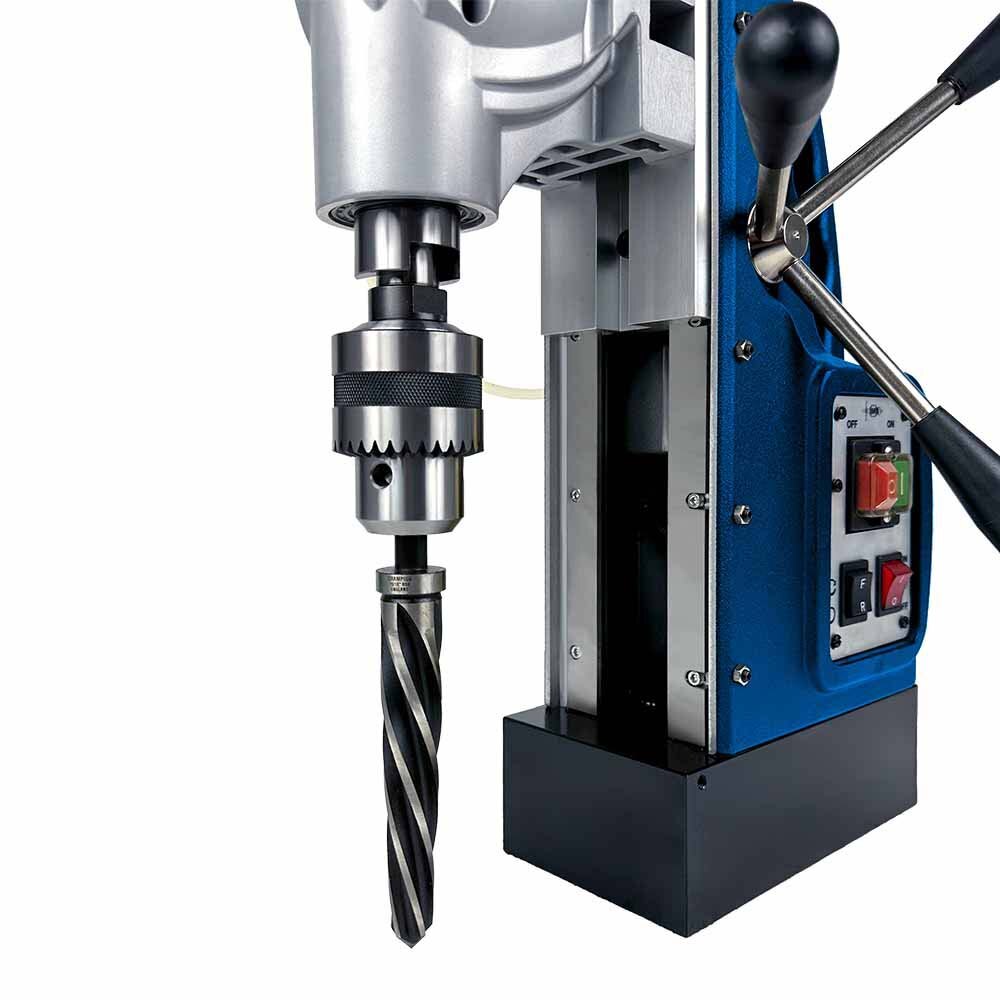

- Includes Drill Chuck - Use With Twist Drills, Reamers, Countersinks (Up to 1-1/4" Dia)
- Accepts MT3 Twist Drills & Reamers
- Super Strong: 7200 lb Magnetic Strength
- Super Powerful: 1700W Motor
- 4 Speed Motor - Speed 1: 35-115 RPM, Speed 2: 70-210 RPM, Speed 3: 80-250 RPM, Speed 4: 140-450 RPM
- Optional Accessories (Sold Separately) - 1-1/4" Shank Arbor x 3" Depth (Part # QX1400)
- Variable Speed
- Forward / Reverse
Champion Cutting Tool AC120Specifications
| Voltage: | 110-120V |
| Magnetic Drill Type: | Extra Large Cutter Capacity |
| Cutter Capacity (Dia x Depth): | 4-3/4" x 4" |
| Motor Speed Options:: | 4 |
| Speed 1:: | 35-115 RPM |
| Speed 2:: | 70-210 RPM |
| Speed 3:: | 80-250 RPM |
| Speed 4:: | 140-450 RPM |
| Magnetic Adhesion: | 7200 lbs |
