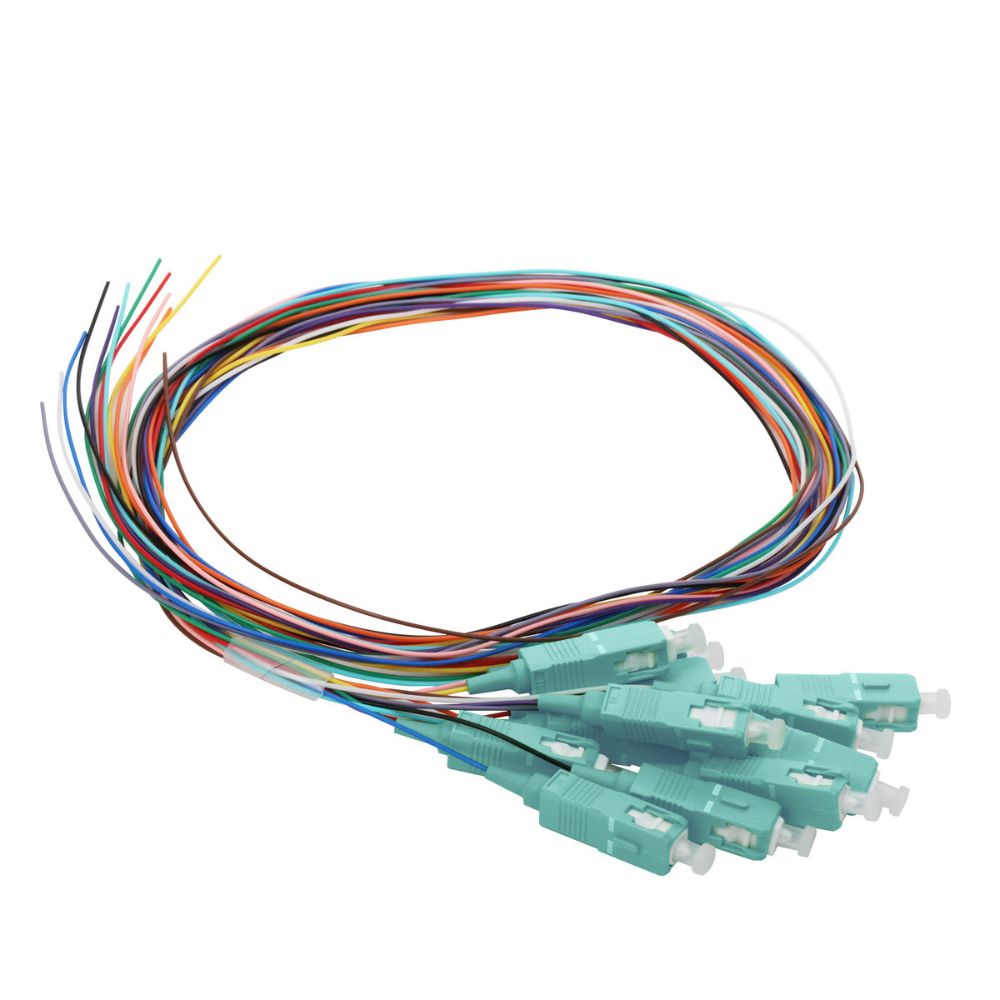

Cleerline PT-SC12-MM-1M 12 Fiber Pigtails, SC/UPC, 900 Micrometer, 50 Micrometer OM3, 1 m
Description
Description
Cleerline PT-SC12-MM-1M Description
Cleerline™ fiber optic pigtail assemblies are designed for performance and reliability. These 900 ?m tight buffered assemblies come with a connector pre-terminated on one end and a pigtail fiber on the other. These “bare” ends can be stripped and fusion spliced or terminated to a single or multi-fiber trunk. These pigtails allow for minimal return loss and low attenuation and combine high precision zirconia ferrules providing optical performance for today’s network applications. Pre-terminated pigtails are available in multiple connector and glass types covering today’s most common applications. Plugging the connectors directly into an adapter panel allows for quick patching and splicing for your project.
Cleerline PT-SC12-MM-1M Includes
- (1) 12 (SC/UPC) Multimode Pre-terminated Ends
- (1) 1 meter 900µm pigtails
Cleerline PT-SC12-MM-1M Features
- Pre-terminated on one end
- Fully tested, high precision
- Low insertion and return loss
- Outer Diameter: 900un
- Color Coding: TIA/EIA-598C
Cleerline PT-SC12-MM-1M Specifications
| Fiber | 50/125 |
| Fibers | 12 Strands |
| Outer Diameter | 900um |
| Length | 1 Meter |
