Cleerline | SKU:
SSF-SC-SMUPC-10
Cleerline SSF-SC-SMUPC-10 SSF SC/UPC Connectors, SM (OS2) 9/125 Micrometer, for 250 Micrometer, 900 Micrometer, 2 mm, 3 mm
$79.00
$158.00
Unit price
/
Unavailable
Description
Description

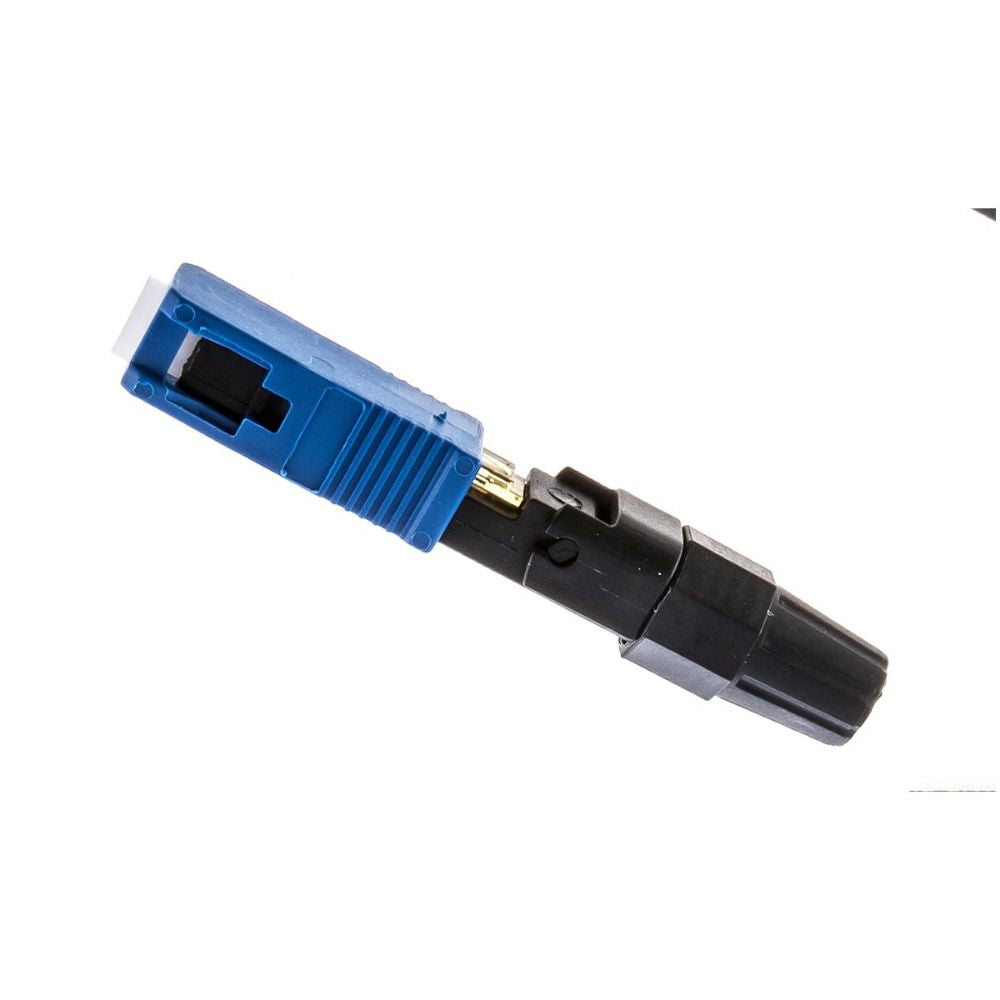

Cleerline SSF-SC-SMUPC-10 Description
Cleerline LC and SC mechanical splice connectors ensure precise fiber alignment, producing low loss terminations for all multimode or single mode applications. All connectors are compatible with 250µm, 900µm, 2.0mm, and 3.0mm cables. No crimping or proprietary tooling is required to terminate. Each connector features a large confirmation window for easy verification and a V-groove channel for easy fiber insertion. Connectors are compatible with all fibers as well as standard fiber optic cabling
Cleerline SSF-SC-SMUPC-10 Includes
- (10) (SC/UPC) Single Mode Mechanical Connectors
- (10) 900um Furcation Tubes
- (10) 250um Furcation Tubes
- (10) 2mm Furcation Tubes
- (1) 3mm Screw on Boot
Cleerline SSF-SC-SMUPC-10 Features
- Pre-polished connectors
- No crimping required
- Large confirmation window
- Exclusive hinge-based design
- Compatible with 250 µm, 900 µm, 2.0 mm, and 3.0 mm cable
- Build-up tubes included
Cleerline SSF-SC-SMUPC-10 Specifications
| Fiber Type | OS2 |
| Connector Type | (SC/UPC) |
| Color | Blue |
| Insertion Loss | Typical ? 0.3 dB Max 0.5db |
| Return Loss | ? 26 dB |
