Cleerline SSF-TKITP-500 SSF Professional Optical Fiber Test Kit with Data Record
Description
Description
Cleerline SSF-TKITP-500 Description
The Cleerline SSF-TKITP-500 Fiber Optic Test Kit is a high-quality solution for network certification to TIA568-C standards. This kit includes an Optical Power Meter and Light Source to test both multimode and single mode installed fibers. Four wavelengths, with a range of 70 decibels (dB). The Light Source and Power Meter measure link loss, allowing calculation of the link loss budget. The SSF-TKITP-500 is designed for efficiency and ease of operation. Features include auto wavelength identification and storage of up to 1000 test records. Data can be exported to CSV via downloadable software (PC only). The SSF-TKITP-500 provides SC testing by default. LC testing is available with use of the included LC adapter and reference cables in the full reference cable pack. Adapters for FC-ST terminated cables are also included. All kit items are contained in a sturdy hard sided case for easy access in the field.

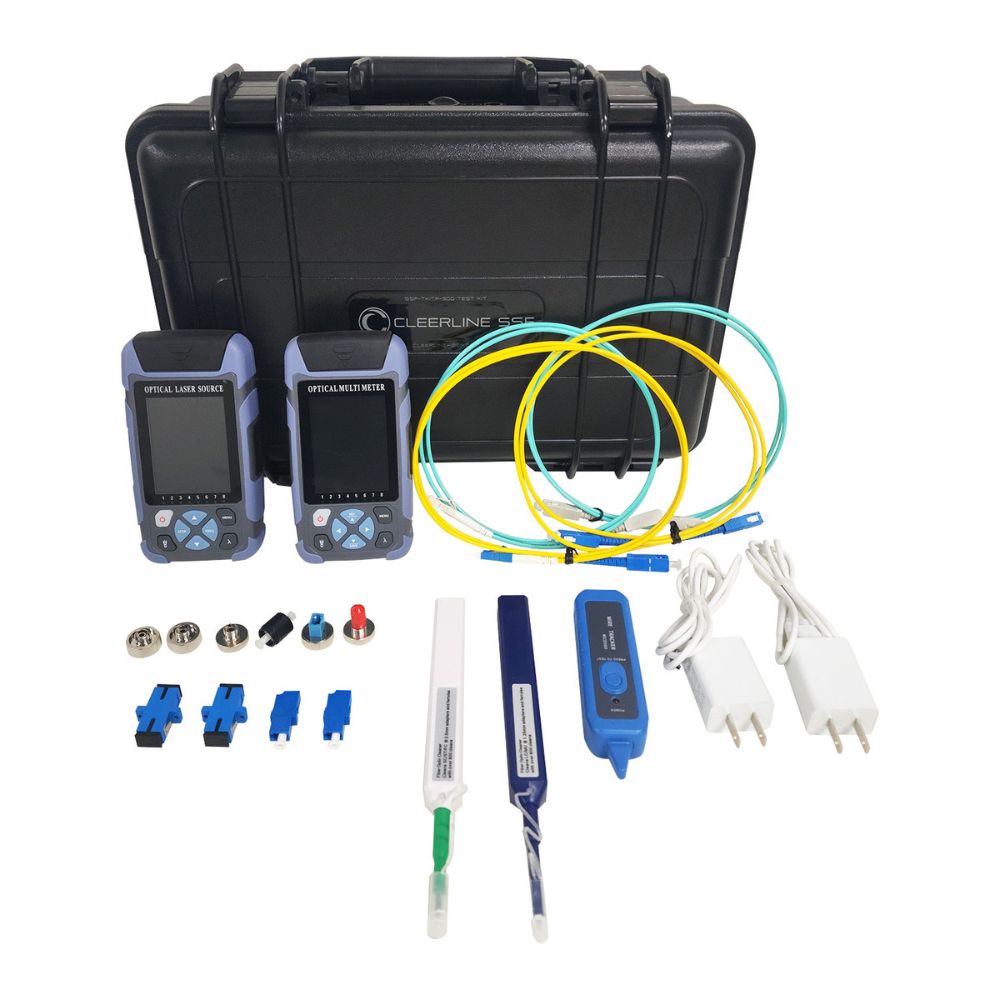

Cleerline SSF-TKITP-500 Includes
- (1)Power Meter
- (1) Light Source
- (2) 5.0 V Power Supply & USB-C Charging Cable
- (1) SC-SC OM3 Reference Patch Cable
- (2) LC-SC OM3 Reference Patch Cable
- (1) SC-SC OS2 Reference Patch Cable
- (2) LC-SC OS2 Reference Patch Cable
- (2) ST Adapter
- (2) FC Adapter
- (1) SC-SC Female Adapter
- (2) LC-LC Female Adapter
- (1) Downloadable PC Software
- (1) Carrying Case and Strap
Cleerline SSF-TKITP-500 Features
- Tests both multimode and single mode fibers
- Wavelengths of 850, 1300, 1310, and 1550nm
- Wave ID – auto wavelength identification
- Storage of up to 1000 test records
- Included PC Software and USB cable
- Built-in VFL with 2.5mm to 1.5 mm adapter included
- Built-in RJ45 sequencer
- Auto shut-off function
