Cleerline | SKU:
TN012S2D9YP-2k
Cleerline TN012S2D9YP-2k 12 Strand TSB Distribution TB, Plenum I/O, 9/125, G657 A2/B2 OS2
Free Shipping
$1,240.00
$2,480.00
Unit price
/
Unavailable
Description
Description
Cleerline TN012S2D9YP-2k Description

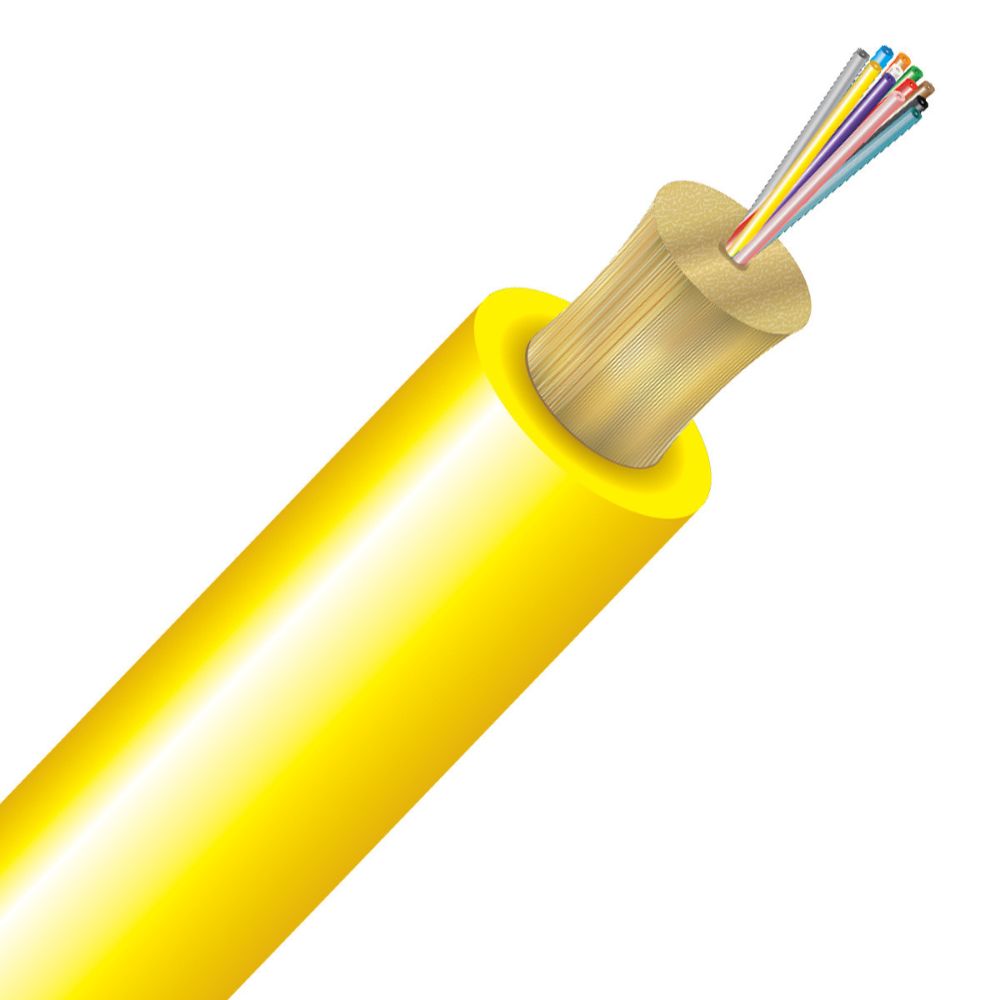

Cleerline TSB™ - Traditional Stronger BendSafe® 12 strand 900 µm Tight Buffered fiber is a distribution style cable with an overall Plenum jacket. TSB™ Distribution is ideal for inter-building or intra-building data communication backbones. Cleerline TSB™ Distribution Single Mode is fully compatible with all common connector systems for 9/125 single mode fiber TSB™ fibers provide the ultimate in reliable signal transfer in today’s traditional fiber constructions.
Cleerline TN012S2D9YP-2k Includes
- (1) 2000ft Spool 12 Strand OS2 Cable
Cleerline TN012S2D9YP-2k Features
- TSB™ Dynamic Fatigue rating Nd ? 27
- High mechanical strength
- TSB™ 900 ?m tight buffered fibers
- Compatible with common connector systems for 9/125 single mode.
- Manufactured to exact tolerances and specifications
- Ultra low attenuation on tight bend radius
- Plenum
Cleerline TN012S2D9YP-2k Specifications
| Fiber | 9/125 Single Mode OS2 |
| Color | Yellow |
| Outer Diameter | 6.4mm |
| Max Tensile Load | 2700 N (607 lbf) |
| Min. Bend Radius, Unloaded | 10 x O.D. |
| Min. Bend Radius, Loaded | 20 x O.D |
