Condux 08021065 650 lbs Break Load 7/8" Break-Away Swivel, Slate/Green
Description
Description
Condux 08021065 Description
Avoid overstressing cable or conduit being pulled in during directional drilling operations. The Condux 7?8" Break-Away Swivel for directional drilling is designed exclusively to provide both the swivel and the break link for product pull-back. Eliminate the use of two or more components and shorten the gap between the reamer and pulling eye. No need to use “weak link" pipe sections or wire when using the 7?8" Condux Break-Away Swivel. This swivel is available to accommodate various pulling needs. Break loads range from 150 lbs. (667 N) to 1,800 lbs. (8,006 N) and are designed to separate at ±10% of their rated break load. Order Replacement Pins as needed. Note: D.Drill Swivels come with a 90 day limited warranty. *Warning: This swivel is to be used while Directional Drilling only— Severe personal injury could result if used with rope or steel winch lines in cable pulling applications.
Condux 08021065 Includes
- (1) 650 lbs Break Load 7/8" Break-Away Swivel, Slate/Green
Condux 08021065 Features
- 7/8" Swivel (22mm)
- Break loads range from 150 lbs. (667 N) to 1,800 lbs. (8,006 N)
- Designed to separate at ±10% of their rated break load
- 90 day limited warranty
Condux 08021065 Specifications
| Part Number | 08021065 |
| Break Load | 650 lbs (2,891 N) |
| Break Pin Part Number | 08018605 |
| Break Pin Color Code | Slate/Green |

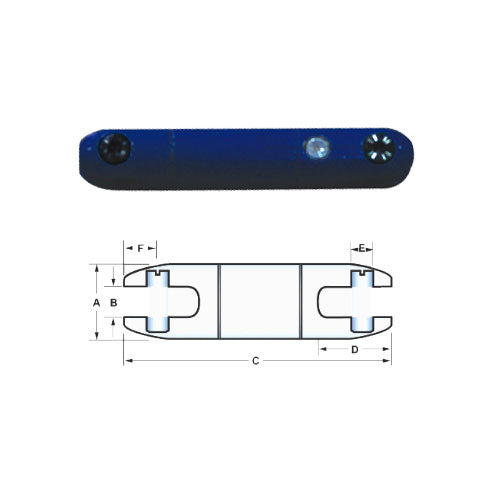

| 7/8" Break-Away Swivel Dimension (A) | 7/8" (22mm) |
| 7/8" Break-Away Swivel Dimension (B) | .38" (9mm) |
| 7/8" Break-Away Swivel Dimension (C) | 4.83" (122mm) |
| 7/8" Break-Away Swivel Dimension (D) | 1.03" (26mm) |
| 7/8" Break-Away Swivel Dimension (E) | .31" (8mm) |
| 7/8" Break-Away Swivel Dimension (F) | .53" (13mm) |
