Condux  |  SKU: 08021400  |  Barcode: 781727824802

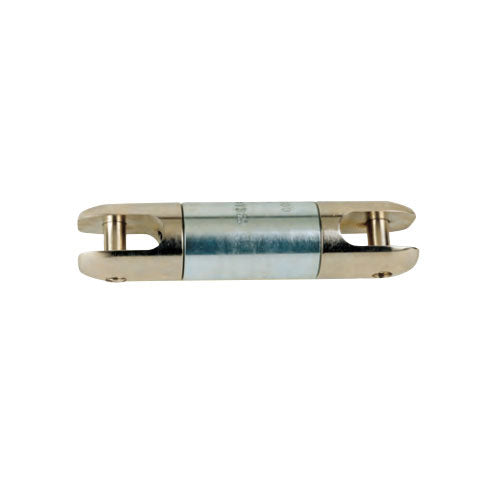

Condux 08021400 750 lbs Break Load 1-1/4" Break-Away D.Drill Swivel

Free Shipping
$264.53 $275.11

Description

Condux 08021400 Description

Avoid overstressing cable or conduit being pulled in during directional drilling operations. The Condux Break-Away Swivels for directional drilling are designed exclusively to provide both the swivel and the break link for product pull-back. Eliminate the use of two or more components and shorten the gap between the reamer and pulling eye. No need to use “weak link" pipe sections or wire when using the Condux Break-Away Swivel. Seven different diameter swivels are available to accommodate various pulling needs. Break loads range from 1,200 lbs. (5,338 N) to 40,000 lbs. (111,250 N) and are designed to separate at +8/-2% of their rated break load. Order Replacement Pins as needed. NOTE: D.Drill Swivels come with a 90 day limited warranty. Condux Break-Away DDrill® Swivels are designed for use when directional drilling; however, they may be used in other applications where the swivel, product and pulling medium are segregated from personnel and a break would remain contained (a pipe or bore hole).

Condux 08021400 Includes

  • (1) 750 lbs Break Load 1-1/4" Break-Away D.Drill Swivel

Condux 08021400 Features

  • 1-1/4" Swivel (32mm)
  • Break loads range from 1,200 lbs. (5,338 N) to 40,000 lbs. (111,250 N)
  • Designed to separate at +8/-2% of their rated break load
  • 90 day limited warranty
  • U.S. Patent No. 4,687,365

Condux 08021400 Specifications

Part Number 08021400
Definition 1 1/4 (32mm) Break Away Swivel
Break Load 750 lbs (3336 N)
Replacement Pin Part Number 08021405
Replacement Pin Color Orange/Violet
​ ​ ​ ​ ​ ​
