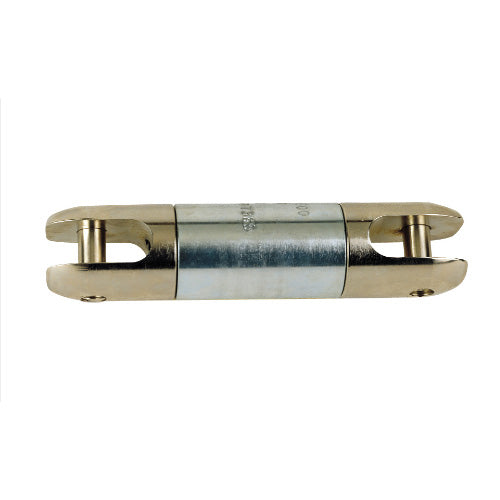

Condux 08022100 1 3/8" 5,500 lbs Break-Away Swivel for Directional Drilling
Description
Description
Condux 08022100 Description
Break-Away D.Drill® Swivel 1 1?4"–1 3?8" (32mm - 35mm). Avoid overstressing cable or conduit being pulled in during directional drilling operations. The Condux Break-Away Swivels for directional drilling are designed exclusively to provide both the swivel and the break link for product pull-back. Eliminate the use of two or more components and shorten the gap between the reamer and pulling eye. No need to use “weak link" pipe sections or wire when using the Condux Break-Away Swivel. Condux Break-Away DDrill® Swivels are designed for use when directional drilling; however, they may be used in other applications where the swivel, product and pulling medium are segregated from personnel and a break would remain contained (a pipe or bore hole).
Condux 08022100 Includes
- (1) 1 3/8" 5,500 lbs Break-Away Swivel for Directional Drilling
Condux 08022100 Features
- Seven different diameter swivels are available to accommodate various pulling needs
- Break loads range from 1,200 lbs. (5,338 N) to 40,000 lbs. (111,250 N) and are designed to separate at +8/-2% of their rated break load
- D.Drill Swivels come with a 90 day limited warranty
- U.S. Patent No. 4,687,365
Condux 08022100 Specifications
| Part Number | 08022100 |
| Break Load | 5,500 lbs (24,464 N) |
| Replacement Pin | 08022105 |
| Color | Brown/Green |
