Description
Description
Condux 08080912 Description
Designed specifically for underground and overhead cable pulling applications. Can handle all types of utility cables. Precision machined from high-strength stainless steel. Clevis pin is easily replaceable. CAUTION: 808 Champion Swivels are to be used for cable stringing or pulling only. 808 Champion Swivels are not to be used for directional drilling. NOTE: Swivels are not designed to run around bullwheels. Always verify that the swivel size is sized to the pulling harness or grip prior to ordering. Not Designed for Directional Drilling.
Condux 08080912 Includes

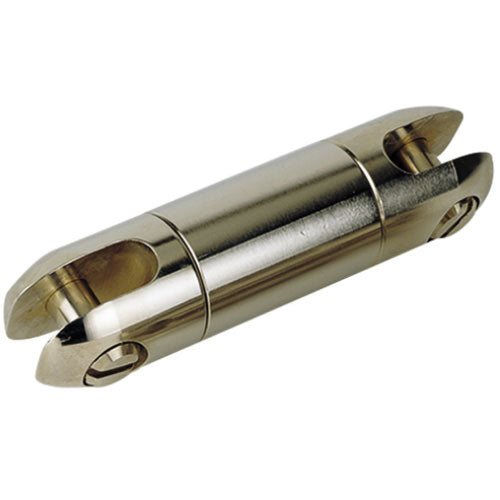

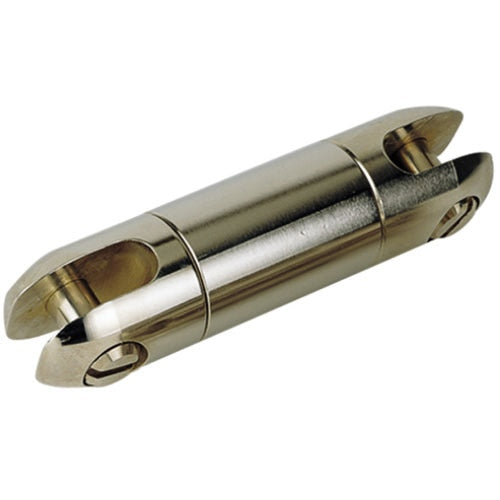

- (1) 1-1/4" x 5000 lbs Working Load 808 Champion Swivel
Condux 08080912 Specifications
| Part Number | 08080912 |
| Underground - Working Load | 5,000 lbs (22,241 N) |
| Aerial - Working Load | 3,000 lbs (13,344 N) |

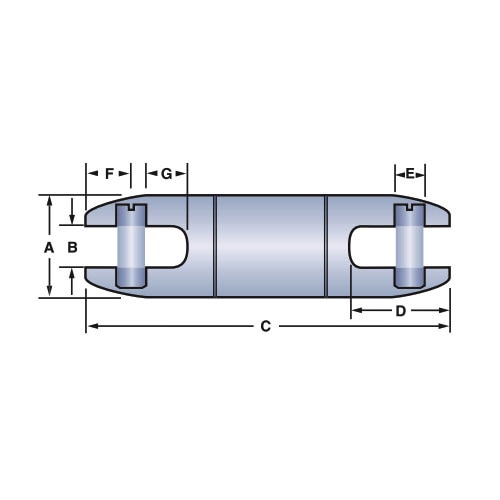

| Dimension (A) | 1-1/4 in. (32 mm) |
| Dimension (B) | .56 in. (14 mm) |
| Dimension (C) | 5.44 in. (138 mm) |
| Dimension (D) | 1.34 in. (34 mm) |
| Dimension (E) | .37 in. (9 mm) |
| Dimension (F) | .59 in. (15 mm) |
| Dimension (G) | .565 in. (14 mm) |
| Replacement Part Number, Slotted Pin | 08081046 |
Toolup Part # :
91372
