Condux | SKU:
08080916

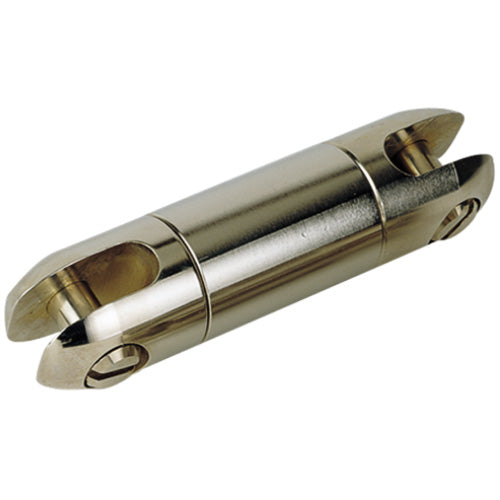

Condux 08080916 1.625" x 10,000 lbs 808 Champion Swivel
Free Shipping
$374.49
Unit price
/
Unavailable
Description
Description
Condux 08080916 Description
Designed specifically for underground and overhead cable pulling applications. Can handle all types of utility cables. Precision machined from high-strength stainless steel. Clevis pin is easily replaceable. CAUTION: 808 Champion Swivels are to be used for cable stringing or pulling only. 808 Champion Swivels are not to be used for directional drilling. NOTE: Swivels are not designed to run around bullwheels. Always verify that the swivel size is sized to the pulling harness or grip prior to ordering.
Condux 08080916 Includes
- (1) 1.625" x 10,000 lbs 808 Champion Swivel
Condux 08080916 Features
- Designed specifically for underground and overhead cable pulling applications
- Can handle all types of utility cables
- Precision machined from high-strength stainless steel
- Clevis pin is easily replaceable
Condux 08080916 Specifications
| Part Number | 08080916 |
| Underground - Working Load | 10,000 lbs (44,482 N) |
| Aerial - Working Load | 6,000 lbs (26,689 N) |

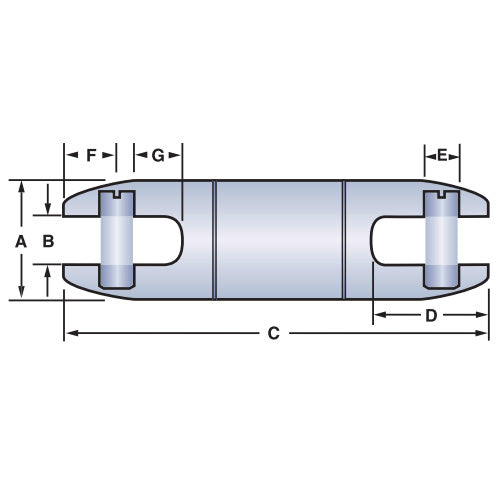

| A | 1-5/8 in. (41 mm) |
| B | .63 in. (16 mm) |
| C | 6.51 in. (165 mm) |
| D | 1.59 in. (40 mm) |
| E | .56 in. (14 mm) |
| F | .78 in. (20 mm) |
| G | .530 in. (13 mm) |
| Replacement Part Number, Slotted Pin | 08081026 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
