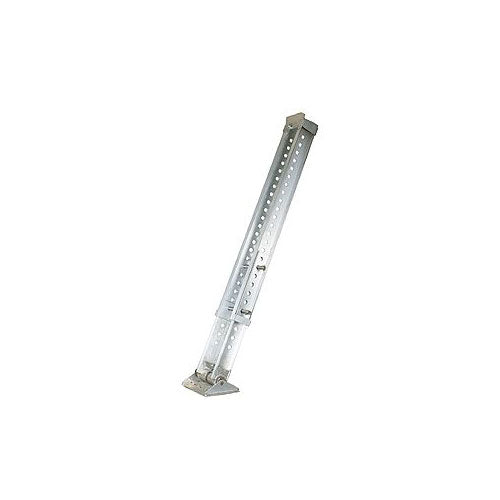

Condux 08097001 Jamb Skid Extension, 10000 lbs Capacity, 43"
Description
Description
Condux 08097001 Description
The Condux Jamb Skid is a device for supporting sheaves or quadrant blocks inside a manhole to pull cable into underground conduit. By positioning the top of the jamb skid against the underside of the manhole opening, and using the camlock foot pedal, set-up can be done in a fraction of the time it takes to install a hanging sheave assembly. Pulling tension actually increases the stability of the Jamb Skid during the pull. No dangerous breakage of chains or straps. The Jamb Skid is especially useful when there are no pulling-in irons available, or when the existing irons do not align correctly with the duct opening. The Jamb Skid can be placed anywhere within a 360 radius inside the manhole.
Condux 08097001 Includes
- (1) Jamb Skid Extension, 10000 lbs Capacity, 43"
Condux 08097001 Specifications
| Type | Jamb Skid Extension |
| Capacity | 10000 lb |
| Materials | Solid Aluminum |
| Tool Application | Cable Pulling |
| For Use With | Cable Pulling Tool |
| Manhole Height Range | 63" - 80" |
