Condux 08190016 1-5/8" x 8,500 lbs 819 Directional Drilling Swivel
Description
Description
Condux 08190016 Description

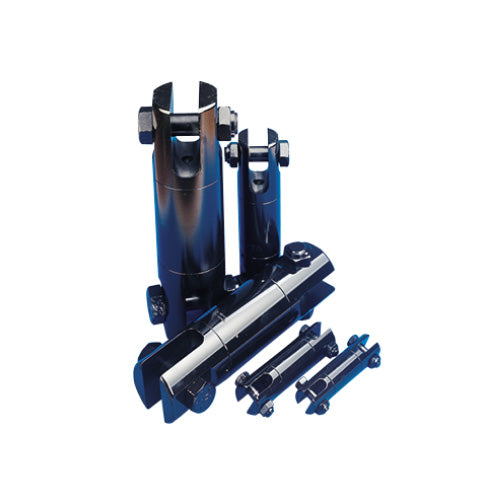

Designed specifically for directional drilling, the Condux 819 D.Drill Swivels prevent boring equipments’ rotational torque from interfering with the product (cable or conduit) being pulled. The D.Drill Swivels are greasable and double sealed to keep contaminants out. Clevis pins with hex nuts allow for installation and removal from either side of the swivel. There is a 90 day warranty on the directional drill swivels. CAUTION: To be used for directional drilling only. CAUTION: Condux requires the use of a calcium based lubricant only. Other lubricants may have adverse reactions when exposed to bentonite products. Condux requires that the swivels be flushed with grease after each use to purge any contaminants that may have penetrated past the seals into the swivel while boring.
Condux 08190016 Includes
- (1) 1-5/8" x 8,500 lbs 819 Directional Drilling Swivel
Condux 08190016 Features
- Designed specifically for directional drilling
- D.Drill Swivels are greasable and double sealed
- Clevis pins with hex
- 90 Days Warranty
- U.S. Patent No. 5,607,248
Condux 08190016 Specifications
| Part Number | 08190016 |
| Tension - Working Load | 8,500 lbs (37,808 N) |
| Compression - Working Load | 2,800 lbs (12,454 N) |

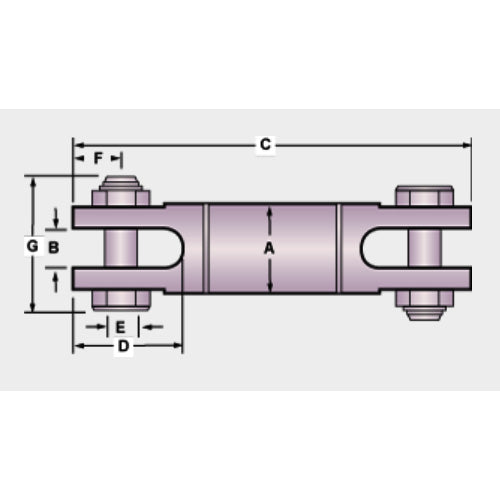

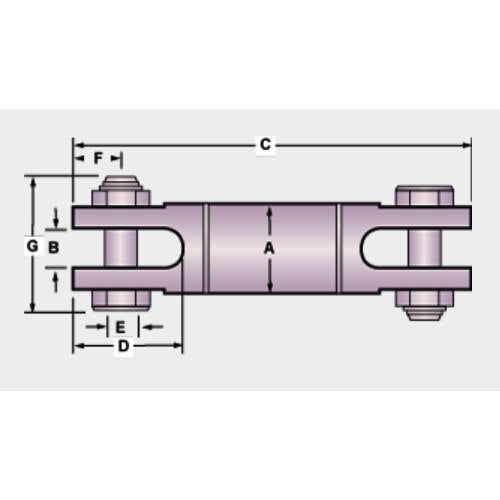

| A | 1-5/8 in. (41 mm) |
| B | .63 in. (16 mm) |
| C | 6.85 in. (174 mm) |
| D | 1.59 in. (40 mm) |
| E | .56 in. (14 mm) |
| F | .78 in. (20 mm) |
| G | 2.36 in. (60 mm) |
| Replacement Part, Clevis Pin | 08190104 |
| Replacement Part, Locking Nut | 02250500 |
| PE/PVC Part Number | 08220600 - 08220603 |
| PE/PVC Size in. (mm) | 1-1/4 (32), 1-1/2 (38), 2-1/4 (57), 2-1/2 (63), 3 (76) |
