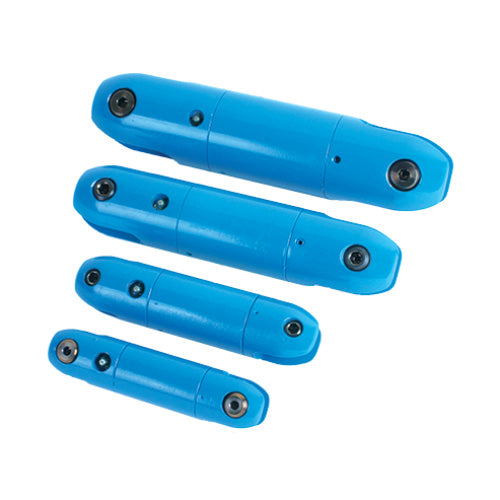

Condux 08190416 8500 lbs 400 D.Drill Directional Drilling Swivel
Description
Description
Condux 08190416 Description
Designed specifically for directional drilling, the Condux 400 D.Drill Swivels prevent boring equipments’ rotational torque from interfering with the product (cable or conduit) being pulled. The D.Drill Swivels are greasable and double sealed to keep contaminants out. Condux Directional Drilling Swivels feature a 90 day warranty. CAUTION: To be used for directional drilling and underground cable installation only. CAUTION: Condux requires the use of a calcium based lubricant only. Other lubricants may have adverse reactions when exposed to bentonite products. Condux requires that the swivels be greased after each use to purge any contaminants that may have penetrated past the seals into the swivel while boring.
Condux 08190416 Includes
- (1) 8500 lbs 400 D.Drill Directional Drilling Swivel
Condux 08190416 Features
- Designed specifically for directional drilling
- D.Drill Swivels are greasable and double sealed
- 90 Days Warranty
Condux 08190416 Specifications
| Part Number | 08190416 |
| Tension - Working Load | 8,500 lbs (37,808 N) |
| Compression - Working Load | 2,800 lbs (12,454 N) |

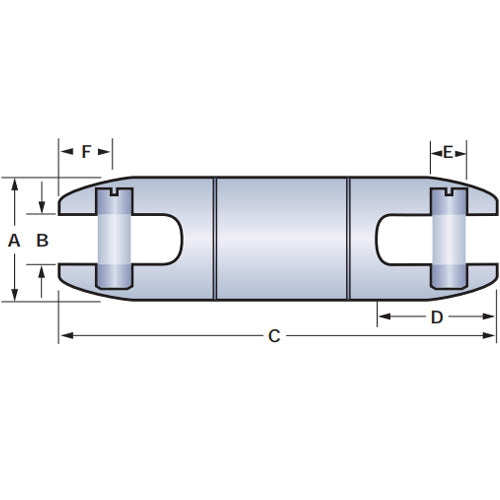

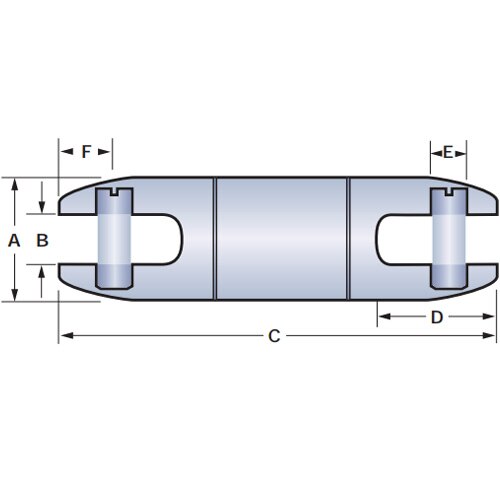

| A | 1-5/8 in. (41 mm) |
| B | .63 in. (16 mm) |
| C | 7.22 in. (183 mm) |
| D | 1.59 in. (40 mm) |
| E | .56 in. (14 mm) |
| F | .78 in. (19 mm) |
| Replacement Part, Clevis Pin | 21000381 |
