Condux 08210007 Description

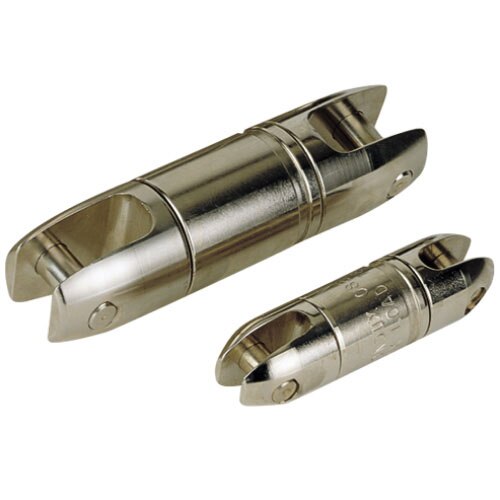

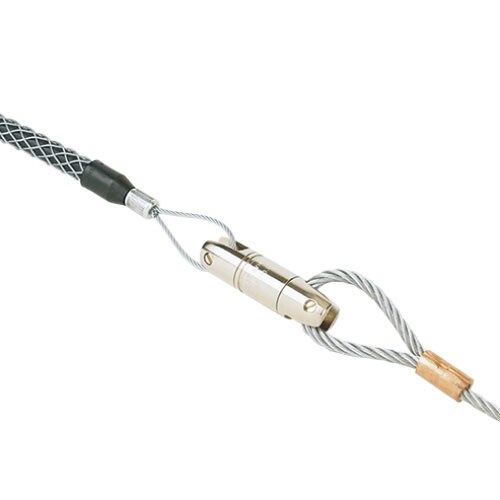

Designed to meet common dimensional specifications, the 821 Champion Swivels are designed for underground and overhead cable pulling applications and can handle all types of utility cable. Precision machined stainless steel. Clevis pin is easily replaceable.
Condux 08210007 Includes
- (1) 7/8" x 1800 lbs Working Load 821 Champion Swivel
Condux 08210007 Specifications
| Part Number | 08210007 |
| Underground - Working Load | 1800 lbs (8006 N) |
| Aerial - Working Load | 1080 lbs (4804 N) |

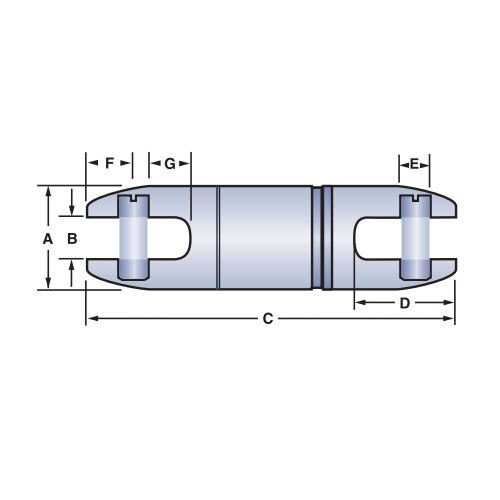

| Dimension (A) | 0.875 in. (22 mm) |
| Dimension (B) | 0.31 in. (8 mm) |
| Dimension (C) | 3.09 in. (78 mm) |
| Dimension (D) | 0.84 in. (21 mm) |
| Dimension (E) | 0.31 in. (8 mm) |
| Dimension (F) | 0.38 in. (10 mm) |
| Dimension (G) | 0.305 in. (8 mm) |
| Replacement Part Number, Slotted Pin | 08210105 |
Toolup Part # :
91666
