Condux | SKU:
08210012
Condux 08210012 1 1/4" x 4000 lbs Working Load 821 Champion Swivel
Free Shipping
$370.99
Unit price
/
Unavailable
Description
Description
Condux 08210012 Description

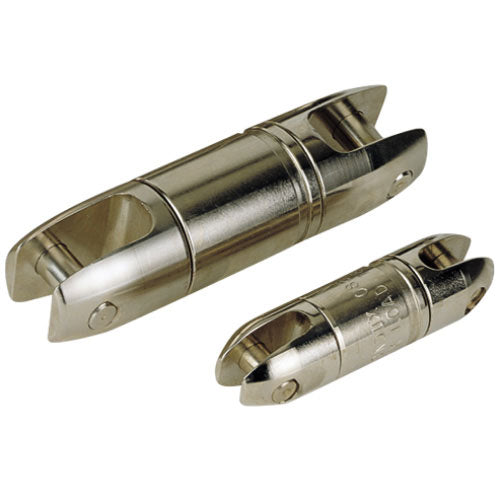

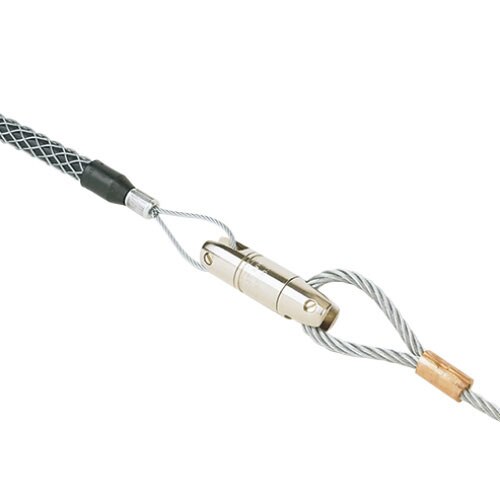

Designed to meet common dimensional specifications, the 821 Champion Swivels are designed for underground and overhead cable pulling applications and can handle all types of utility cable. Precision machined stainless steel. Clevis pin is easily replaceable.
Condux 08210012 Includes
- (1) 1 1/4" x 4000 lbs Working Load 821 Champion Swivel
Condux 08210012 Specifications
| Part Number | 08210012 |
| Underground - Working Load | 4000 lbs (17792 N) |
| Aerial - Working Load | 2400 lbs (10675 N) |

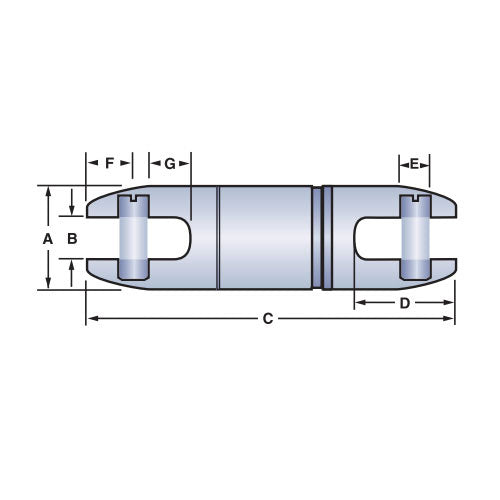

| Dimension (A) | 1.25 in. (32 mm) |
| Dimension (B) | 0.59 in. (15 mm) |
| Dimension (C) | 4.52 in. (115 mm) |
| Dimension (D) | 1.22 in. (31 mm) |
| Dimension (E) | 0.38 in. (10 mm) |
| Dimension (F) | 0.44 in. (11 mm) |
| Dimension (G) | 0.41 in. (10 mm) |
| Replacement Part Number, Slotted Pin | 08210115 |
