Condux | SKU:
08210018

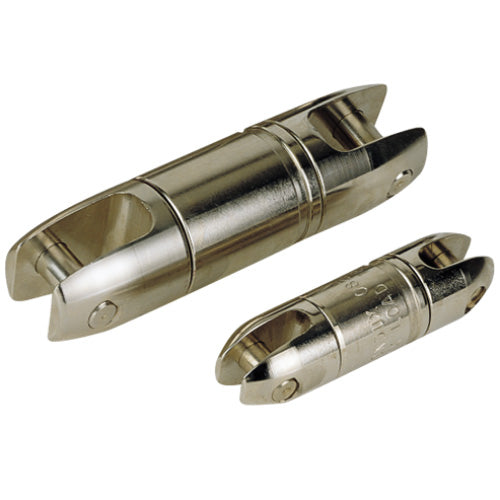

Condux 08210018 1.87" x 10,000 lbs Underground 821 Champion Swivel
Free Shipping
$617.99
Unit price
/
Unavailable
Description
Description
Condux 08210018 Description

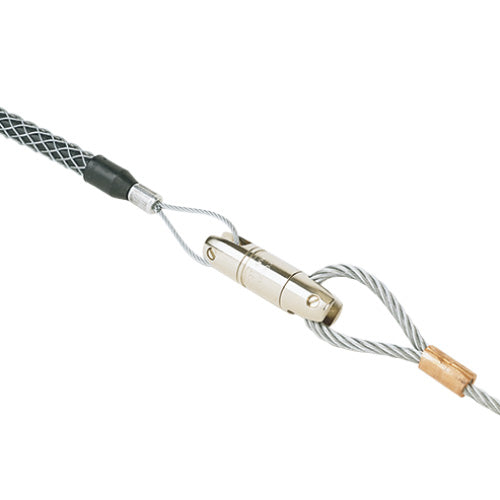

Designed to meet common dimensional specifications, the 821 Champion Swivels are designed for underground and overhead cable pulling applications and can handle all types of utility cable. Precision machined stainless steel. Clevis pin is easily replaceable. CAUTION: To be used for cable stringing or pulling only. NOTE: Swivels are not designed to run around bullwheels.
Condux 08210018 Includes
- (1) 1.87" x 10,000 lbs Underground 821 Champion Swivel
Condux 08210018 Specifications

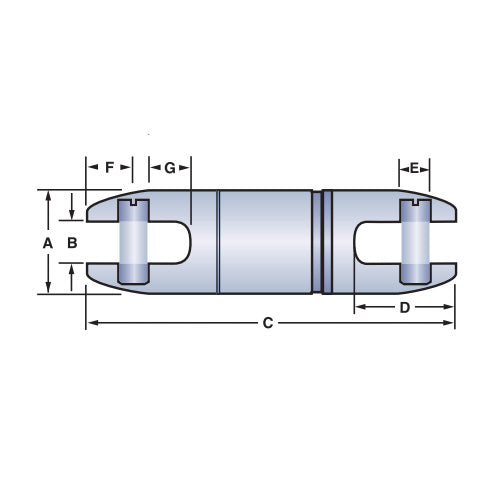

| Part Number | 08210018 |
| Material | Stainless Steel |
| *Underground - Working Load | 10000 lbs (44480 N) |
| ** Aerial - Working Load | 6000 lbs (26689 N) |
| A | 1.875" (48 mm) |
| B | 0.75" (19 mm) |
| C | 7.06" (179 mm) |
| D | 1.88" (48 mm) |
| E | 0.63" (16 mm) |
| F | 0.81" (21 mm) |
| G | 0.755" (19 mm) |
| Replacement Part Number, Slotted Pin | 08210135 |
